PSG T-type running roller for rail sliding gate ⌀68 mm
Description

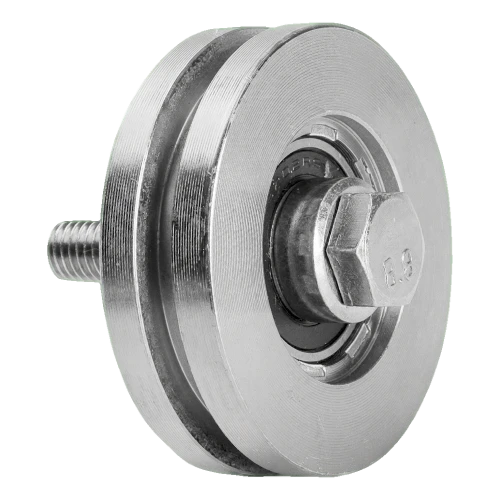

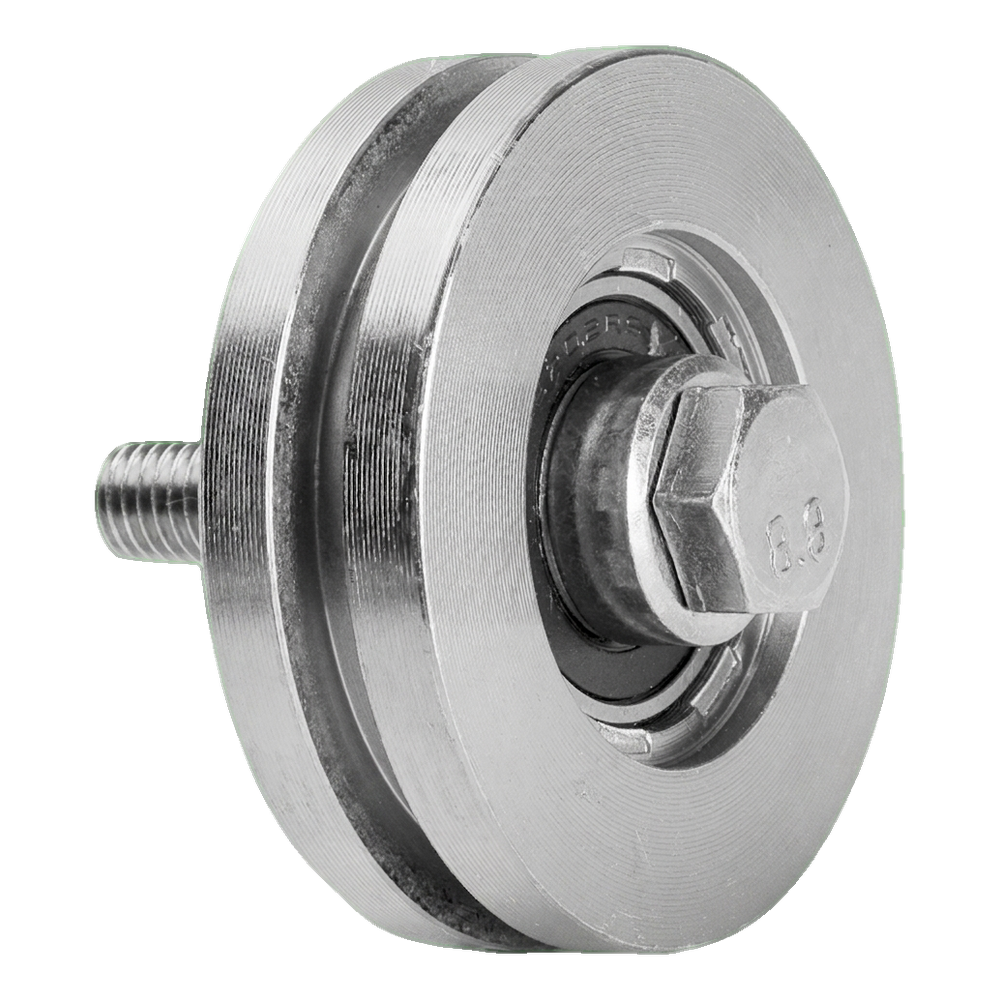

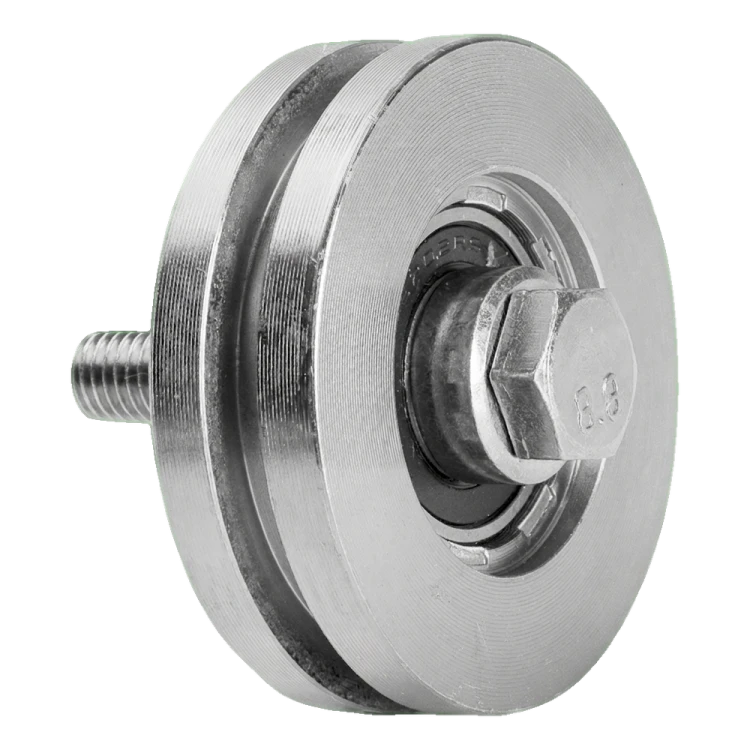

PSG T-type running roller for rail sliding gate ⌀68 mm
T-type running roller designed for sliding gates moving along a rail (T-section) mounted at ground level or for suspended gates. Galvanised construction with M10 mounting bolt included ensures quick installation and high corrosion resistance — ideal solution for professional gate installations exposed to weather conditions.
The roller works with T-section rails with flange width 6 mm and carries loads up to 150 kg, allowing its use in medium and heavy sliding gates. Thanks to its compact design (⌀68 × 20 mm) and low weight (0.5 kg) it is easy to store and transport to site.

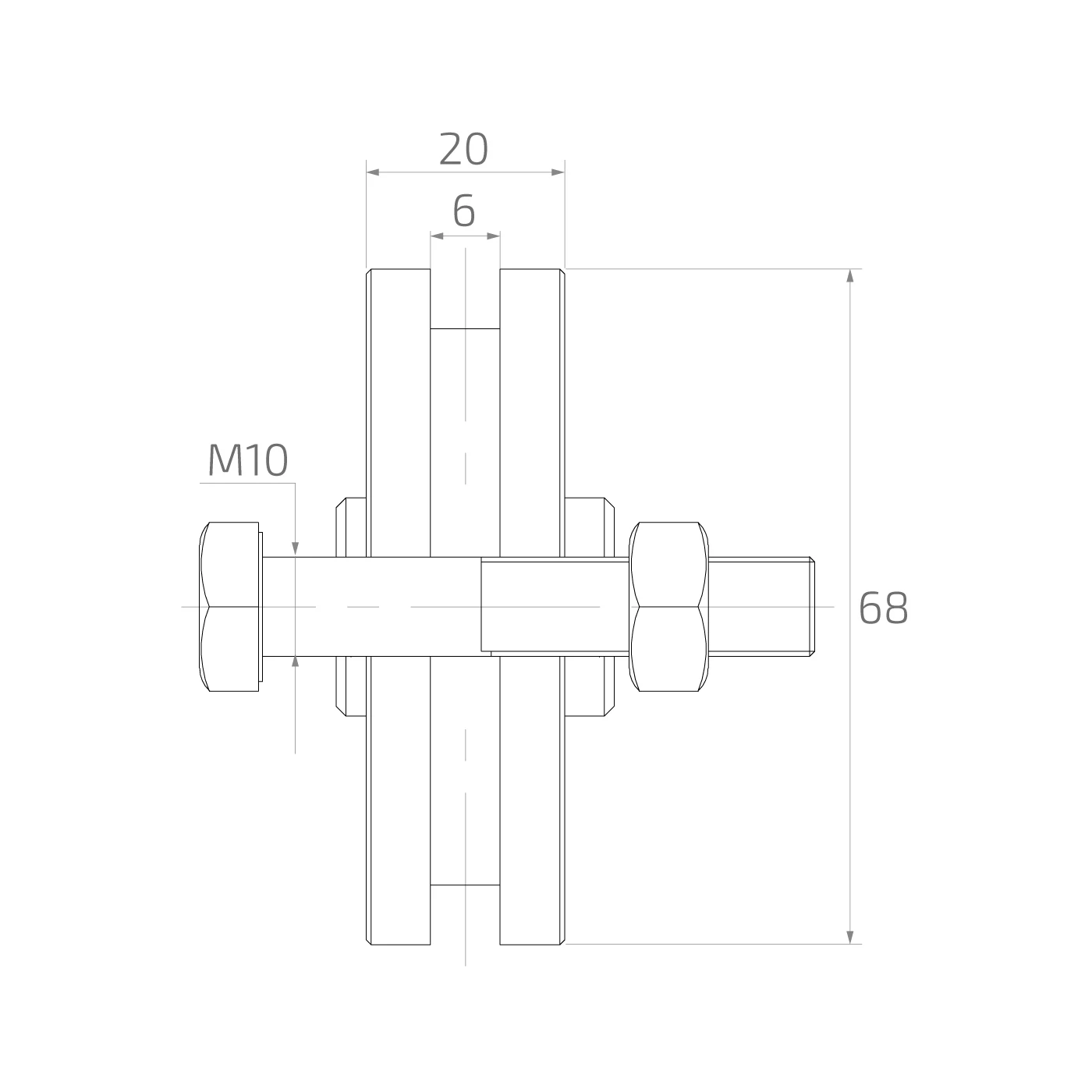

Dimensions and technical data
- Roller type: 'T' – for T-section rail
- Roller diameter: 68 mm
- Roller width: 20 mm
- Guide groove width: 6 mm
- Mounting bolt thread: M10
- Permissible load: 150 kg
- Material: galvanised steel
- Bolt grade: 8.8
- Weight: 0.5 kg
- Manufacturer: PSG
- EAN: 5901289675345
Application
The roller is designed for use with T-section rails mounted in the ground — it is the basic running element for rail sliding gates. It can also be used in suspended gates where the leaf is guided along the upper rail. The T-shaped groove 6 mm wide ensures secure guidance on the T-section foot and eliminates lateral deviation of the gate leaf during movement.
