PSG T-type running roller ø 68 mm for rail sliding gate
Description

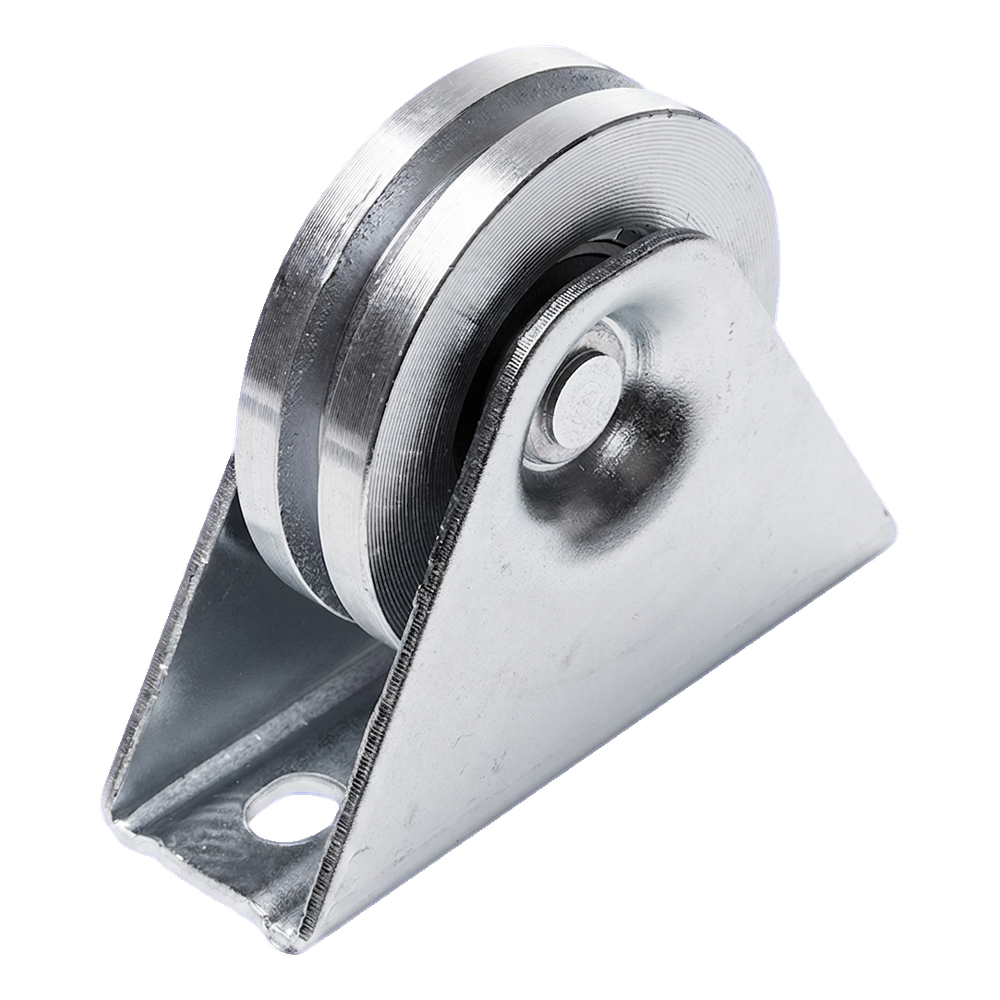

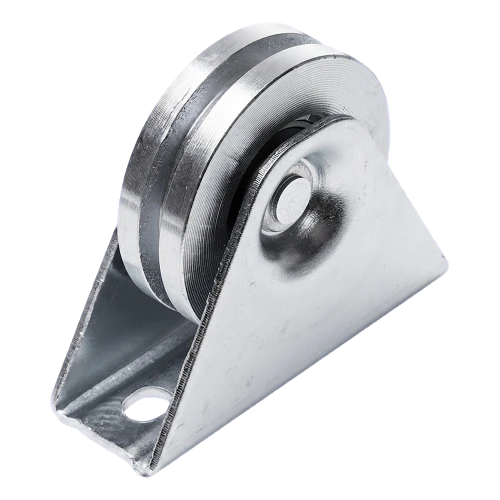

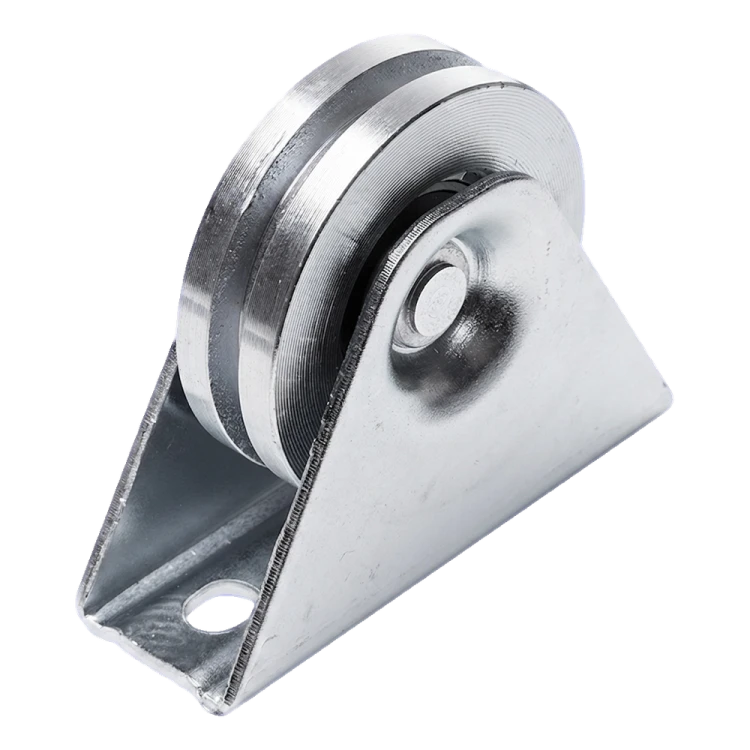

PSG T-type running roller ø 68 mm for rail sliding gate
Steel T-type running roller designed for rail sliding gates guided on T-beam. Galvanised surface provides durable anti-corrosion protection, ensuring the component maintains full functionality even in demanding atmospheric conditions. The set includes mounting bolt and base with holes, allowing for quick and trouble-free installation without the need to source additional accessories.
The roller is designed to work with T-beam rail — the T-shaped groove profile guarantees secure gate leaf guidance and stable operation along the entire running track length. Maximum load capacity of 150 kg makes it suitable for both single-leaf gates and lighter double-leaf gates in perimeter fencing installations.
Technical Parameters
- Manufacturer: PSG
- Type: "T" running roller (for T-beam)

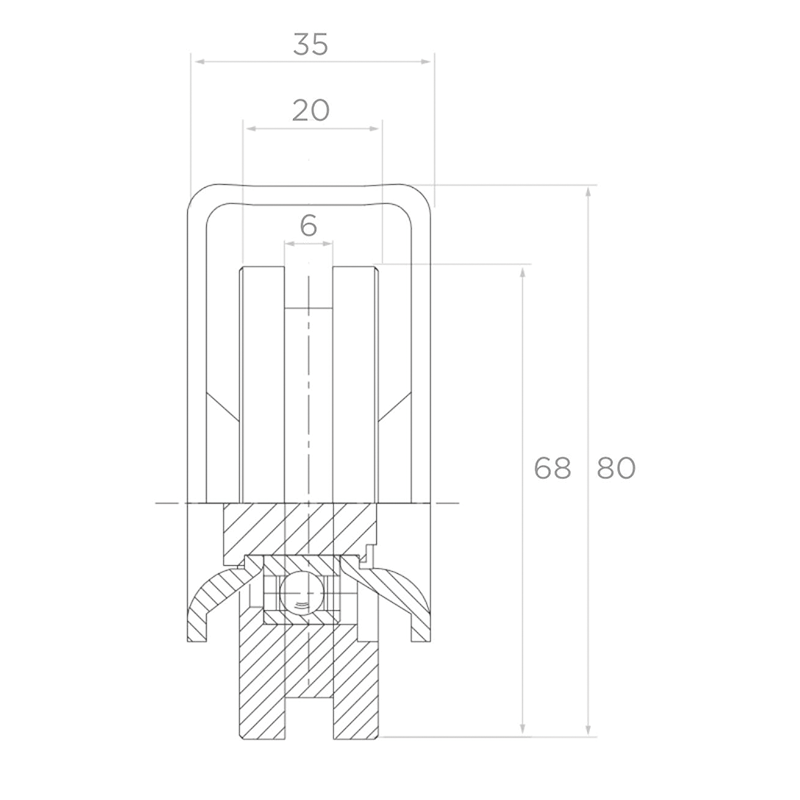

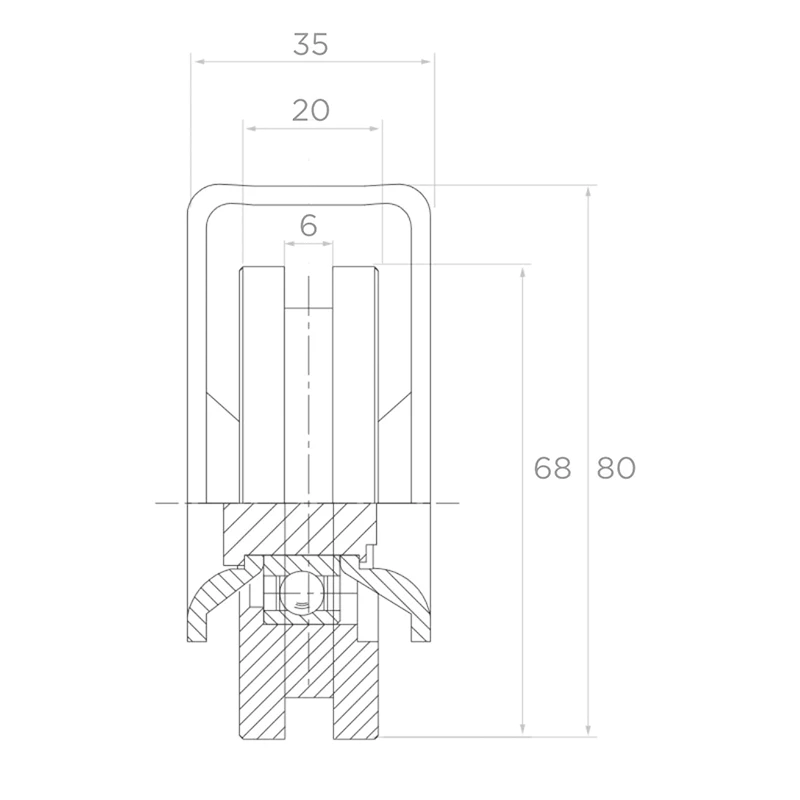

- Roller diameter (ø): 68 mm
- Groove width: 6 mm
- Total height (H): 80 mm
- Bracket external width: 35 mm
- Bracket internal width: 20 mm
- Maximum load: 150 kg
- Material: galvanised steel
- Weight: 0.6 kg
- Included: mounting bolt + base with mounting holes
- EAN: 5901289675352
Application
The roller is designed for installation in rail sliding gates, where the gate leaf moves along a T-beam rail embedded in the ground. The T-type groove profile ensures precise alignment with the guide rail and minimises rolling resistance, resulting in quiet and smooth gate operation. The component performs excellently in perimeter fencing installations — both in residential construction and industrial facilities.
