PSG Riding Roller 80 with End Cap for Self-Supporting Sliding Gate
Description
PSG Riding Roller 80 with End Cap for Self-Supporting Sliding Gate

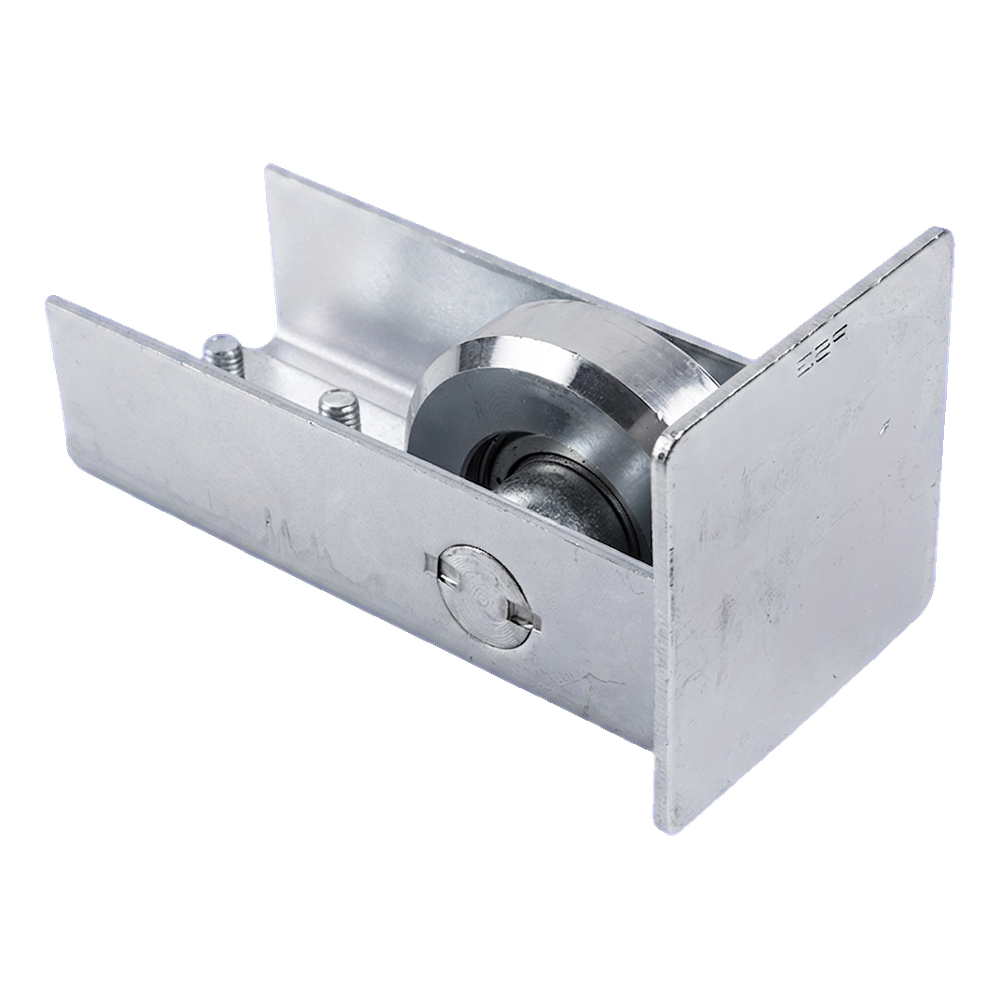

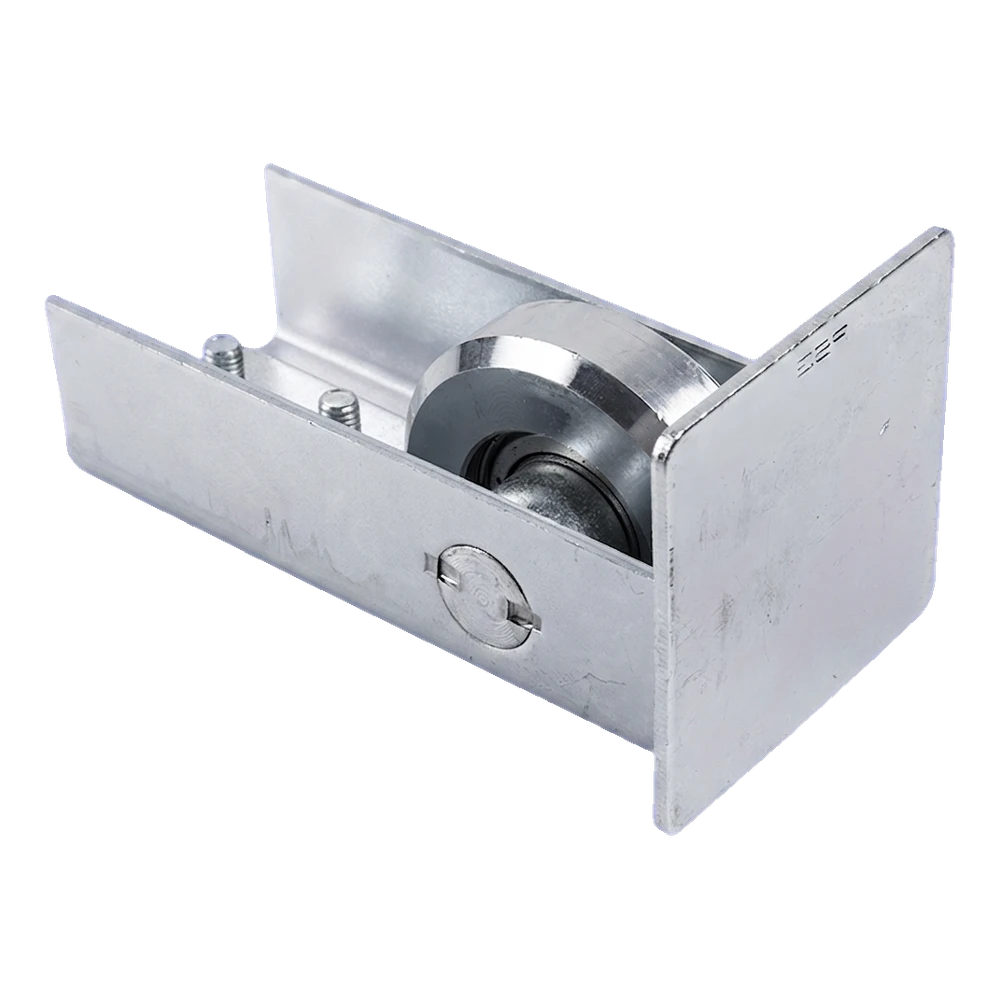

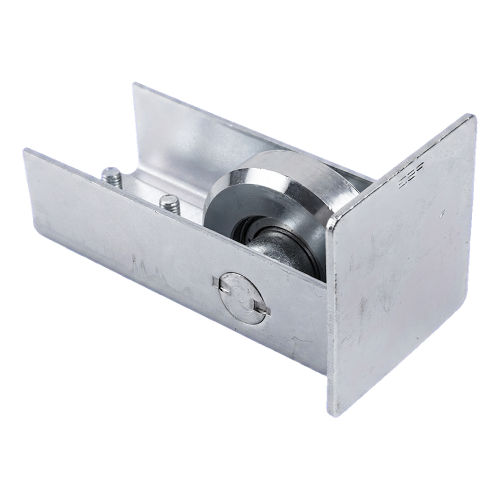

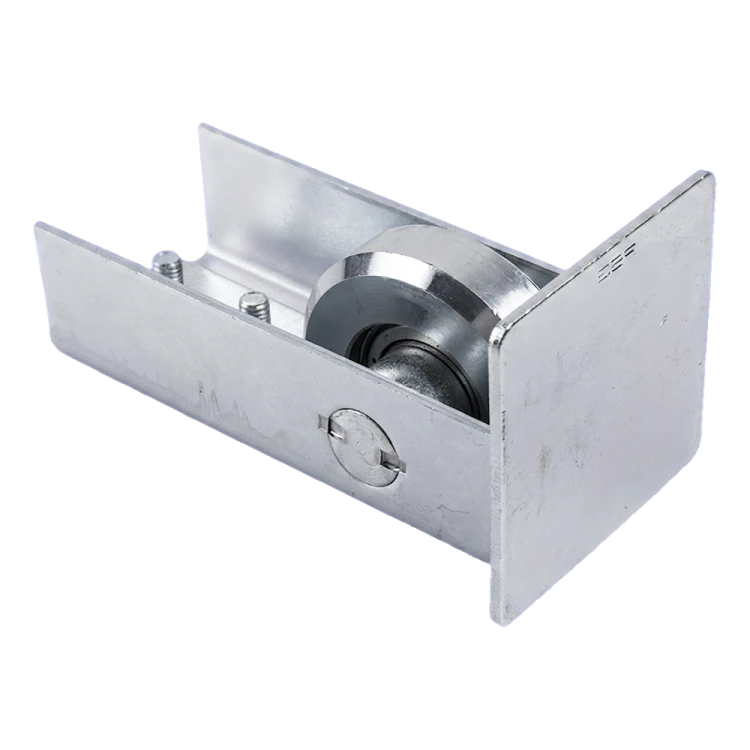

Riding roller with end cap is a steel, galvanised component mounted at the beginning of the self-supporting sliding gate rail. Its purpose is to cooperate with the riding bracket mounted to the post — when the gate closes, the roller enters the bracket, which distributes the weight of the leaf across more support points and effectively stabilises the gate in the closed position.
Use of the riding roller significantly extends the service life of gate carriages because it relieves them in the closed position. An additional advantage is the built-in end cap, which protects the interior of the guide rail from snow, ice and contamination — particularly important in winter operating conditions. The set includes mounting bolts, which speeds up installation and eliminates the need to select hardware.

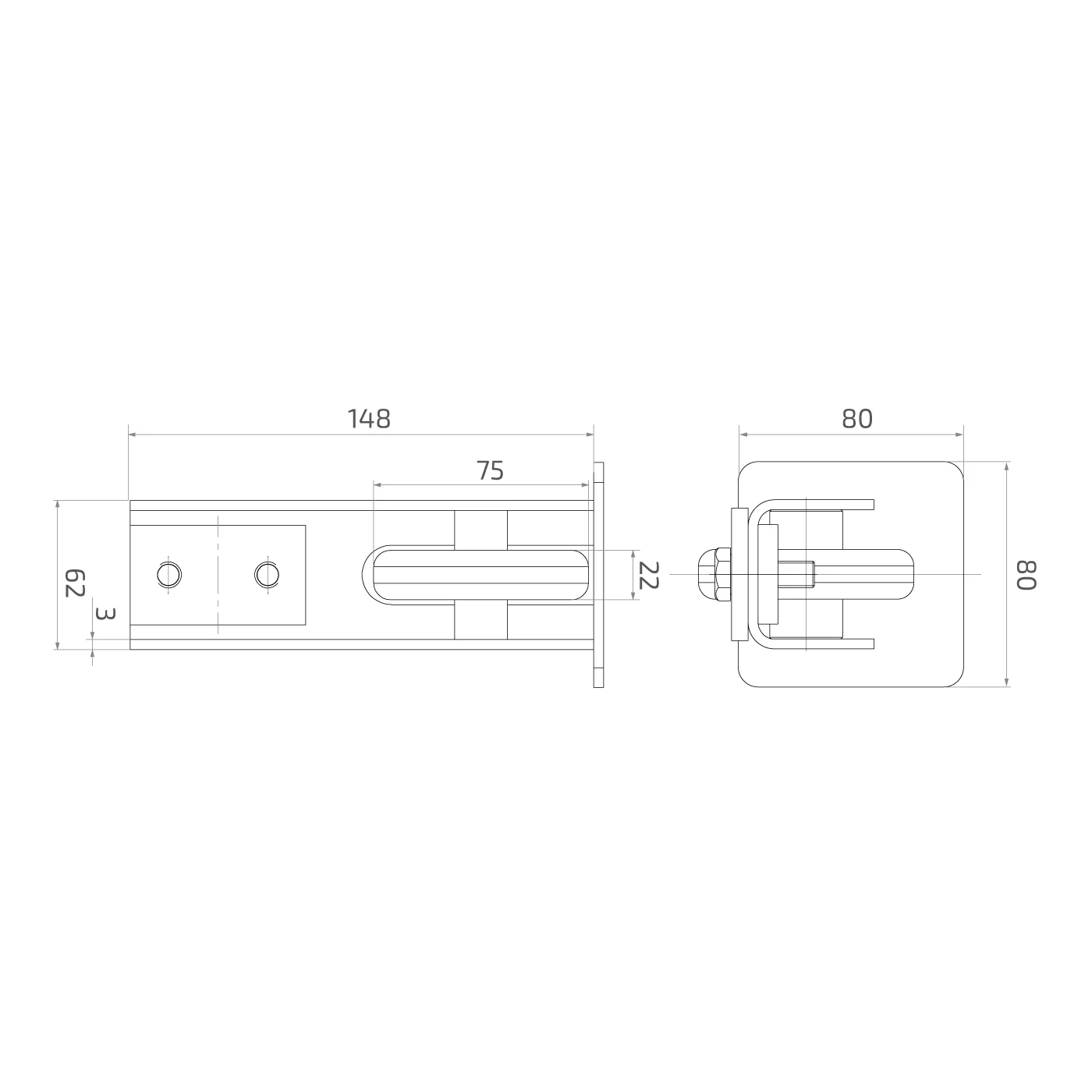

Dimensions and technical data
- Manufacturer: PSG
- Total length (L): 148 mm
- Height (H): 80 mm
- End cap width: 80 × 80 mm
- Insert profile width: 62 mm
- Roller cutout length: 75 mm
- Roller width: 22 mm
- Profile wall thickness: 3 mm
- Compatibility: guide rail 80 × 80 × 5 mm
- Material: galvanised steel
- Weight: 1.4 kg
- Included: mounting bolts
- EAN: 5901289674805
Application
The riding roller is designed for mounting at the beginning of the guide rail of self-supporting sliding gates with 80 × 80 × 5 mm profile. The component is essential in professional installations — it ensures leaf stability when closed, protects the drive mechanism from overload and safeguards the rail from weather conditions. The galvanised surface guarantees high corrosion resistance, allowing for years of trouble-free outdoor operation.
