PSG Gate drive-on roller with end cap 100×89 mm – for self-supporting sliding gates
Leave feedback on the product
PSG gate drive-on roller made of galvanised steel with end cap. Roller diameter Ø75 mm, width 22 mm, height 89 mm, total length 148 mm. Ball bearing. For 89×100×5 mm rail. Weight 1.46 kg. Front plate thickness 3 mm.
Product code: 001-285
Description
PSG Gate drive-on roller with end cap 100×89 mm – for self-supporting sliding gates
PSG drive-on roller with end cap is a steel, galvanised component mounted at the beginning of the self-supporting sliding gate rail. The roller enters the drive-on bracket attached to the post, allowing the gate weight to be distributed across more support points, keeping the gate leaf stable when closed. This solution significantly extends the lifespan of running carriages — reduced unit loading translates to lower servicing costs and less frequent component replacements.
The end cap (closure) provides additional protection for the rail interior against snow, ice and contamination, which is particularly important in winter conditions. The front plate with 3 mm thickness effectively shields the roller and guide profile, preventing mechanism freezing and reducing the need for rail cleaning after winter periods.
The drive-on roller fits rails with 89×100×5 mm cross-section. Mounting screws are included in the kit, allowing immediate installation without the need to source additional fastening components.

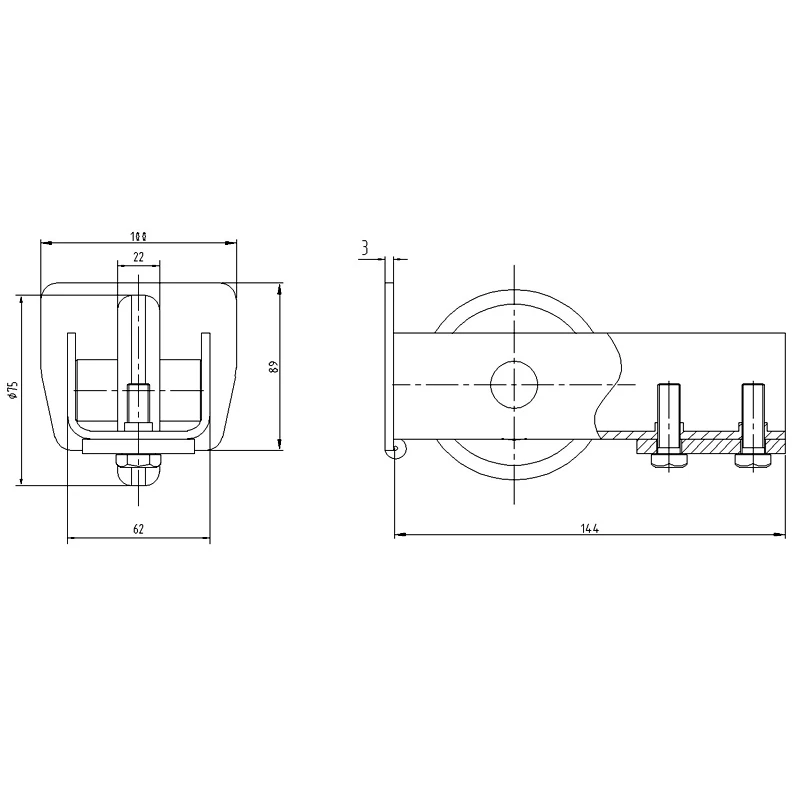

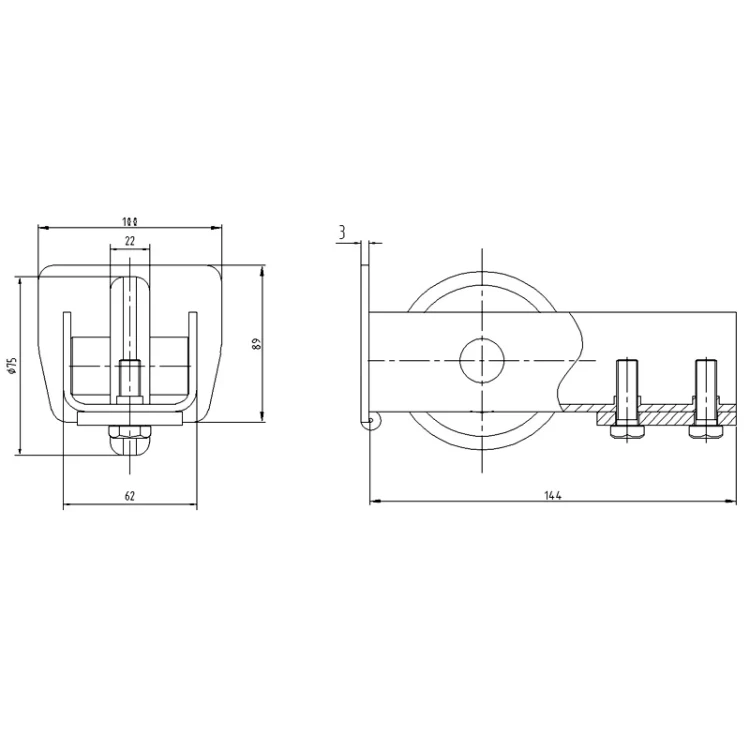

Dimensions and technical parameters
- Manufacturer: PSG
- Roller diameter: Ø75 mm
- Roller width: 22 mm
- Height (H): 89 mm
- Total length (L): 148 mm
- Mounting length: 144 mm
- Front plate width (end cap): 108 mm
- Front plate thickness: 3 mm
- Profile base width: 62 mm
- Compatible rail: 89×100×5 mm
- Material: galvanised steel
- Weight: 1.46 kg
- Bearing: ball bearing
- Kit includes: drive-on roller with end cap + mounting screws
- EAN: 5903313202039

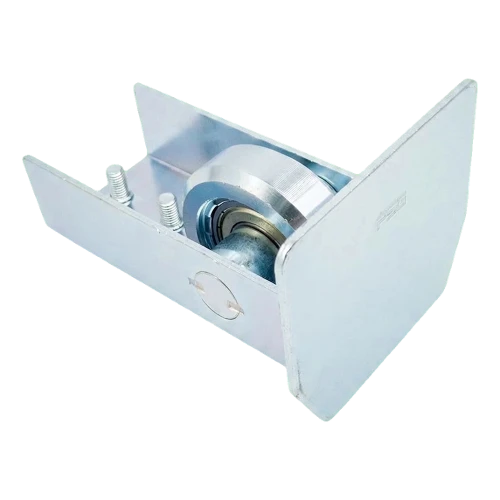

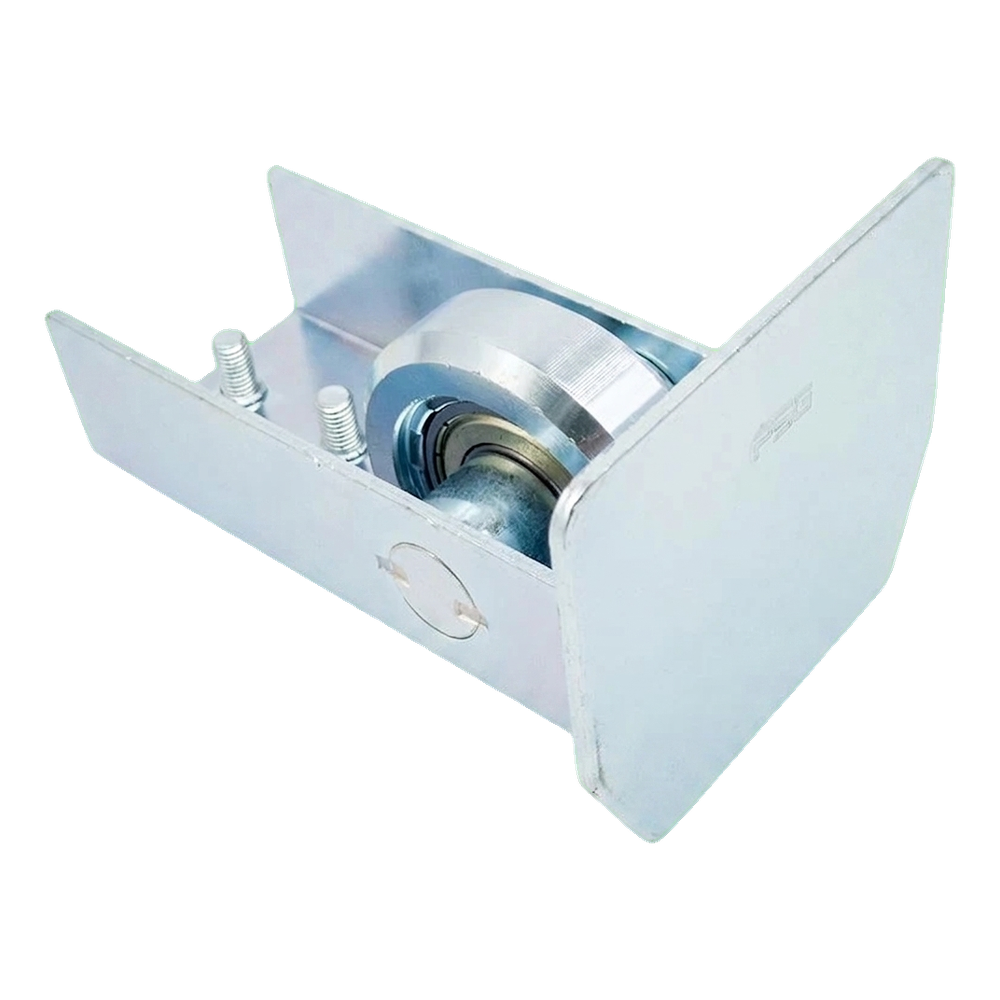

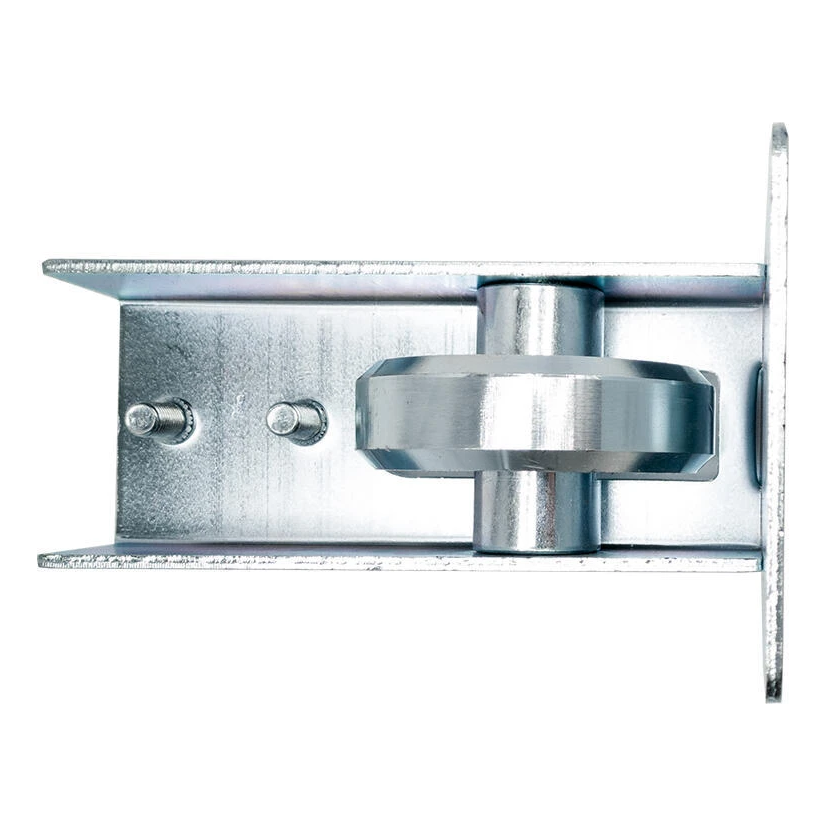

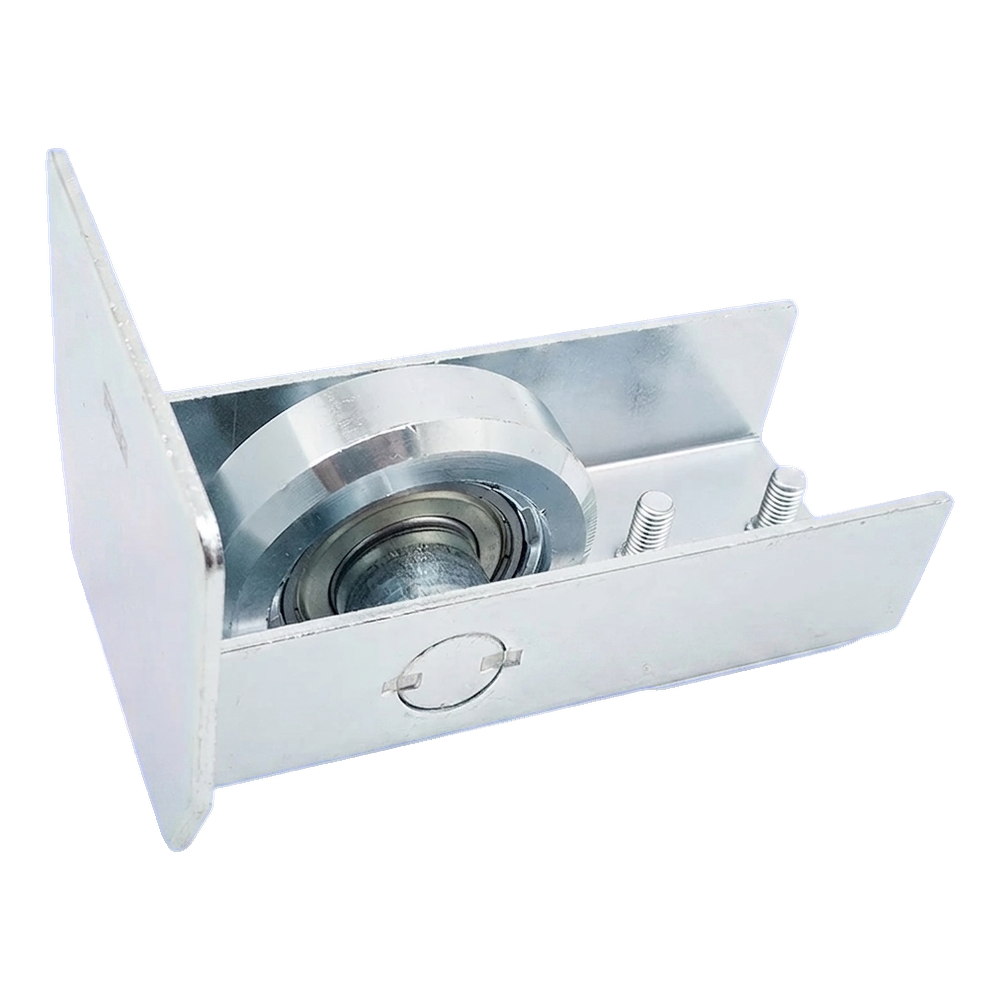

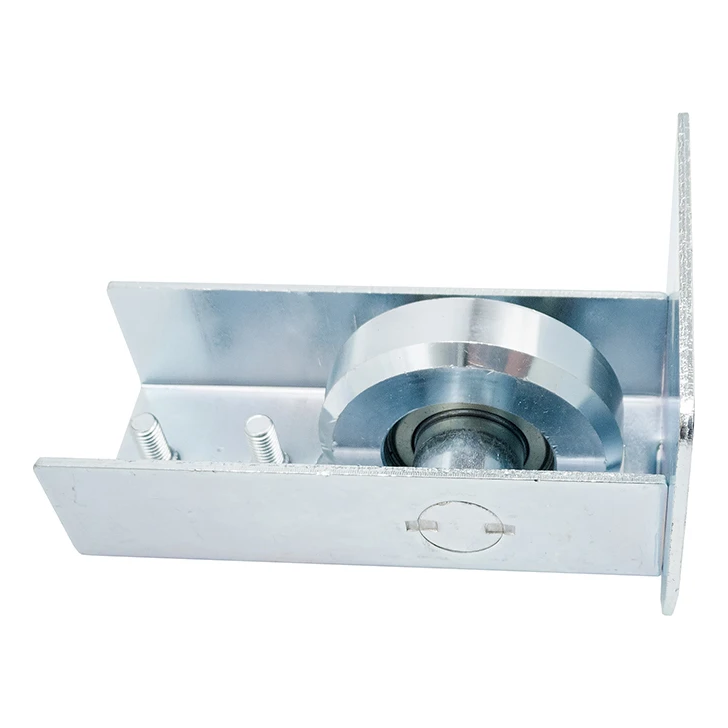

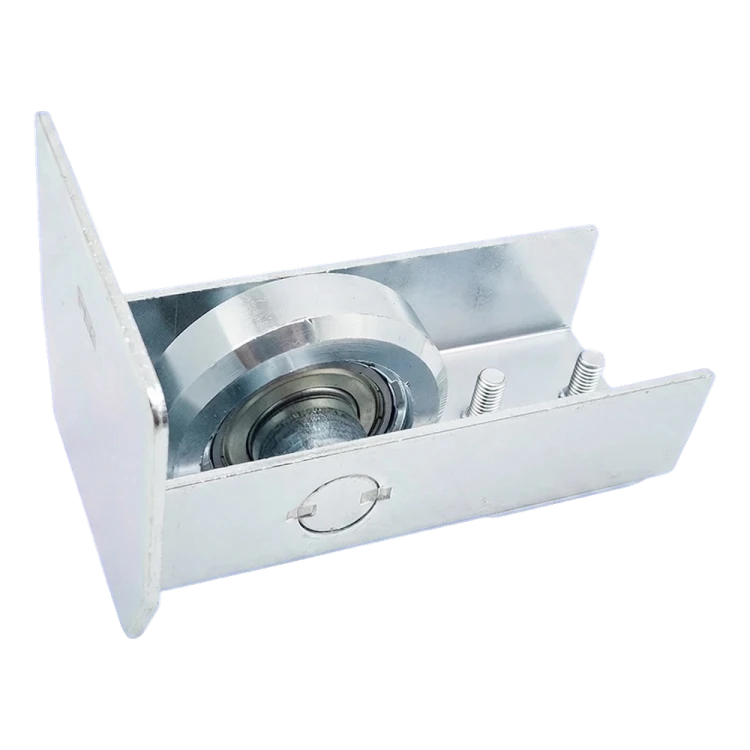

Product photos from different perspectives
