PSG Drive-on roller 60 with end cap for self-supporting sliding gate
Description
PSG Drive-on roller 60 with end cap for self-supporting sliding gate

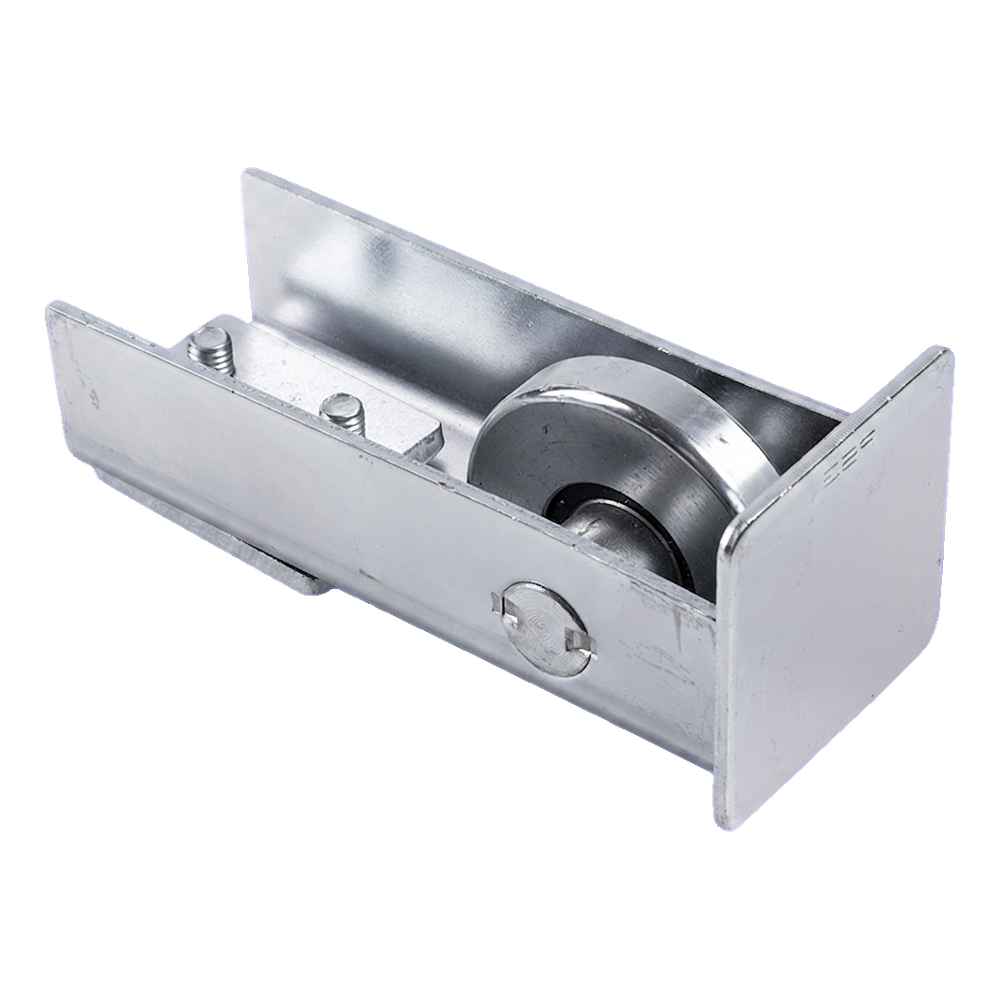

Drive-on roller 60 with end cap by PSG is a steel, galvanised component mounted at the beginning of the self-supporting sliding gate rail. When closing the gate, the roller drives into the drive-on bracket fixed to the post — this allows the weight of the leaf to be distributed across a greater number of support points, and the gate is stably secured in the closed position.
The use of the drive-on roller significantly extends the service life of the gate trolleys, relieving them when the leaf is stationary. Additionally, the steel end cap (front plate) serves as protection for the rail against snow, ice and contamination — which is particularly important in harsh weather conditions. Mounting bolts are included, allowing for quick installation without the need to source additional hardware.
Features and benefits
- Gate stabilisation in closed position — weight distribution across additional support point
- Extended service life of gate trolleys through relief when at rest
- End cap protects the interior of the rail from snow, ice and contamination
- Material: galvanised steel — high corrosion resistance
- Mounting bolts included — quick installation without additional hardware
- Compatibility with rail: 60 × 60 × 3 mm

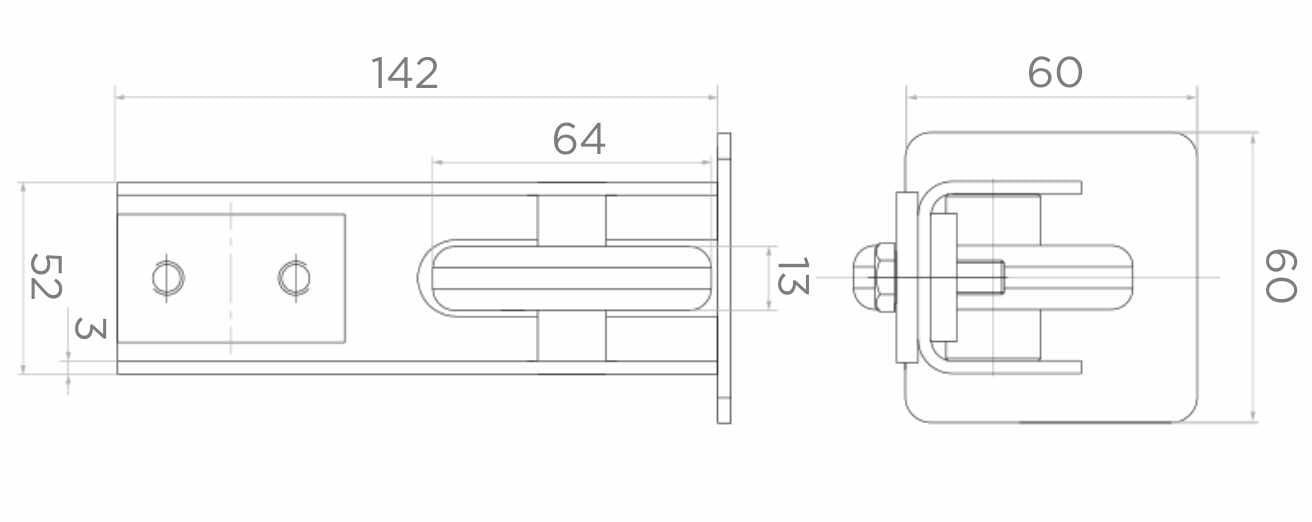

Dimensions and technical parameters
- Length of inserted profile: 142 mm
- Width of inserted profile: 52 mm
- Profile wall thickness: 3 mm
- Length of roller cut-out: 64 mm
- Roller width (rolling surface): 13 mm
- Front plate (end cap): 60 × 60 mm
- Fits rail: 60 × 60 × 3 mm
- Weight: 0.965 kg
- Manufacturer: PSG
- EAN: 5901289674782
