PINOX handrail end cap – closed round elbow 42.4 mm satin

Availability: In stock (large quantity)

Delivered within: 10 Business days

Delivery: The price does not include any possible payment costs check the delivery methods

Weight: 0.255 kg

Price / pcs.: £3.90 3.90

excl. shipping costs

quantity pcs.

Total:

product unavailable

add to wish list

Rating:

Vendor: PSG

Product code: 001-100

recommend to a friend

Description

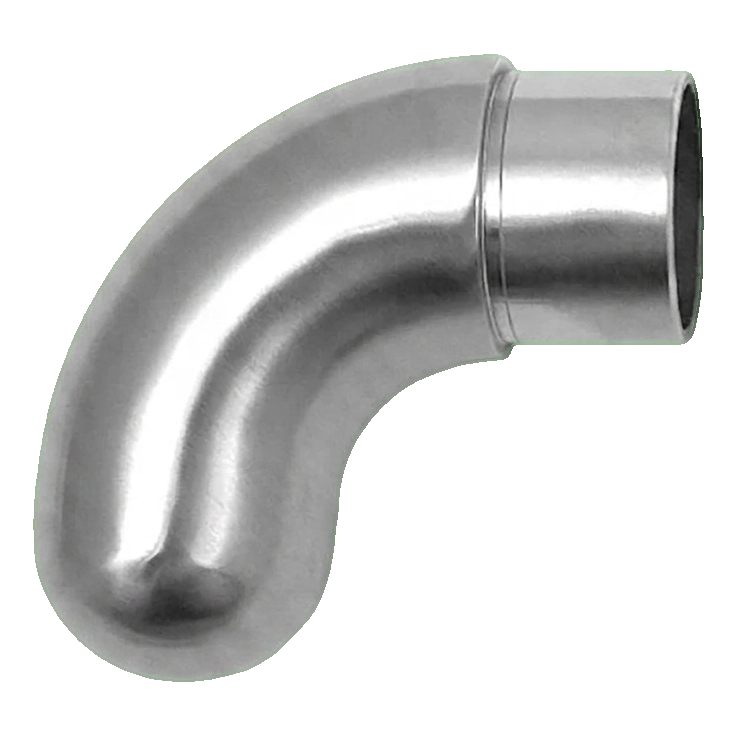

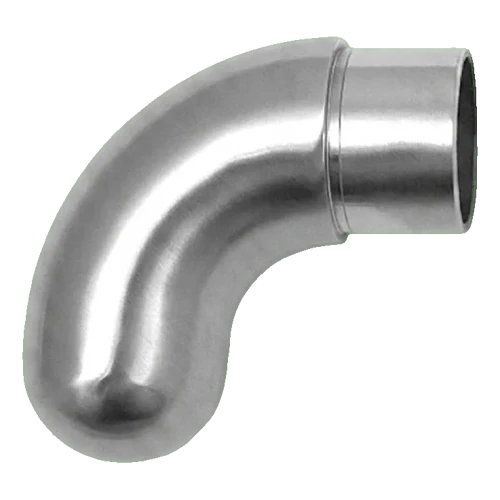

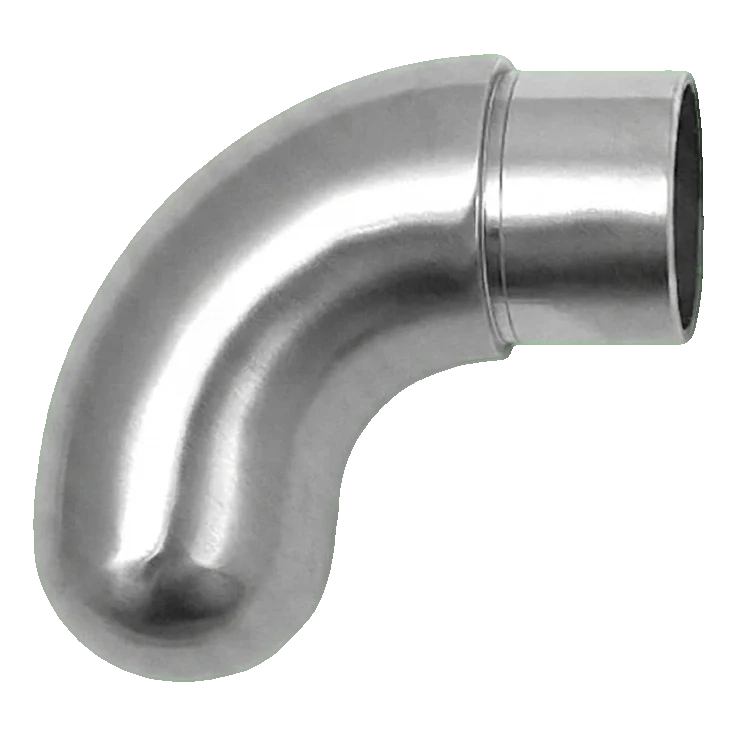

PINOX handrail end cap – closed round elbow 42.4 mm satin

PINOX handrail end cap – closed round elbow made of AISI 304 stainless steel in satin finish

PINOX handrail end cap in the form of a closed, round elbow — an elegant finishing element for balustrade systems based on Ø 42.4 mm tube. The elbow conceals the sharp edge of cut tube, giving the handrail a professional, rounded appearance. Made from AISI 304 stainless steel with satin finish, which provides high corrosion resistance and an aesthetic, matt lustre.

The element is installed by bonding the pin into the interior of the tube using anaerobic adhesive. The adhesive bonds and hardens upon contact with metal after cutting off the air supply, guaranteeing a permanent and invisible connection without the need for welding.

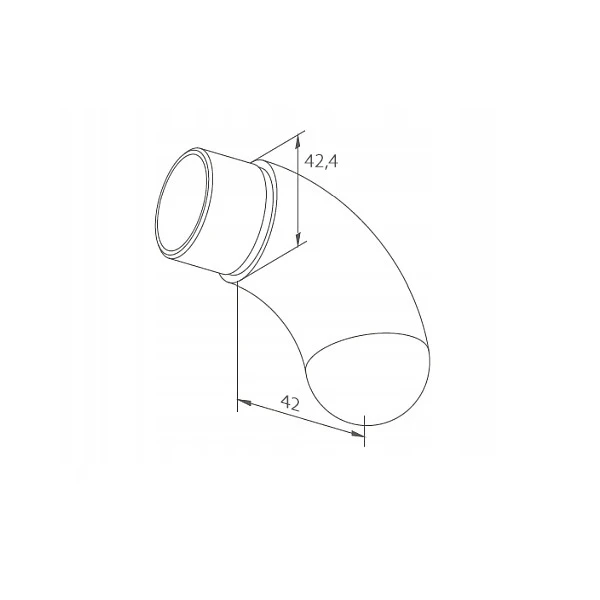

Dimensional drawing of handrail end cap – closed elbow Ø 42.4 mm

Technical data

Type: closed round elbow (handrail end cap)

System: Ø 42.4 mm

Fits tube with diameter: 42.4 mm, wall thickness: 2 mm

External diameter of elbow: 42.4 mm

Projection (H): 42 mm

Length (L): 110 mm

Material: AISI 304 stainless steel

Surface finish: satin

Weight: 0.255 kg

Installation: bonded (anaerobic adhesive)

Brand: PINOX

EAN: 5903313203845

Technical data

Material	AISI 304
Finish	Satin
Mounting System	42.4 mm
