PINOX external corner mounting for 42.4 mm balustrade post – AISI 304 satin
0
Description
PINOX external corner mounting for 42.4 mm balustrade post – AISI 304 satin
PINOX external corner mounting is a robust structural element designed for mounting balustrade posts with a diameter of 42.4 mm on stair and balcony corners. Made entirely from AISI 304 stainless steel with satin finish, it ensures durability and aesthetic appearance for years of use — even in external conditions.
The construction consists of a mounting plate fixed to the wall or substrate and two standoff pins holding the post at a distance of 50 mm from the mounting surface. This geometry enables secure post installation on corners, eliminating the need for additional angle adapters. Mounting holes in the plate allow for quick and precise fixing to the substrate.
Application
The mounting is dedicated to professional balustrade systems based on tubes with a diameter of 42.4 mm. It works well in both internal stair balustrades and external balcony installations. Thanks to the use of AISI 304 stainless steel, the element is resistant to corrosion and atmospheric conditions, making it an ideal choice for installers working on projects for balconies, terraces and staircases.

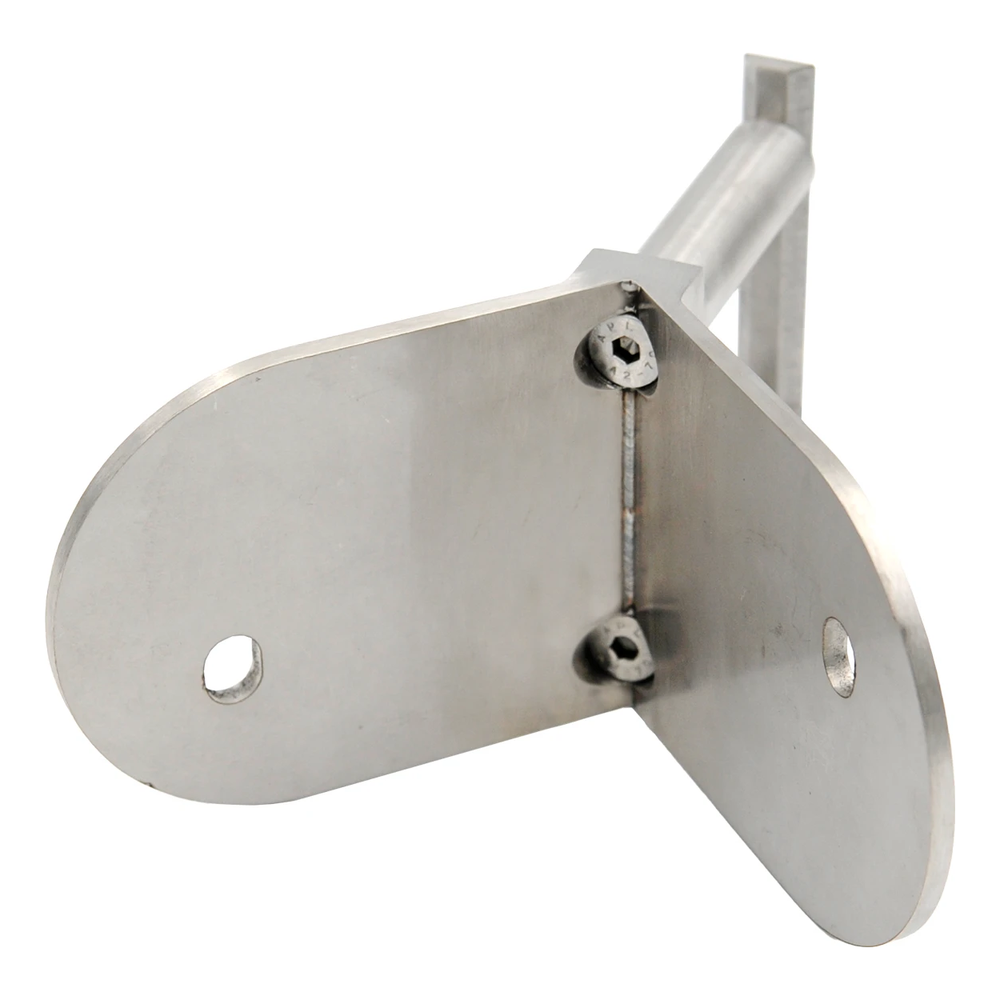

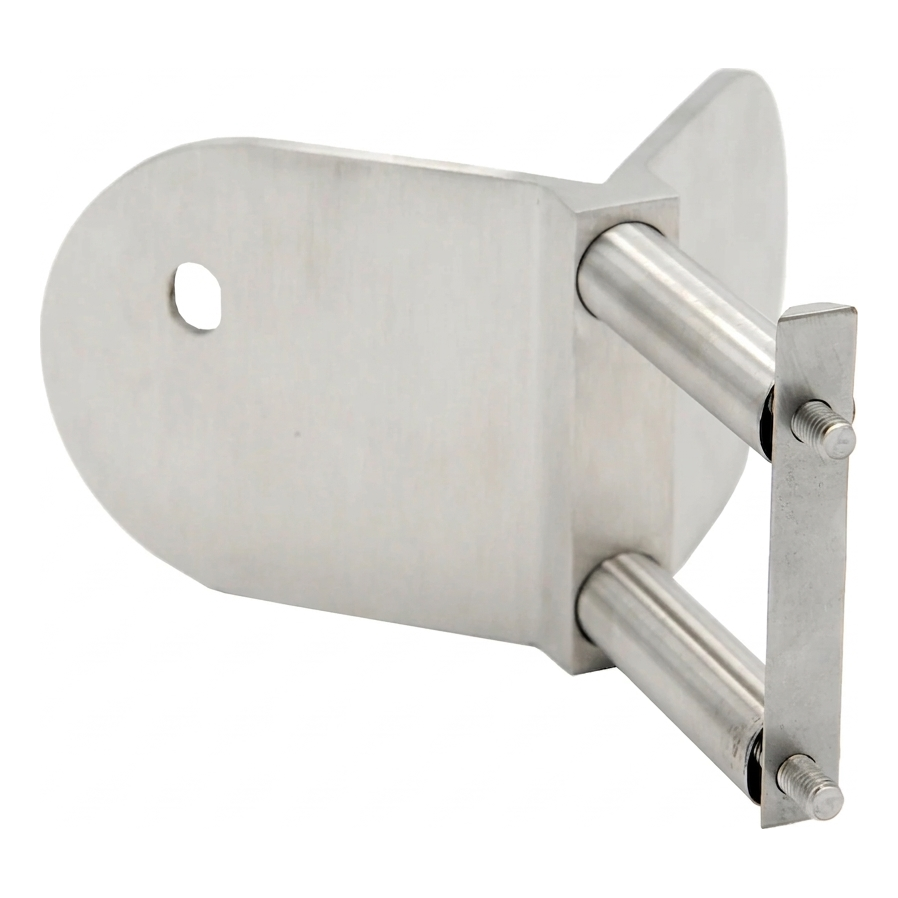

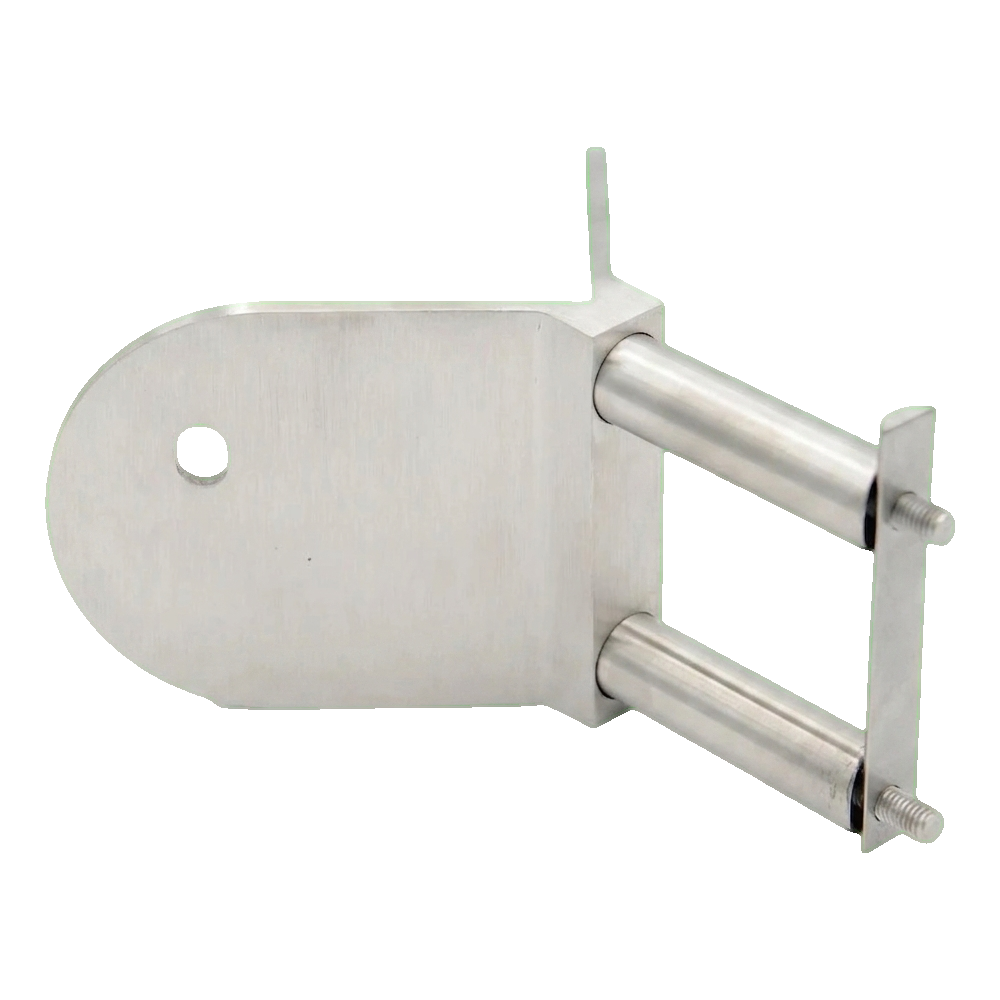

Product in different views
Technical parameters
- Type: external corner mounting
- Post diameter: 42.4 mm
- Mounting plate dimensions: 120 × 120 × 100 mm
- Standoff from mounting surface: 50 mm
- Material: AISI 304 stainless steel
- Finish: satin
- Weight: 0.85 kg
- Balustrade system: 42.4 mm
- Packaging: 1 pc.
- EAN: 5903313204538
Benefits for the installer
- Quick installation — simple construction with mounting holes allows for efficient fixing to substrate
- Durability — AISI 304 stainless steel guarantees corrosion resistance and years of use
- Versatility — suitable for stair, balcony and terrace balustrades
- Aesthetics — satin finish harmoniously complements modern balustrade systems
- 50 mm standoff — ensures proper post spacing from wall or corner, facilitating correct balustrade geometry
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
