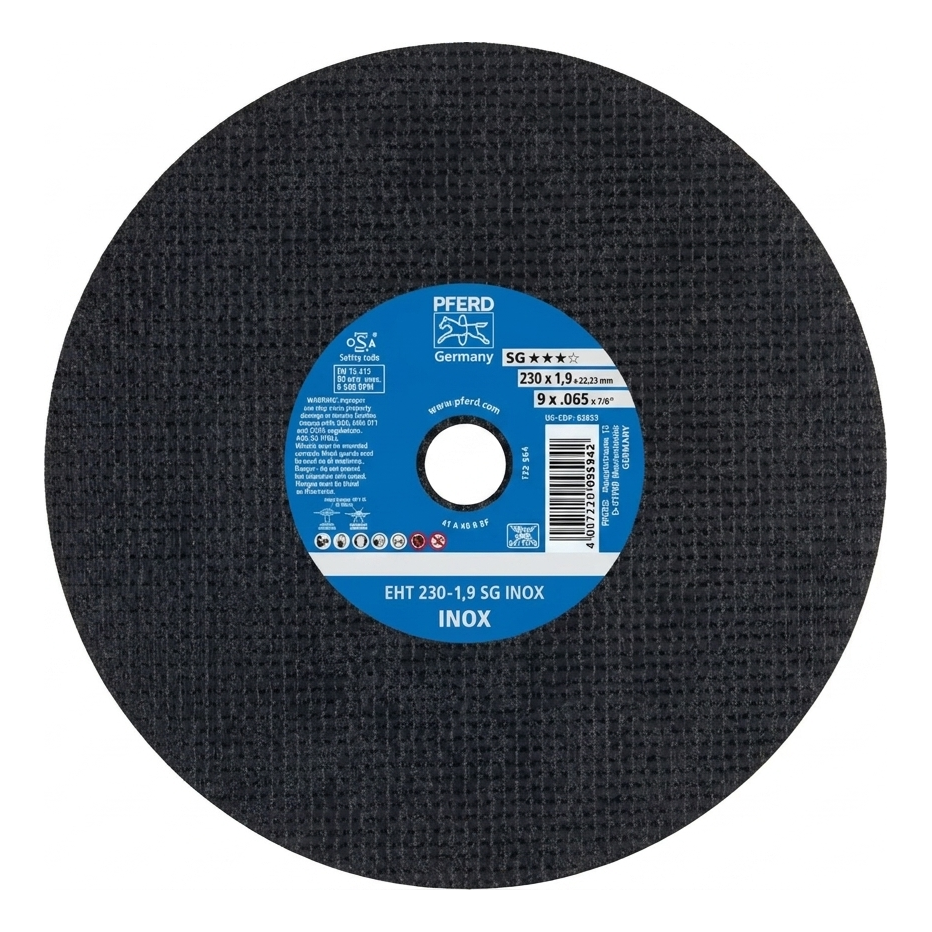

PFERD EHT 230-1.9 SG INOX – Cutting disc for stainless steel 230 mm
Leave feedback on the product
PFERD EHT 230-1.9 SG INOX cutting disc made from corundum. Diameter 230 mm, thickness 1.9 mm, bore 22.23 mm. BF bonding reinforced with fibre. For cutting stainless steel and carbon steel. Max. 6,500 rpm. Free from iron fillers.
Product code: 000-961
Product features
[PIM] tarcze-do-ciecia-metalu #155
- Brand PFERD
- Diameter 230
Description
PFERD EHT 230-1.9 SG INOX – Cutting disc for stainless steel 230 mm
PFERD EHT 230-1.9 SG INOX is a high-performance cutting disc from the SG (Performance Line) series, designed for precise cutting of stainless steel (INOX) and carbon steel. With a thickness of just 1.9 mm it ensures narrow, cool cutting — minimising heating of the workpiece and reducing discolouration, which is crucial when working with stainless steel.
The abrasive grain made from corundum (A) guarantees high cutting aggressiveness and long disc life. The BF (Bakelite with fibre reinforcement) bonding ensures work safety and resistance to lateral loads. The disc is free from iron, sulphur and chlorine fillers, which eliminates the risk of corrosion on cut surfaces of stainless steel components.
Applications
The disc excels when cutting sheets, profiles, pipes and solid material made from stainless steel and structural steel. Fast cutting progress and long service life translate to high work efficiency — fewer disc changes means shorter installation project completion times.
Technical parameters
- Manufacturer designation: EHT 230-1.9 SG INOX
- Disc type: 41 (straight / flat)
- Diameter: 230 mm (9")
- Thickness: 1.9 mm (0.065")
- Mounting bore: 22.23 mm (7/8")
- Max. peripheral speed: 80 m/s
- Max. speed: 6,500 rpm
- Abrasive grain: corundum (A)
- Specification designation: A 60 R BF
- Hardness: R (medium hard)
- Grit size: 60
- Bonding: BF (bakelite resin reinforced with fibre)
- Material application: INOX / stainless steel / carbon steel
- Performance line: SG (Performance Line)
- Free from iron, sulphur and chlorine fillers: yes
- Certificates: oSA, EN 12413
- EAN: 4007220095942
Installer benefits
- Fast cutting progress — high grain aggressiveness reduces processing time for profiles and sheets
- Cool cutting — thin 1.9 mm profile minimises material heating and discolouration on INOX
- Long service life — uniform disc wear reduces the number of changes during work
- Safety — oSA certificate and fibre reinforcement ensure crack resistance
- Versatility — suitable for both stainless steel and structural steel
