Overcurrent circuit breaker C 25A 3P 10kA ETIMAT10 002135718 ETI
product unavailable
add to wish list
Description

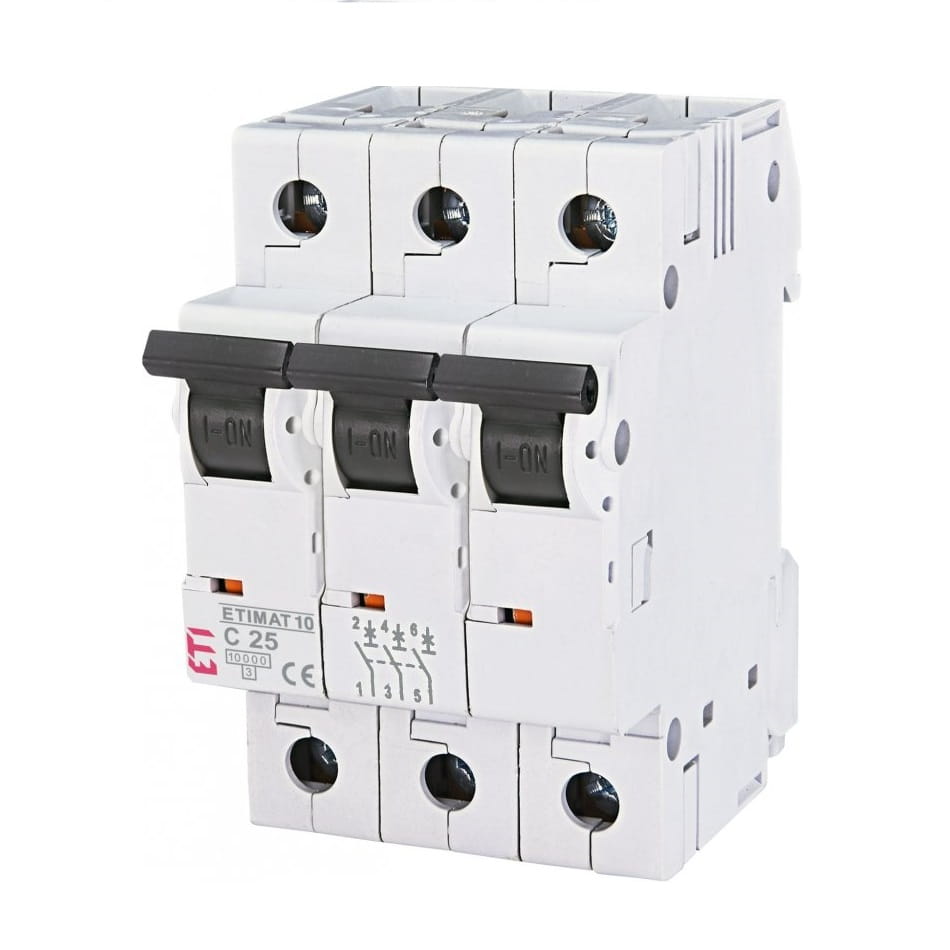

Overcurrent circuit breaker C 25A 3P 10kA ETIMAT10 002135718 ETI
Overcurrent circuit breaker C 25A 3P 10kA ETIMAT10 002135718 ETI, commonly known as an overcurrent device, is a device designed to protect an electrical installation from the effects of short circuits and overloads. It is a key component of the electrical system that cuts off the flow of electricity in the event of a fault, ensuring the safety of the entire installation.
Overcurrent circuit breaker ETIMAT are ideal for use in residential, public and industrial installations. They offer the possibility of fitting additional auxiliary contacts and rising triggers. The lever can be sealed in both the "On" and "Off" positions. On" and "Off". In addition, they protect against contact with live parts and have a contact position indicator for easy inspection. Mounting on a TH35 rail ensures easy and quick replacement of the switches when required.
SPECIFICATION
Available Configuration
Technical data
| Trip characteristic | C |
| Circuit breaker type | overcurrent |
| Rated current [A] | 25A |
| Number of poles | 3P |
| Breaking capacity [kA] | 10 kA |
| Brand | ETI |
