Overcurrent circuit breaker B 6A 1P 6kA ETIMAT6 002111512 ETI
product unavailable
add to wish list
Description

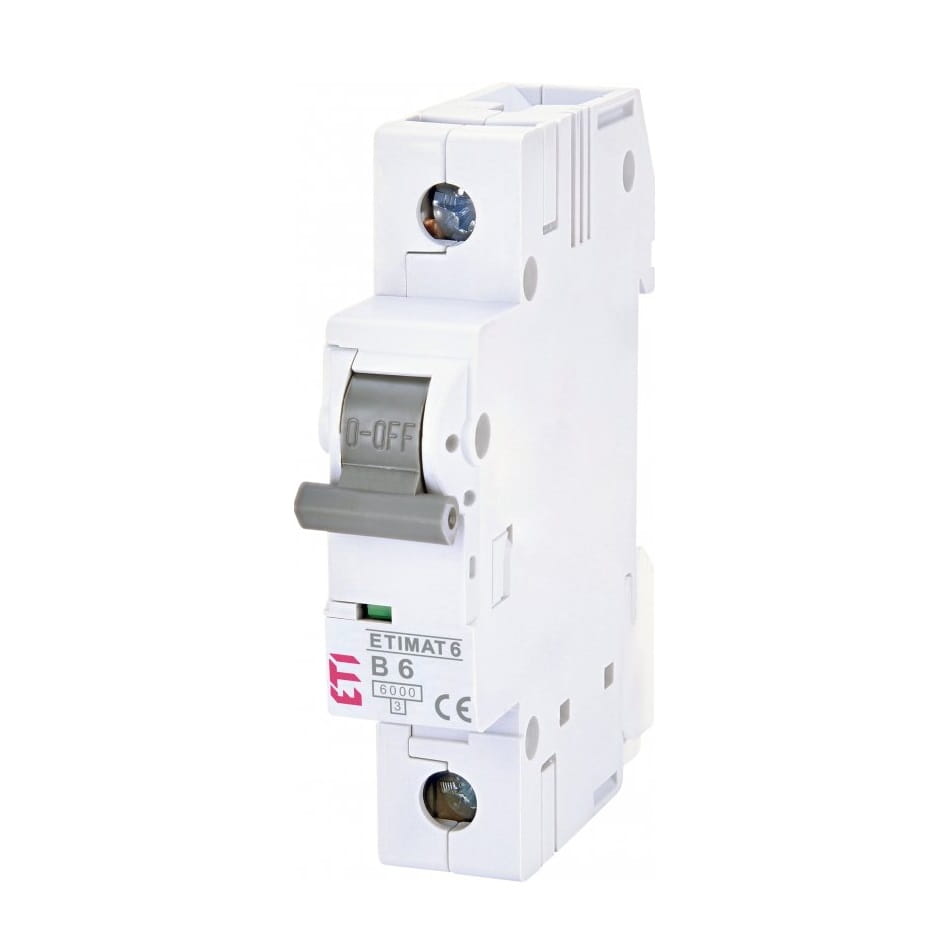

Overcurrent circuit breaker B 6A 1P 6kA ETIMAT6 002111512 ETI
Overcurrent circuit breaker B 6A 1P 6kA ETIMAT6 002111512, manufactured by ETI, is one of the key components of an electrical installation, protecting it from the effects of short circuits and overloads. In an emergency situation, it cuts off the electricity supply, allowing electrical systems to be operated safely.
ETIMAT overcurrent circuit breakers are designed for installation in residential, public and industrial buildings. They can be equipped with additional auxiliary contacts and trip releases. The breaker lever can be sealed in the "On" ON" and "OFF" positions, increasing safety in use. The devices effectively protect against contact with live parts and have a contact position indicator for easy diagnostics. Mounting on a TH35 rail allows easy replacement of the switches.
SPECIFICATION
Available Configuration
Files to download:
Technical data
| Trip characteristic | B |
| Circuit breaker type | overcurrent |
| Rated current [A] | 6A |
| Number of poles | 1P |
| Breaking capacity [kA] | 6 kA |
| Brand | ETI |
