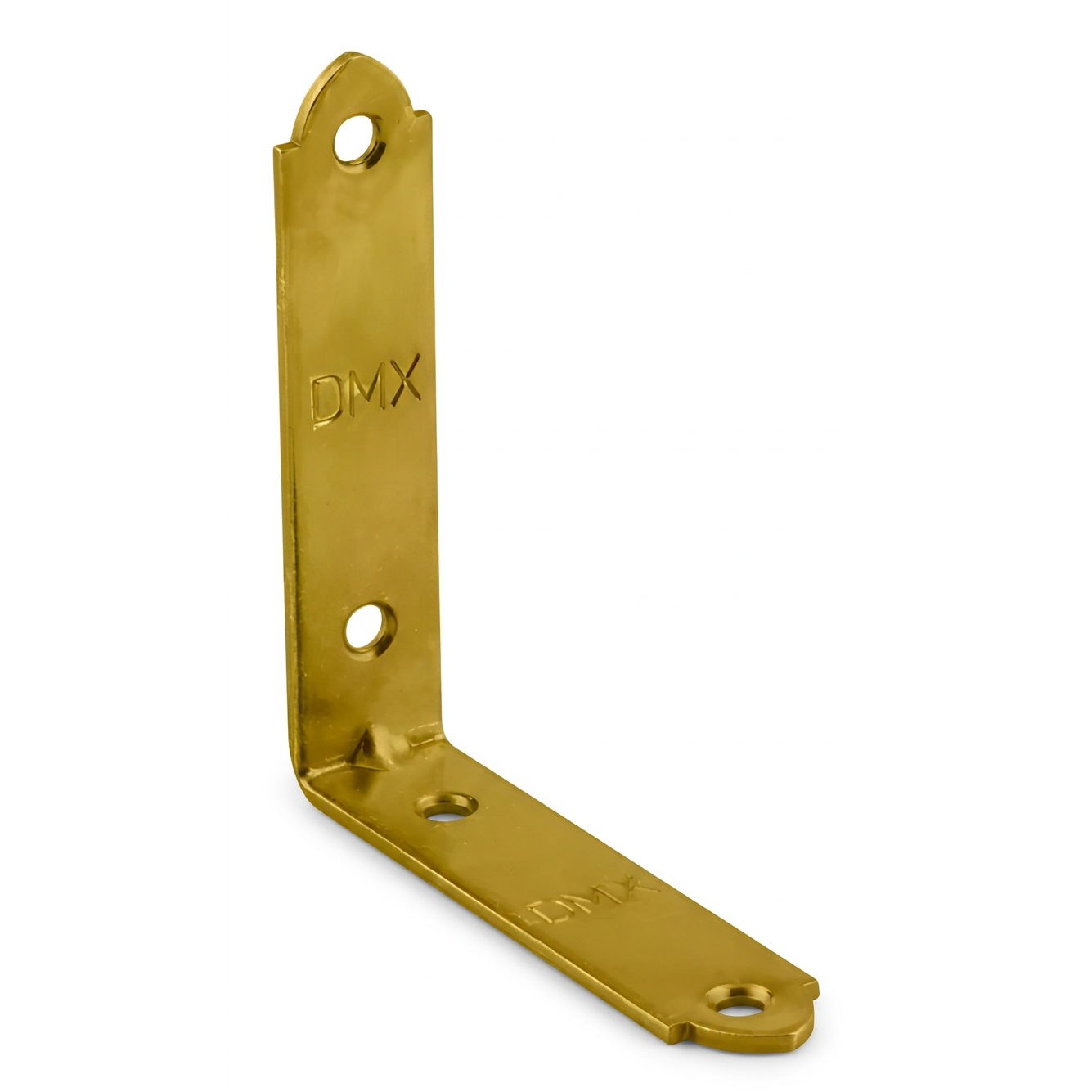

Mounting bracket KW 4 75x75x17x2.0 gold galvanised

The reinforced embossed angle bracket 75×75 mm is a three-dimensional nail plate designed for creating durable carpentry joints. The embossing process gives the element increased rigidity and load-bearing capacity, resulting in higher joint strength compared to flat angle brackets. The compact width of just 17 mm allows installation even on narrow edges of boards and panels — an ideal solution for precision joinery and furniture work.

The bracket is manufactured from DX51D steel with a sheet thickness of 2 mm, ensuring high mechanical strength. The gold electro-galvanised coating provides effective corrosion protection and an attractive finish, making it equally suitable for visible structural connections.

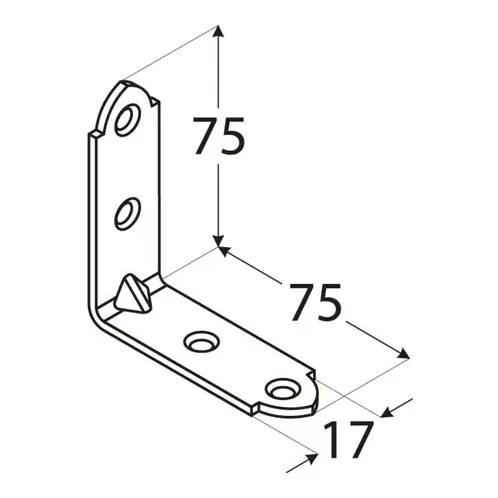

Technical Specifications

• Height: 75 mm
• Length: 75 mm
• Width: 17 mm
• Sheet thickness: 2 mm
• Material: DX51D steel
• Corrosion protection: gold electro-galvanised coating
• Number of holes: 4 holes ø4.5 mm
• Load capacity: 3.33 kN

Application and Installation

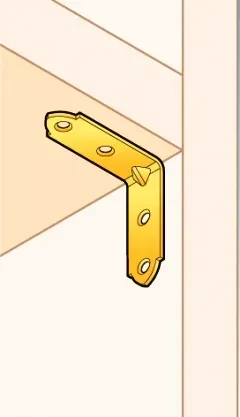

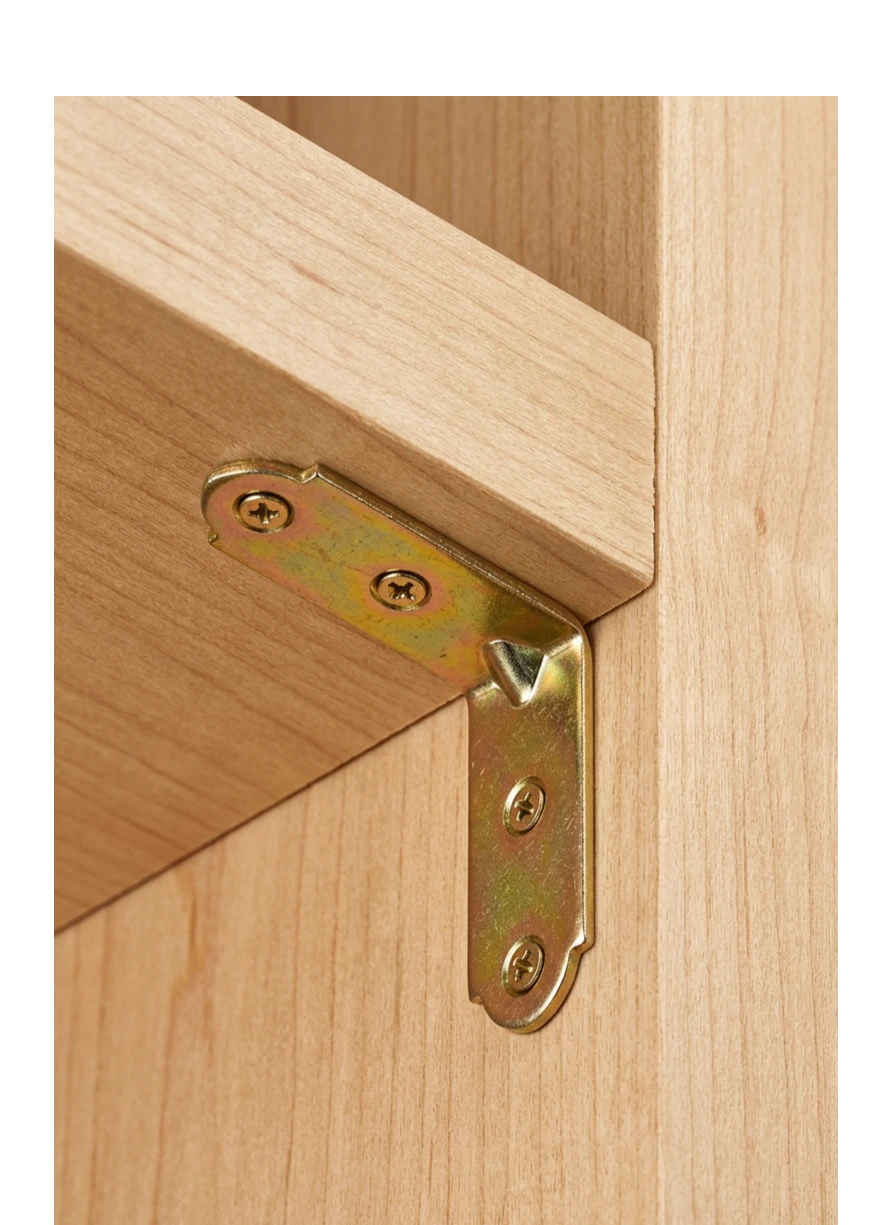

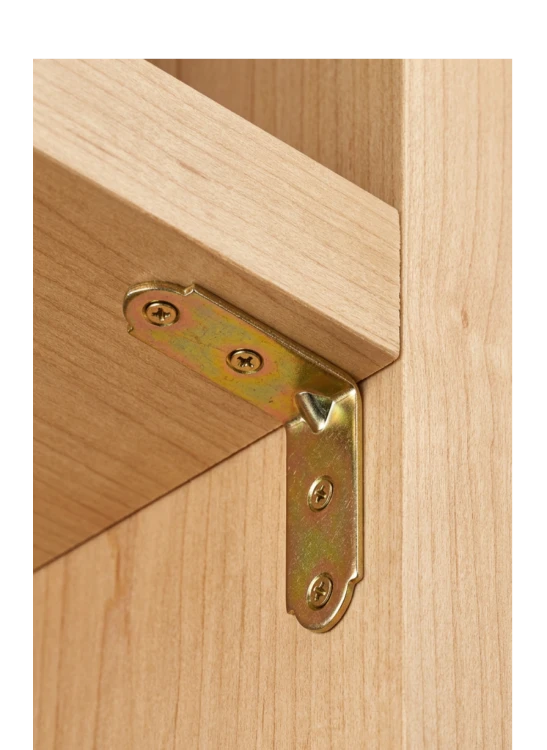

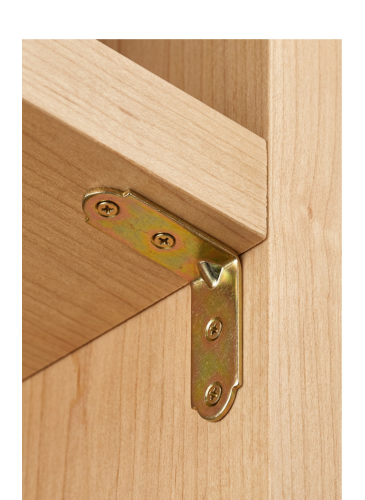

The bracket is primarily intended for light joinery and furniture work. Its narrow profile (17 mm) allows convenient fixing to the sides of boards and narrow edges of furniture panels. The element is suitable wherever a rigid right-angle connection between two timber or wood-based components is required.

The following fasteners are recommended for installation:

• ANCHOR ring shank nails ø4 mm
• Structural screws for connectors
• Hardened screws

Certificates and Approvals

The product holds a full set of required certificates confirming its quality and compliance with European construction standards:

• European Technical Assessment (ETA)
• Declaration of Performance
• Certificate of Conformity of Factory Production Control
• CE marking

The European Technical Assessment and CE marking confirm that the bracket meets rigorous structural safety requirements and is approved for professional construction applications throughout Europe.
