Mounting bracket KW 3 50x50x17x2.0 gold galvanised
Leave feedback on the product
Three-dimensional bracket for timber connections, DX51D steel, thickness 2 mm, dimensions 50×50×17 mm, hot-dip galvanised gold. Load capacity 3.33 kN, ETA certificate and CE marking.
Product code: 000-348
Product features
[PIM] Łączniki #79
- Sheet metal thickness [mm] 2
- Connector Type Mounting Angle Bracket
- Material Steel
- Thread type M10
- Length [mm] 6
- Coating Black anodised
Description

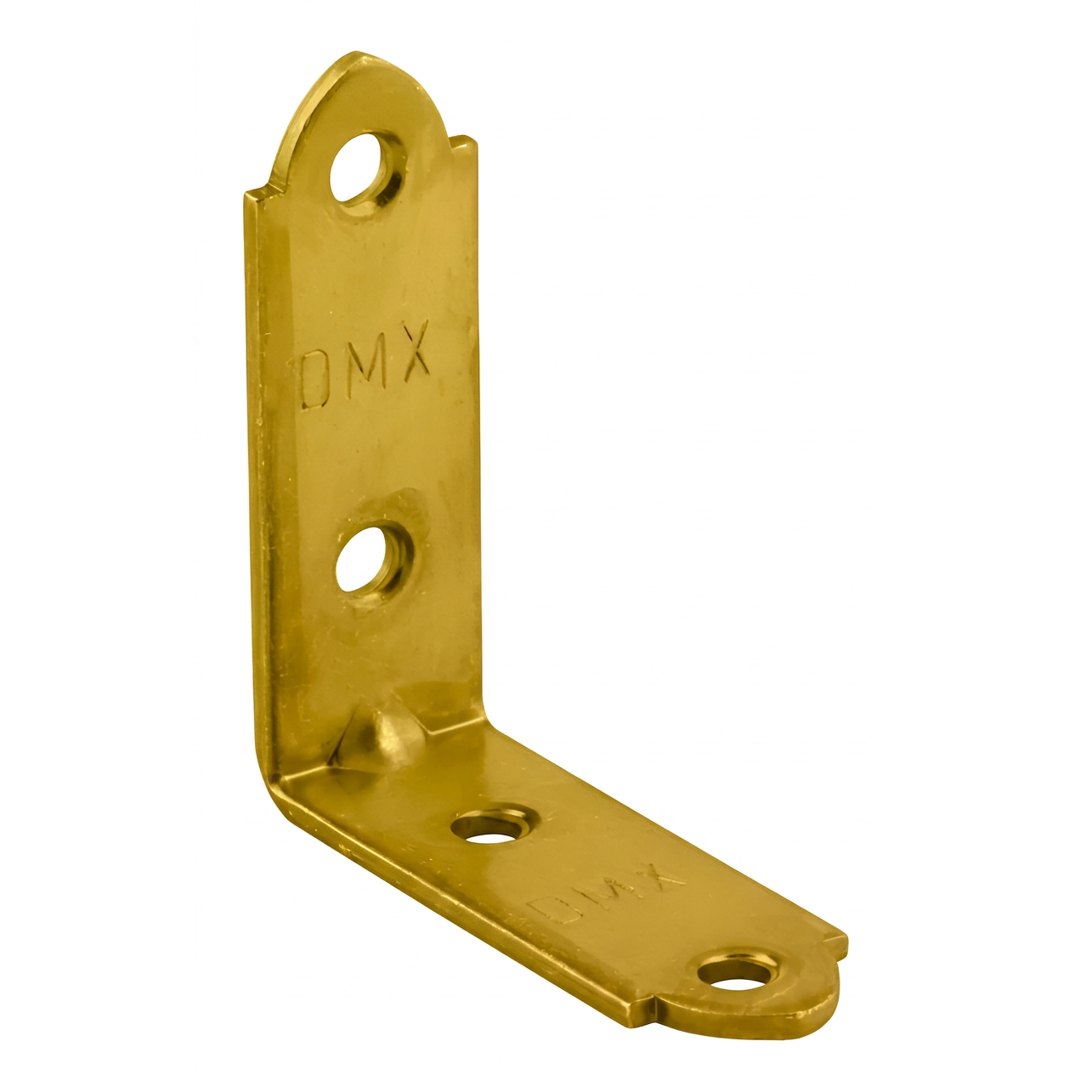

Reinforced Embossed Angle Bracket 50×50×17 mm Gold Zinc
The reinforced embossed angle bracket is a three-dimensional nail plate designed for timber joinery connections. Thanks to its compact width of 17 mm, it is ideally suited for fixing to the narrow edges of boards and panels — wherever standard angle brackets are too wide. The embossing in the bending zone further strengthens the structure, increasing the rigidity and load capacity of the joint.

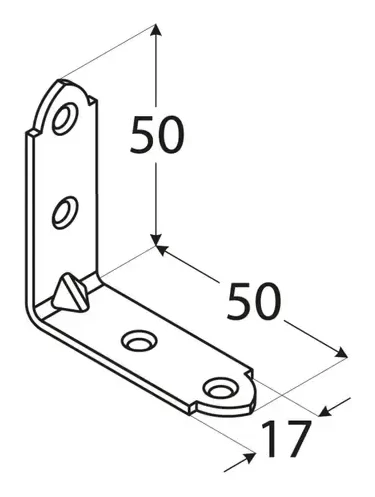

Technical Specifications
- Height: 50 mm
- Length: 50 mm
- Width: 17 mm
- Sheet thickness: 2 mm
- Material: DX51D steel
- Corrosion protection: gold electro-galvanised zinc
- Number of holes: 4 holes ø4.5 mm
- Load capacity: 3.33 kN
Application and Installation

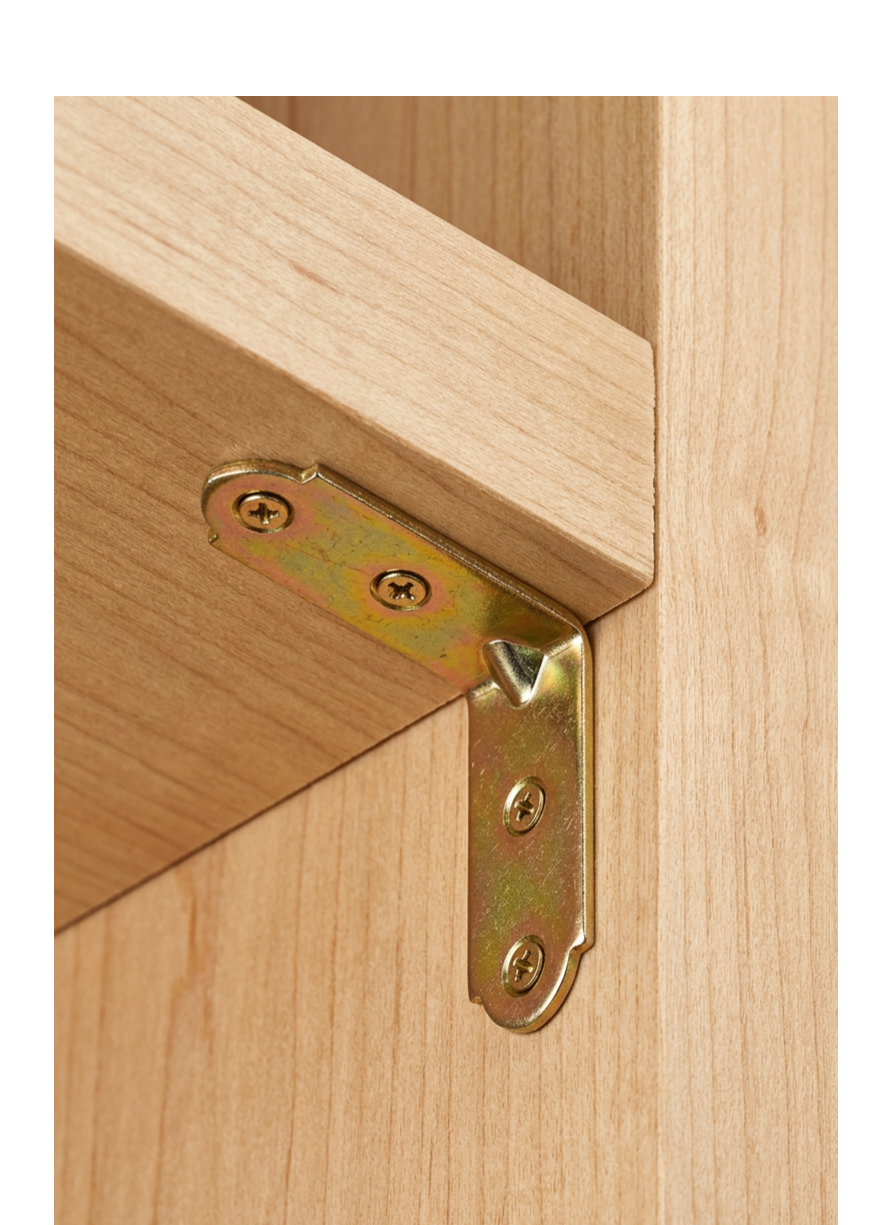

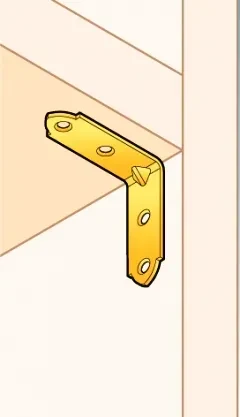

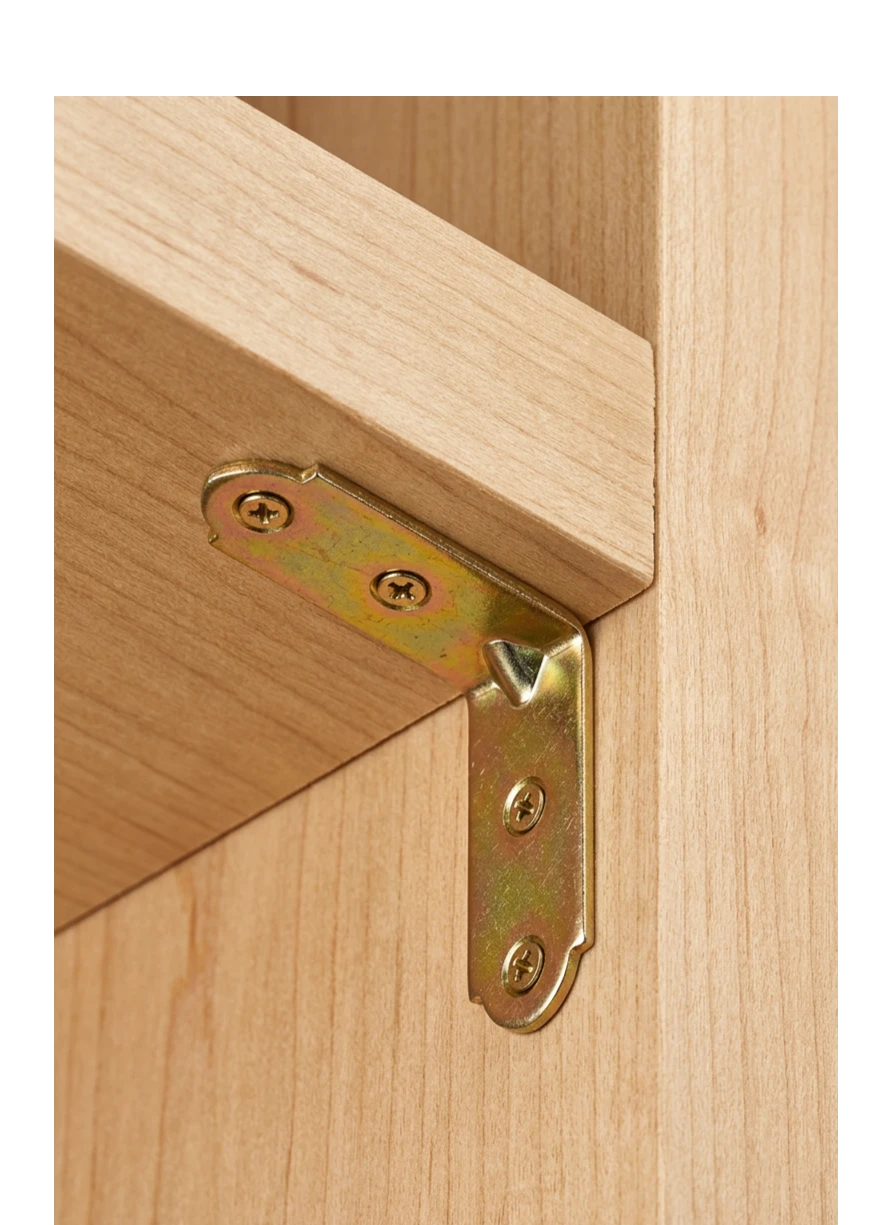

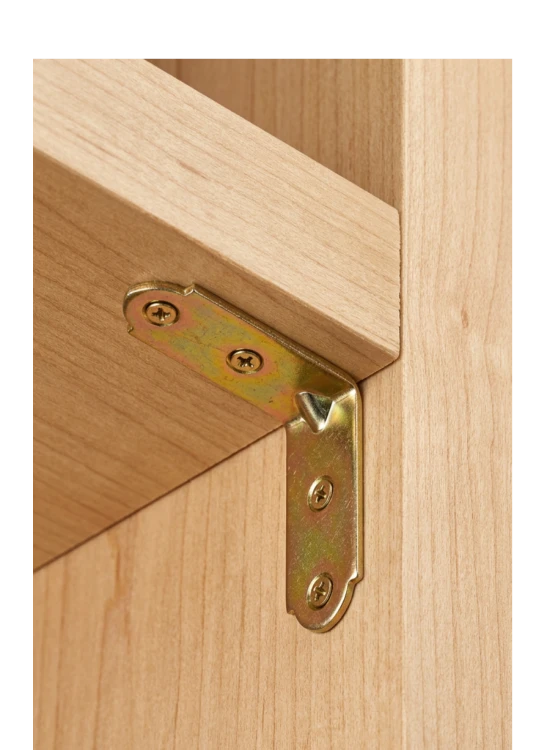

This angle bracket is intended for light joinery and furniture work. Its narrow profile allows it to be fitted to the edges of thin boards and panels, making it an indispensable component in the construction of shelving units, frames, crates and other timber structures. The embossed form provides greater rigidity than flat angle brackets of the same dimensions.
For installation, the use of ANCHOR ring-shank nails ø4 mm, timber connector screws or hardened screws is recommended. The 4.5 mm diameter holes provide adequate installation clearance and easy positioning of fasteners.
Certificates and Approvals
The product holds full documentation confirming compliance with European quality requirements. The bracket is covered by a European Technical Assessment (ETA) and carries the CE marking, enabling its use in structural applications throughout the European Union. A Declaration of Performance and a Certificate of Conformity for Factory Production Control are also available, guaranteeing consistent parameters across every production batch.

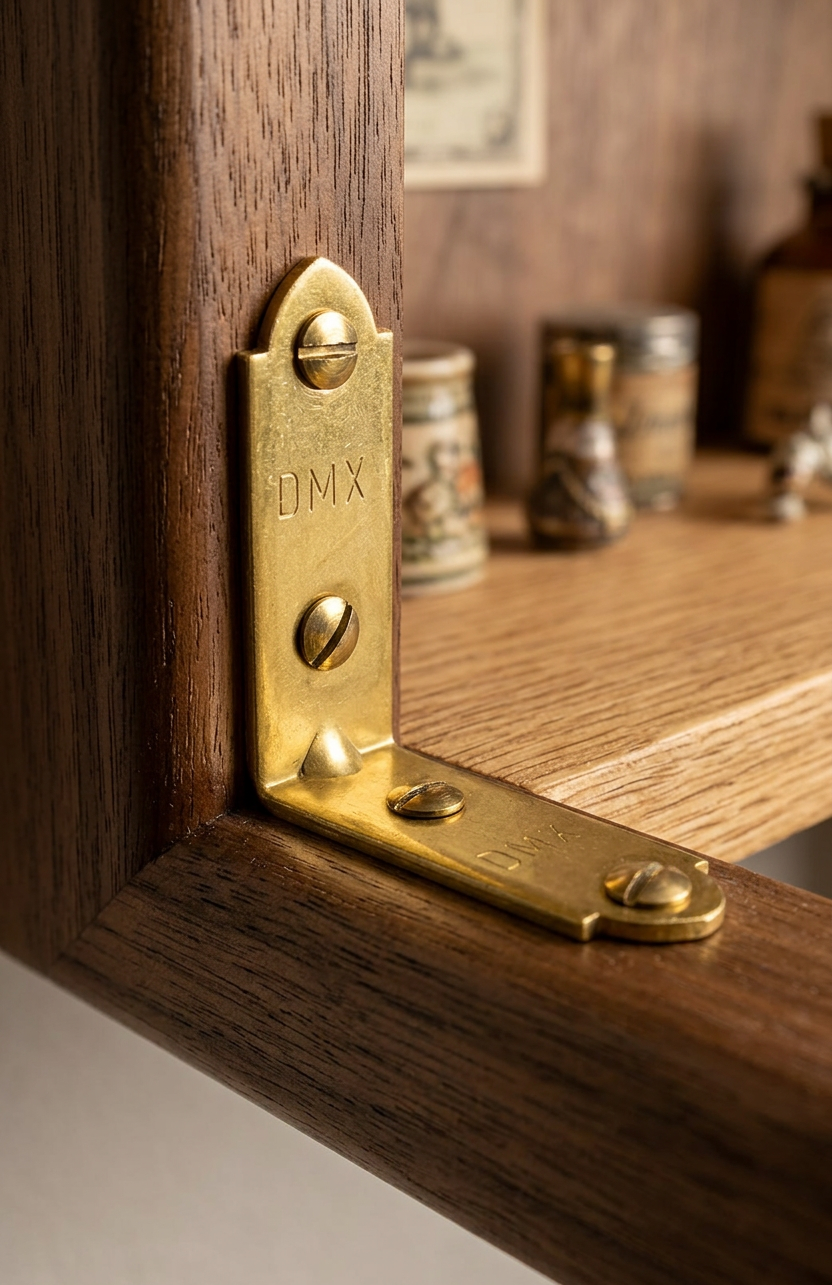

The gold electro-galvanised zinc finish provides an attractive appearance alongside corrosion protection, making the bracket equally well suited to exposed applications — such as visible furniture joints or interior fittings.
