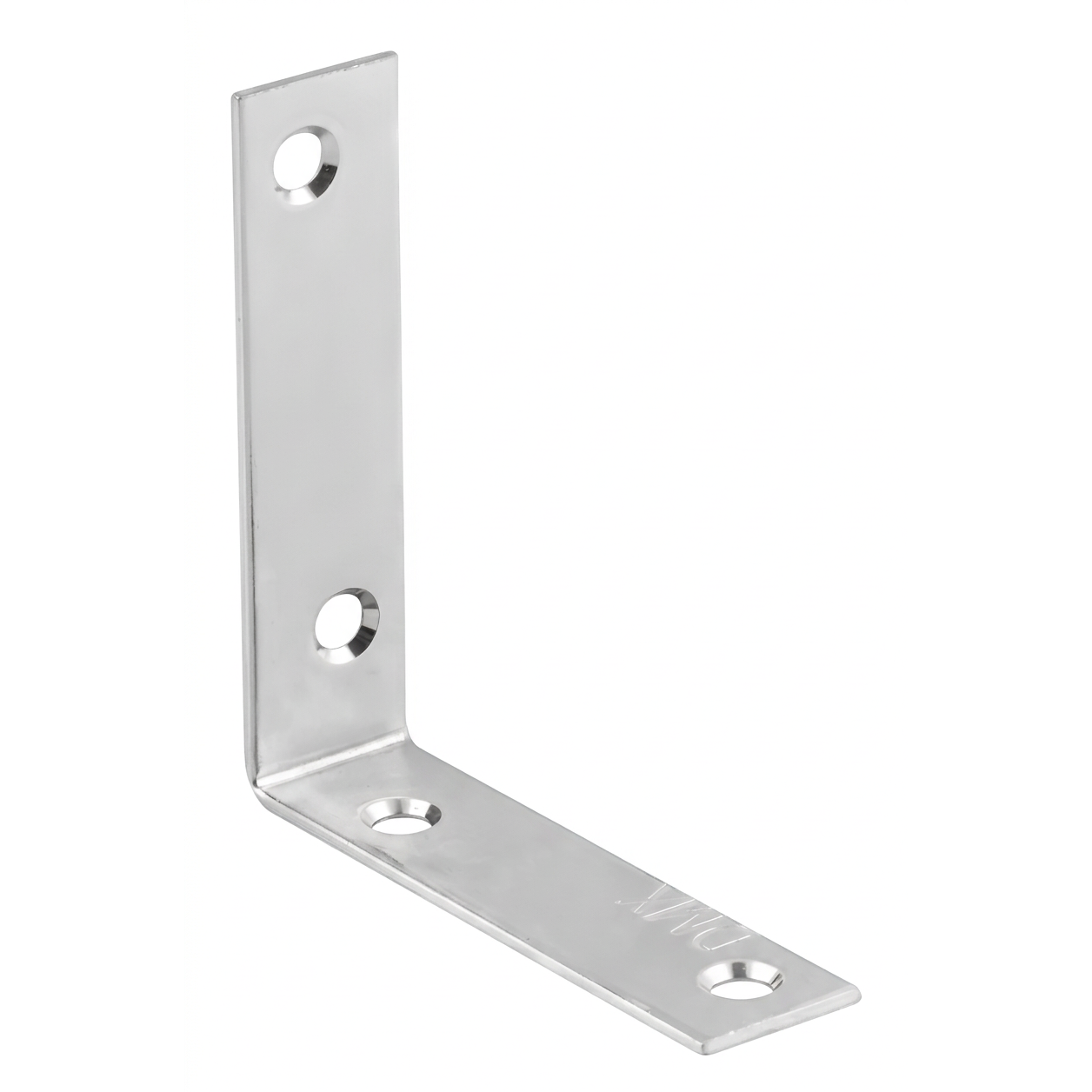

Mounting angle bracket KW 60 60x60x15x1.5 galvanised

The furniture angle bracket 60×60×15 mm is a compact corner connector designed for light joinery, furniture assembly, and structural applications. Its narrow 15 mm width allows installation even in tight spaces — on narrow board edges, furniture panels, and thin structural elements. Made from DC01 steel sheet with an electrogalvanised zinc coating, it provides effective corrosion protection and an attractive, silver-finish joint.

The bracket features 6 fixing holes (3 on each arm) with countersunk recesses, enabling installation with countersunk screws. The high number of holes simplifies fixing of non-standard elements and eliminates expansion stress in timber joints.

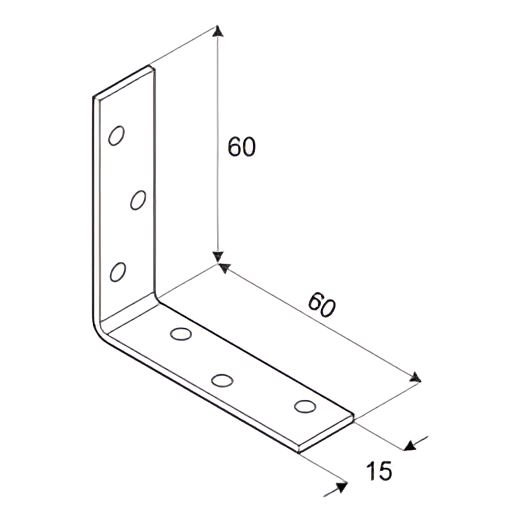

Technical Specifications

• Height (vertical arm): 60 mm
• Length (horizontal arm): 60 mm
• Arm width: 15 mm
• Sheet thickness: 1.5 mm
• Material: DC01 steel + electrogalvanised zinc
• Number of fixing holes: 6 pcs (3 + 3)
• Load capacity: 2.51 kN
• Colour: silver
• EAN: 5904610625972

Applications

The bracket is ideal wherever a quick and durable reinforcement of right-angle corner joints is required. Its narrow arm width (15 mm) makes it suitable for locations where standard angle brackets would be too wide.

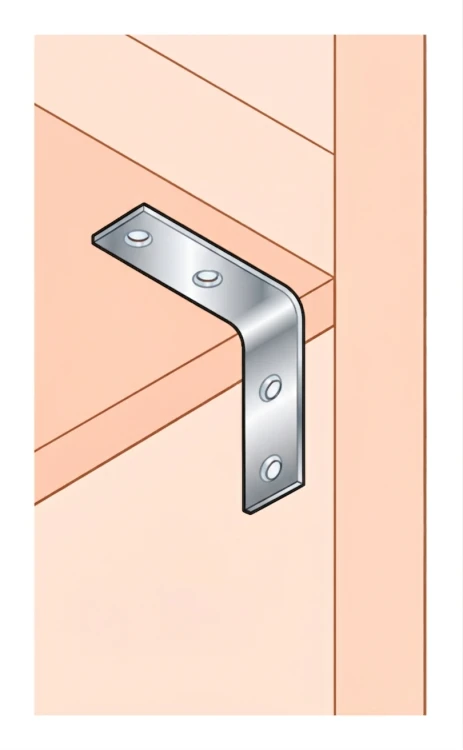

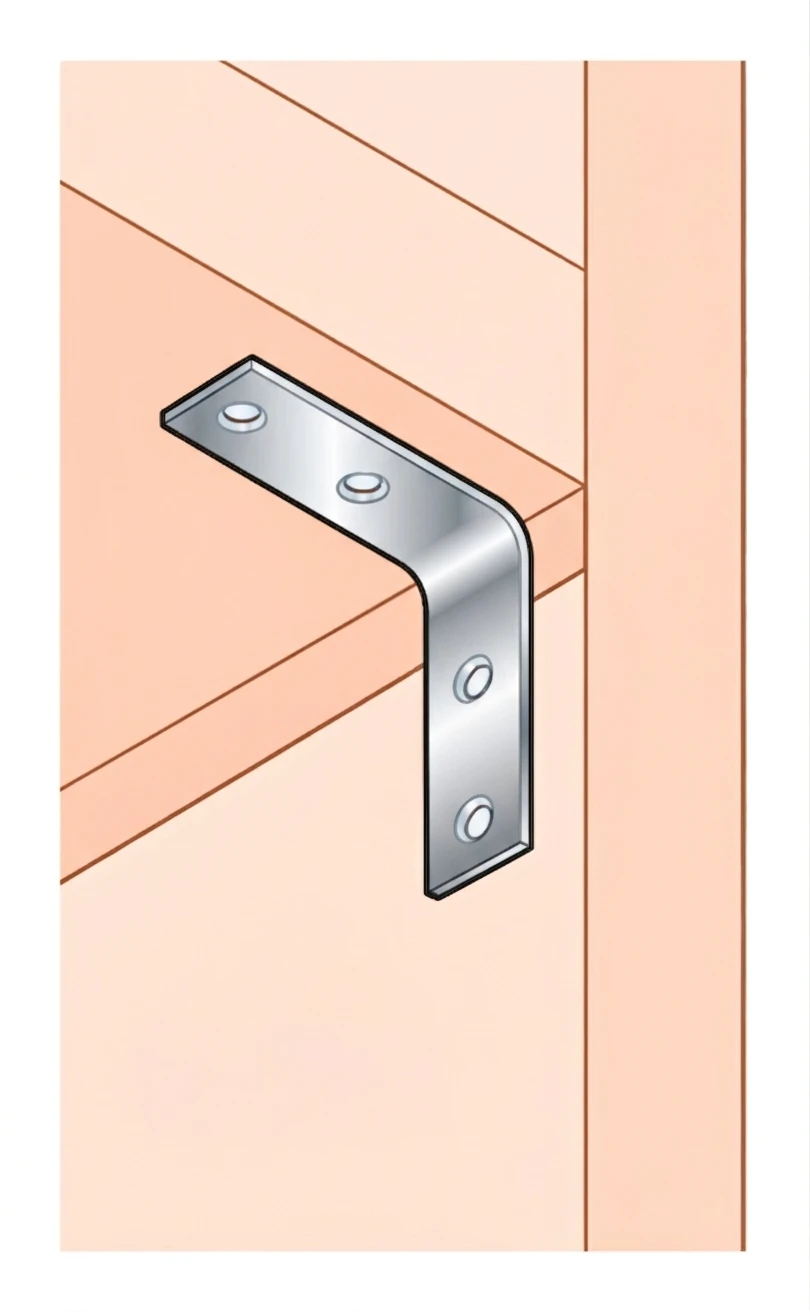

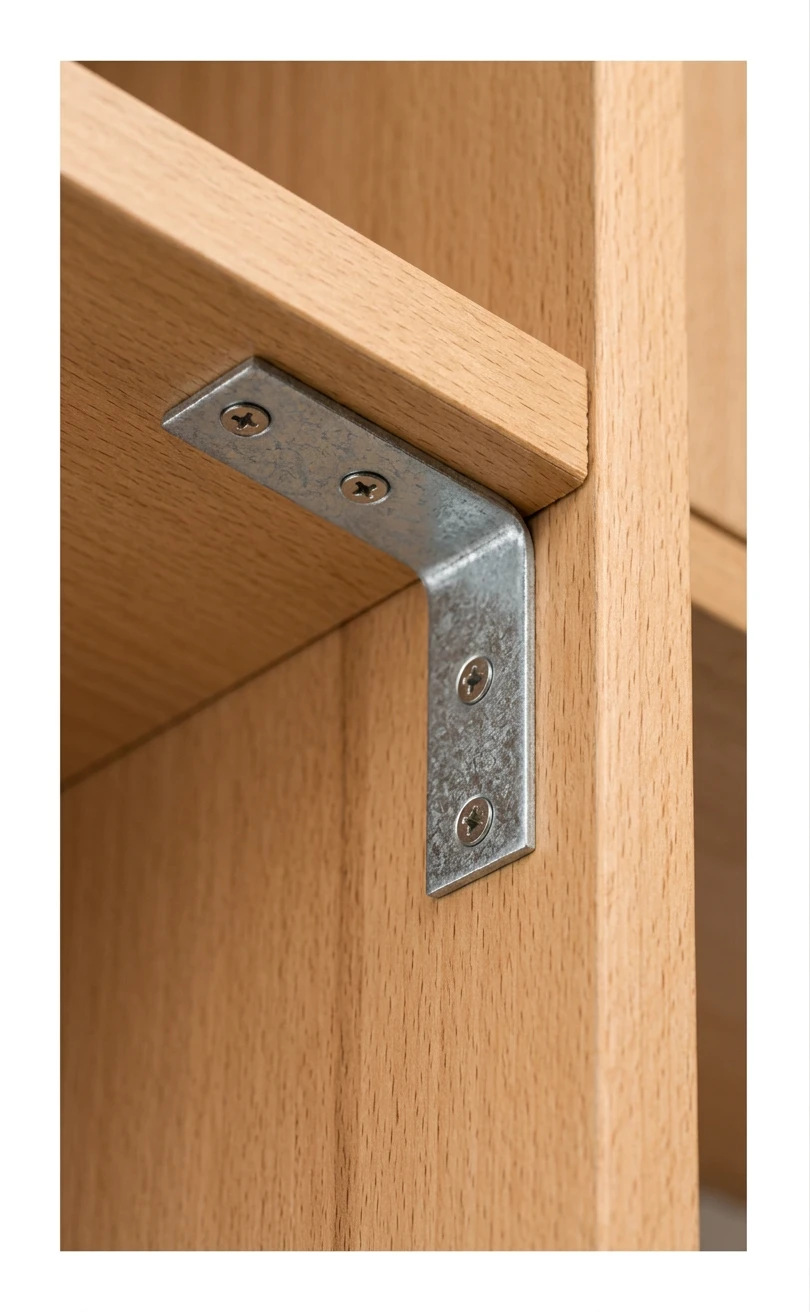

• Assembling and reinforcing furniture
• Stabilising corner joints in light timber structures
• Installing pergolas and canopies
• Joints in roof structures
• Fixing timber posts
• Joinery and finishing work

Installation

The bracket is fixed using standard timber fasteners. The countersunk recesses in the holes allow the screw head to sit flush with the bracket surface, resulting in a neat finish that does not protrude beyond the element profile.

• Ring shank nails: ⌀4 mm
• Wood screws: ⌀4 mm

Certificates and Approvals

The product holds a full set of certificates confirming its quality and compliance with European construction standards, making it suitable for professional projects where material quality documentation is required:

• European Technical Assessment (ETA)
• CE Marking
• Declaration of Performance
• Factory Production Control Certificate
