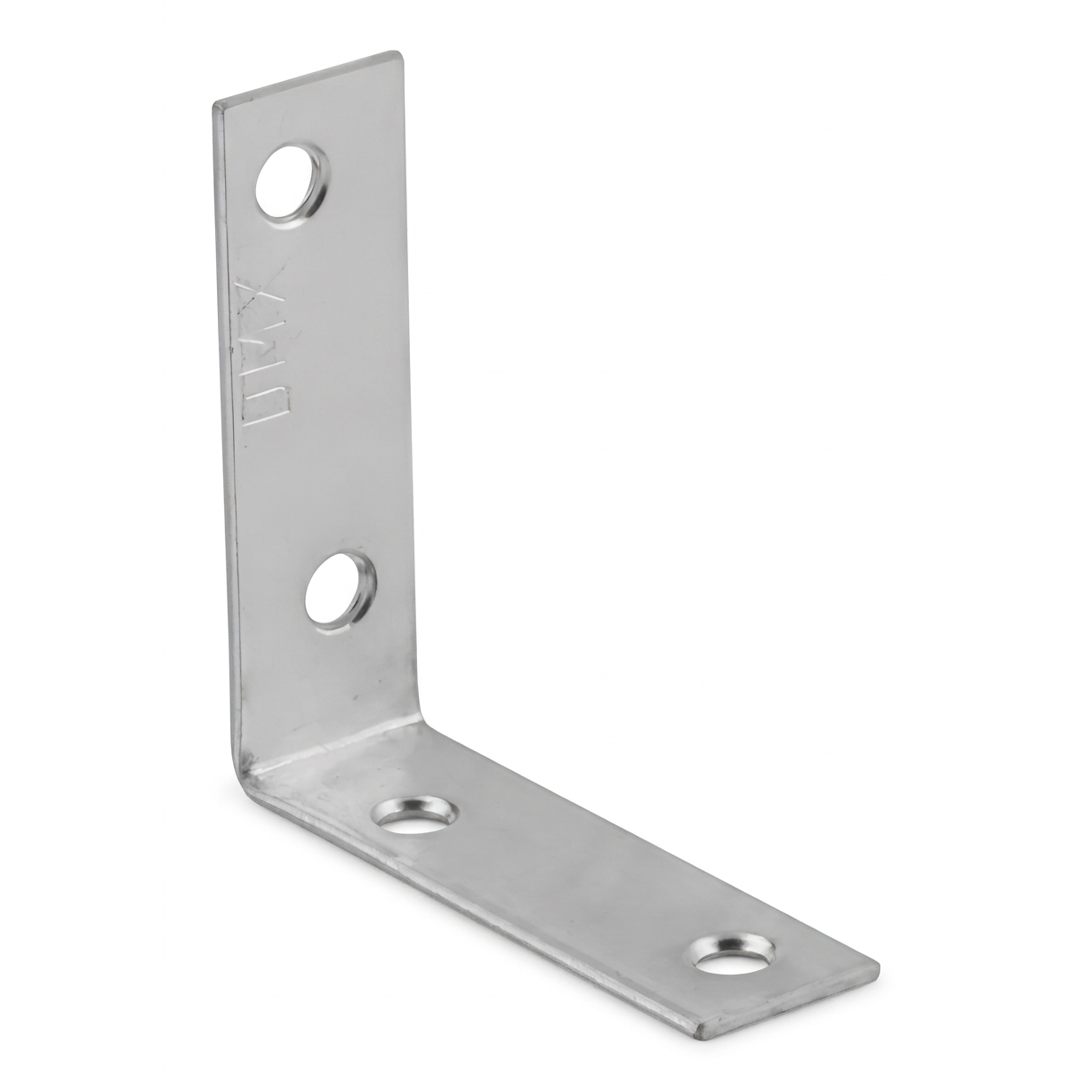

Mounting angle bracket KW 50 50x50x15x1.5 mm galvanised
Description
Narrow Angle Bracket KW 50 Galvanised Steel 50×50×15 mm
The narrow angle bracket KW 50 is a compact corner connector designed for fine joinery and furniture assembly work. Thanks to its narrow profile of just 15 mm wide, it is ideal for mounting on the narrow edges of boards, furniture panels and structural elements — even in spaces where larger brackets simply won't fit.
Applications
- Fine joinery and assembly work

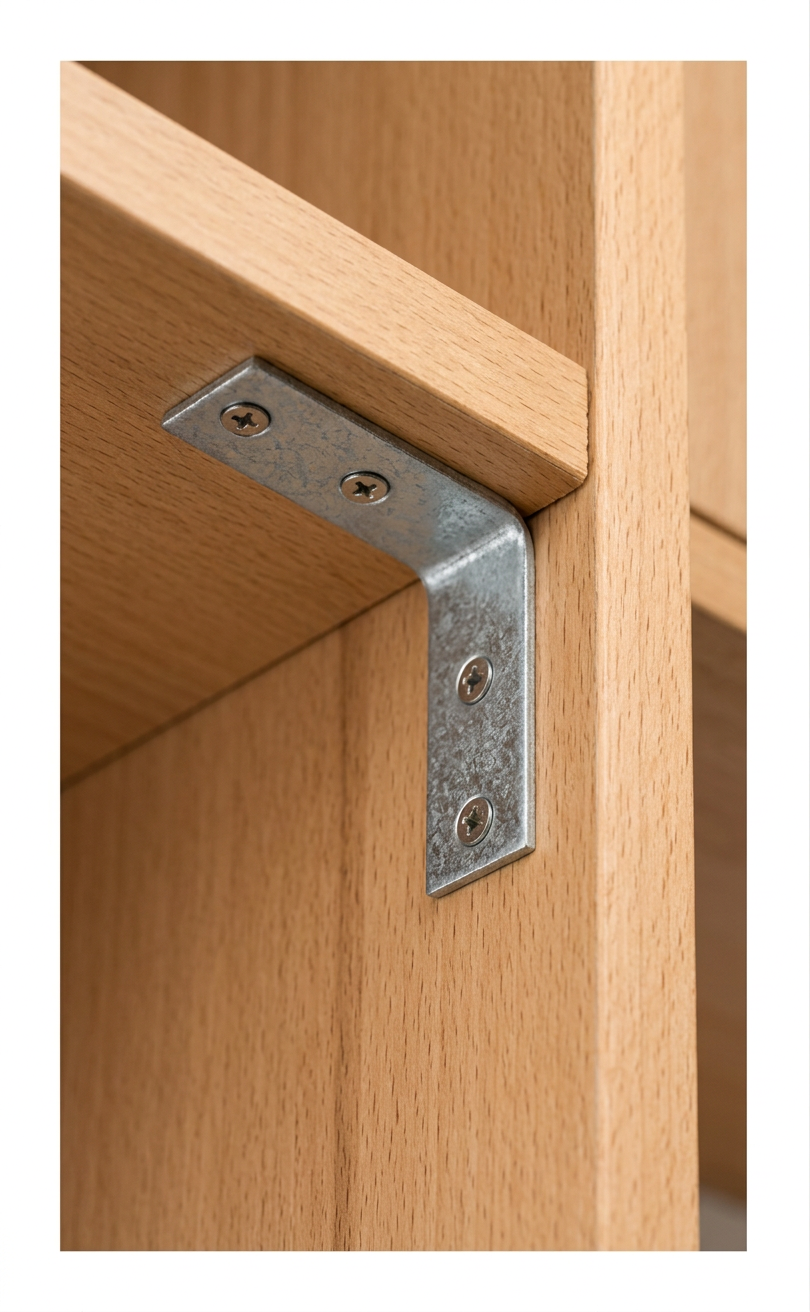

- Assembling, reinforcing and stabilising furniture
- Corner joints in lightweight timber structures
- Fixing to narrow edges of boards and furniture panels
- Connections where concealed fixing is not possible — compact dimensions ensure a neat appearance
The compact dimensions of the KW 50 bracket allow for quick and practical corner reinforcement without the need for bulky components. This solution is particularly valued in cabinet furniture assembly, shelving units and other structures where precision and discreet fixing are essential.
Technical Specifications
- Dimensions: 50 × 50 × 15 mm
- Vertical leg: 50 mm
- Horizontal leg: 50 mm
- Width: 15 mm
- Sheet thickness: 1.5 mm
- Material: DC01 / DX51D steel
- Corrosion protection: silver electro-galvanised coating

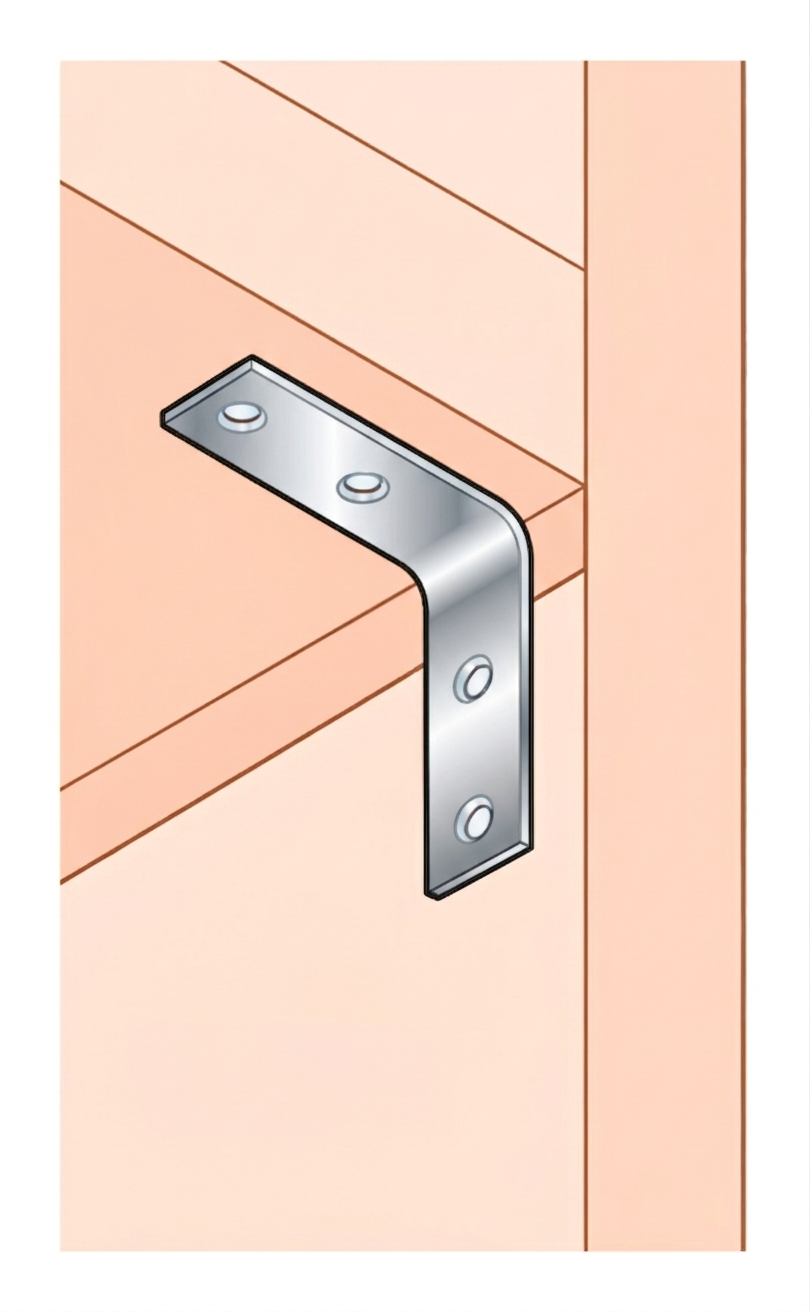

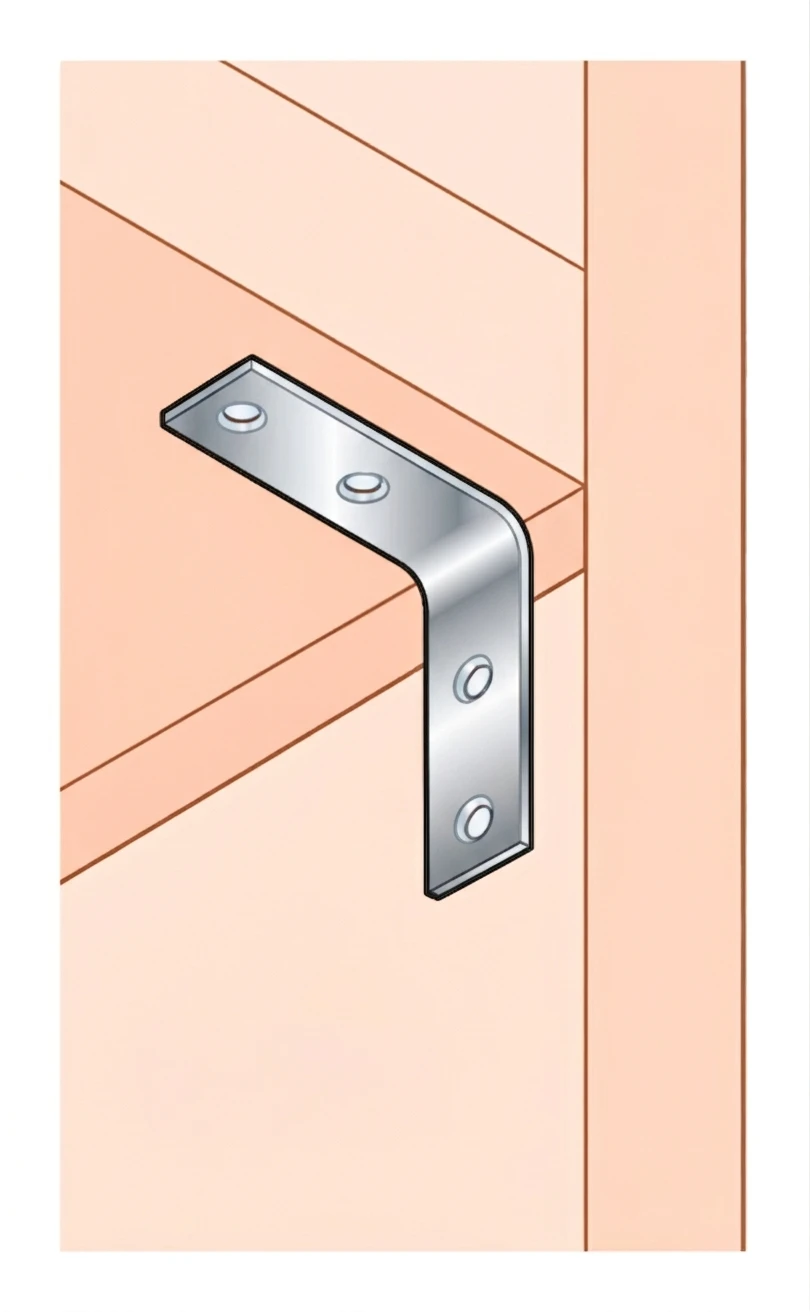

Installation and Fixing
The bracket can be secured using various types of fasteners, providing flexibility in selecting the installation method to suit the specific substrate and working conditions:
- ANCHOR ring shank nails ⌀4 mm
- Wood screws ⌀4 mm or ⌀5 mm
- Bolts M5
- Concrete anchors M5
The electro-galvanised zinc coating effectively protects the bracket against corrosion, extending the service life of the joint and allowing the component to be used in conditions of elevated humidity.
Certificates and Approvals
- European Technical Assessment (ETA)
- CE Marking
- Declaration of Performance
- Factory Production Control Conformity Certificate
The certificates held confirm the product's compliance with European quality and safety standards, which is essential when fulfilling orders that require full technical documentation.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Sheet metal thickness [mm] | 1.5 |
| Connector Type | Mounting Angle Bracket |
| Material | Steel |
