Mounting Rail 20-22mm with Adhesive Tape
Leave feedback on the product
Mounting rail 20-22 mm with self-adhesive tape for quick installation of underfloor heating pipes. Material: high-impact polypropylene, length 1000 mm (2x500 mm). Installation without drilling.
Product code: 000-088
Product features
[PIM] ogrzewanie-podlogowe #77
- Product Type Mounting rails
- Size 20-22 mm
Description

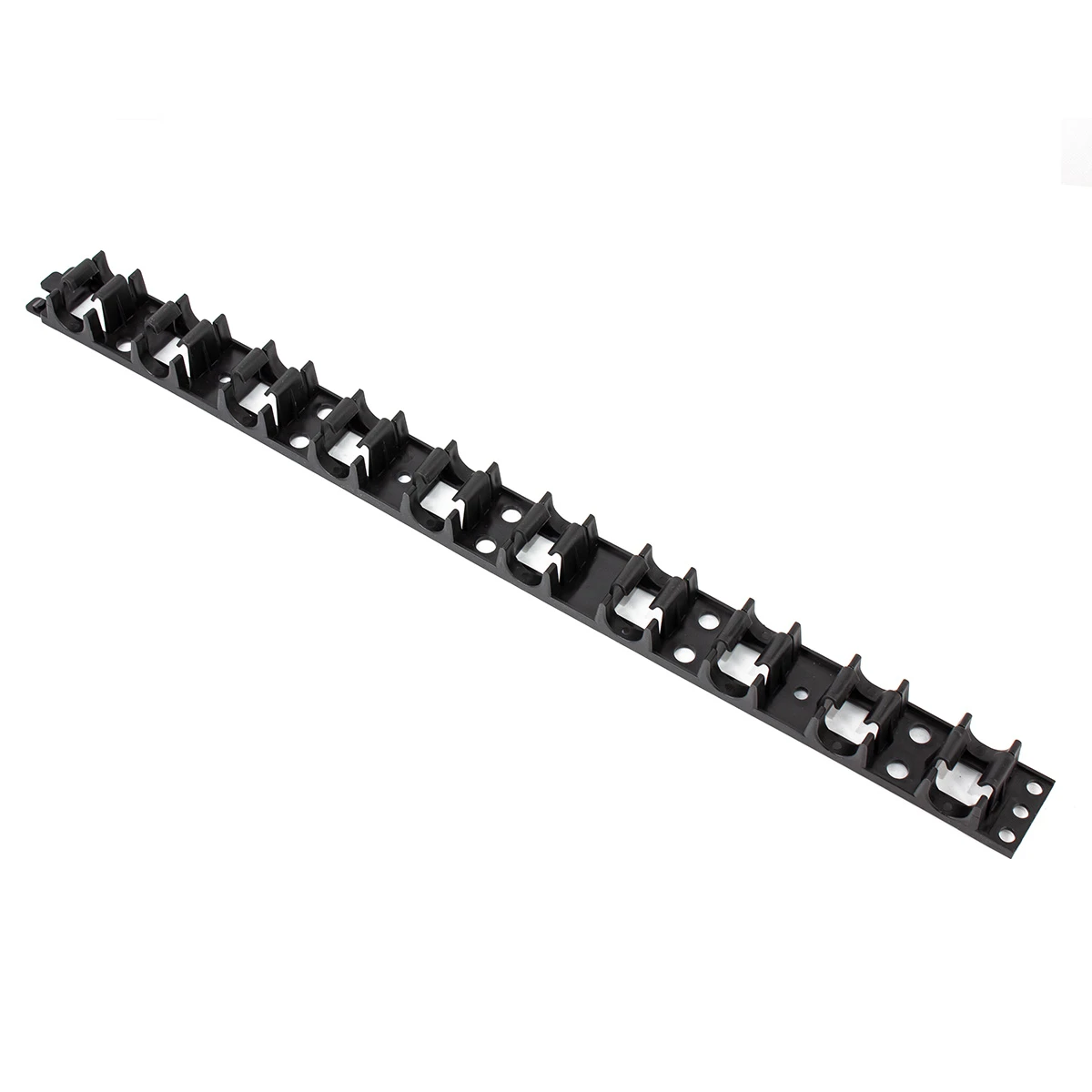

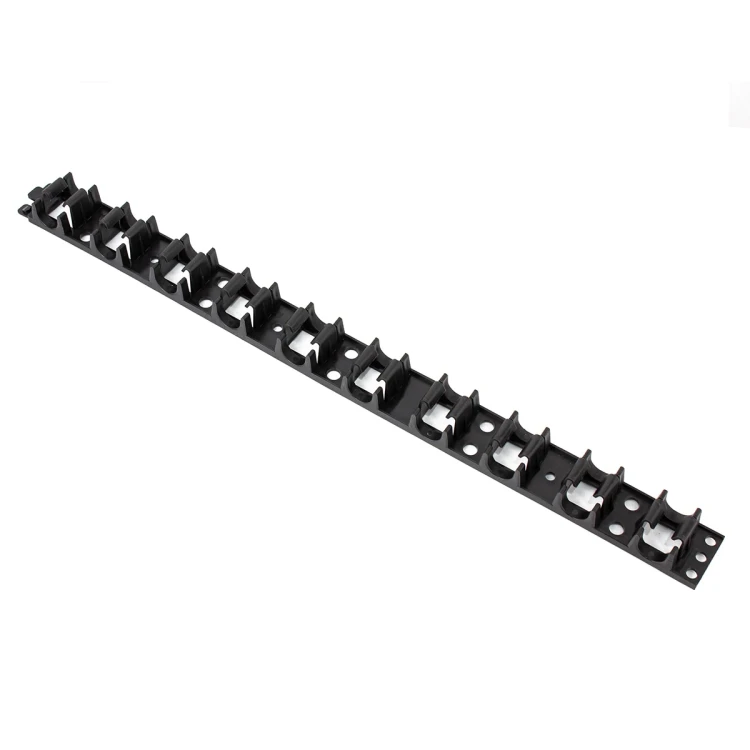

Mounting Rail 20–22 mm with Self-Adhesive Tape
Mounting Rail 20–22 mm with Self-Adhesive Tape is a solution for installers who value speed and ease of work. Thanks to the factory-applied adhesive tape on the underside of the rail, fitting underfloor or wall heating systems is significantly simpler — simply peel off the protective film and press the rail firmly onto the surface.
Why choose the adhesive tape version? The self-adhesive tape eliminates the need for drilling holes and using additional fixing plugs. Installers save time, and the substrate remains undamaged — an ideal solution when mounting onto polystyrene insulation or system mats.
Technical Specifications
- Pipe diameter: 20–22 mm
- Length: 1000 mm (2 sections of 500 mm each)
- Material: high-impact polypropylene

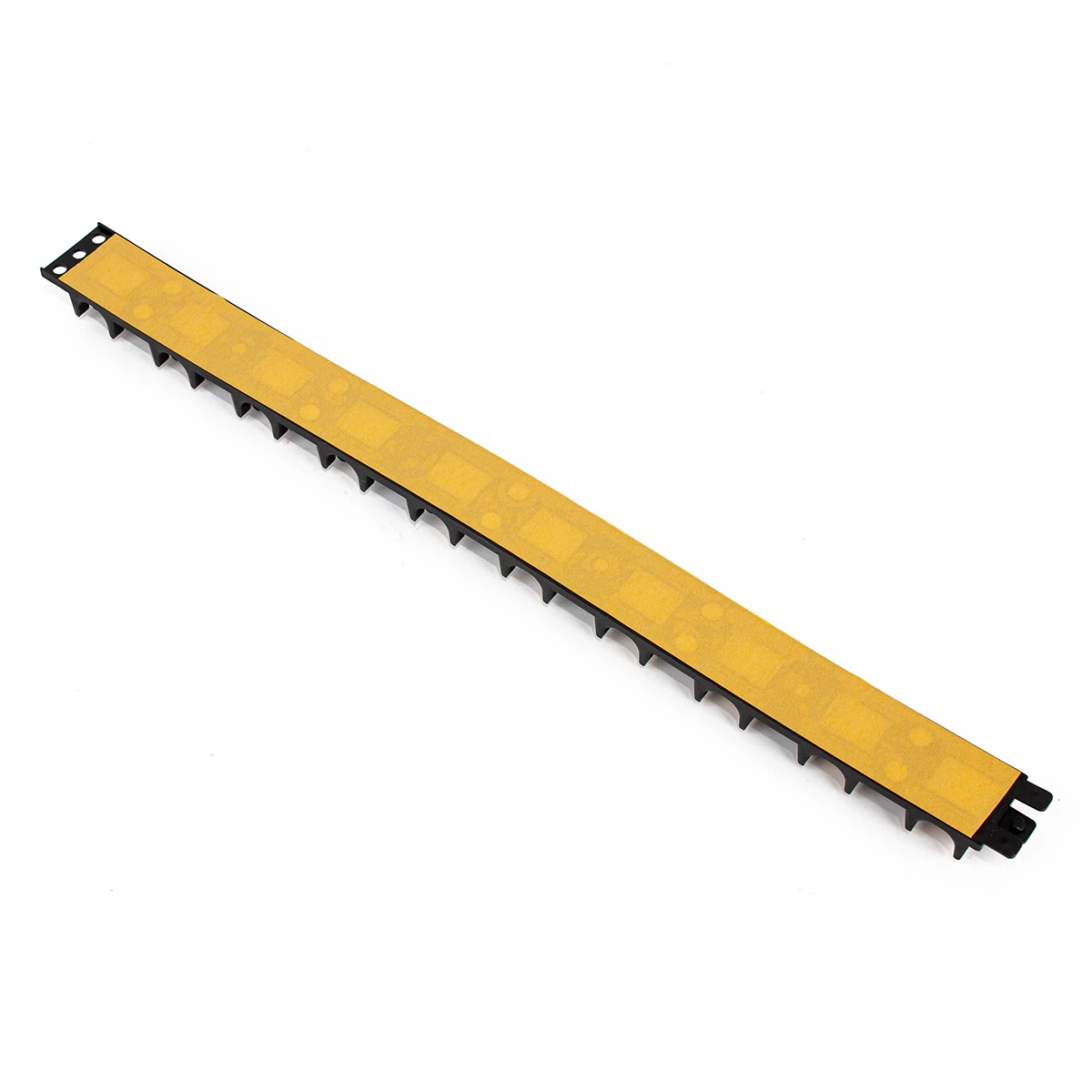

- Fixing method: self-adhesive tape along the full length
Key Benefits
- Quick installation: no drilling or plugging required — peel, stick, and done
- Secure pipe retention: flexible snap-in clips ensure stable fixing
- Durable material: polypropylene resistant to impact and on-site conditions
- Versatile: suitable for both underfloor and wall heating systems
Complementary accessory: a single-finger clip is available for the Rail, enabling additional spot fixing of the pipe at points where layout adjustments are required.
