Mounting Rail 10-12mm without tape
0
Description

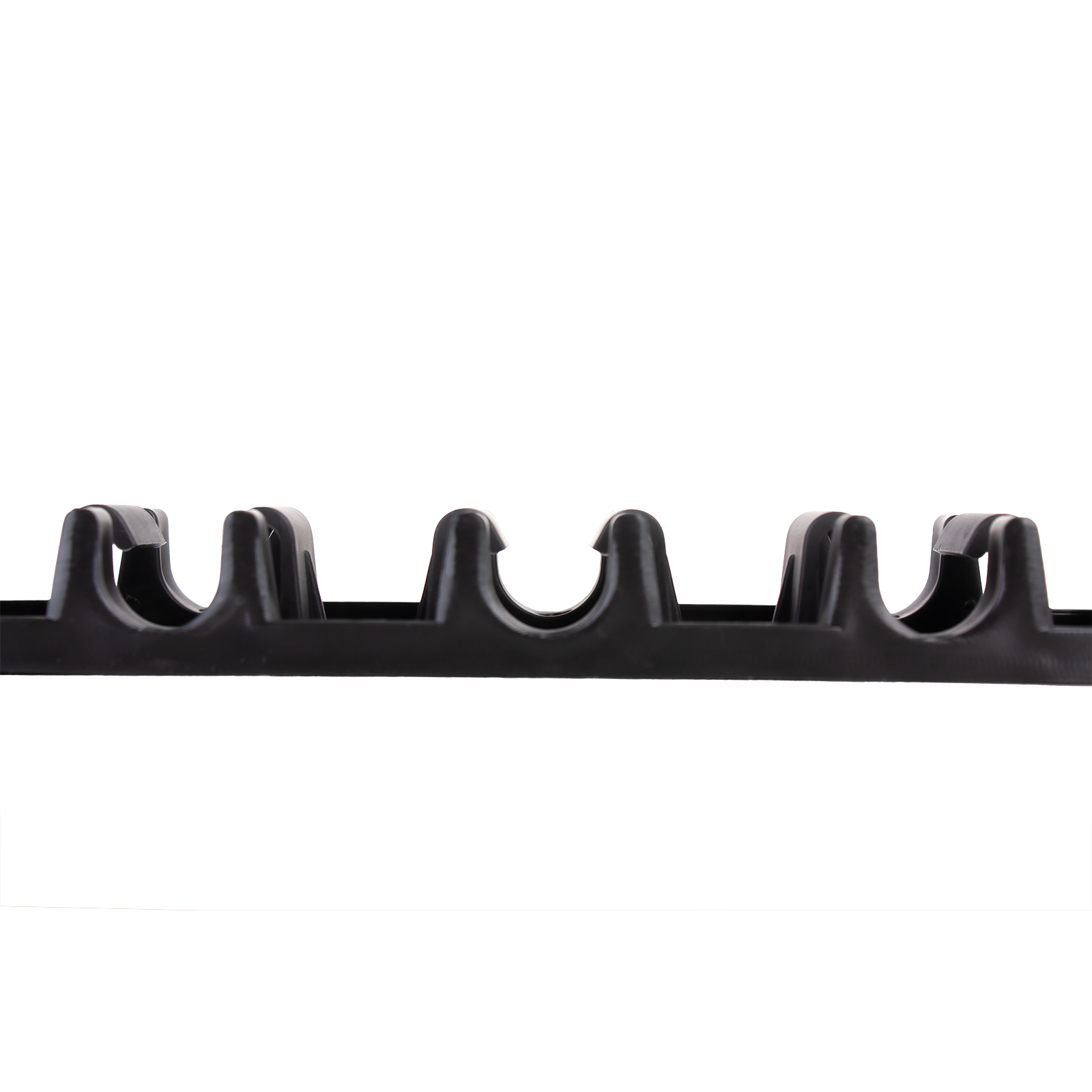

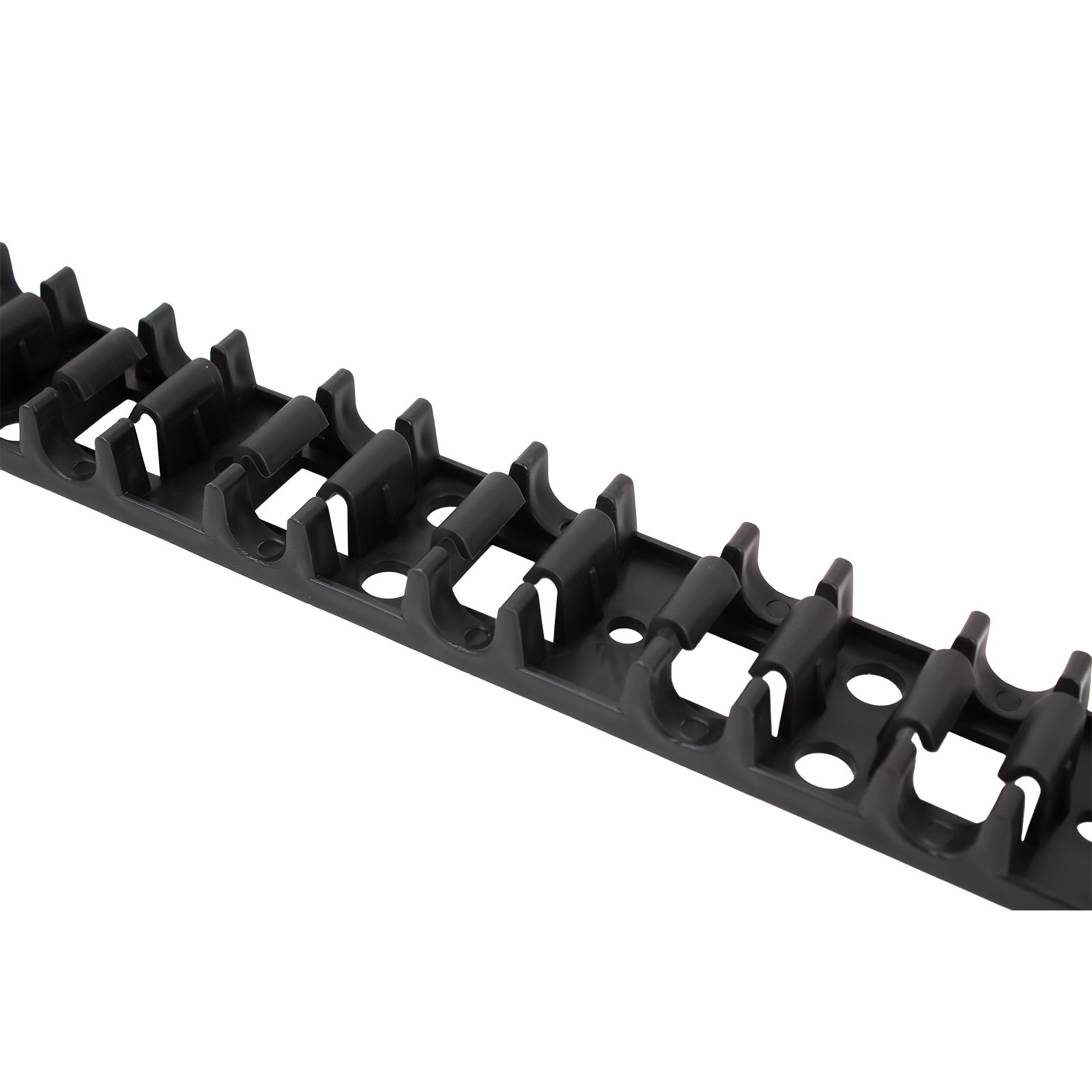

Rail Mounting Track 10–12 mm (without tape)
Rail Mounting Track 10–12 mm is a proven component of the pipe guidance system for underfloor and wall heating installations. Thanks to precision clips designed for pipes with a diameter of 10–12 mm, laying heating loops becomes faster and more repeatable — regardless of the installation team's experience.
How does it work? Simply press the pipe into the snap-fit clip — flexible tabs lock it in the correct position without additional fasteners. The fixed spacing of the clips ensures uniform distances between loops, which translates into proper heat distribution across the entire floor surface.
Practical delivery format

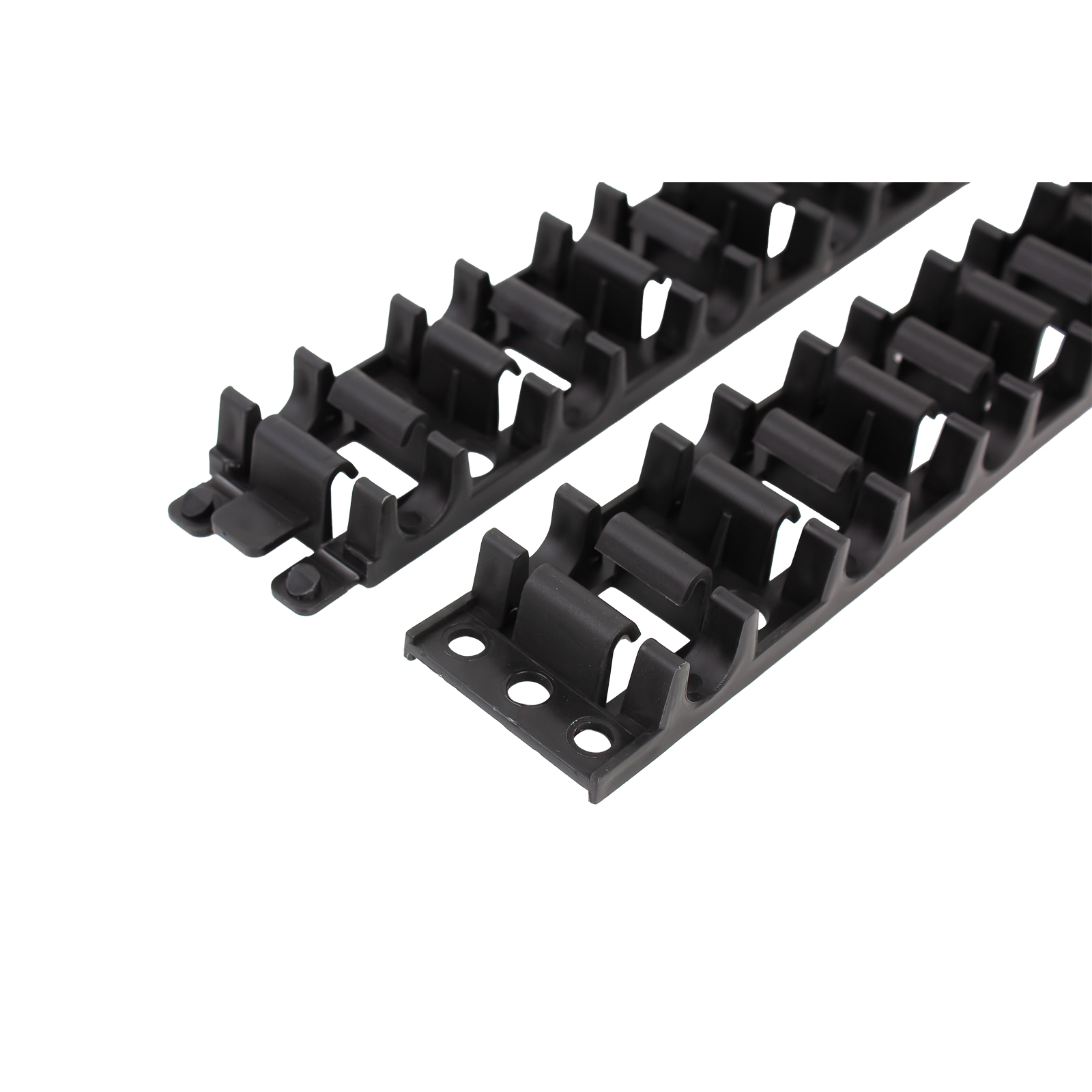

The track is supplied in 1000 mm sections, each consisting of two 500 mm segments connected by a flexible hinge. This design facilitates transport, storage and adjustment of track length to a specific room — simply cut or snap off the excess section.
Mounting holes distributed along the track enable quick fixing to the substrate using plugs or screws. The track is compatible with both panel insulation and concrete underlays, allowing it to be used in various floor layer configurations.
Durable material
The track is made of high-impact polypropylene, resistant to mechanical loads occurring during screed pouring. It does not deform under pressure and maintains flexibility even at lower temperatures found on construction sites.
Technical specifications
- Application: pipes with diameter 10–12 mm
- Section length: 1000 mm (2 × 500 mm)
- Material: high-impact polypropylene
- Colour: black
- Version: without self-adhesive tape
- Fixing: plugs or screws through mounting holes
Other sizes in the Rail series
The track is also available in variants for 16–18 mm and 20–22 mm pipes, as well as in versions with self-adhesive tape — eliminating the need for drilling and plugging. As a complementary system component, a single-finger clip is available, allowing additional point securing of the pipe outside the track.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Product Type | Mounting rails |
| Size | 10-12 mm |
