Modular installation switch I-0-II (1-0-2) common point from the top 4P 40A 400VAC SFT440 HAGER
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
0.278 kg
Price / pcs.:
excl. shipping costs
Save more money with larger packaging!
The larger the packaging unit, the lower the unit price!
product unavailable
add to wish list
* - Field mandatory
Description

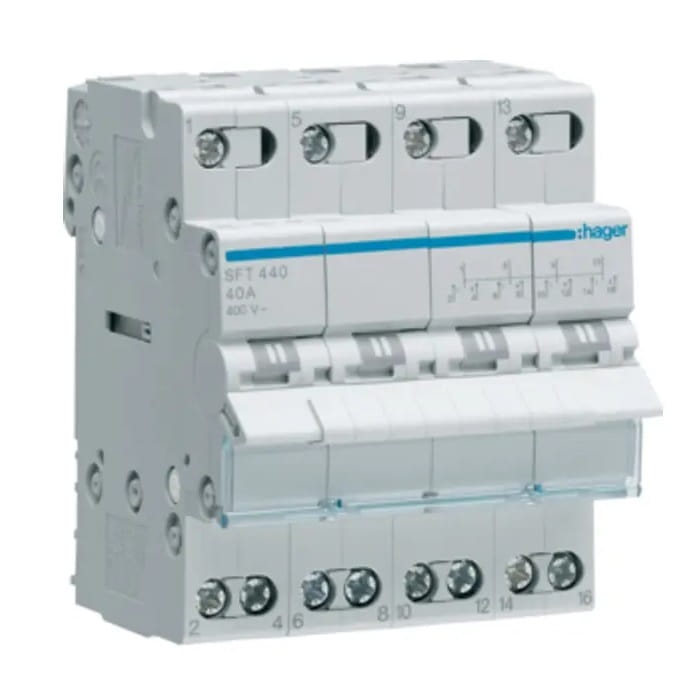

Modular installation switch I-0-II (1-0-2) common point from the top 4P 40A 400VAC SFT440 HAGER
Modular installation switch I-0-II (1-0-2) common point from the top 4P 40A 400VAC SFT440 by HAGER was designed for easy and safe switching of power sources, especially in emergency situations.
The SFT440 allows switching of power and control circuits of up to 40 A, ensuring reliability and efficiency of operation.
Specifications
Series and type
Modular installation switch I-0-II (1-0-2) common point from the top 4P 40A 400VAC SFT440 HAGER
Number of poles
4 P
Rated switching voltage Ue (AC)
400 V
Rated frequency
50 / 60 Hz
Rated insulation voltage Ui
440 V
Voltage input type 1
AC
Rated withstand surge voltage Uimp
4000 V
AC21 current carrying capacity in category A
40 A
AC21 current carrying capacity in category B
40 A
Permissible current load AC22 category A
40 A
Permissible load AC22 category B
40 A
Short-circuit current with gl-gG fuses
600 A
Closing capacity at 400 V in AC23A
846 A
Rated short term withstand current 1s
0.6 kA
Outer enclosure powered by thermal current
40 A
Total power loss for rated current
8.4 W
Power loss per pole for rated current
2.1 W
Electrical life at rated load in operating cycles (AC21)
25 000
Electrical life at rated load in operating cycles (AC22)
25 000
Mechanical strength (number of cycles)
200 000
Tightening torque
1.8 Nm
Cross section of flexible cable (wire) in the terminal
1.5 / 10 mm²
Cross section of rigid wire (wire) in the terminal
1.5 / 16 mm²
Connection type
With screw
Number of NO/NC contacts
2
Protection degree
IP20
Dimensions
70 x 83 x 35 mm
Key features
Standard
IEC 60947-3
European directive RoHs
Compatible
Degree of pollution in accordance with IEC 60664 / IEC 60947-2
2
