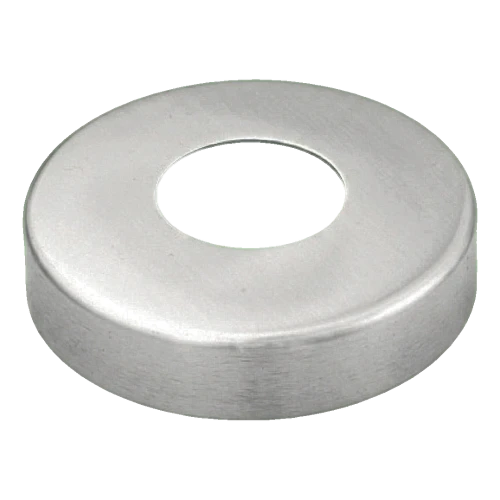

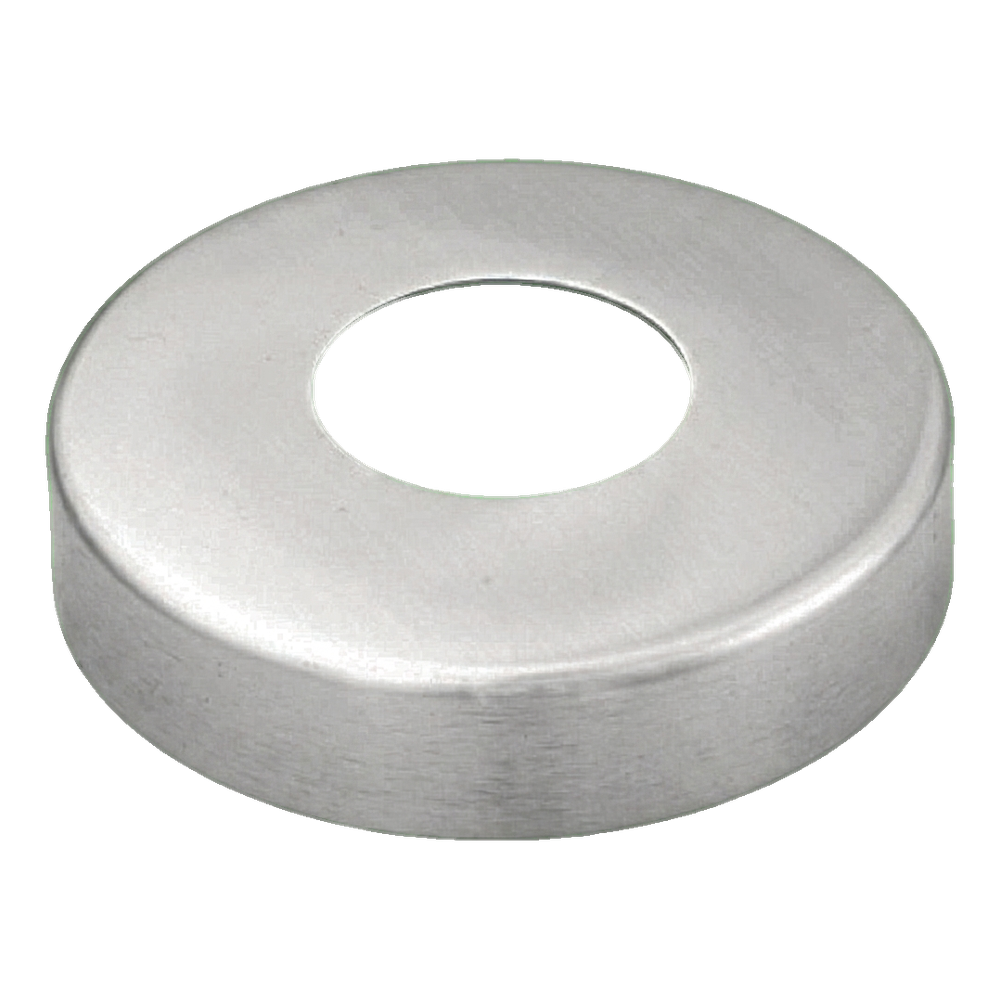

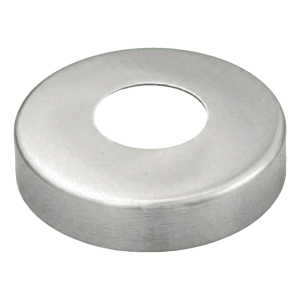

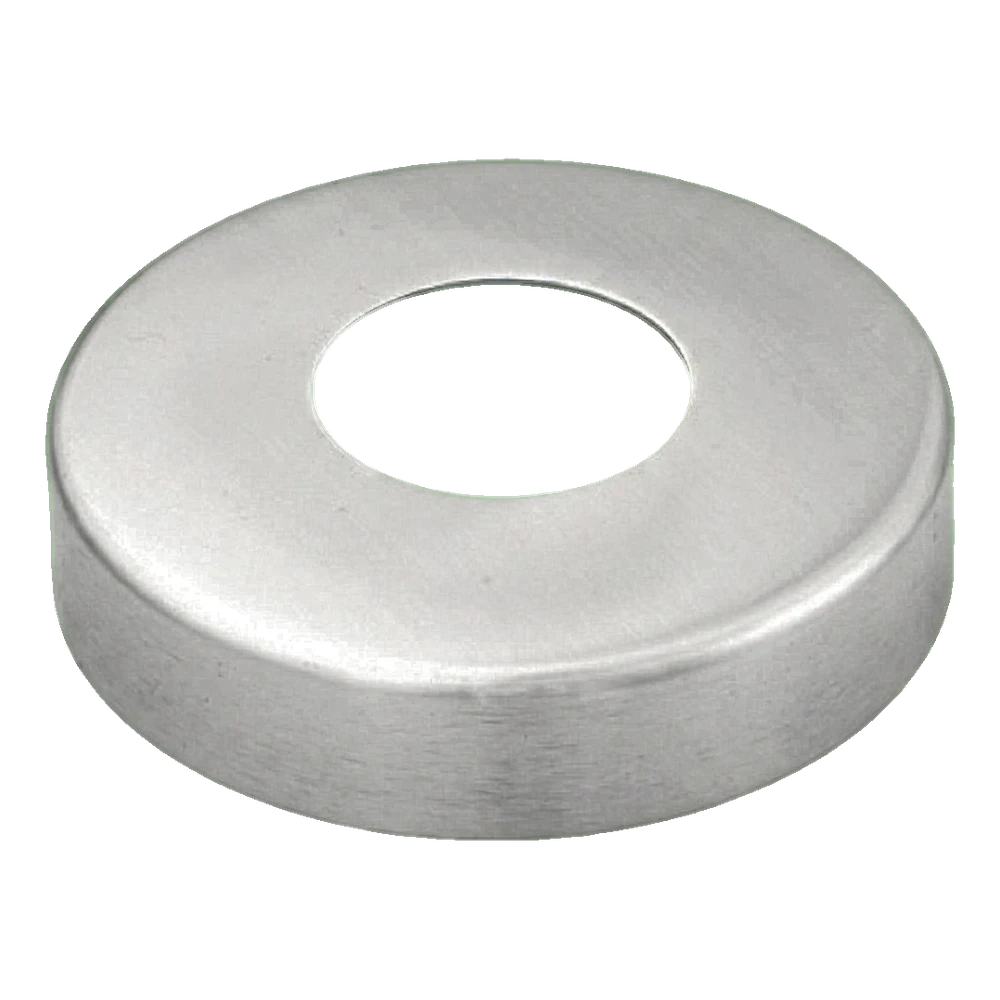

Masking rosette for stainless steel balustrade φ 42.4 mm – AISI 316 satin
0
Description
Masking rosette for stainless steel balustrade φ 42.4 mm – AISI 316 satin
Round masking rosette designed to cover mounting holes in stainless steel balustrades. Made from AISI 316 stainless steel with satin finish, it provides aesthetic and durable masking of the point where a 42.4 mm diameter tube passes through a floor, ceiling or structural element of the balustrade. Thanks to the use of acid-resistant grade 316 steel, the cover works excellently in outdoor conditions and environments with increased humidity — on terraces, balconies or in swimming pool facilities.
Simple form and precise manufacture mean that the rosette perfectly complements balustrade systems based on φ 42.4 mm tubes, giving the structure a professional, refined appearance. The element is ready for installation — simply slide it onto the tube and press it against the base surface.

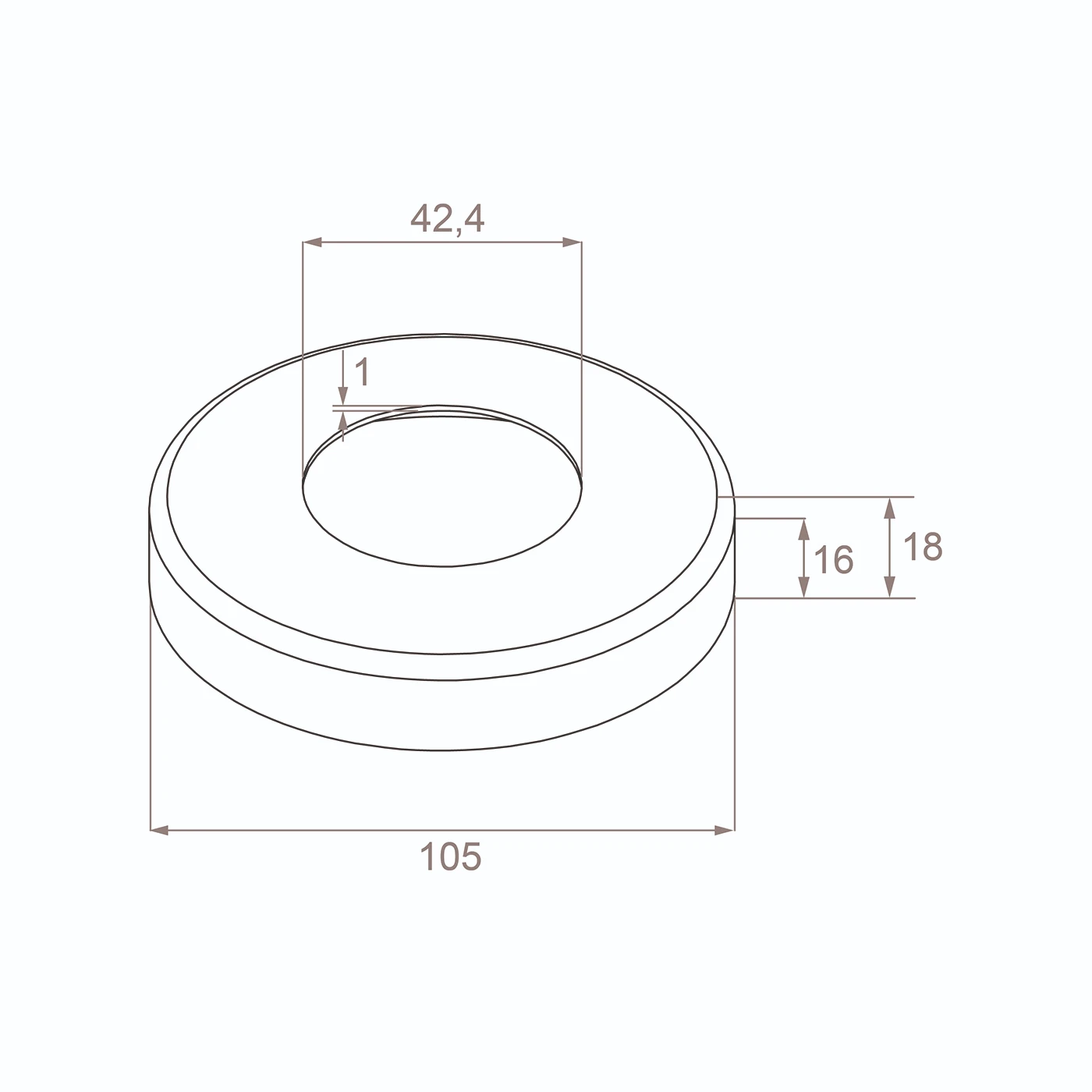

Dimensions and technical parameters
- External diameter: 105 mm
- Hole diameter (tube fit): 42.4 mm
- Total height: 18 mm
- Internal height: 16 mm
- Material thickness: 1 mm
- Material: stainless steel AISI 316
- Surface finish: satin
- Shape: round
- Weight: 0.14 kg
- EAN: 5901289673884
Application
The cover is designed for balustrade systems based on φ 42.4 mm tubes. It serves to aesthetically cover the mounting hole at the point where a post or tube passes through a structural element — floor, ceiling, stair tread or balcony slab. It constitutes an essential finishing detail that gives the balustrade a professional, complete appearance and protects the hole edges against corrosion and mechanical damage.
Technical data
| Material | AISI 316 |
| Finish | Satin |
| Mounting System | 42.4 mm |
