Locinox MAMMOTH180-2 – hydraulic self-closing hinge for 180° gates, silver
Description
Locinox MAMMOTH180-2 – hydraulic self-closing hinge for 180° gates, silver
Locinox MAMMOTH180-2 is a professional hydraulic self-closing hinge designed for garden gates weighing up to 150 kg and up to 1500 mm wide. Thanks to a 180° opening angle and the Quick-Fix system, installation time is reduced to a minimum — the product is fixed directly to the post and gate frame without the need for welding.

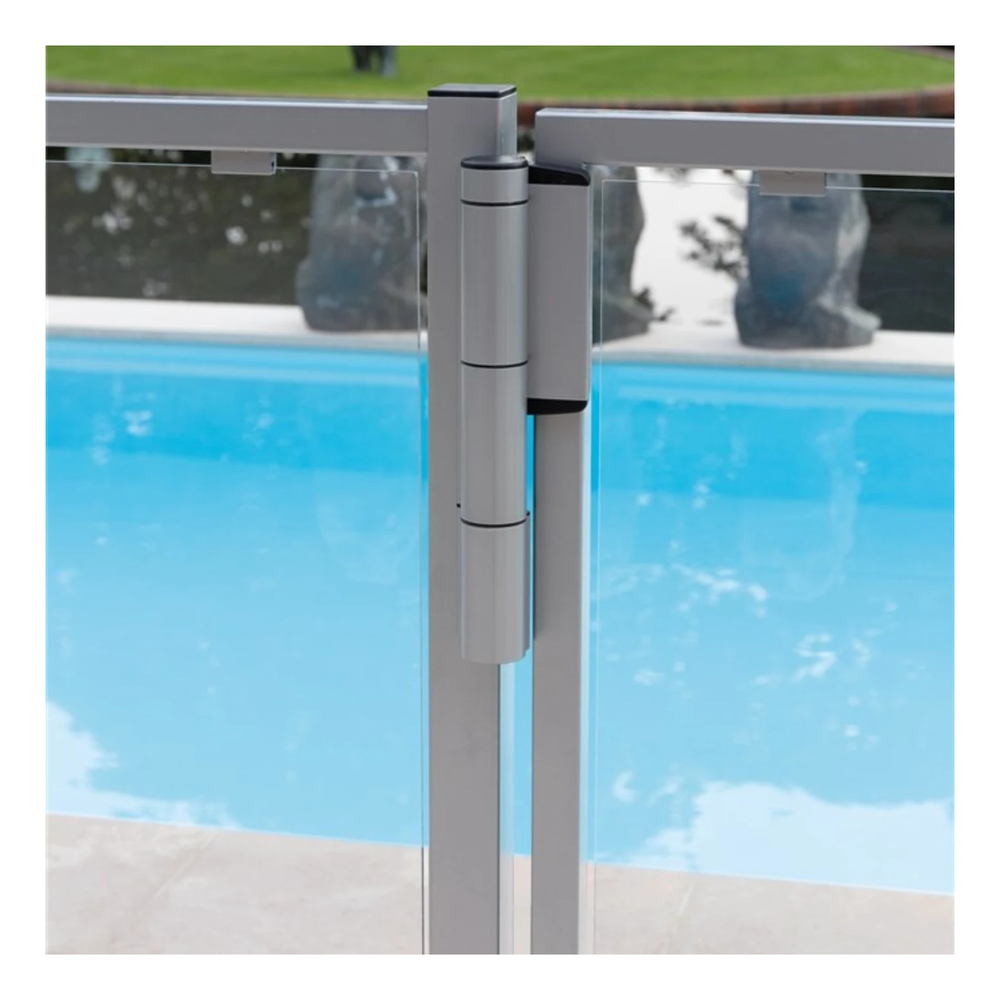

The hydraulic self-closer ensures controlled, quiet closing of the gate in all weather conditions. Adjustable closing speed allows the operation to be tailored to the specific site — from residential estates to pool enclosures requiring mandatory self-closing. The compact construction, made from high-quality materials, guarantees years of trouble-free outdoor use.
Versatile applications

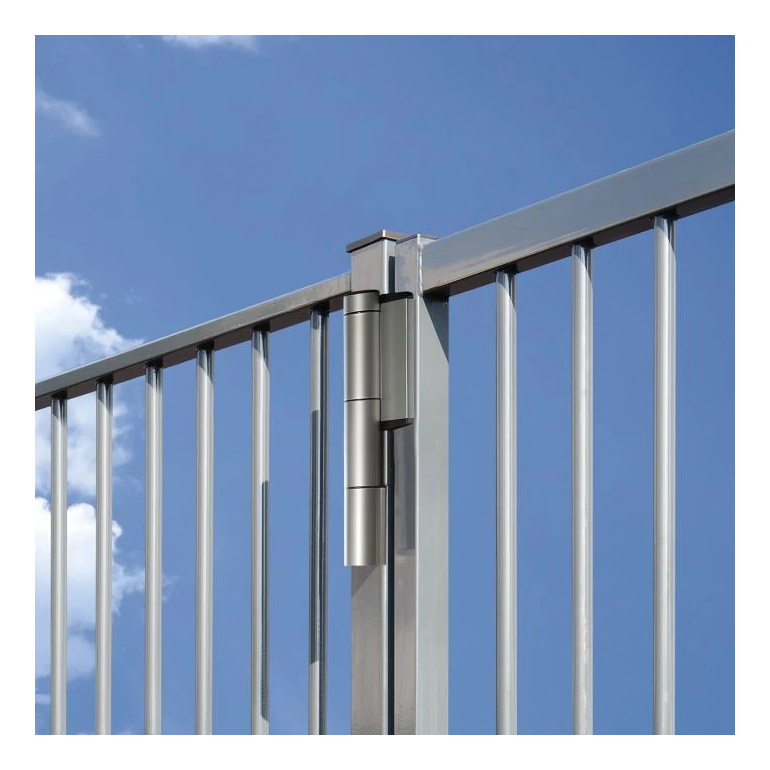

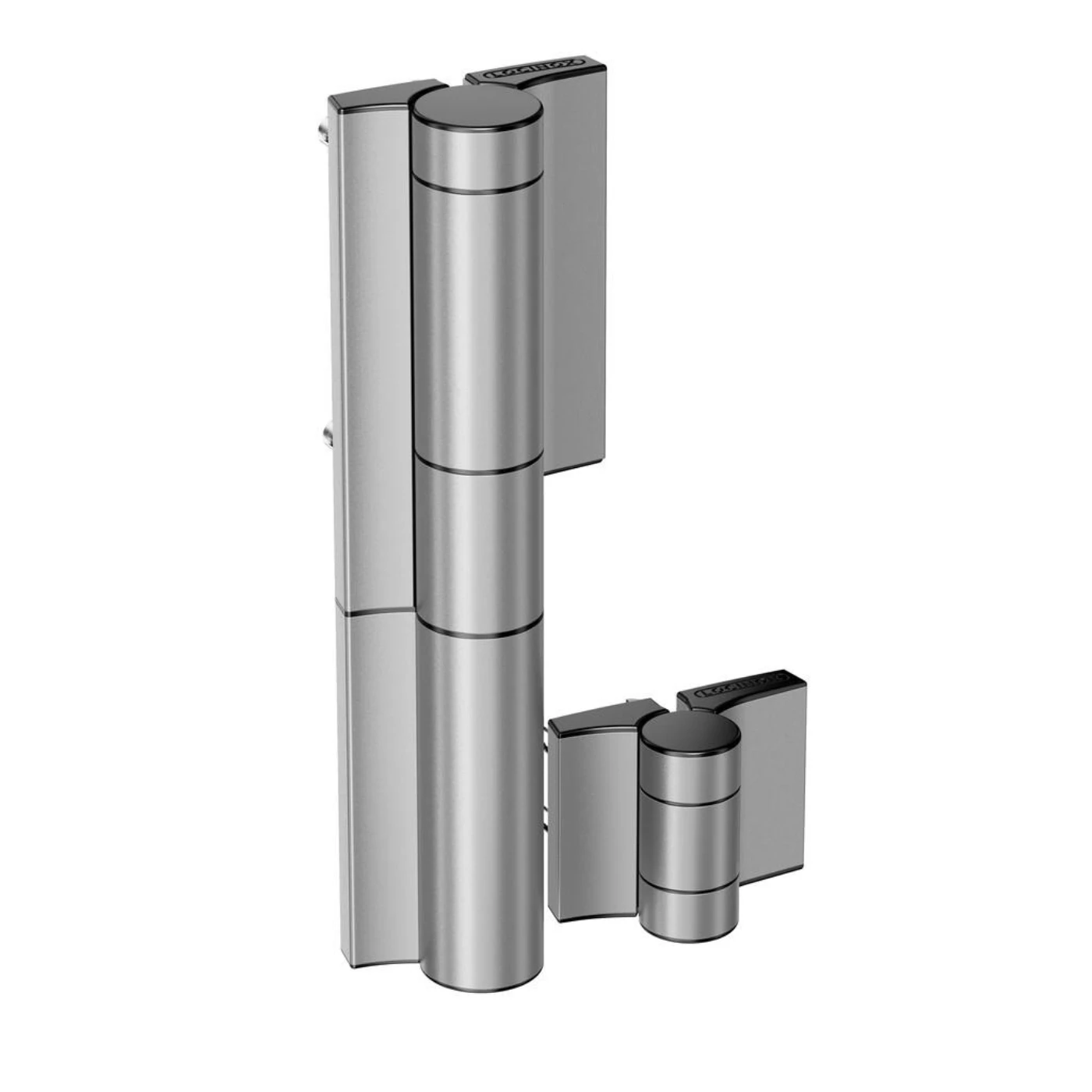

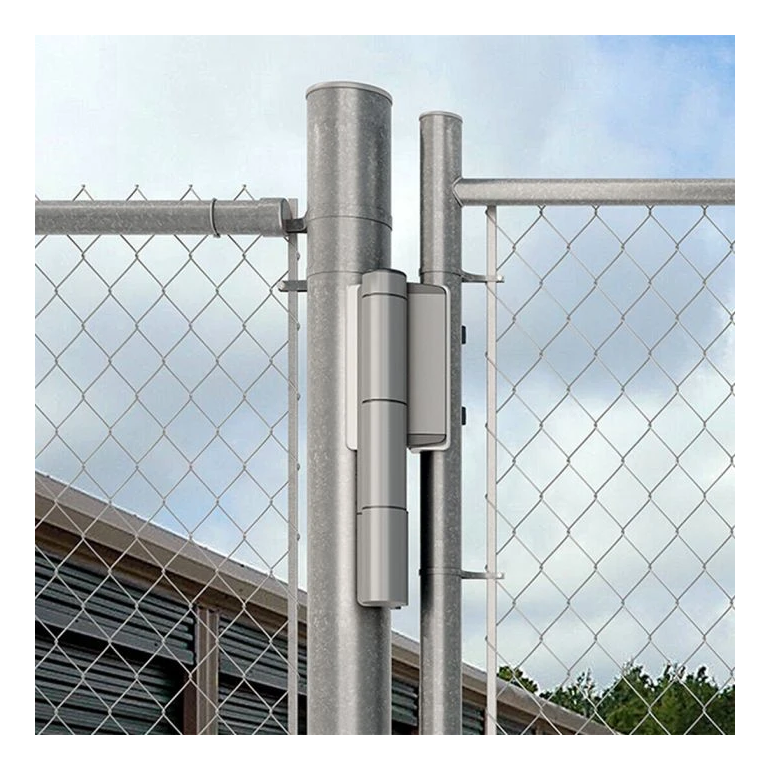

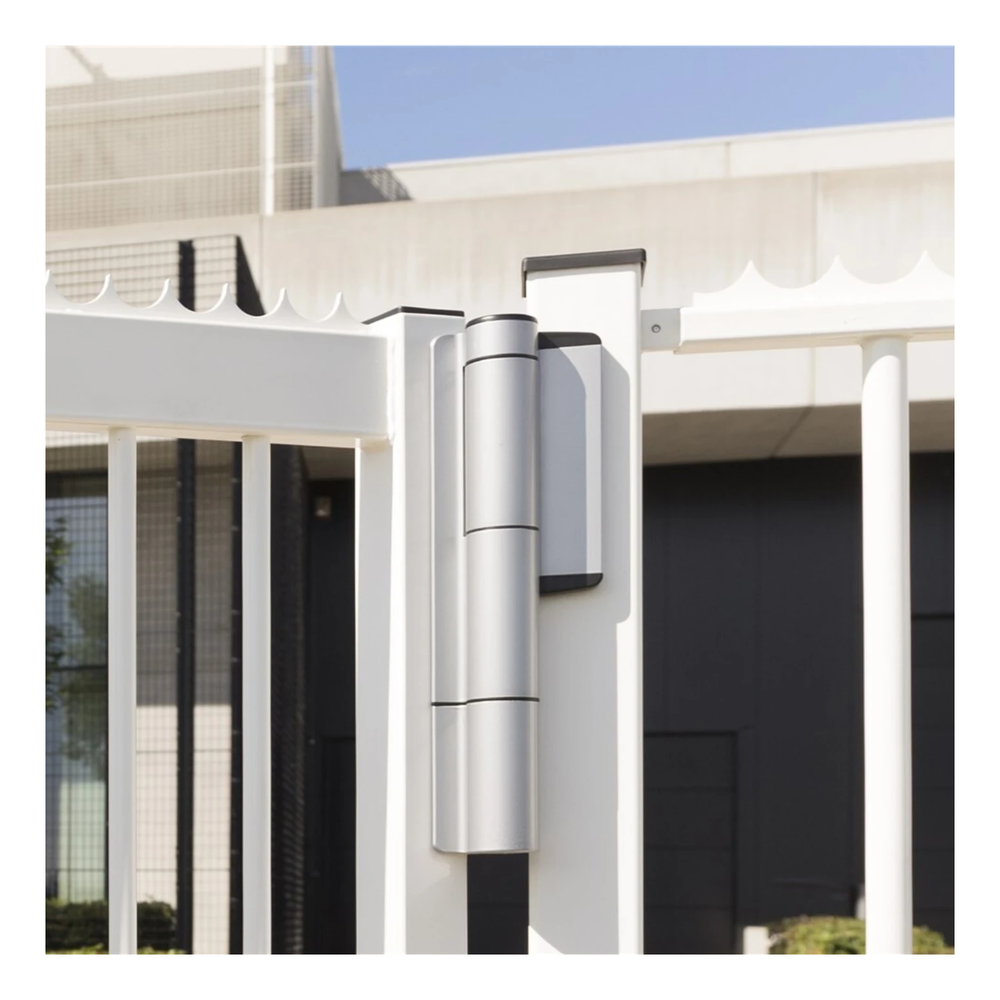

The MAMMOTH180-2 works well on posts of various profiles — square, rectangular and round. The set, consisting of a self-closer (upper part) and a hinge (lower part), supports a wide range of fence gate constructions: metal gates, panel gates, mesh gates, glass gates and picket-infill gates.
Dimensions and installation

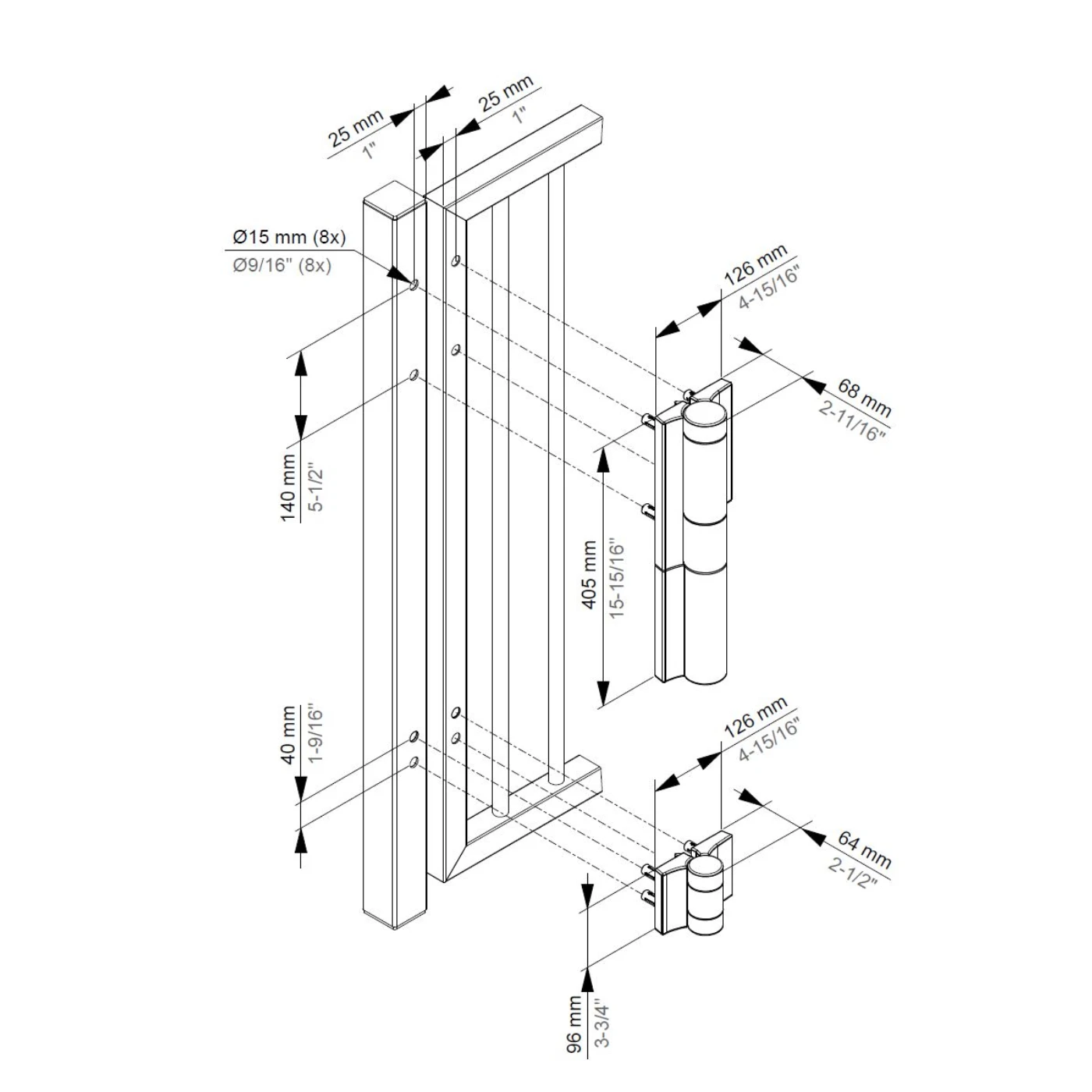

The Quick-Fix mounting system uses 8 holes with a diameter of Ø15 mm, arranged symmetrically on both leaves (post side and gate frame side). A distance of 25 mm must be maintained between the hole axes and the edge of the post, and 25 mm from the edge of the gate frame.
- Self-closer width (upper part): 126 mm
- Self-closer depth: 68 mm
- Self-closer hole spacing (vertical): 140 mm
- Hinge width (lower part): 126 mm
- Hinge depth: 64 mm
- Hinge hole spacing (vertical): 40 mm
- Distance between self-closer and hinge (vertical): 405 mm
- Distance from the bottom hole to the bottom edge of the hinge: 96 mm
- Mounting holes: Ø15 mm (8 pcs)
- Distance from hole axes to the edge of the profile: 25 mm
Technical parameters
- Manufacturer: Locinox
- Type: hydraulic self-closing hinge
- Opening angle: 180°
- Maximum gate weight: 150 kg
- Maximum gate width: 1500 mm
- Mounting system: Quick-Fix
- Colour: silver
- Net weight: 4.75 kg
- EAN: 5414768122891
