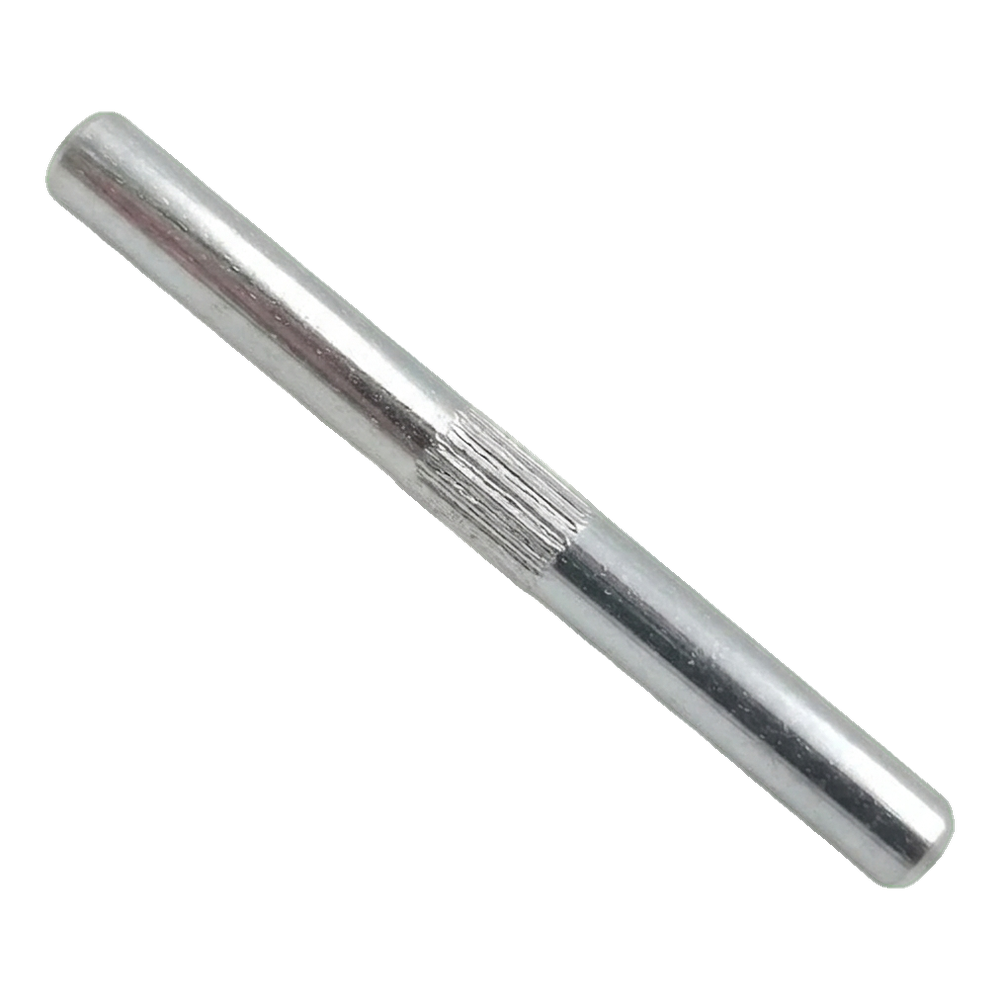

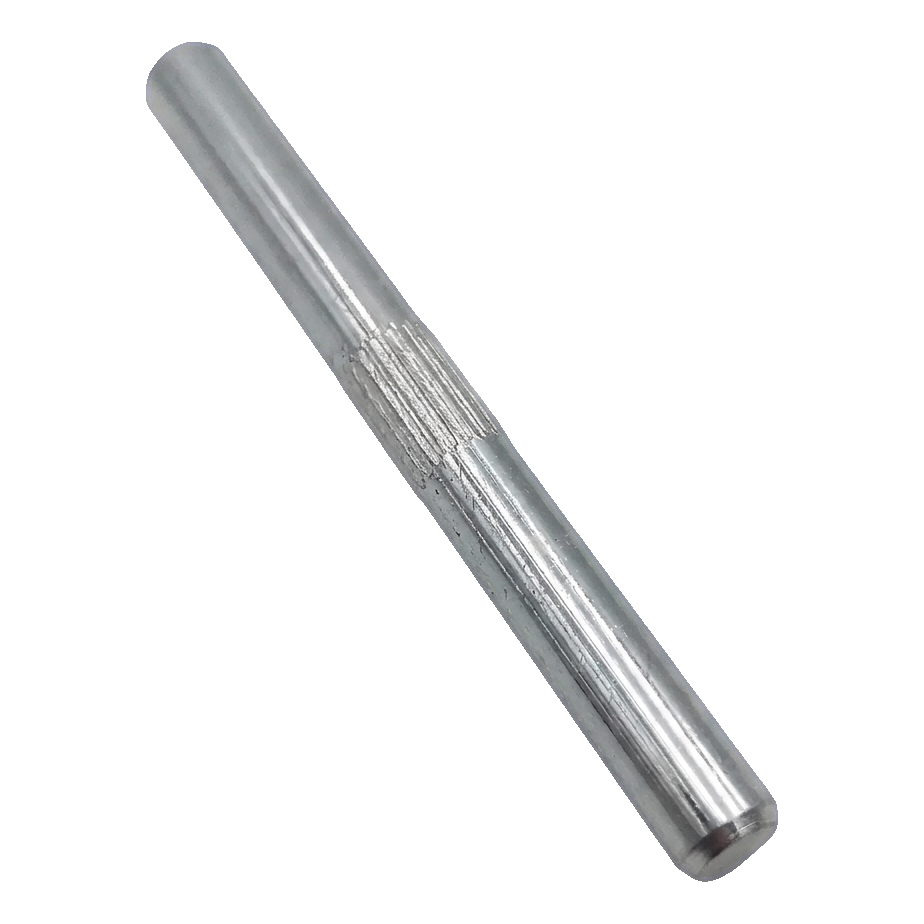

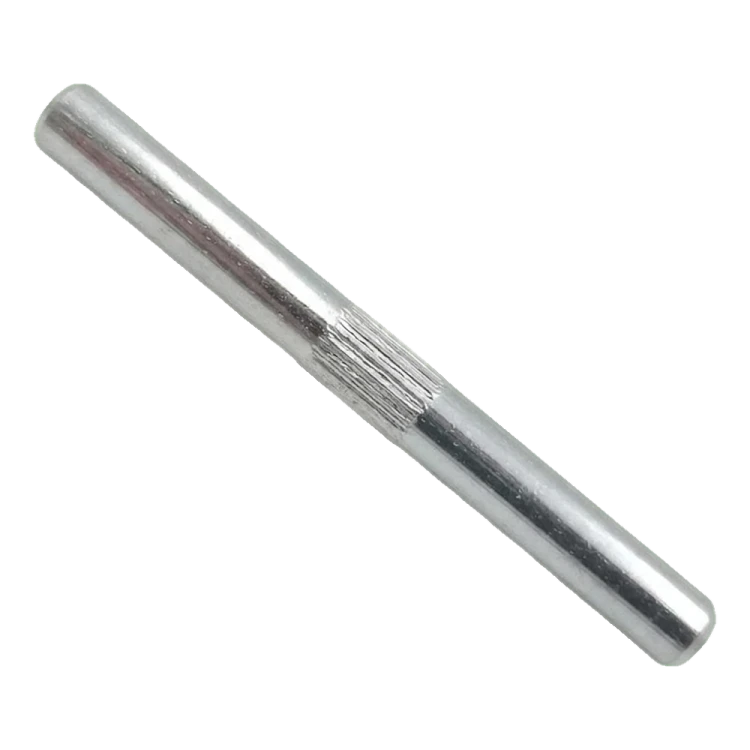

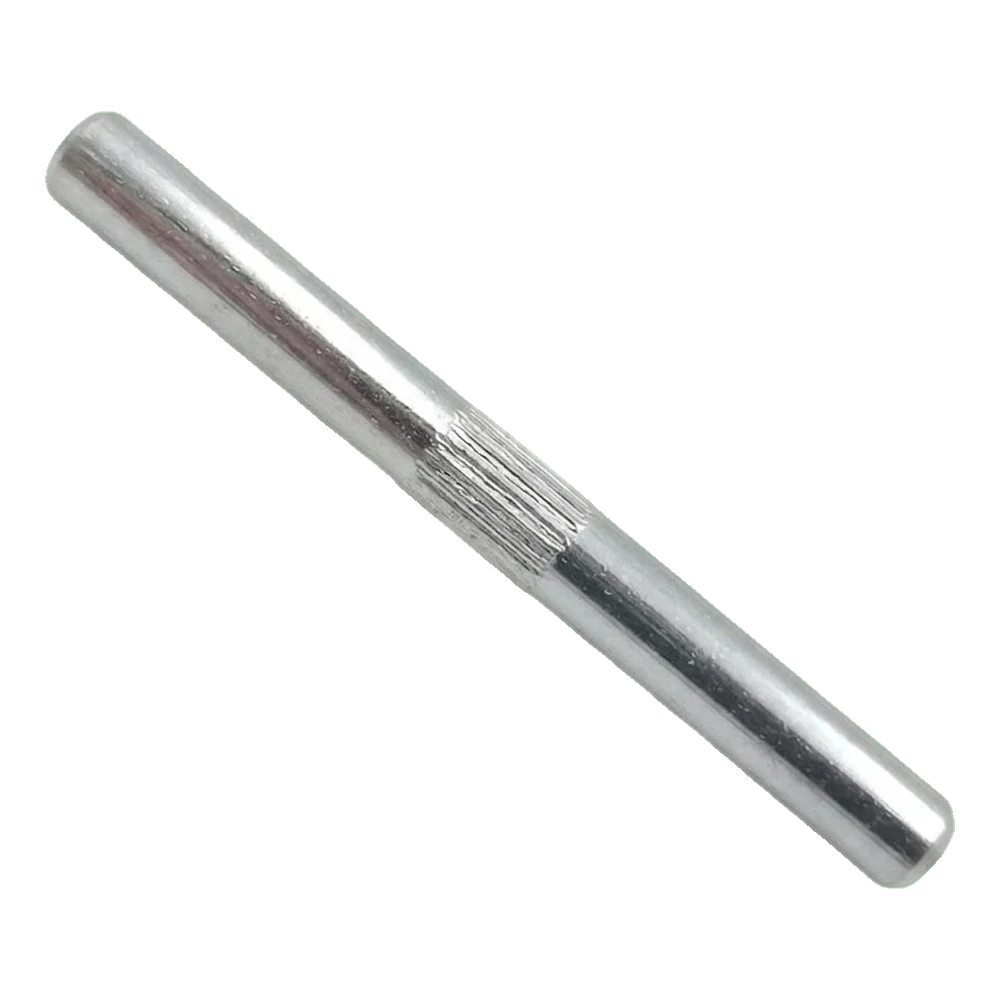

Kozza – steel pin M5 x 50 mm for connecting aluminium balustrade profiles
Description
Kozza – steel pin M5 x 50 mm for connecting aluminium balustrade profiles
Kozza steel pin M5 x 50 mm is a compact mounting element designed for permanent connection of aluminium profiles in glass balustrade systems. The central part of the shaft has knurling (longitudinal notches), which after being driven into the profile hole ensures secure seating and prevents the pin from rotating — thus the connection is stable without the need for additional securing.
Made from high-quality steel, the pin is characterised by high resistance to mechanical loads and corrosion resistance. The M5 diameter and 50 mm length ensure compatibility with most standard aluminium profiles used in Kozza brand balustrade systems.
Technical parameters
- Manufacturer: Kozza
- Diameter: M5
- Length: 50 mm
- Material: steel
- Weight: 0.04 kg
- Volume: 13.2 cm³
- EAN: 5903313205726
Application
The pin is designed for connecting aluminium profiles in glass balustrade constructions. The knurled section of the shaft guarantees a stable, non-rotating connection of two profiles end-to-end — simply drive the pin into the hole of the first profile, then slide on the second profile. This is a simple and quick solution that speeds up assembly and eliminates the need for threading or using adhesive.
Technical data
| Material | AISI 304 |
