Kozza side end cap for KE 100 all-glass balustrade profile – dark grey
Description
Kozza side end cap for KE 100 all-glass balustrade profile – dark grey

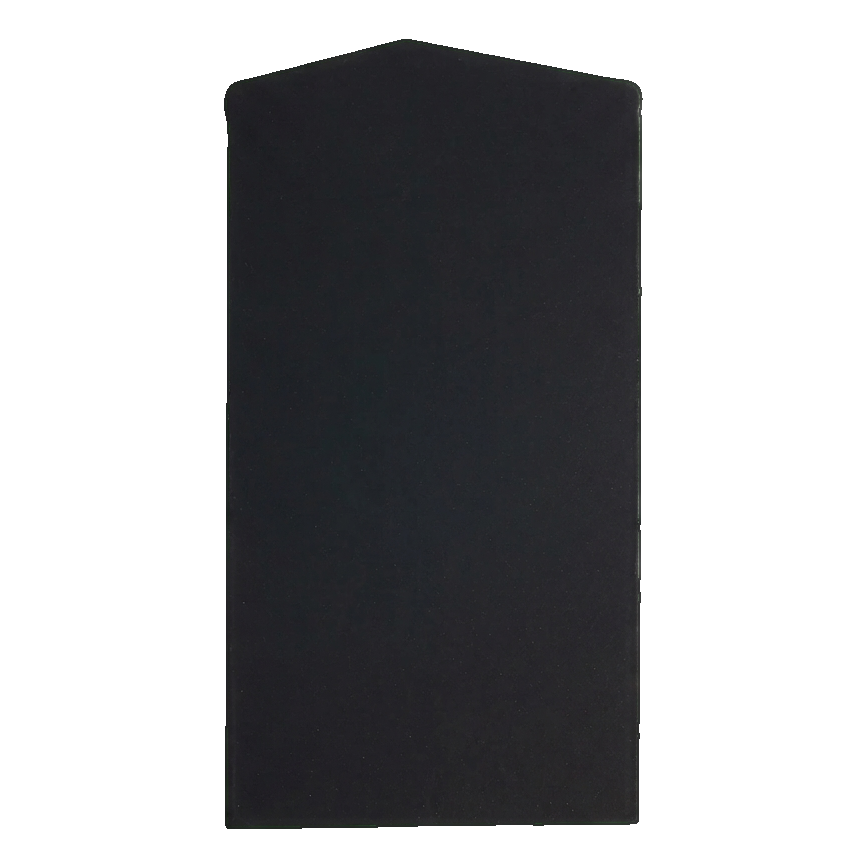

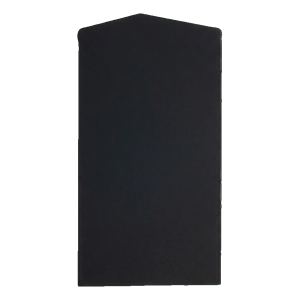

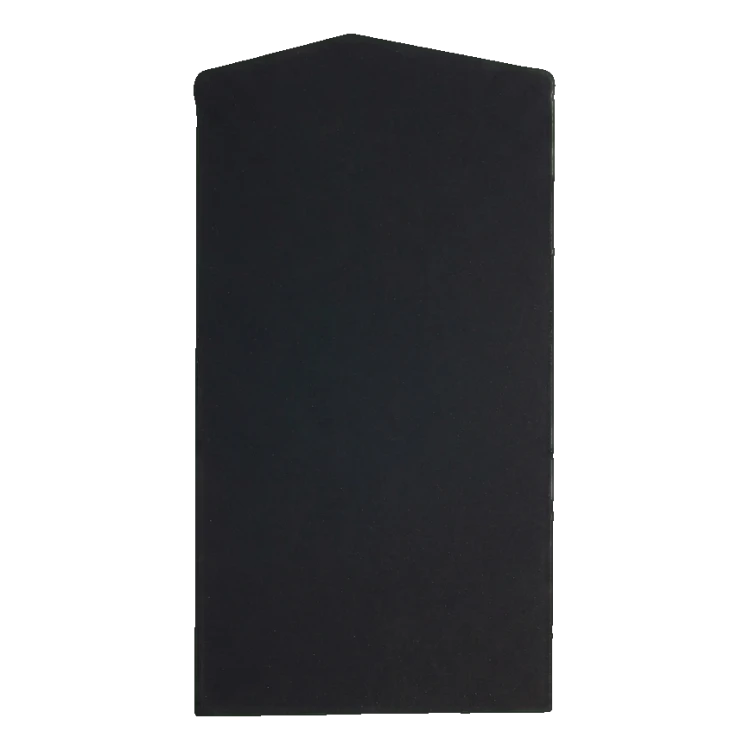

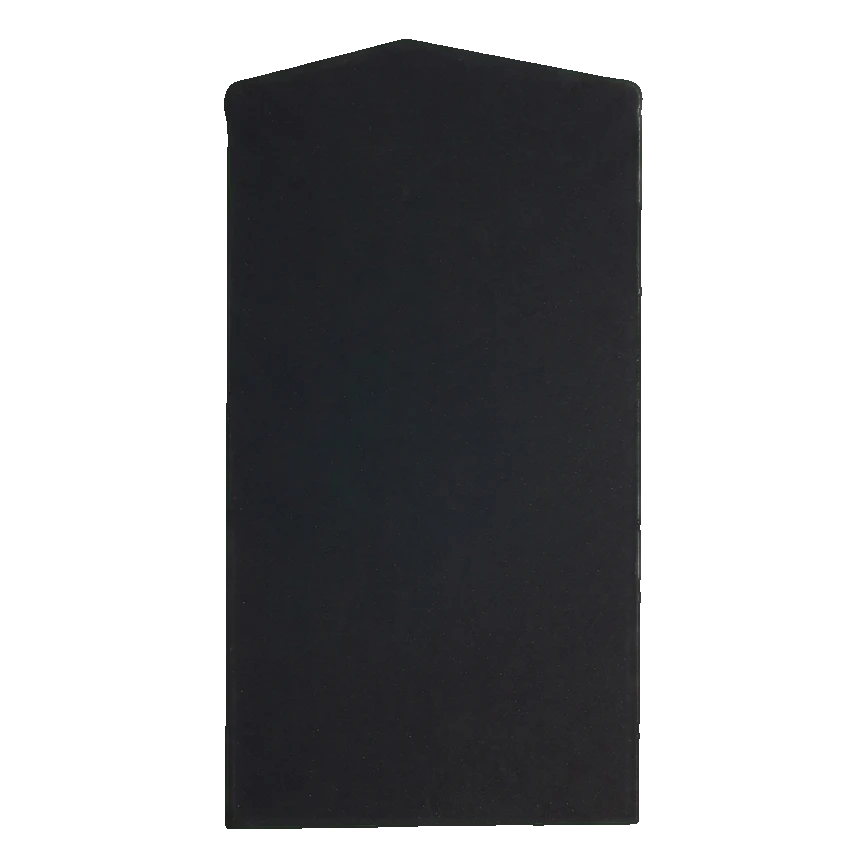

The Kozza KE 100 side end cap is a finishing element designed to close U-type profiles in all-glass balustrades. Precisely matched geometry closes the extreme cross-section of the profile, masks the aluminium cutting point and gives the entire installation an aesthetic, organised appearance. The dark grey colour (RAL 7021) perfectly complements modern architecture — both in residential and commercial buildings.
The end cap is compatible with the flat version of the KE 100 system, in which profiles are mounted from above to the substrate. This solution allows maintaining continuity of the base line on terraces, loggias and passages. Thanks to the lightweight body made from aluminium EN AW 6063, the element does not burden the structure, whilst simultaneously guaranteeing corrosion resistance and long-term durability in architectural applications.
Technical specification
- Manufacturer: Kozza
- Application: KE 100 series – U-type balustrade profile
- End cap type: side
- Profile mounting: from above
- System: flat
- Width: 60 mm
- Height: 110 mm
- Material: aluminium EN AW 6063
- Colour: dark grey (RAL 7021)
- Weight: 0.038 kg
- Packaging dimensions: 11.0 × 6.0 × 11.0 cm
- EAN: 5903313208093
Application and compatibility
KE 100 series profiles support glass with thickness from 12 to 21.52 mm, which covers the standard range of panels used in all-glass balustrades for residential and commercial buildings. The end cap closes the installation regardless of the selected glass thickness, ensuring flush alignment with the glass channel — without protrusion or gaps.
Benefits for the installer
- Quick installation — precise fit to the KE 100 profile enables secure seating without additional processing
- Aesthetic finish — masks profile cutting and limits penetration of contaminants and moisture into the channel interior
- Colour consistency — dark grey shade combines with anodised, black and stainless steel finishes, facilitating maintenance of uniform appearance throughout the entire balustrade
- Increased safety — closed profile edge eliminates sharp aluminium endings
Technical data
| Material | Aluminium |
