Kozza rectangular aluminium handrail 30.1×25 mm black for glass 16–21.52 mm – 5 m

Go to Product feedback

Kozza rectangular aluminium handrail, black RAL 9005. Cross-section 30.1×25 mm, length 5000 mm. Anodised aluminium. For glass 16-21.52 mm with replaceable seals. Weight 1.85 kg. Slip-on mounting on glass edge.

Go to full description
with VAT without VAT
Price €53.47
incl. 23% VAT
Availability:
Temporarily unavailable
Unavailable

Product features

[PIM] balustrady-caloszklane #128

  • Accessory Type Overlay Handrail Bracket
  • Material Aluminium

Description

Kozza rectangular aluminium handrail 30.1×25 mm black for glass 16–21.52 mm – 5 m

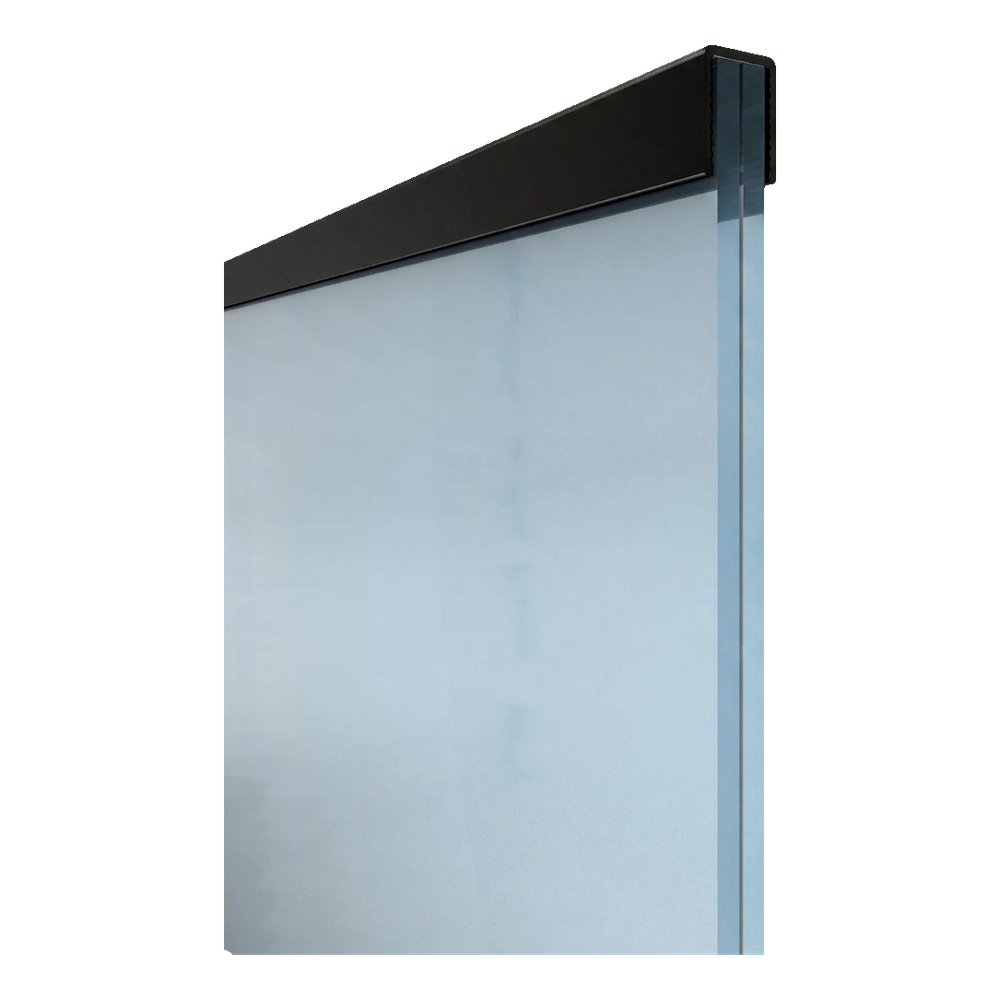

Kozza rectangular black aluminium handrail mounted on balustrade glass
Kozza rectangular black aluminium handrail mounted on balustrade glass

Kozza rectangular aluminium handrail is a universal finishing element for all-glass balustrades, compatible with glass panels from 16 to 21.52 mm thick. Made from anodised aluminium in black RAL 9005, it combines high durability with modern aesthetics, perfectly integrating into glass balustrade systems used both indoors and outdoors.

One profile handles two glass thickness ranges — simply select the appropriate seal. This solution allows installation companies to maintain smaller inventory levels and flexibly respond to different project requirements without replacing the entire handrail.

Two glass thickness ranges — one profile

Thanks to the replaceable seal system, the handrail works with glass panels of 16–17.52 mm and 20–21.52 mm thickness. Variant selection is made by fitting the appropriate seal — for thinner glass or for thicker glass. This approach significantly increases product versatility and eliminates the need to purchase separate profiles for different projects.

Anodised aluminium — durability and aesthetics

The profile is made from aluminium subjected to anodising process, ensuring high resistance to scratches, corrosion and weather conditions. The black RAL 9005 surface requires no additional maintenance and perfectly complements toughened glass and stainless steel elements. This is a proven solution both in elegant office interiors and on balconies or terraces.

Profile dimensions and cross-section

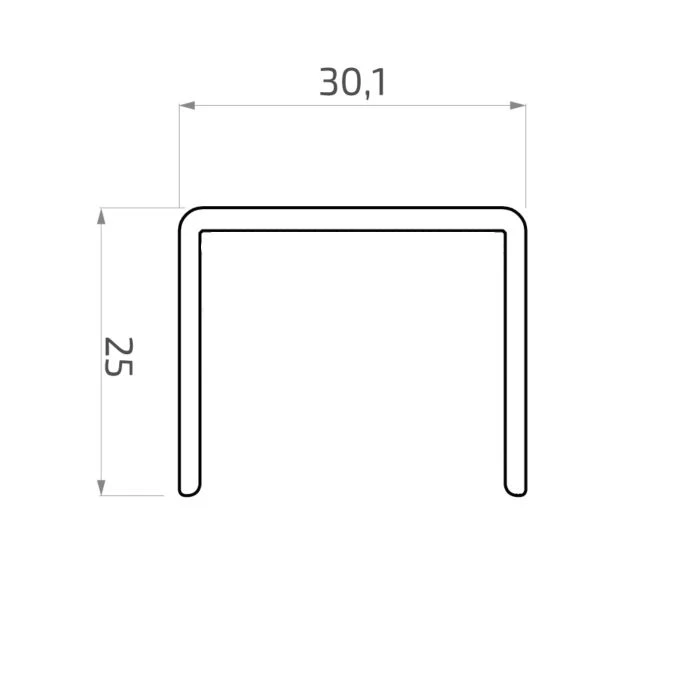

Cross-section of Kozza aluminium handrail — dimensions 30.1×25 mm
Cross-section of Kozza aluminium handrail — dimensions 30.1×25 mm

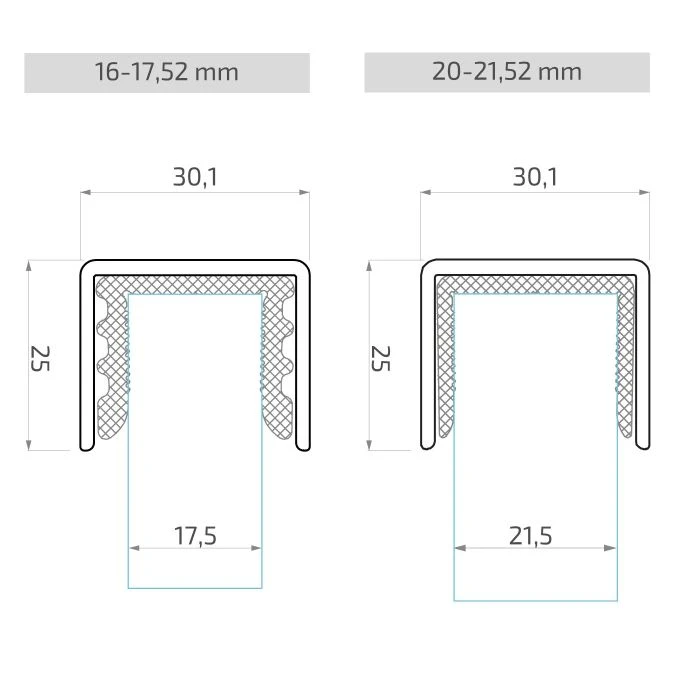

Kozza handrail cross-sections with seals — variant for glass 16–17.52 mm and 20–21.52 mm
Kozza handrail cross-sections with seals — variant for glass 16–17.52 mm and 20–21.52 mm

The rectangular cross-section profile 30.1 × 25 mm ensures stable mounting on glass edge and ergonomic grip. The factory length of 5000 mm allows convenient cutting and adjustment to specific project dimensions without excessive waste.

Technical specification

  • Manufacturer: Kozza
  • Profile shape: rectangular
  • Cross-section dimensions: 30.1 × 25 mm
  • Length: 5000 mm (5 m)
  • Material: anodised aluminium
  • Colour: black RAL 9005
  • Mounting method: slip-on to glass edge
  • Glass thickness: 16–17.52 mm (with seal for thinner glass) or 20–21.52 mm (with seal for thicker glass)
  • Weight: 1.85 kg
  • EAN: 5903313208062

Compatible seals

  • Seal for glass 16–17.52 mm — internal clearance 17.5 mm
  • Seal for glass 20–21.52 mm — internal clearance 21.5 mm

Seals are selected separately depending on the thickness of glass used. Correct selection guarantees secure handrail mounting and eliminates play.
