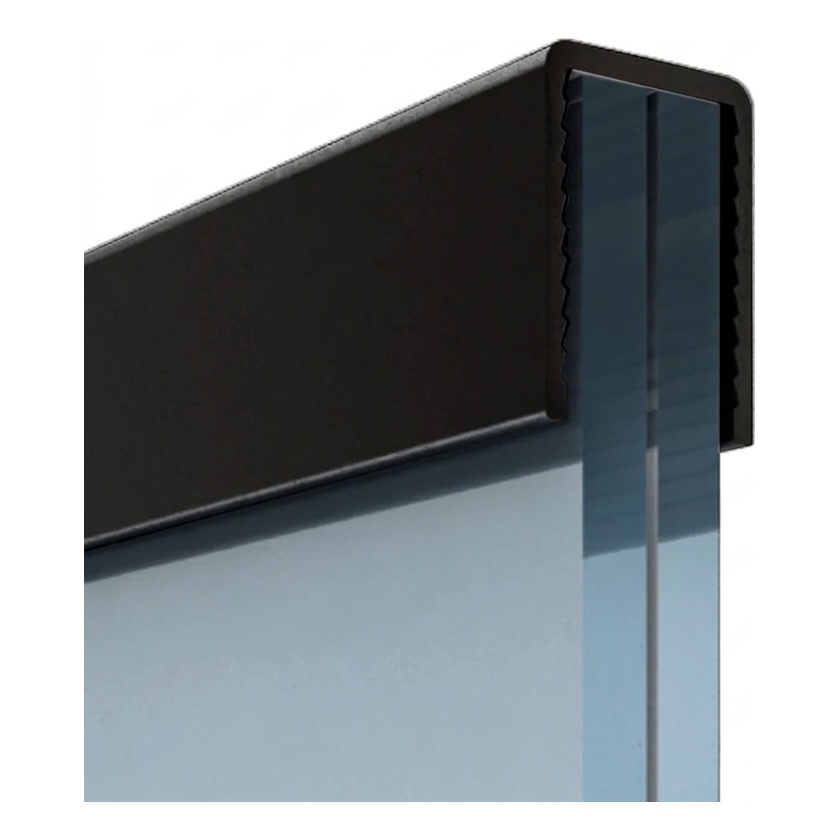

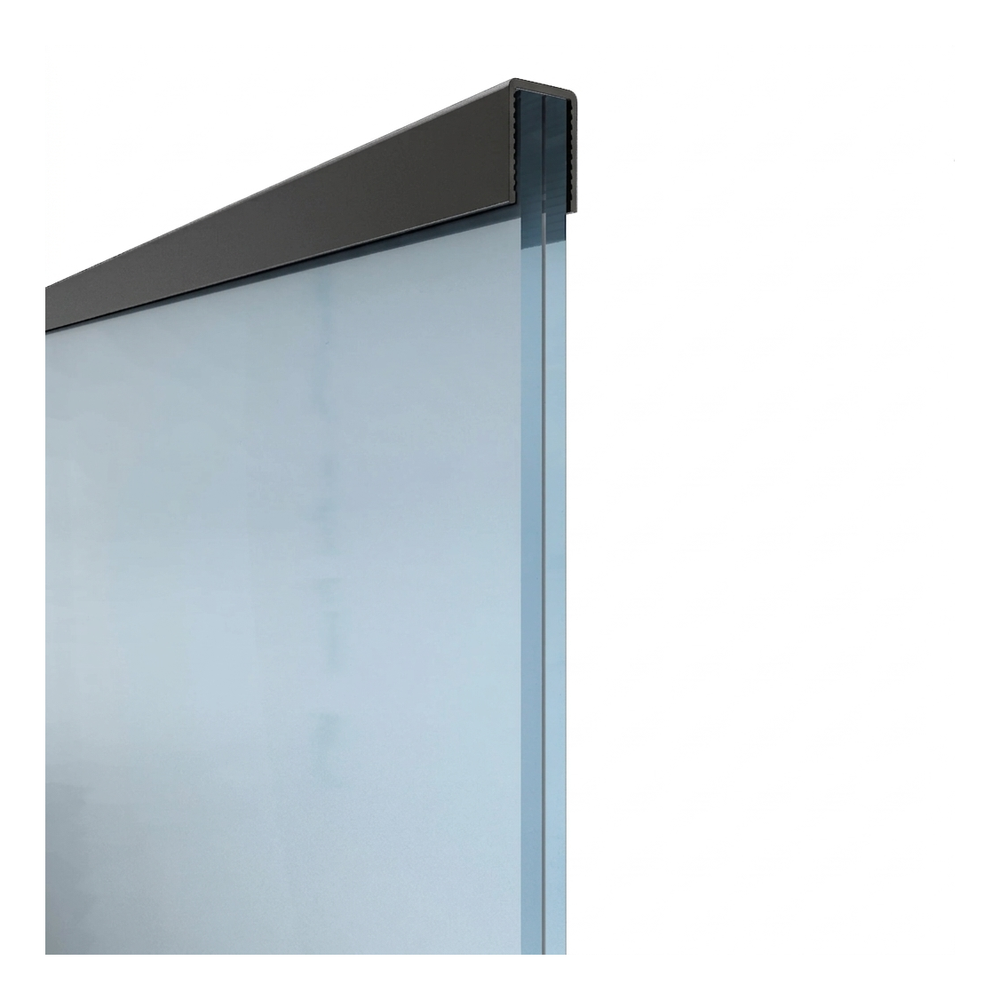

Kozza – rectangular aluminium glass clamp for 12–13.52 mm glass, black RAL 9005, 5 m
Description
Kozza – rectangular aluminium glass clamp for 12–13.52 mm glass, black RAL 9005, 5 m
Kozza rectangular aluminium glass clamp is a professional finish for full-glass balustrades, panels and glass partitions. The U-shaped profile is fitted onto the top edge of glass with a thickness of 12–13.52 mm, providing an aesthetic and safe finish to the glass panel. Thanks to drilling-free and gasket-free mounting — using only adhesive or silicone — installation is quick, clean and eliminates the risk of glass damage.
Anodised aluminium in black RAL 9005 combines low weight with high resistance to corrosion, moisture and scratching. The surface maintains its aesthetics even with intensive use — both indoors and outdoors. The internal serration of the profile increases adhesion to the glass panel, whilst the 5-metre length allows for convenient adaptation to structural dimensions with a minimal number of cuts and joints.
Dimensions and technical data
- Manufacturer: Kozza
- Profile shape: rectangular (U-profile)

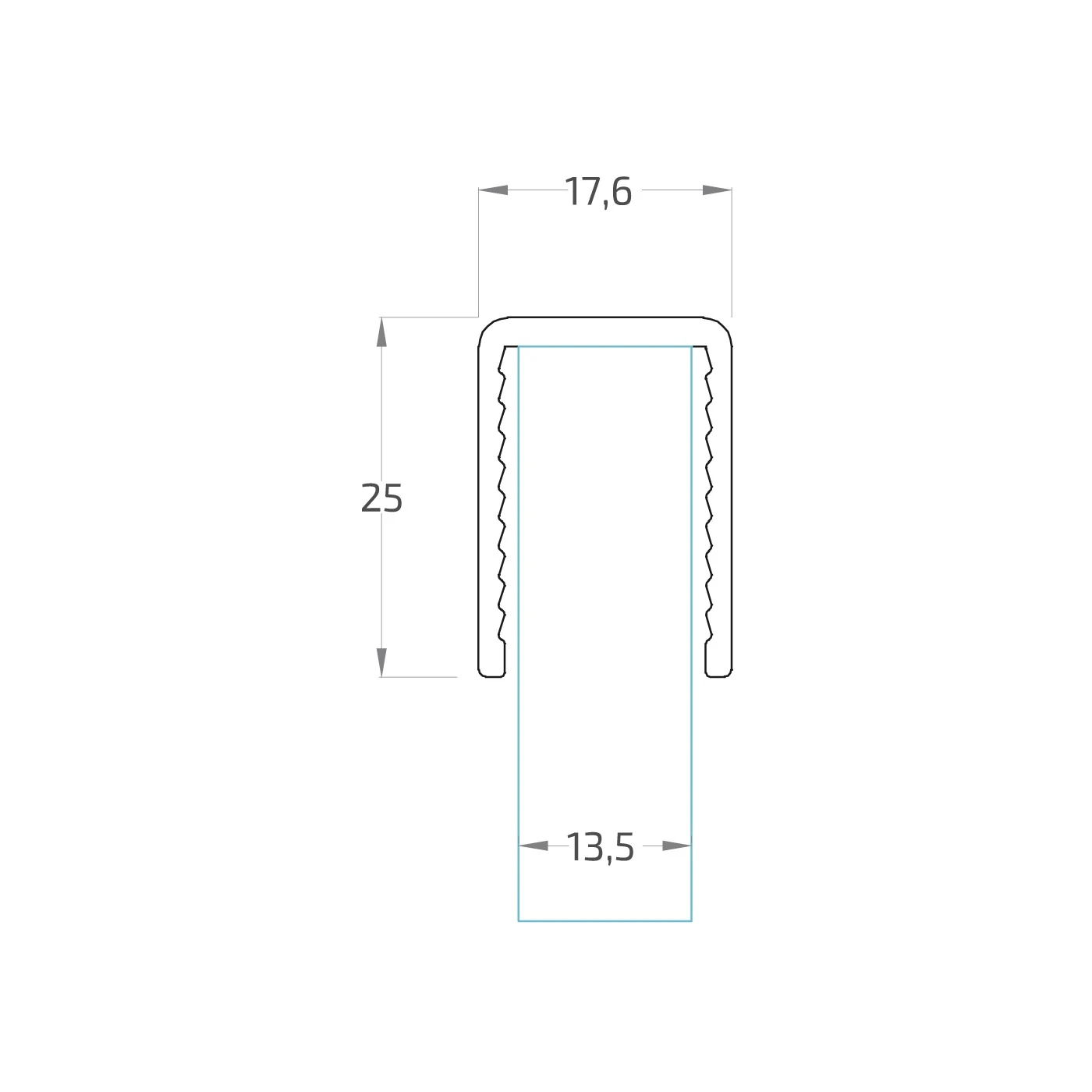

- Cross-section dimensions: 17.6 × 25 mm
- Internal gap width: 13.5 mm
- Glass thickness: 12–13.52 mm
- Length: 5000 mm (5 m)
- Material: anodised aluminium
- Colour: black RAL 9005
- Weight: 1.5 kg
- Mounting: adhesive or silicone, no gasket, no drilling
- EAN: 5903313208055
Quick gasket-free mounting
The profile is fitted onto the top edge of the glass panel and secured using mounting adhesive or silicone. It requires no drilling or additional gaskets — just a properly prepared, clean glass surface. This installation method significantly reduces on-site working time and allows for a professional, clean balustrade finish without risk of panel cracking.
Application
Kozza glass clamp is designed for full-glass balustrades, glass panels and internal and external partitions. Thanks to the resistance of anodised aluminium to atmospheric conditions, it works equally well in office and residential installations, as well as on balconies, terraces and staircases.
Technical data
| Accessory Type | Overlay Handrail Bracket |
| Material | Aluminium |
| Glass Thickness [mm] | 12-13,52 |
