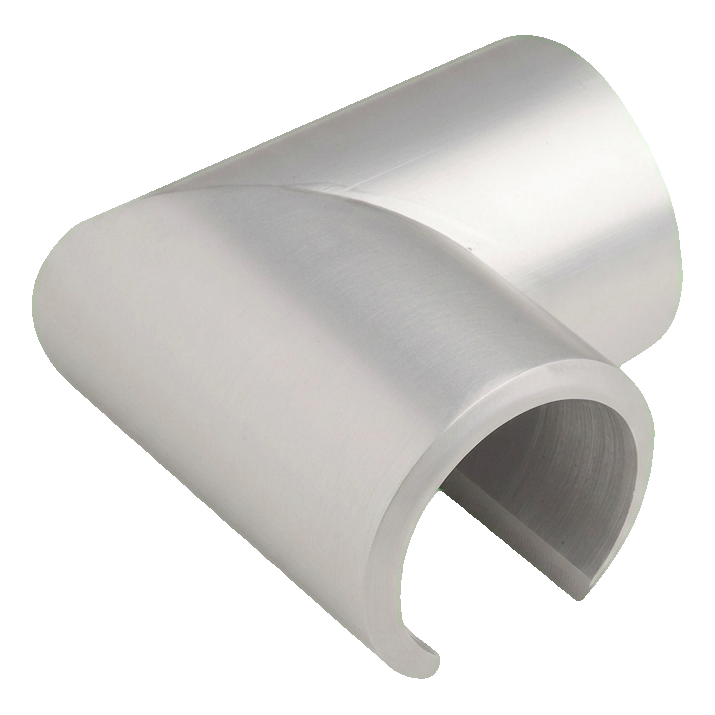

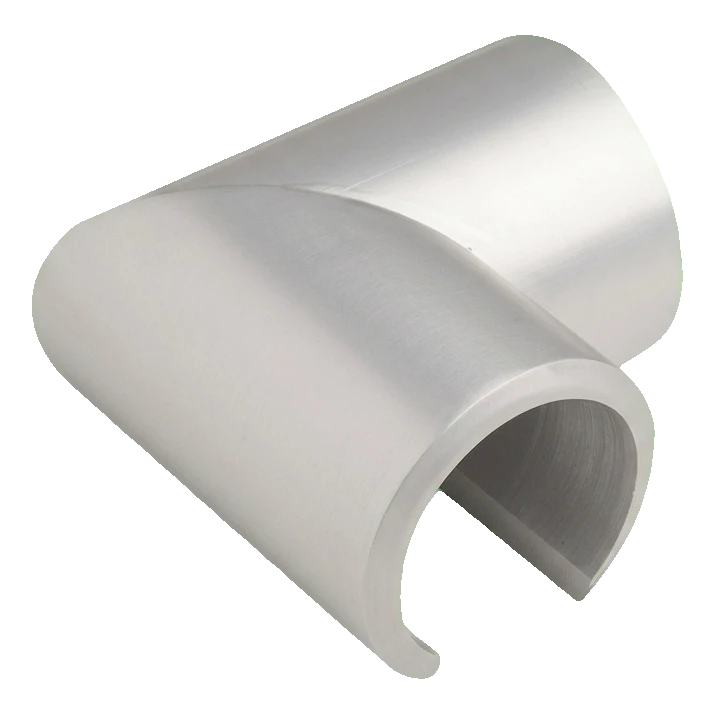

Kozza – handrail connector elbow 90° for aluminium handrail fi 40 mm on glass 12–21.52 mm
Description
Kozza – handrail connector elbow 90° for aluminium handrail fi 40 mm on glass 12–21.52 mm
Kozza – 90° elbow for round handrail fi 40 mm is a corner handrail connector designed for all-glass balustrade systems. It enables aesthetic and stable connection of two sections of aluminium handrail at right angles – in corners of stairs, balconies, terraces and mezzanines.
The element is made from anodised aluminium with matt finish, which provides durable anti-corrosion protection and a universal, modern appearance matching most balustrade systems. The connector is designed for handrail with diameter fi 40 mm and mounting on glass with thickness from 12 to 21.52 mm – it performs well both inside buildings and outdoors.
Precise fit and mounting stability

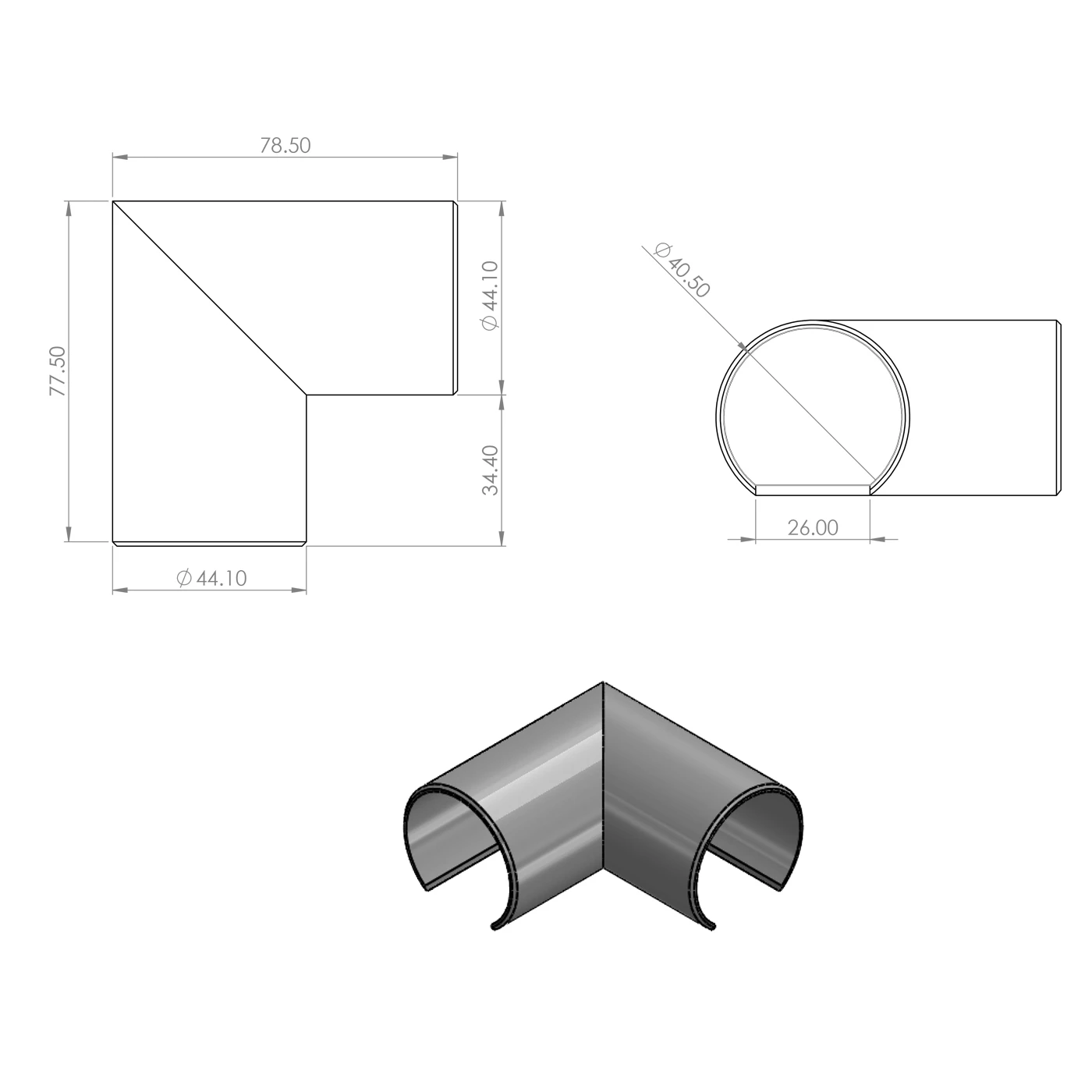

The external diameter of the connector is 44.10 mm, which guarantees secure seating on fi 40 mm handrails (internal diameter 40.50 mm) and aesthetic, smooth transition without visible steps or uneven edges. The arm length – respectively 78.50 mm and 77.50 mm – ensures solid support for the connection and resistance to loads resulting from daily use of the handrail. The mounting gap with width 26 mm enables easy sliding of the element onto the glass panel edge and quick installation.
Dimensions and technical data
- Manufacturer: Kozza
- Element type: 90° elbow for handrail balustrade
- Handrail type: round, fi 40 mm
- Connection angle: 90°
- External diameter: 44.10 mm
- Internal diameter: 40.50 mm
- Arm 1 length: 78.50 mm
- Arm 2 length: 77.50 mm
- Glass gap width: 26.00 mm
- Glass thickness: 12–21.52 mm
- Material: anodised aluminium
- Finish: matt anodised
- Weight: 0.12 kg
- EAN: 5903313208772
Application
The connector has been designed for all-glass balustrade systems, in which aluminium handrail and glass panels form one cohesive whole. It performs ideally in corner connections on stairs, landings, terraces, balconies and mezzanines. The matt finish of anodised aluminium is resistant to weather conditions, making the element suitable for mounting both indoors and outdoors of the building.
Technical data
| Material | Aluminium |
