Kozza balustrade connector for round aluminium handrail Ø 40 mm 180°
Description
Kozza balustrade connector for round aluminium handrail Ø 40 mm 180°

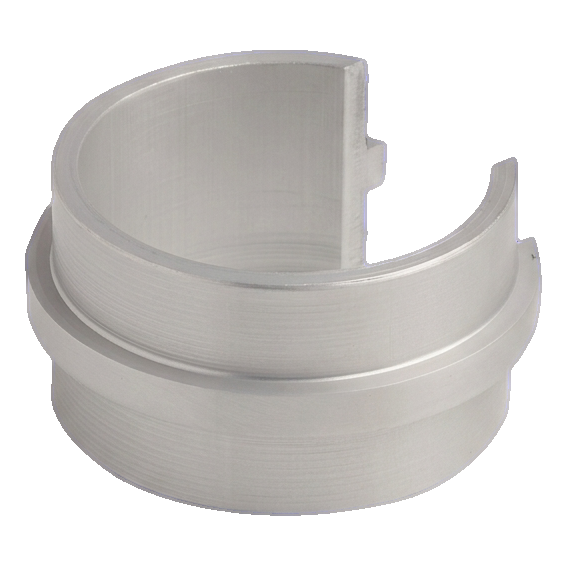

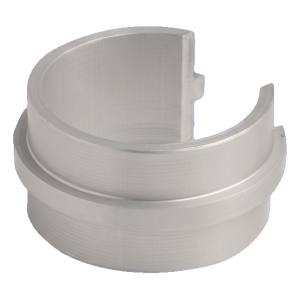

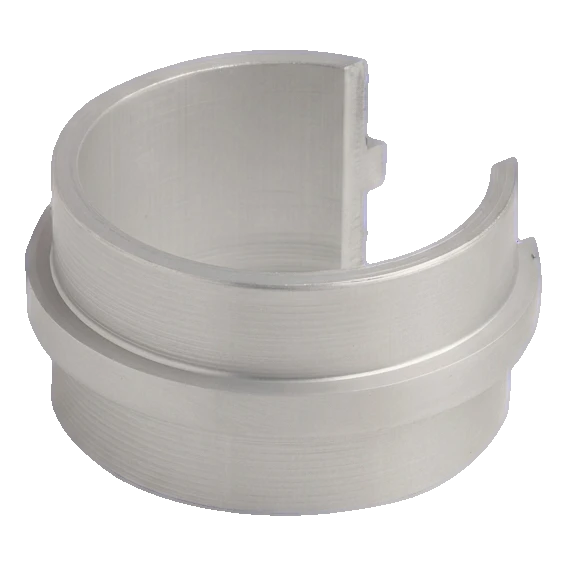

Kozza balustrade connector is an aluminium mounting element in C-shape (180° profile), designed for aesthetic and stable mounting of round aluminium handrail Ø 40 mm on glass in structural glazing balustrade systems. The semi-embracing construction allows quick fitting of the connector onto the handrail without the need to thread it through, significantly speeding up installation on site.
Precisely matched internal and external radii ensure secure mounting on O40 mm handrail and stable guiding of the element on glass edge with thickness 12–13.52 mm. Stepped geometry with stop collar eliminates clearances and guarantees repeatable mounting effect — regardless of whether you are installing a balustrade in a residential property or commercial building.
Technical specifications
- Application: for round aluminium handrail Ø 40 mm
- Embracing angle: 180° (semi-embracing profile)
- For glass: 12–13.52 mm
- Overall length: 60 mm
- Material: aluminium
- Colour: matt anodised
- Weight: 0.02 kg
- Brand: Kozza
- EAN: 5903313208802

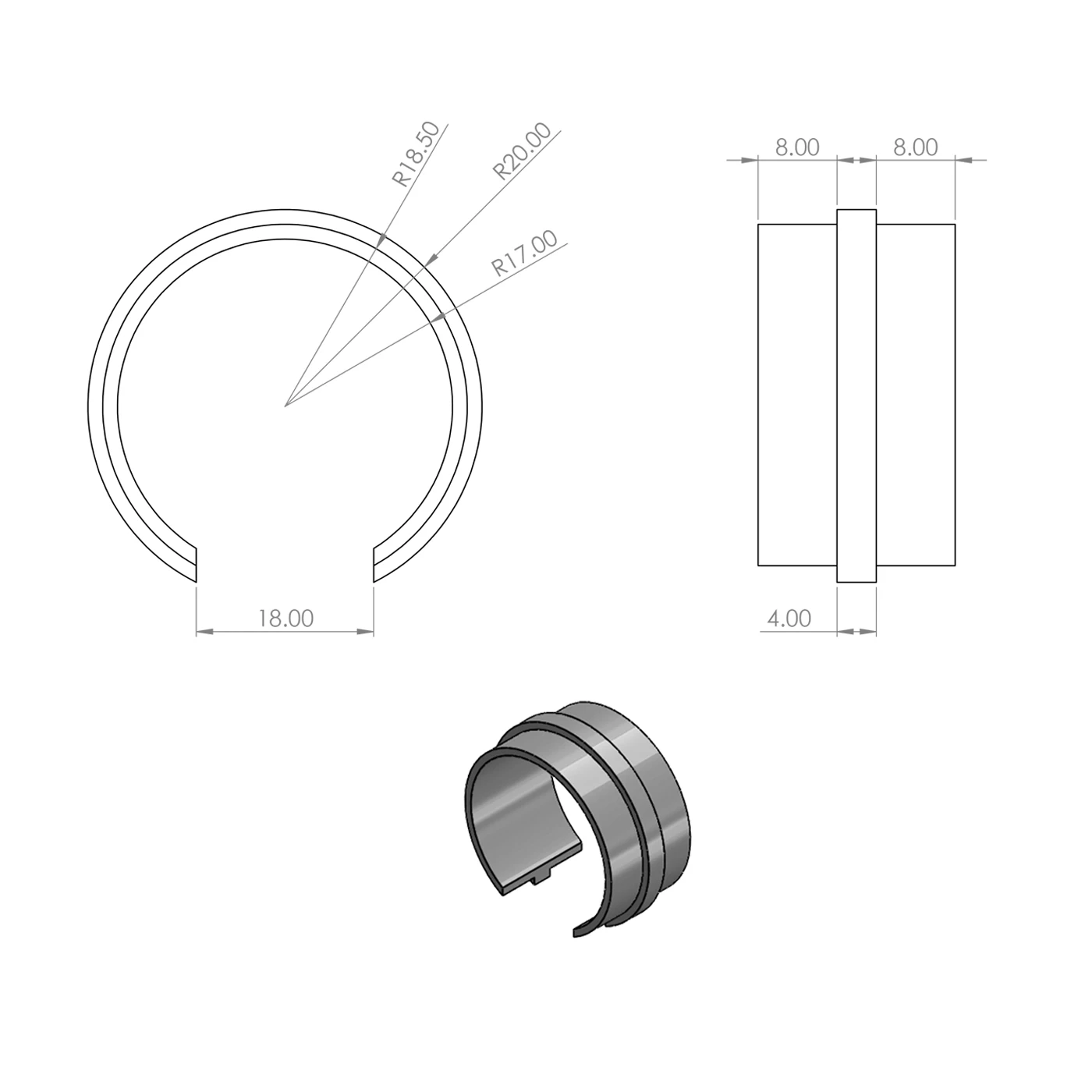

Dimensions and geometry
- External radius (stop collar): R20.00 mm
- External radius of part inserted into handrail: R18.50 mm
- Internal radius of connector: R17.00 mm
- Width of stop collar: 4.00 mm
- Length of inserted segments: 2 × 8.00 mm
- Opening width (C-profile cut-out): 18.00 mm
The radius difference R18.50 and R17.00 creates stepping which ensures stable handrail mounting — the element fits precisely without clearances. The central collar with radius R20.00 mm and thickness 4 mm acts as a stop, maintaining the connector in fixed position on glass edge. Symmetrical inserted segments of 8 mm each side ensure even handrail support and professional appearance of the finished balustrade.
Benefits for installer
- Quick installation — 180° profile allows fitting the connector onto handrail without dismantling the entire handrail
- Versatility — compatibility with 12–13.52 mm glass covers the most popular thicknesses used in structural glazing balustrades
- Repeatable effect — precise geometry eliminates the need for manual fitting of elements on site
- Minimalist design — matt anodising and clean C-form fits modern architectural projects
- Lightweight construction — weight of only 0.02 kg facilitates transport and storage even for large quantities
Technical data
| Material | Aluminium |
