Kozza axial mounting for round aluminium handrail ø 40 mm – matt anodised
Description

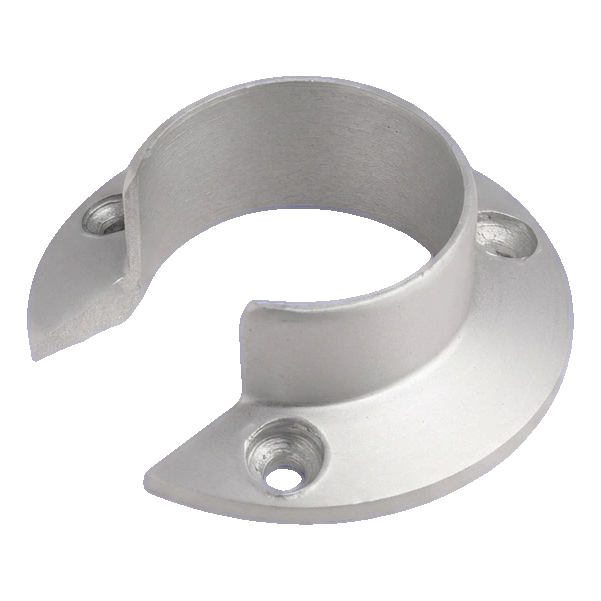

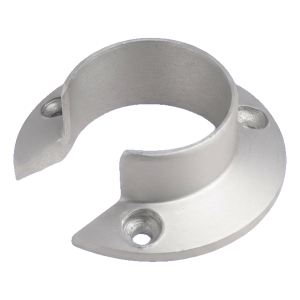

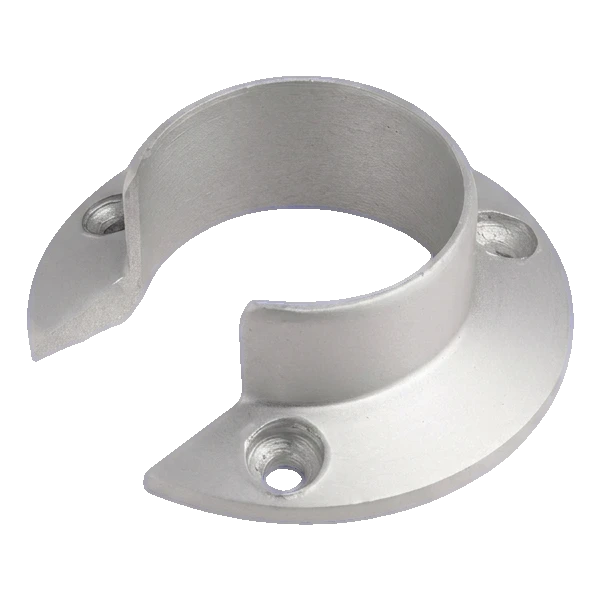

Kozza axial mounting for round aluminium handrail ø 40 mm – matt anodised
Kozza axial mounting is a precision mounting element designed for secure and aesthetic installation of round aluminium handrail ø 40 mm in all-glass balustrade systems. Made from aluminium with a matt anodised finish, the mounting perfectly complements modern architectural projects — both interior and exterior — ensuring clean lines, corrosion resistance and cohesive appearance of the entire structure.
Key product features
- Application: for aluminium round handrail ø 40 mm
- Glass compatibility: thickness 12 – 21.52 mm
- Material: aluminium
- Finish: matt anodised — enhanced surface resistance and elegant, neutral appearance
- Total length: 82 mm
- Weight: 0.04 kg
- EAN: 5903313208796
The element performs well in many configurations — from lighter glass installations to more substantial solutions. The 82 mm length ensures stable support and maintains the handrail in axis, eliminating any loose connection feel. For installation teams, this means quick assembly without the need for additional adjustments and a professional end result.

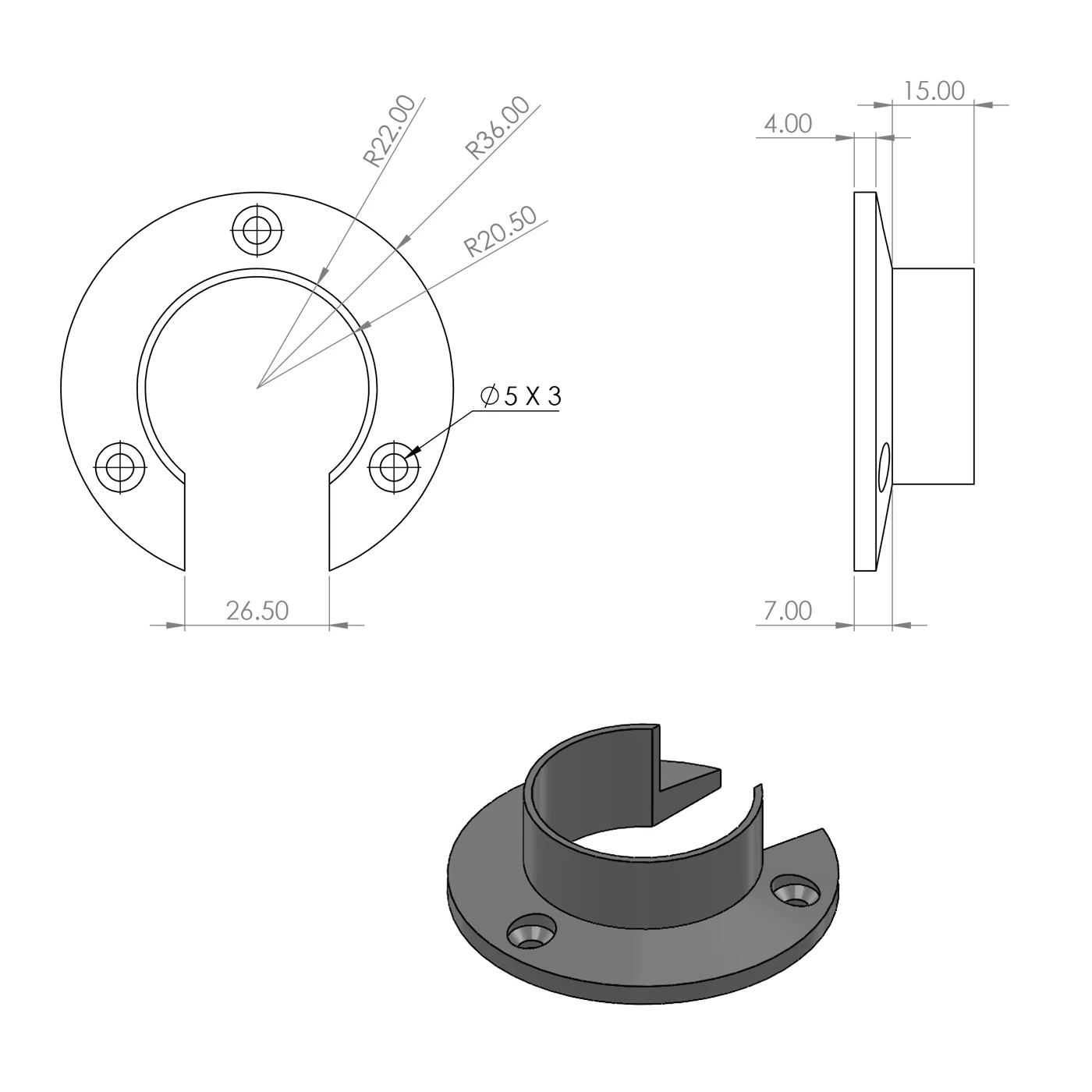

Detailed dimensions from technical drawing
- Base (flange) outer radius: R 36 mm (base diameter 72 mm)
- Handrail opening inner radius: R 20.5 mm (inner diameter 41 mm)
- Sleeve outer radius: R 22 mm
- Total mounting depth (standoff from glass): 15 mm
- Base thickness: 7 mm (including flat section 4 mm)
- Lower cutout width: 26.5 mm
- Mounting holes: 3 pcs, diameter Ø 5 mm
Application and compatibility
Kozza axial mounting is dedicated to all-glass balustrade systems with round aluminium handrail ø 40 mm. It fits glass thickness from 12 mm to 21.52 mm, allowing use with both single-layer toughened glass and laminated VSG glass. Matt anodising ensures long-lasting resistance to atmospheric conditions, so the mounting can be used without restrictions in external applications — on balconies, terraces or staircases.
| Parameter | Value |
|---|---|
| Manufacturer | Kozza |
| Element type | Axial mounting for handrail |
| Application | For aluminium round handrail ø 40 mm |
| Glass thickness | 12 – 21.52 mm |
| Length | 82 mm |
| Base diameter | 72 mm (R 36 mm) |
| Inner diameter (handrail opening) | 41 mm (R 20.5 mm) |
| Mounting depth | 15 mm |
| Base thickness | 7 mm |
| Mounting holes | 3 × Ø 5 mm |
| Material | Aluminium |
| Finish / colour | Matt anodised |
| Weight | 0.04 kg |
| EAN | 5903313208796 |
Technical data
| Material | Aluminium |
