Kozza – axial mounting for round aluminium handrail ø 40 mm, matt anodised
Description
Kozza – axial mounting for round aluminium handrail ø 40 mm, matt anodised

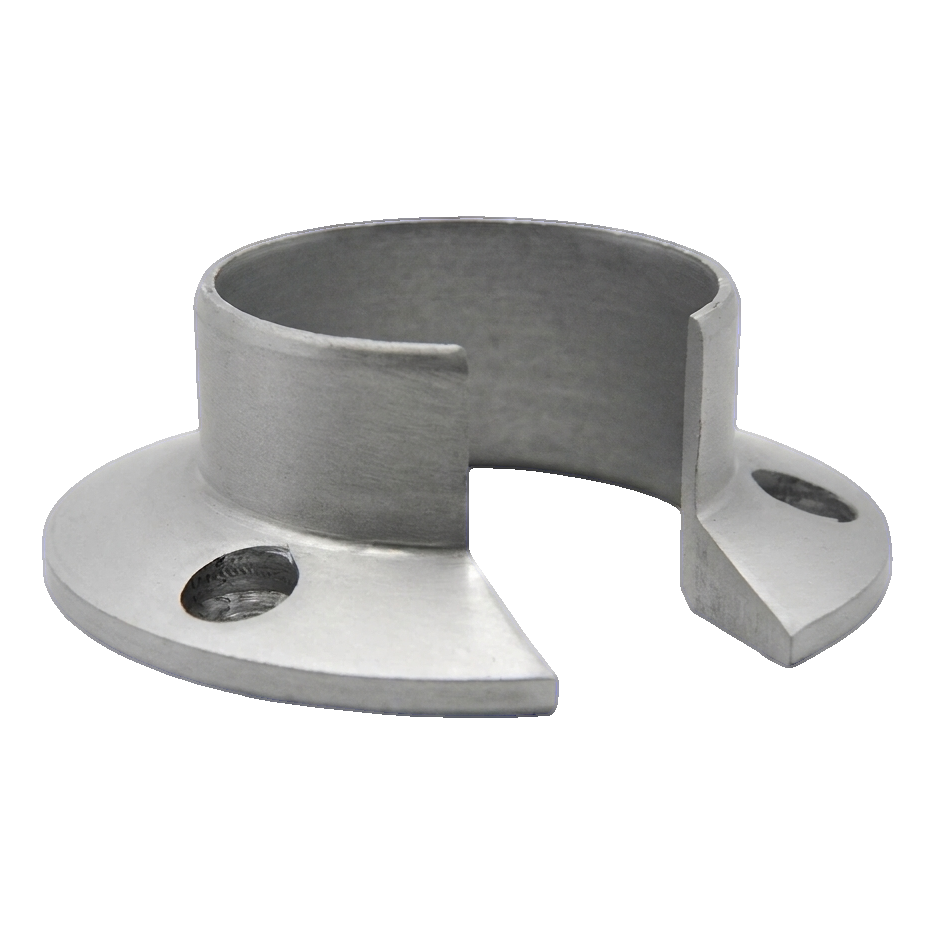

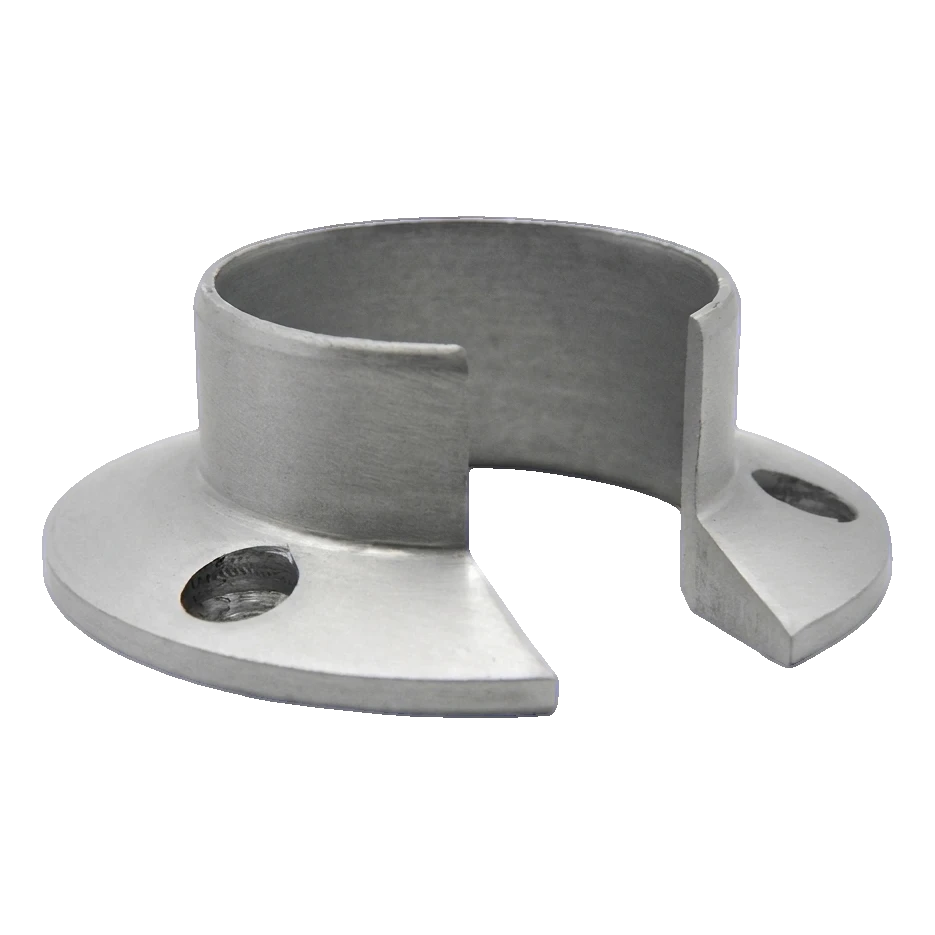

Kozza axial mounting for round aluminium handrail ø 40 mm is a precision mounting element designed for structural glazed balustrade systems. Made from aluminium and finished in matt anodised, it provides an aesthetic and durable connection between the handrail and balustrade structure. The open construction with side cut-out facilitates sliding onto the handrail and reduces installation time on site.
Thanks to its compact dimensions and weight of only 0.04 kg, the element does not burden the structure whilst guaranteeing stable axial mounting. Three mounting holes with countersinks for screw heads allow for secure and even fixing to the substrate.
Product Images

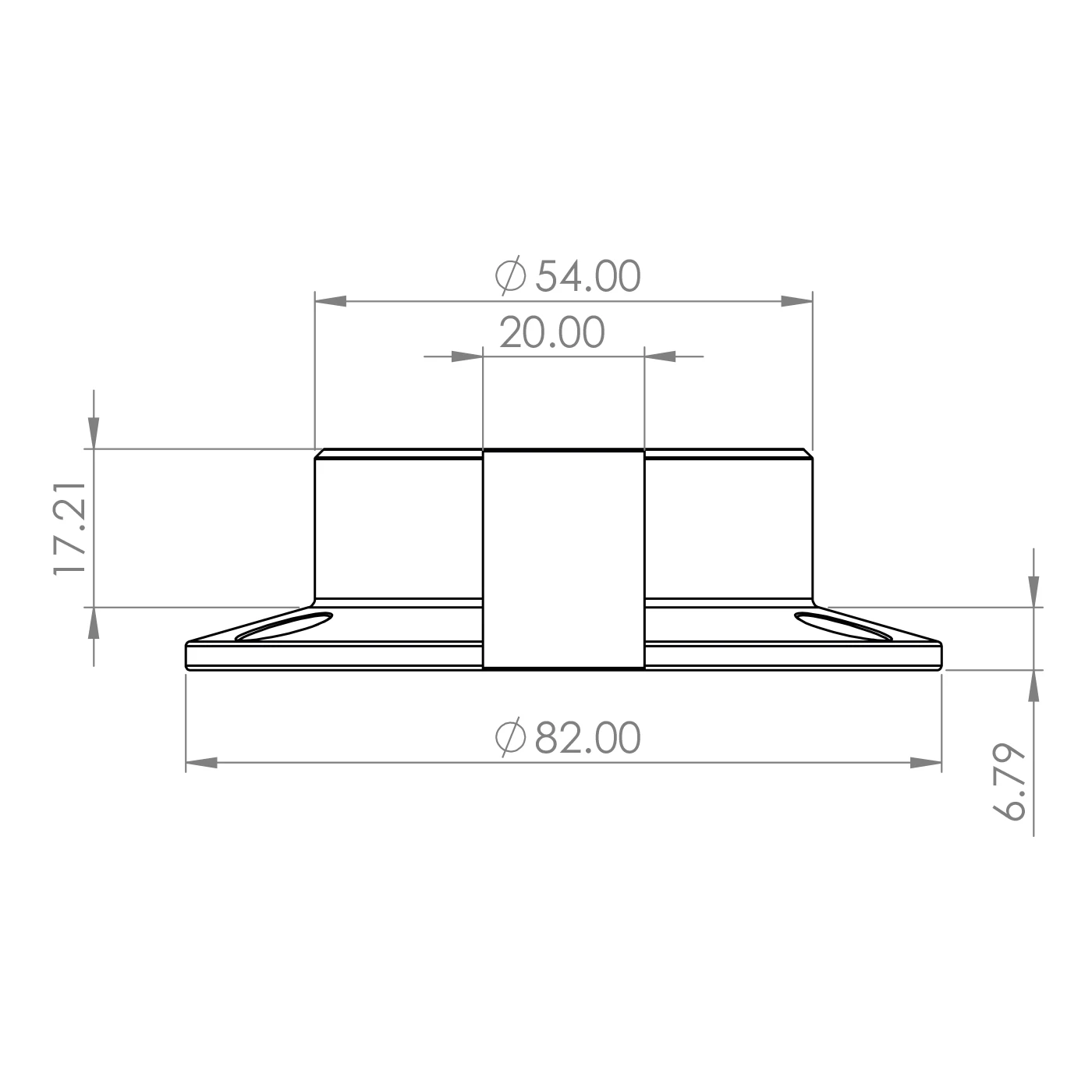

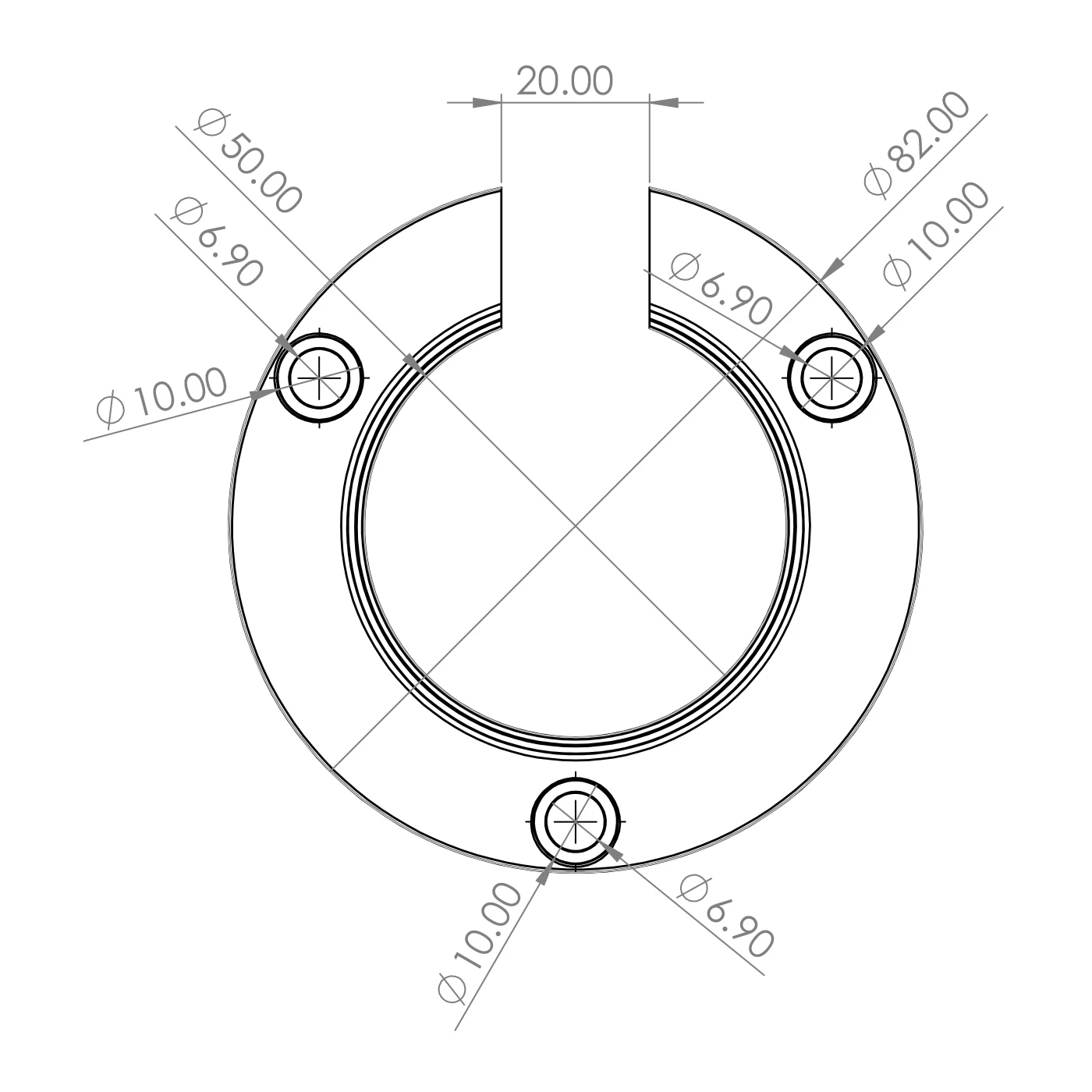

Dimensions and Technical Specification
- Manufacturer: Kozza
- Application: for aluminium round handrail ø 40 mm
- Material: aluminium
- Finish: matt anodised
- External diameter of base (flange): 82 mm
- External diameter of upper section: 54 mm
- Internal hole diameter: 50 mm
- Side cut-out width: 20 mm
- Total height: 17.21 mm
- Base thickness (mounting flange): 6.79 mm
- Mounting holes: 3 pcs. diameter 6.9 mm with countersinks ø 10 mm
- Weight: 0.04 kg
- EAN: 5903313207683
Construction and Installation

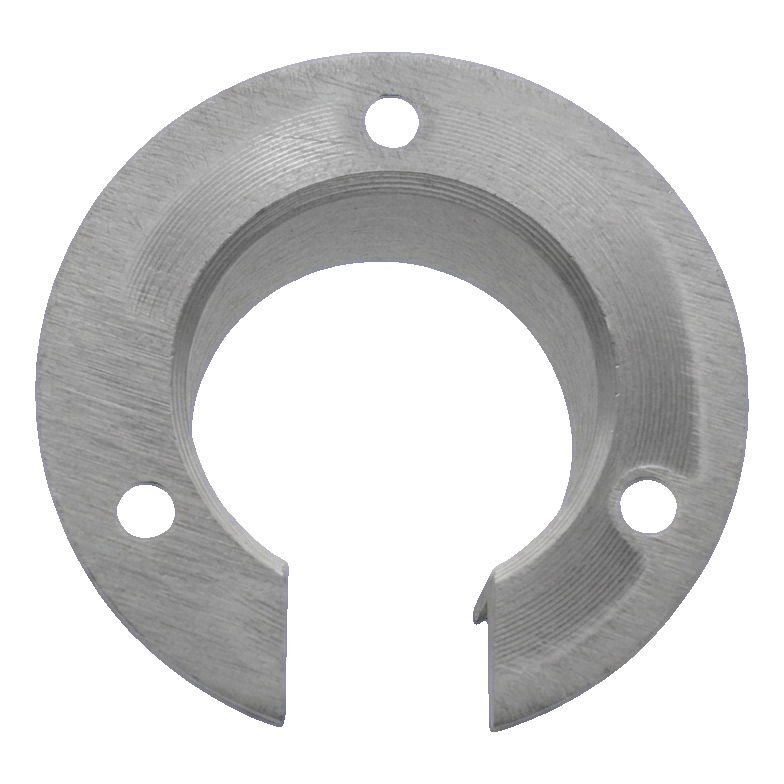

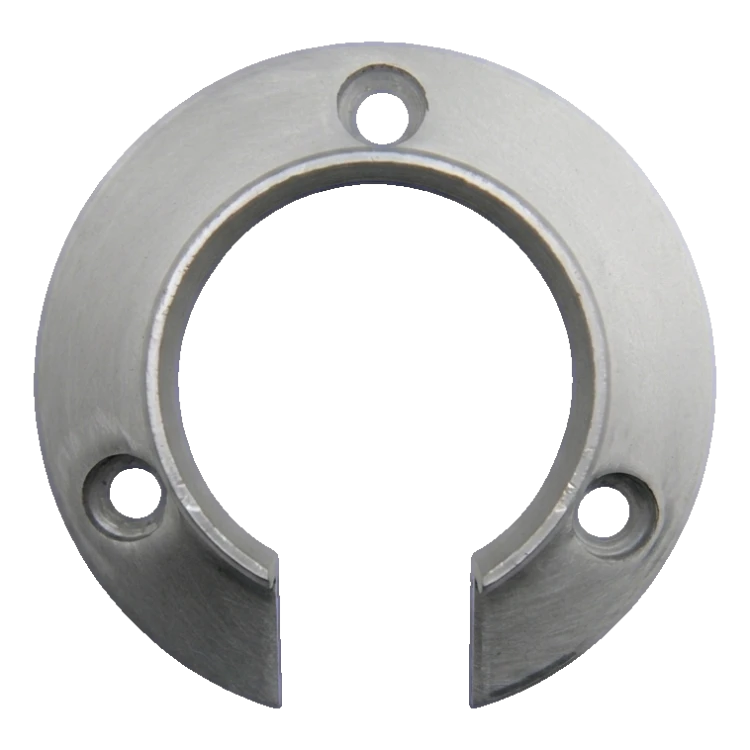

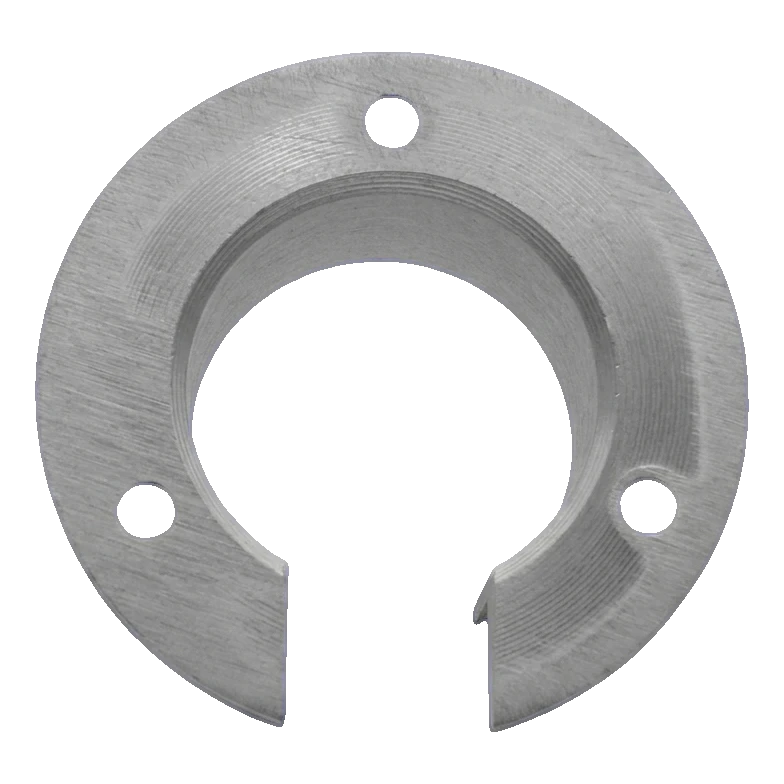

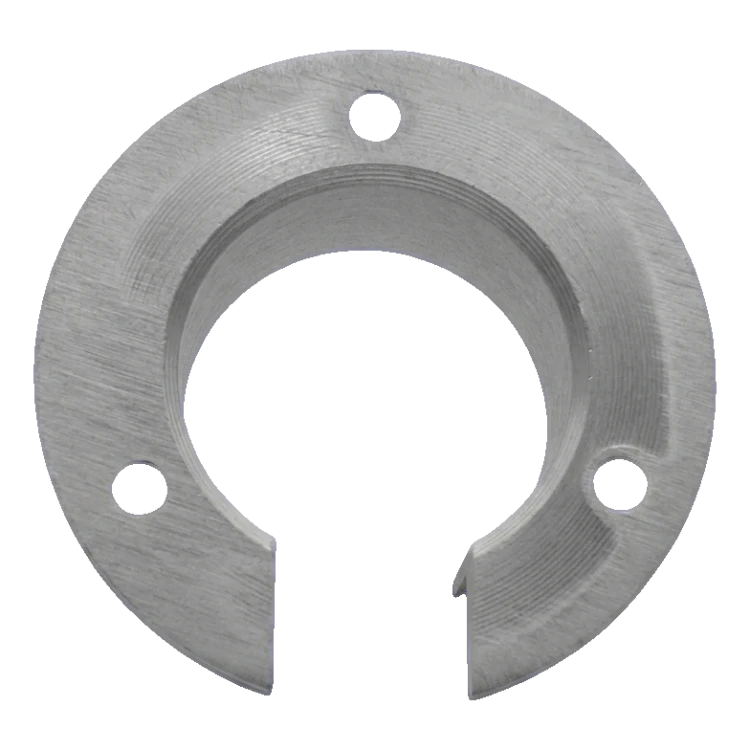

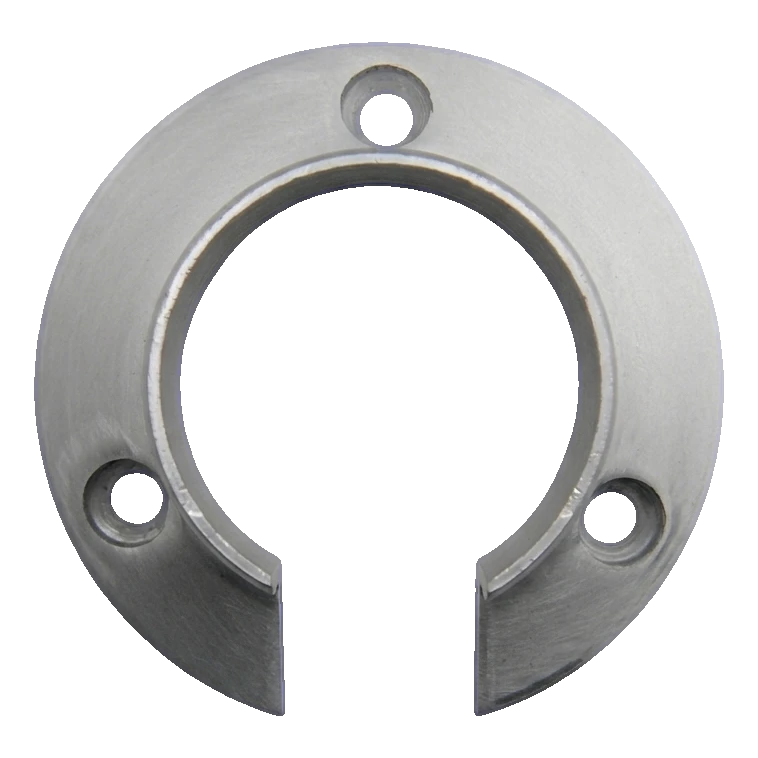

The element features a characteristic U-shaped cut-out with width 20 mm, enabling side sliding onto the handrail without requiring dismantling of the entire system. The mounting flange with diameter 82 mm provides a large contact surface with the substrate. Three holes arranged symmetrically around the flange circumference guarantee even distribution of mounting forces. Countersinks for screw heads (ø 10 mm) allow the screw head to be concealed flush with the flange, ensuring a smooth and aesthetic mounting surface.
The mounting is compatible with standard round aluminium handrails diameter ø 40 mm and complements Kozza structural glazed balustrade systems perfectly.
Technical data
| Material | Aluminium |
