Kozza aluminium rectangular handrail 30.1 × 25 mm for glass 16–21.52 mm – 5 m, matt anodised
Description
Kozza aluminium rectangular handrail 30.1 × 25 mm for glass 16–21.52 mm – 5 m, matt anodised
Kozza rectangular aluminium handrail is a universal profile fitted to the top edge of glass in all-glass balustrades. One solution handles two glass thickness ranges — simply select the appropriate gasket for the profile to fit perfectly with constructions using glass 16–17.52 mm or 20–21.52 mm thick. This allows installation companies to reduce the number of stock variants, speeding up project completion without needing to replace the entire profile.
The profile made from anodised aluminium with matt anodised finish provides high resistance to scratching, corrosion and weather conditions. The matt surface requires no additional protection and aesthetically complements modern glass and stainless steel — both indoors and outdoors.
One solution — two glass thickness ranges
The handrail works with two types of replaceable gaskets, allowing it to be fitted to glass of different thicknesses. For glass 16–17.52 mm, a gasket is used that adjusts the mounting gap to 17.5 mm, whilst for glass 20–21.52 mm — a gasket that expands it to 21.5 mm. This flexibility eliminates the need to order separate profiles for different projects.

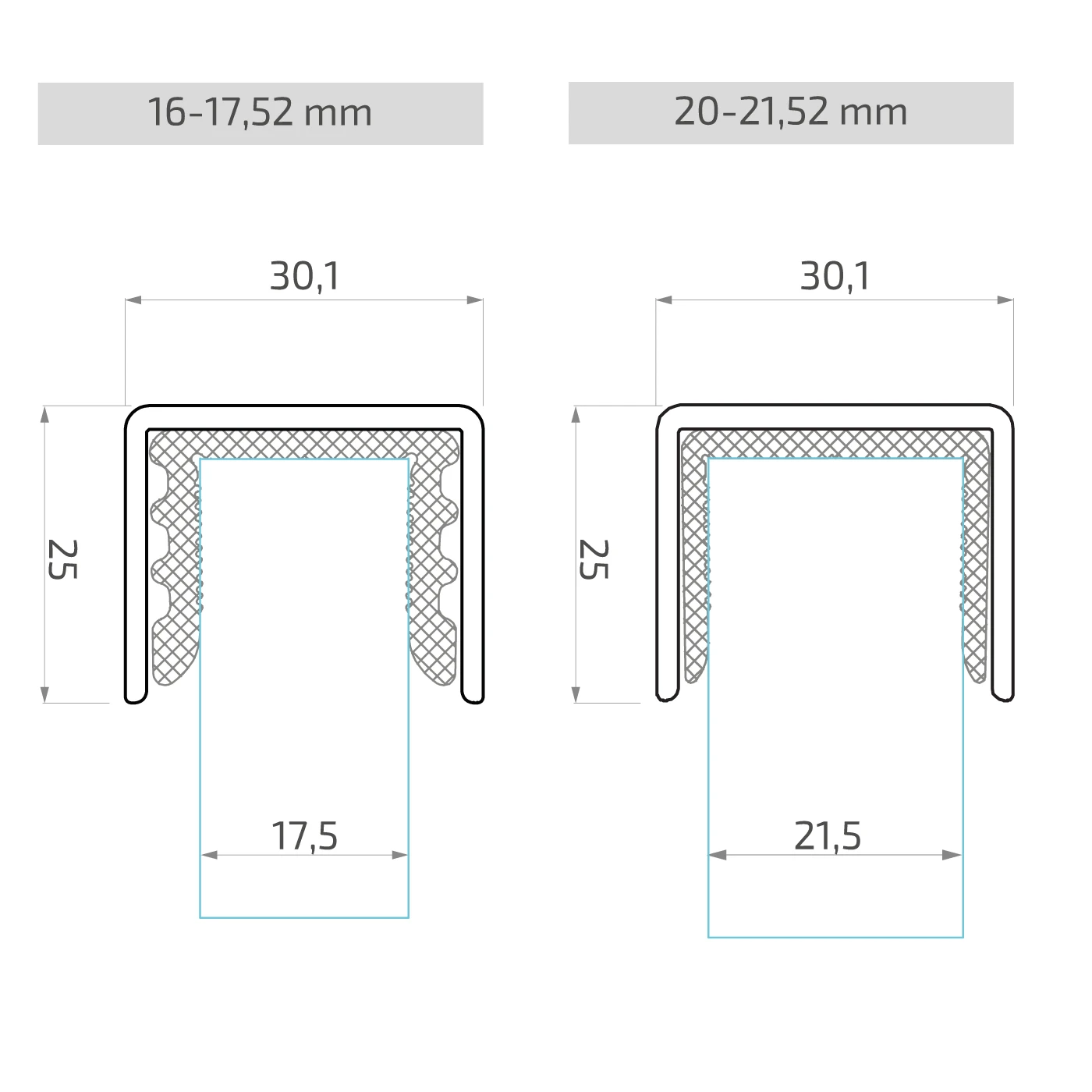

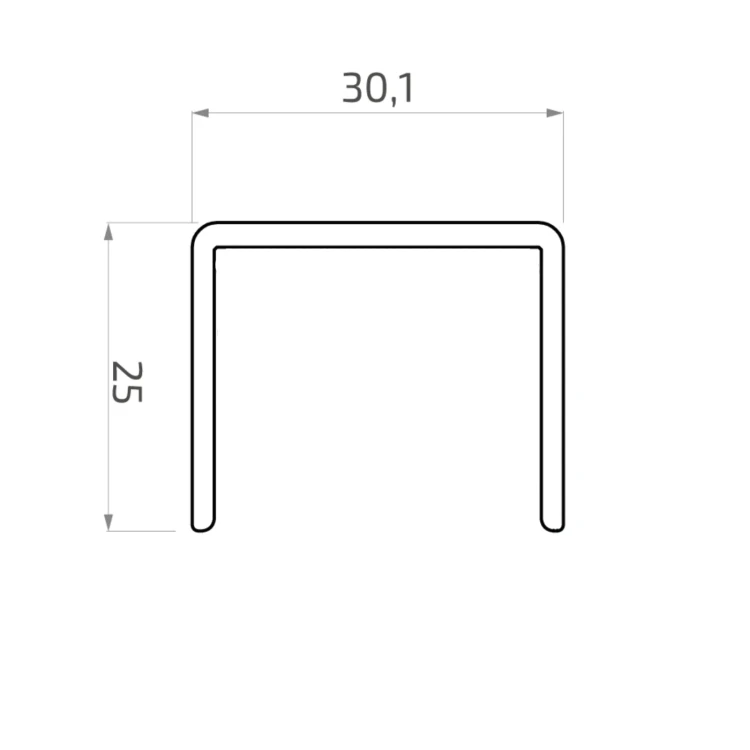

Profile dimensions and cross-sections
- External profile dimensions: 30.1 × 25 mm
- Gap width for glass 16–17.52 mm: 17.5 mm
- Gap width for glass 20–21.52 mm: 21.5 mm
- Profile height: 25 mm
- Profile material: anodised aluminium
- Gasket material: rubber / EPDM
Technical specification
- Manufacturer: Kozza
- Profile shape: rectangular
- Cross-section dimensions: 30.1 × 25 mm
- Length: 5,000 mm (5 m)
- Glass thickness: 16–21.52 mm (two ranges with replaceable gaskets)
- Mounting method: slipped onto top edge of glass
- Material: aluminium
- Finish: matt anodised
- Weight: 1.85 kg
- EAN: 5903313207362
The 5 m length allows convenient cutting of the profile to size directly on site, minimising waste. The handrail is suitable for all-glass balustrades, glass partitions and screening systems in residential, office and public buildings.
Technical data
| Accessory Type | Overlay Handrail Bracket |
| Material | Aluminium |
