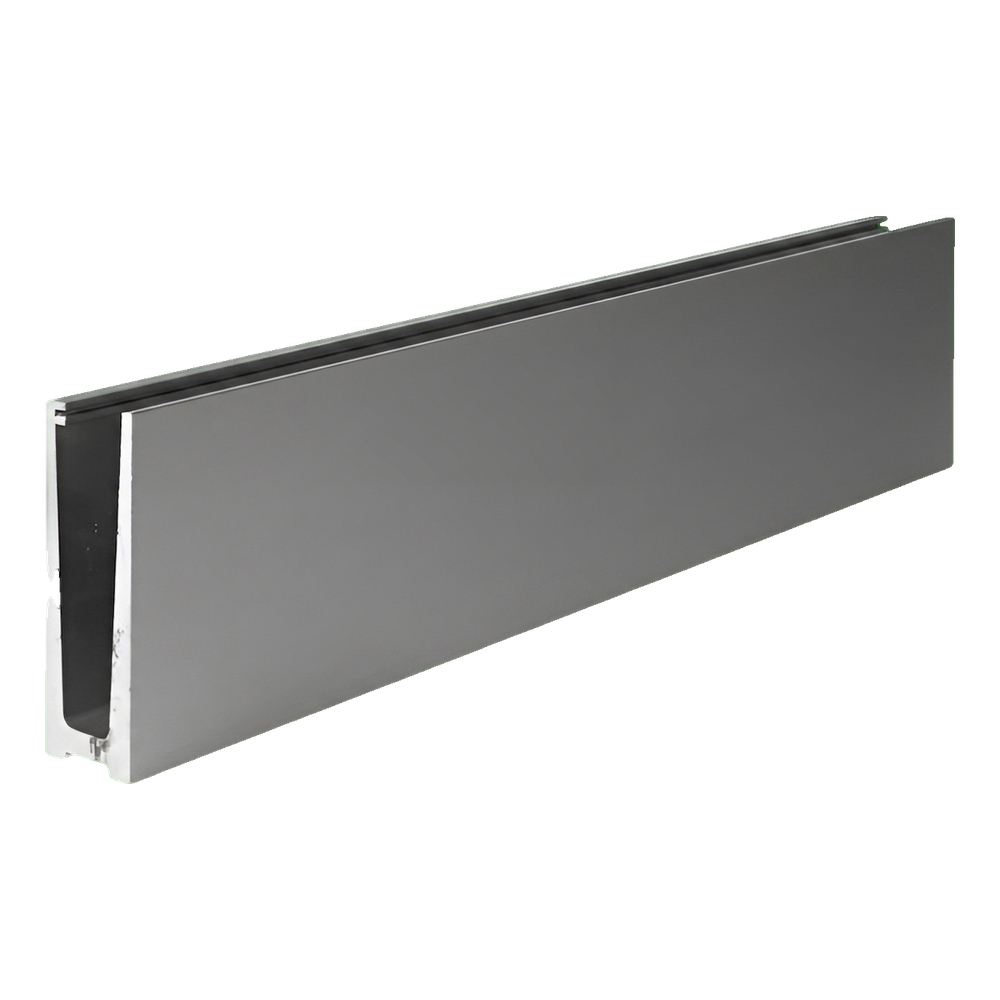

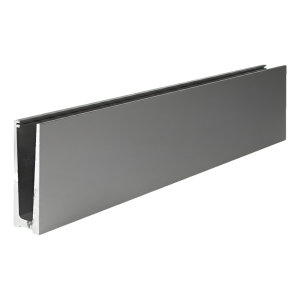

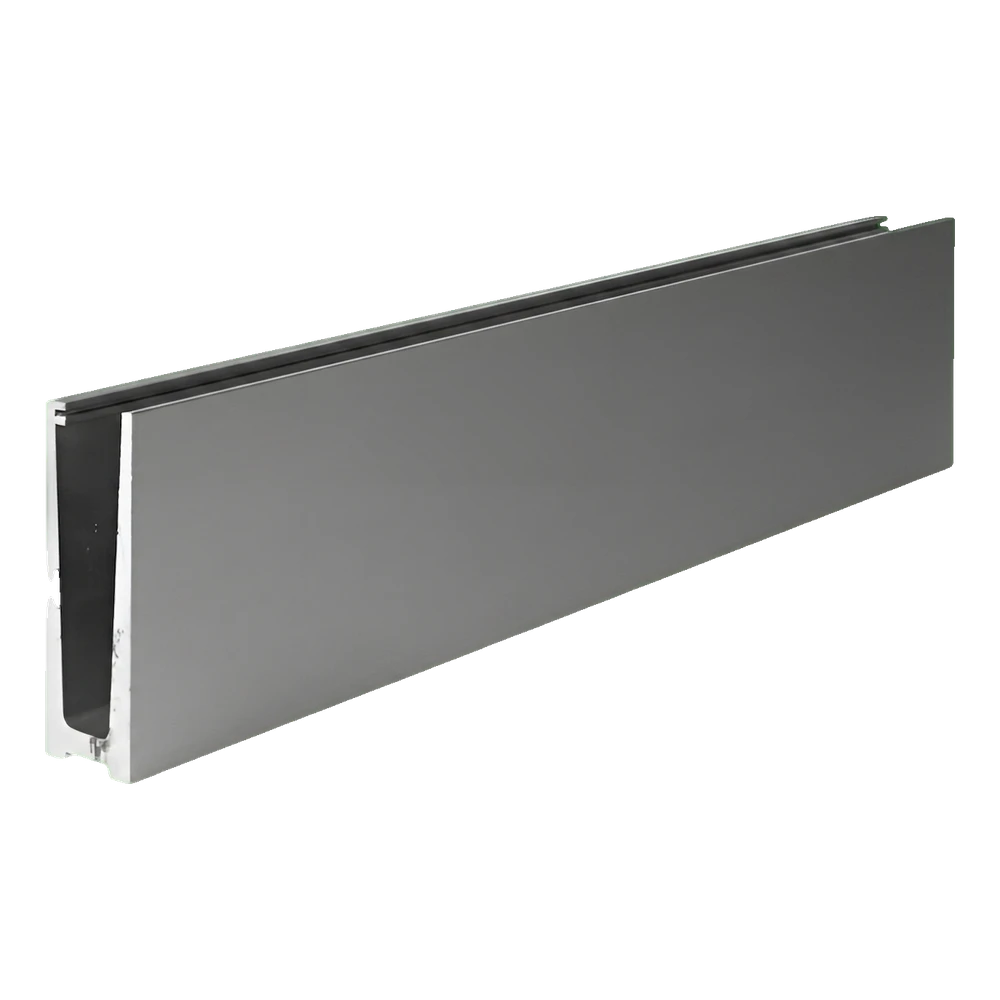

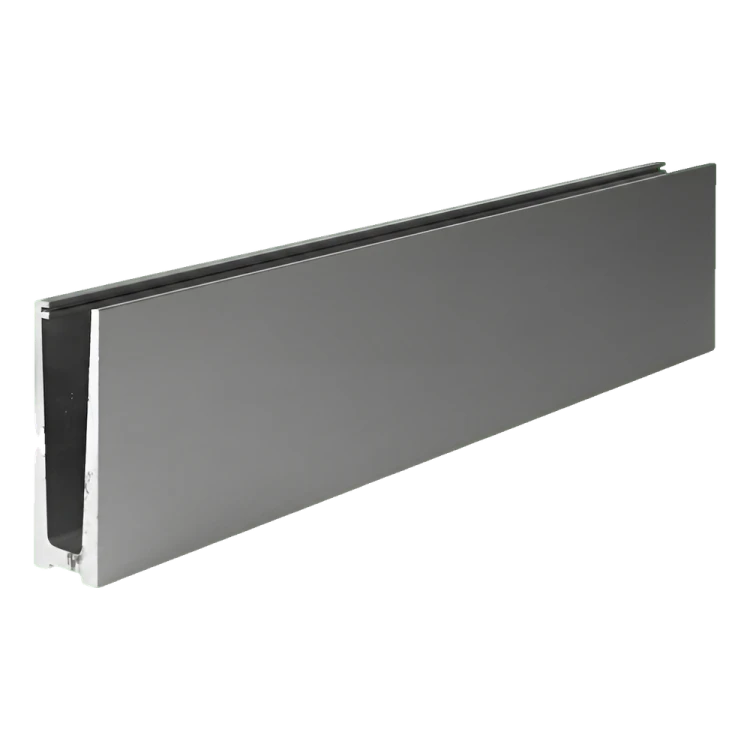

Kozza aluminium U profile for all-glass balustrades 5000 mm – top mounting, satin
Description
Kozza aluminium U profile for all-glass balustrades 5000 mm – top mounting, satin
Kozza aluminium U profile for all-glass (post-free) balustrades with top mounting. Designed for mounting toughened or laminated glass panels with thickness from 12 mm to 21.52 mm. The 5000 mm length allows for reducing the number of connectors in the structure, which translates to faster installation and a cleaner appearance of the finished balustrade.
Profile made from aluminium with satin finish, which gives the effect of stainless steel — elegant, modern appearance without the need for more expensive materials. The flat system ensures minimalist aesthetics, perfectly fitting current architectural trends. Special mounting anchors are designed for profile installation.
Technical parameters
- Manufacturer: Kozza
- Type: U profile for all-glass balustrades
- Mounting system: top mounting (flat system)
- Material: aluminium
- Finish: satin (stainless steel effect)
- Profile length (L): 5000 mm
- Profile height (H): 120 mm
- Profile width: 45 mm
- Glass thickness: 12–21.52 mm
- Weight: 29 kg
- EAN: 99916772
Application
Profile designed for building post-free (all-glass) balustrades, where toughened or laminated glass panels are mounted from the top. Suitable for both commercial buildings — office blocks, hotels, shopping centres — as well as modern residential buildings. Thanks to the 5 metre length, it enables the realisation of long spans with minimal connections, which significantly reduces installation time and enhances the visual appeal of the installation.
Technical data
| Accessory Type | U Channel |
| Material | Aluminium |
