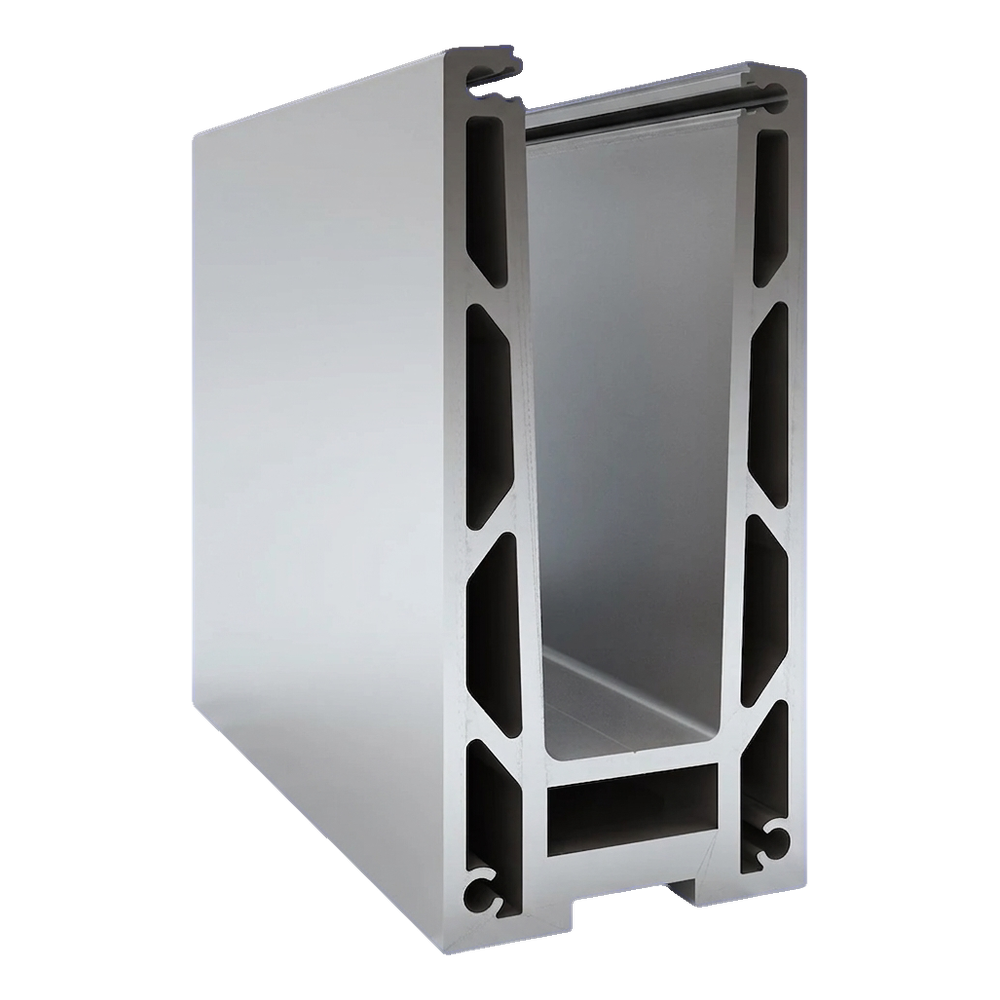

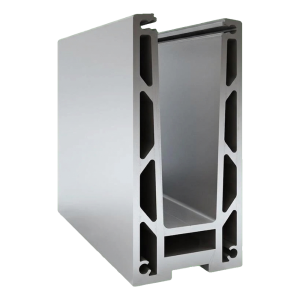

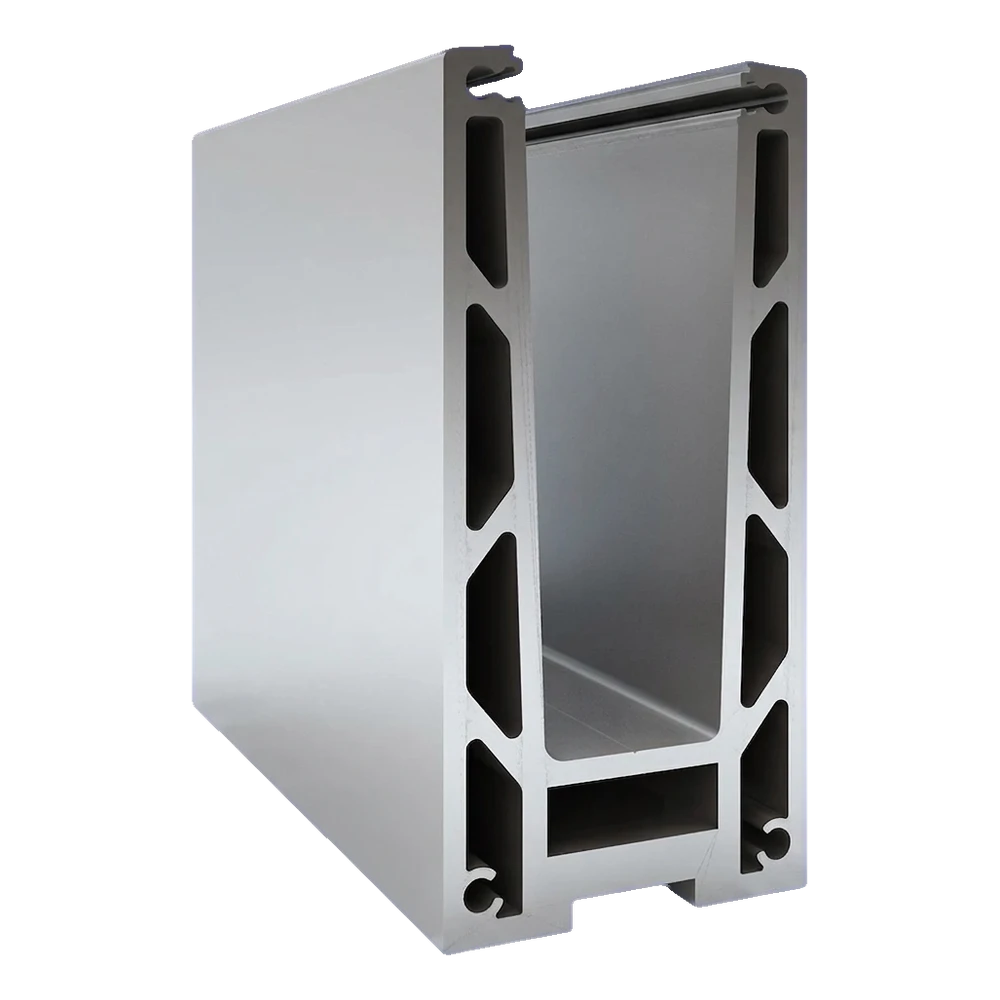

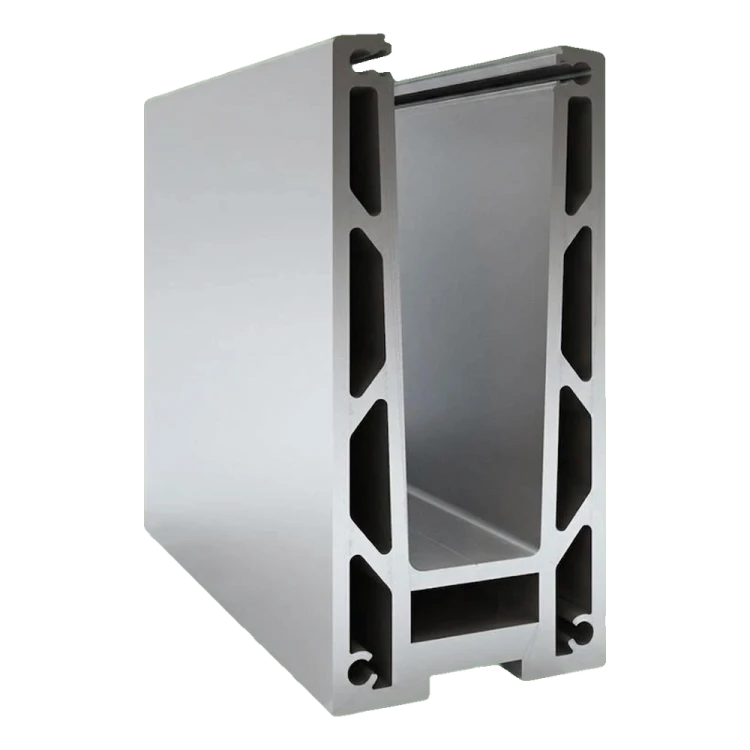

Kozza KF 1000 – U-profile aluminium profile for all-glass balustrades 5000 mm with drainage
Description
Kozza KF 1000 – aluminium U profile for all-glass balustrades 5000 mm with drainage
Kozza KF 1000 is a premium class aluminium U-profile designed for mounting all-glass balustrades in flat systems. With its built-in water drainage system, 5000 mm length and top-fixing design, this profile forms a reliable foundation for elegant balustrades on balconies, terraces, in shopping centres and hotel complexes. An ideal solution for installation companies carrying out projects where aesthetics, durability and quick assembly are paramount.
Why choose the KF 1000 profile?
All-glass balustrades are one of the most popular solutions in modern architecture. They don't dominate the space, add lightness and elegance whilst providing complete safety. The KF 1000 profile from Kozza has been designed to maximise convenience for installers — top-fixing speeds up assembly and maintains the minimalist, frameless appearance of the entire structure. The 5000 mm length reduces the number of joints, resulting in higher aesthetics and faster completion of even large projects.

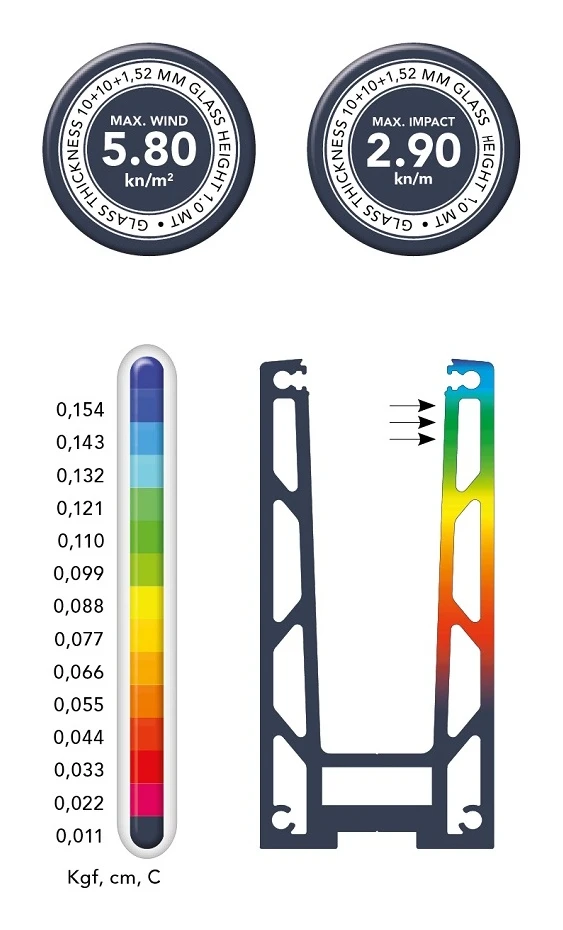

Strength confirmed by testing
The KF 1000 profile has undergone rigorous load testing. With glass thickness of 10+10+1.52 mm and height of 1.0 m, it achieves impressive strength parameters:
- Maximum wind load: 5.80 kN/m²
- Maximum impact load: 2.90 kN/m
- Tested for displacement under horizontal force of 500 kg
Stress analysis (FEA) confirms uniform load distribution in the profile cross-section, guaranteeing long-term stability of the structure even under extreme weather conditions.

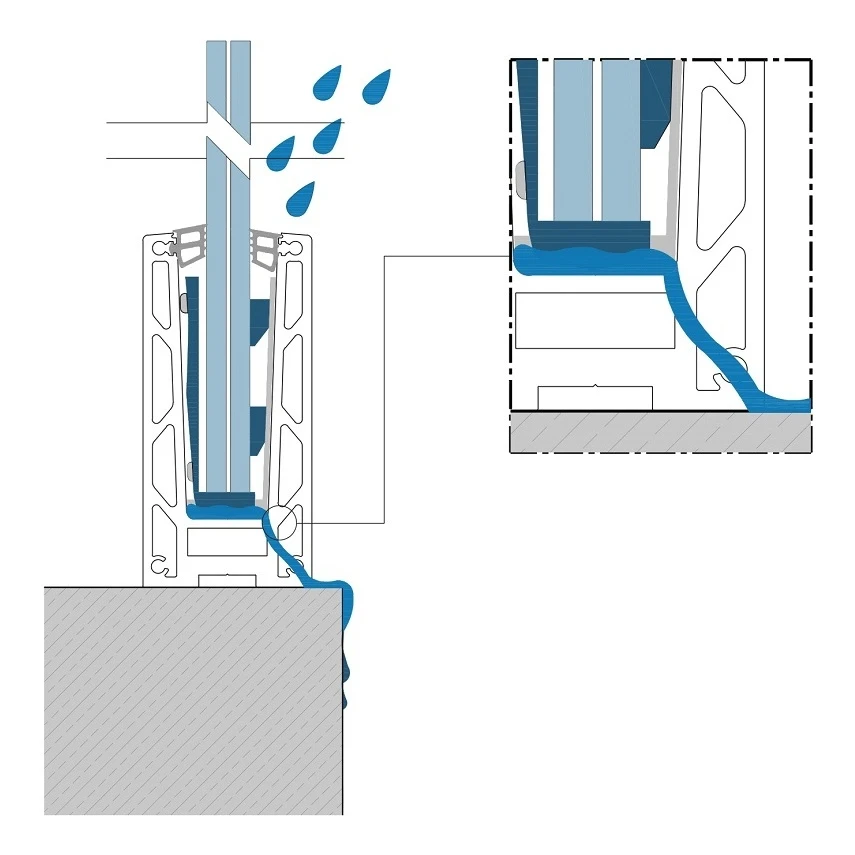

Water drainage system
One of the key features of the KF 1000 profile is its built-in drainage system. Rainwater that gets inside the profile is effectively directed outside — eliminating the problem of moisture accumulation, water stains and accelerated corrosion. This solution significantly extends the service life of the entire balustrade and reduces maintenance requirements, which is crucial especially in projects exposed to weather conditions.

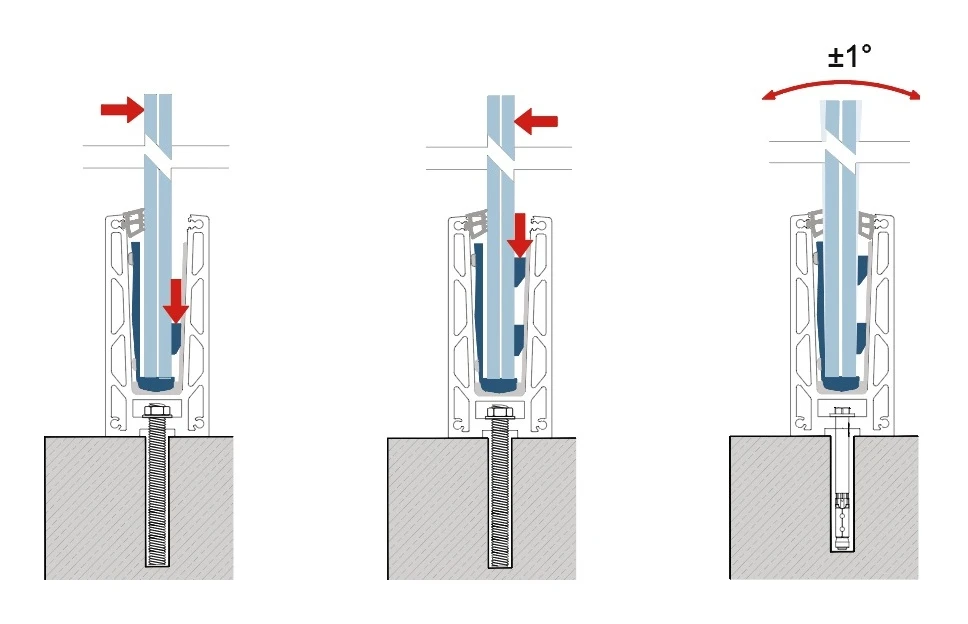

Fixing and adjustment

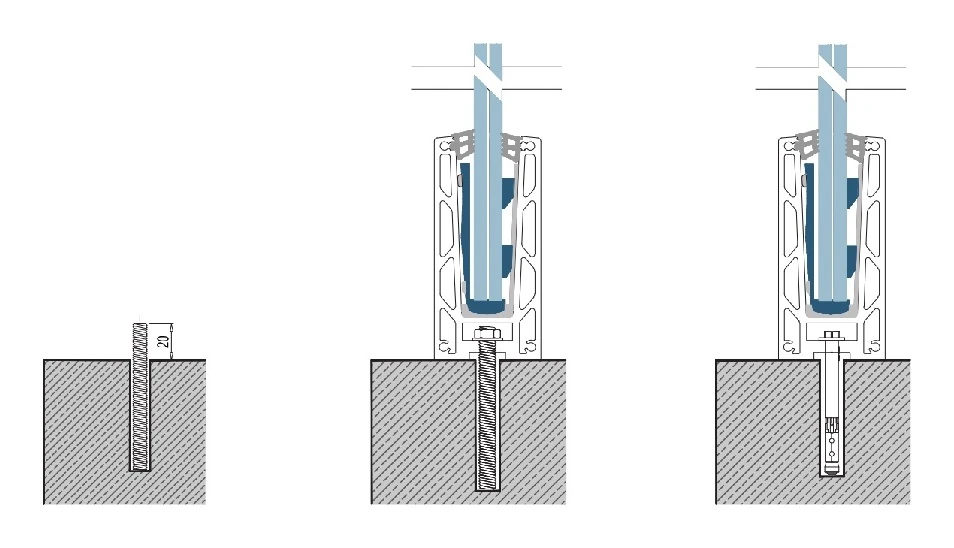

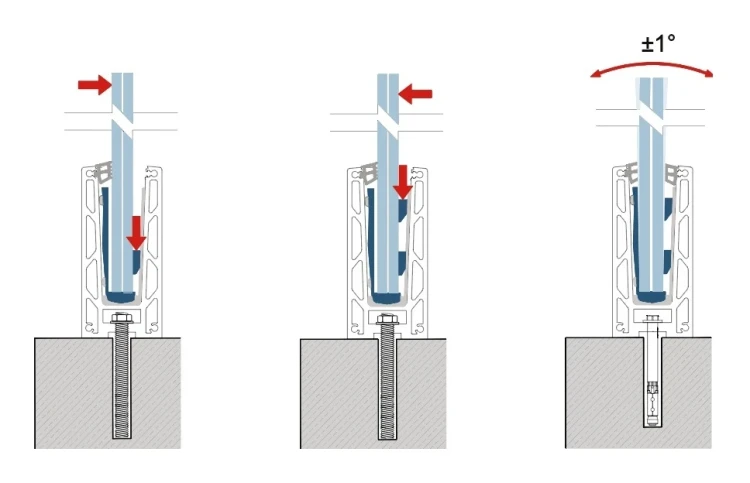

The profile is mounted from above, which facilitates access during installation and allows fixing elements to be hidden under floor or ceiling finishes. The system enables horizontal glass adjustment and deviation correction within ±1°, allowing the installer to precisely position the glass even on uneven substrate. Minimum anchor embedment depth is 20 mm.
Step-by-step installation instructions
Installation of the KF 1000 profile is simple and intuitive. The diagrams below show successive installation stages — from substrate preparation, through profile and spacer wedge installation, to glass mounting and end caps:
Installation instructions steps 1-6
Installation instructions steps 7-12
Technical specification
- Manufacturer: Kozza
- Series: KF 1000
- Profile type: U with water drainage system
- Material: aluminium EN AW 6063
- Finish: matt anodising
- System: flat
- Profile length: 5000 mm
- Height (H): 130 mm
- Width: 62 mm
- Glass thickness range: from 12 to 21.52 mm
- Fixing: from above
- Deviation adjustment: ±1°
- Max. wind load: 5.80 kN/m² (glass 10+10+1.52 mm, height 1.0 m)
- Max. impact load: 2.90 kN/m (glass 10+10+1.52 mm, height 1.0 m)
- Weight: 35 kg
- EAN: 5903313207331
Application

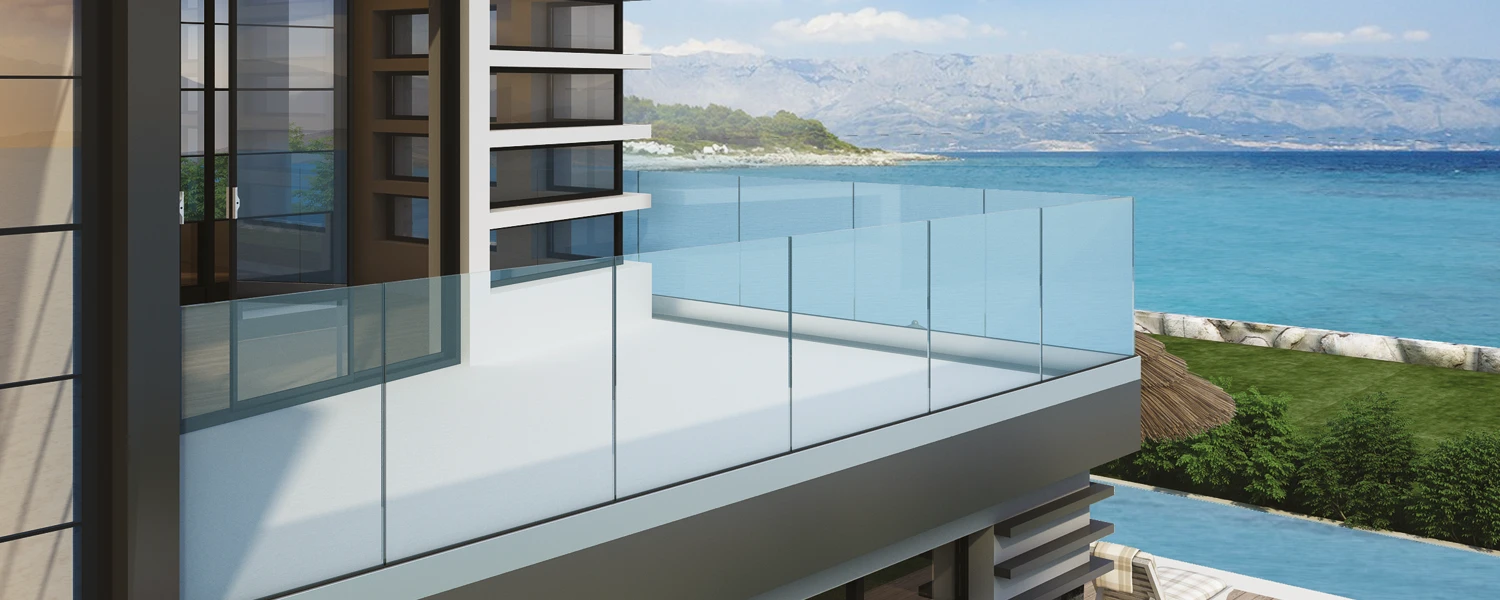

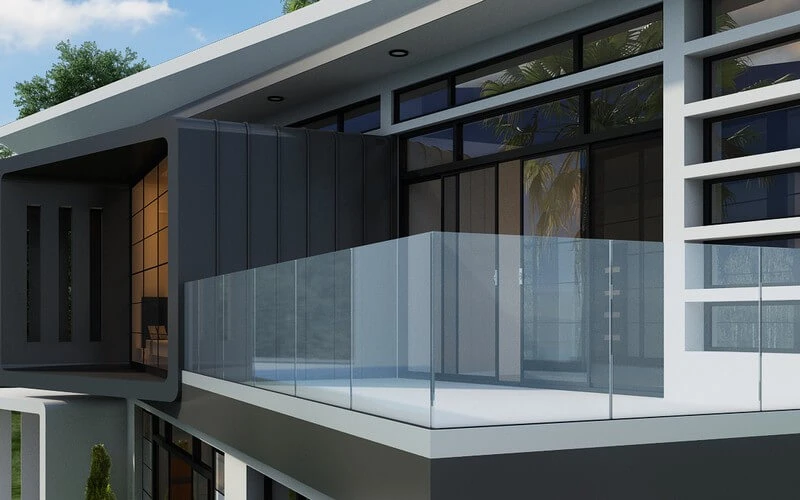

- Balconies and terraces in residential and hotel construction
- Shopping centres and office buildings
- Structures at swimming pools and wellness areas
- Internal and external balustrades in premium projects
- Objects requiring frameless glass aesthetics
Aluminium alloy EN AW 6063 guarantees corrosion resistance and durability compliant with quality standards, whilst matt anodising protects the surface against weather conditions and the passage of time. The Kozza KF 1000 profile is a professional component that combines modern design with engineering precision — the ideal choice for demanding installation companies.
Technical data
| Accessory Type | U Channel |
| Material | Aluminium |
