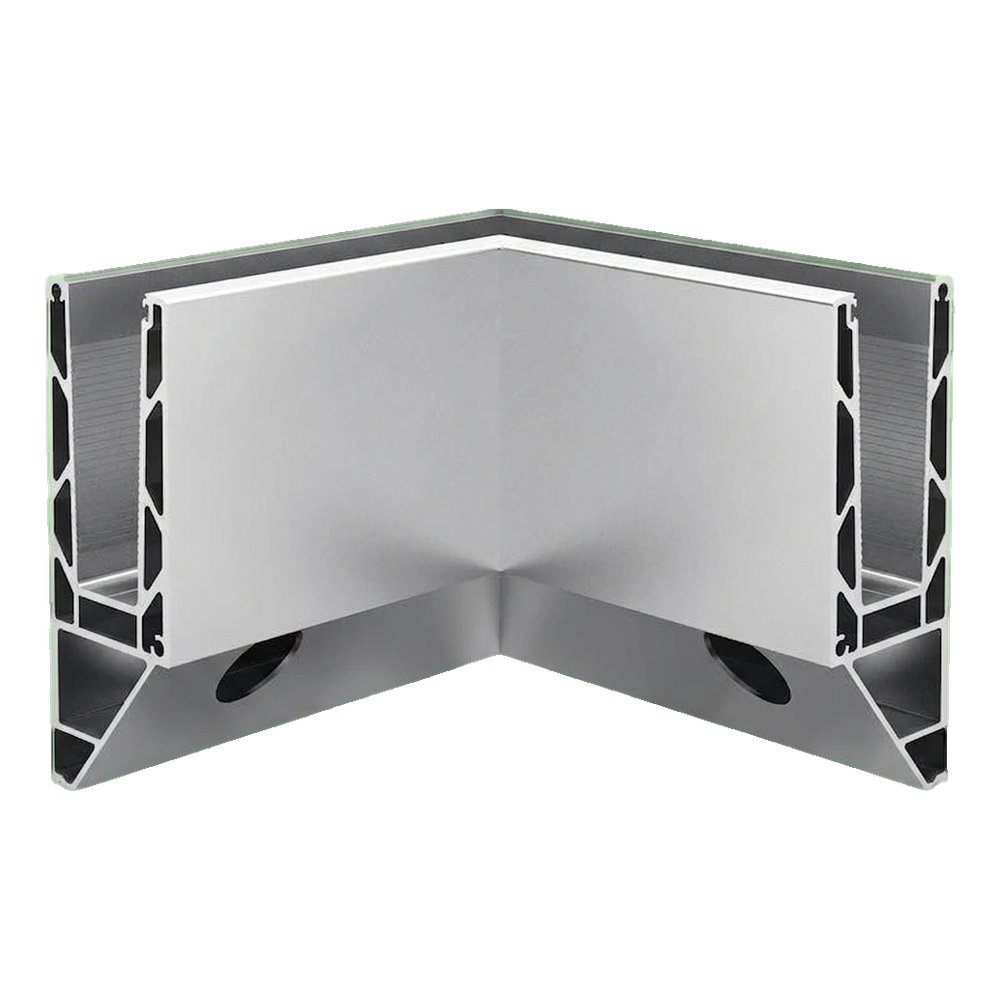

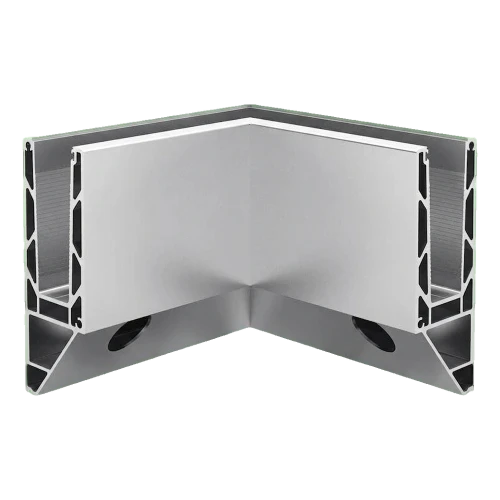

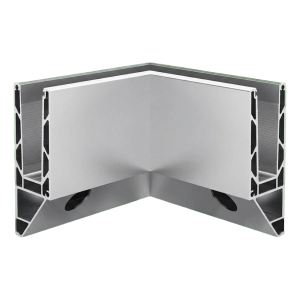

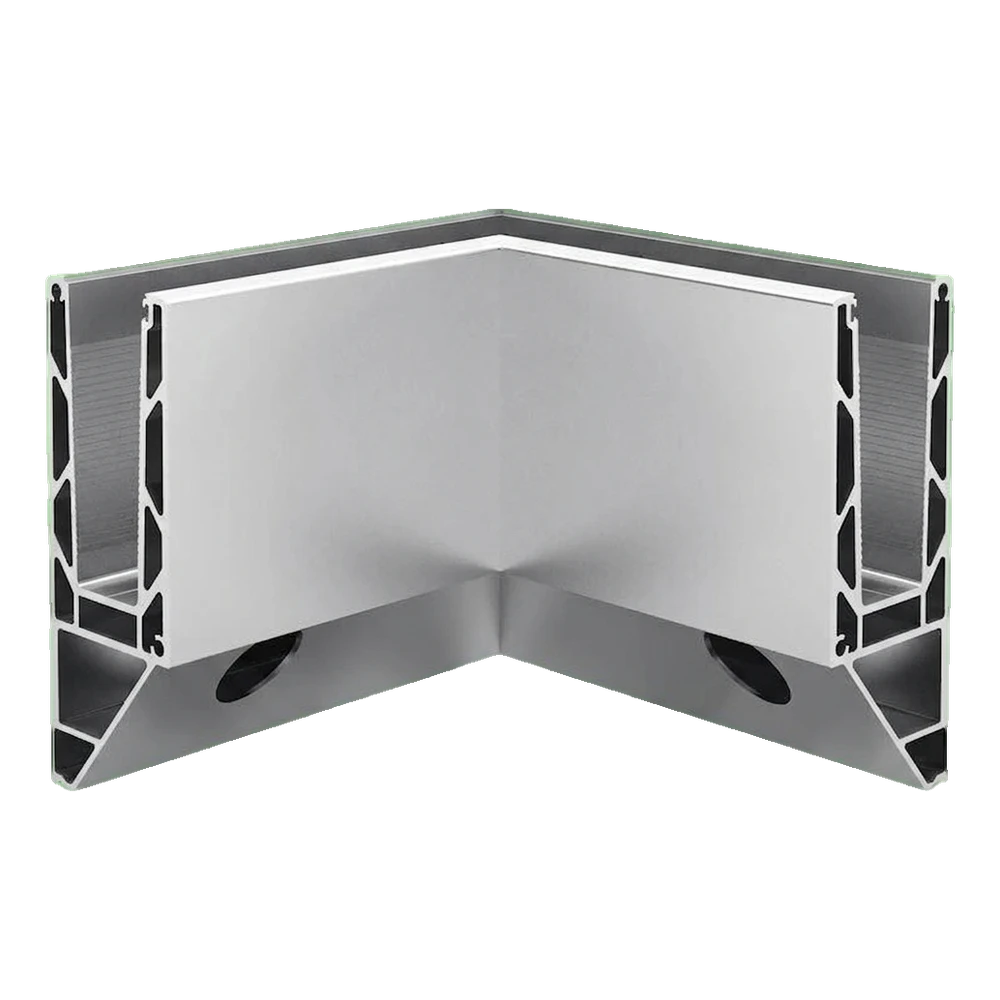

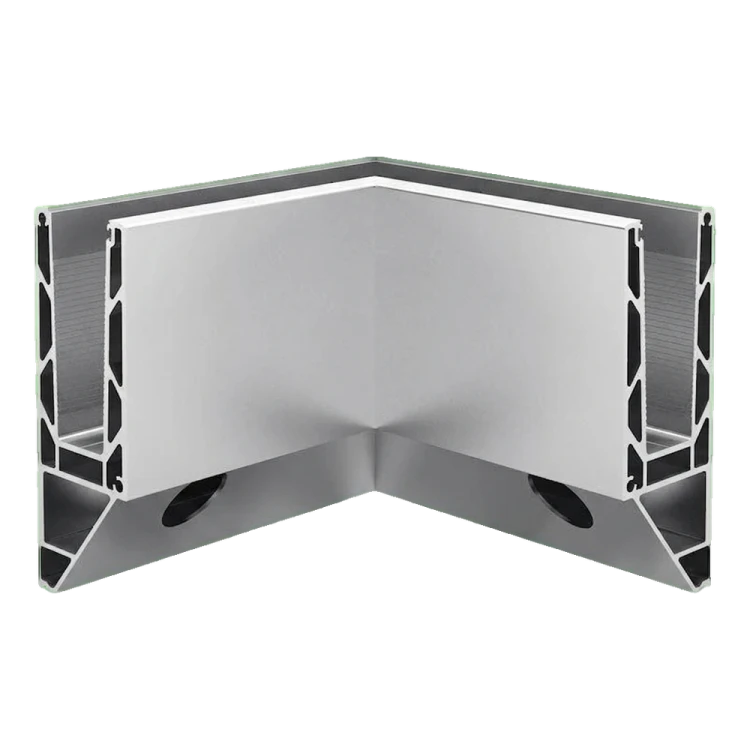

Kozza KE 120 – U-profile internal 90° corner for all-glass balustrades, side mounting
Description
Kozza KE 120 – U-profile internal 90° corner for all-glass balustrades, side mounting
Internal 90° U-profile corner from the Kozza KE 120 series designed for building all-glass balustrades in flat systems. This element ensures aesthetic and durable connection of two glass panels at right angles, ideal for finishing internal corners on balconies, terraces, staircases and mezzanines.
The profile is made from aluminium finished with matt anodising, which guarantees high corrosion resistance and an elegant, subdued appearance that harmonises with modern façades. Side mounting enables installation directly to the wall or structural post, which significantly simplifies the installation process and provides greater design flexibility than floor-mounted systems.
Technical specification
- Series: Kozza KE 120
- Type: internal U-profile corner
- Connection angle: 90°

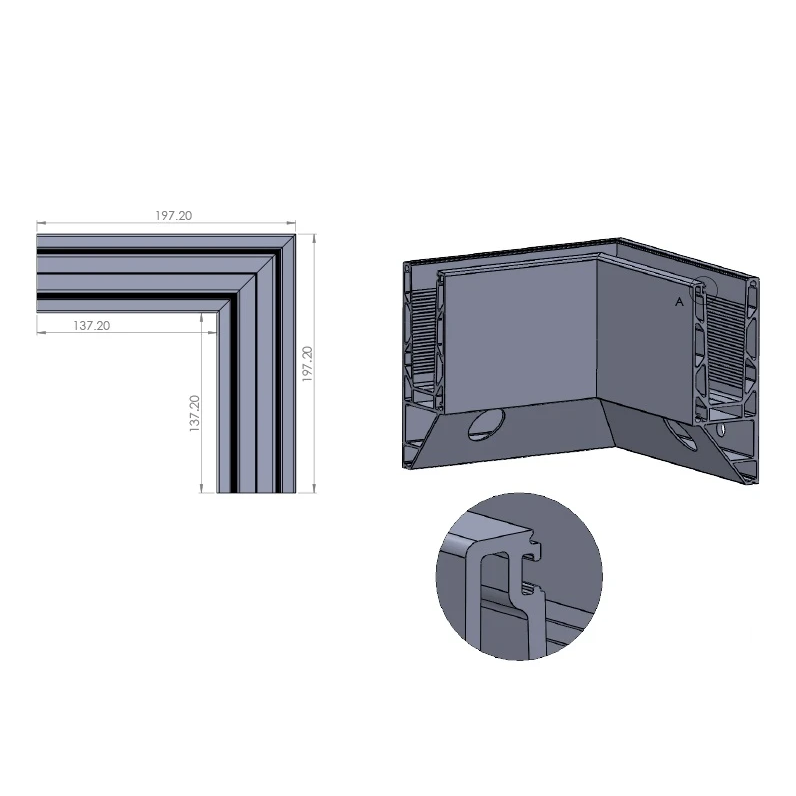

- Arm length: 197 mm × 197 mm
- Profile height: 160 mm
- Material: aluminium
- Surface finish: matt anodised
- Mounting system: flat
- Mounting method: side mounting
- Weight: 1.68 kg
- EAN: 5903313202527
Application and installation
The corner is designed for all-glass balustrade systems where glass panels are mounted directly in the U-profile without the need for additional point fixings. The flat system means that the profile adheres with its entire surface to the glass edge, ensuring even load distribution and stable panel retention. Side mounting is particularly suitable where floor anchoring is not possible – e.g. on finished balcony slabs or completed floor surfaces.
The profile is compatible with other elements from the KE 120 series by Kozza, allowing free composition of complete balustrade systems – combining straight sections, internal and external corners within one cohesive product line.
Technical data
| Accessory Type | U Channel |
| Material | Aluminium |
