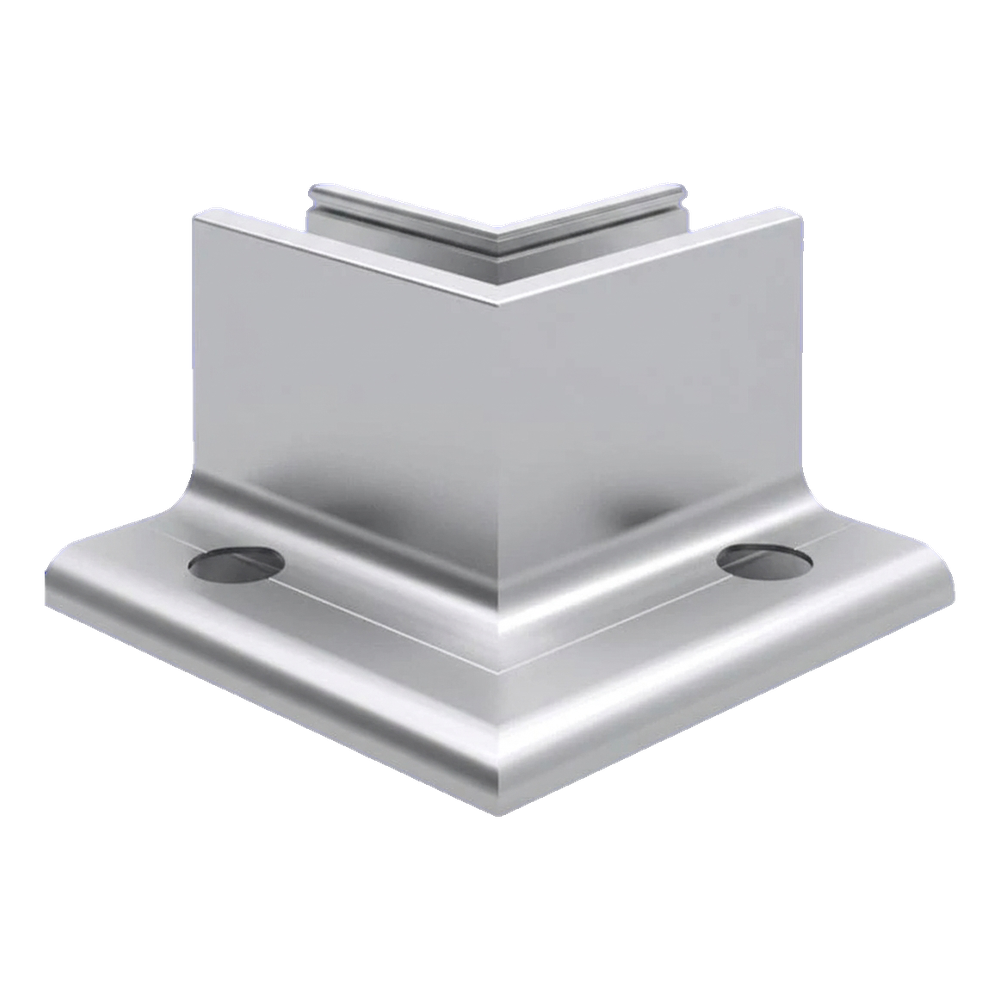

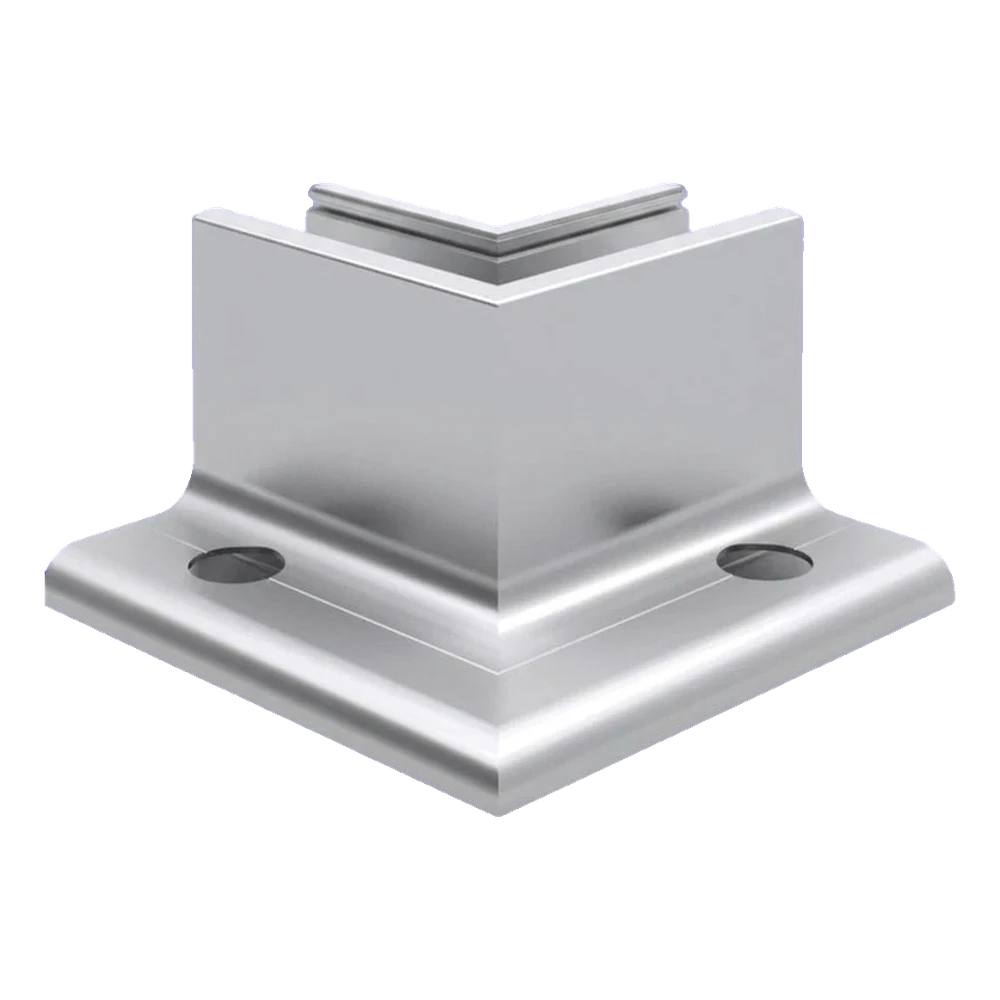

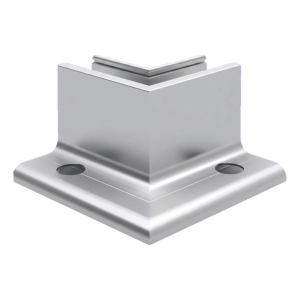

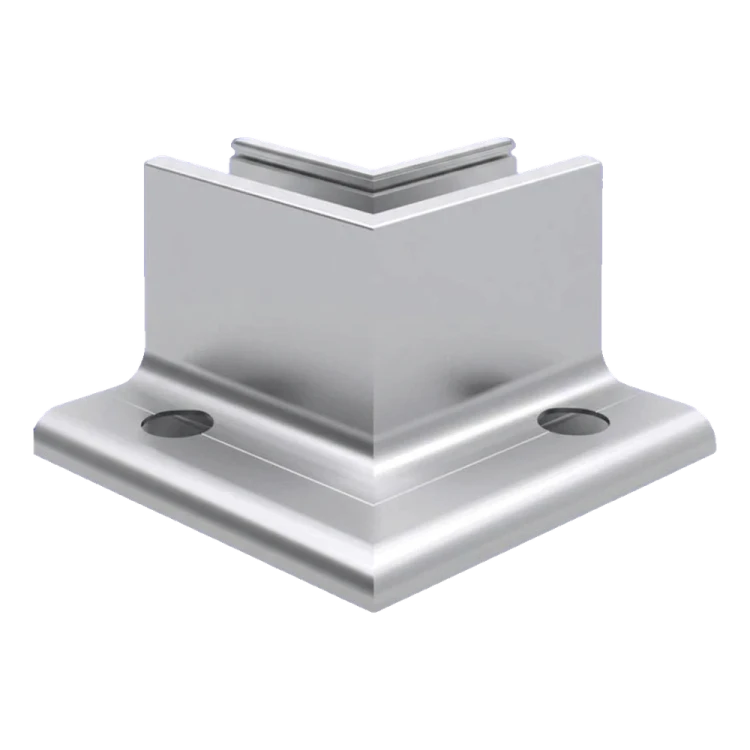

Kozza KE 105 – internal corner L profile 90° for all-glass balustrades, aluminium, matt anodised
Description
Kozza KE 105 – internal corner L profile 90° for all-glass balustrades, aluminium, matt anodised
Internal corner L profile Kozza KE 105 is an element of the all-glass balustrade system designed to connect glass panes at a 90° angle in internal corners. Thanks to longitudinal mounting from above, installation is quick and convenient — the profile is screwed directly to the substrate, and the glass is fitted from above, which significantly reduces installation time and eliminates the need for additional side clamping elements.
Made from aluminium with matt anodising, it provides an aesthetic, modern appearance and high corrosion resistance — perfectly suited for both commercial buildings and premium residences. The profile belongs to the flat system Kozza, which means minimalist form and discreet mounting of glass panes.

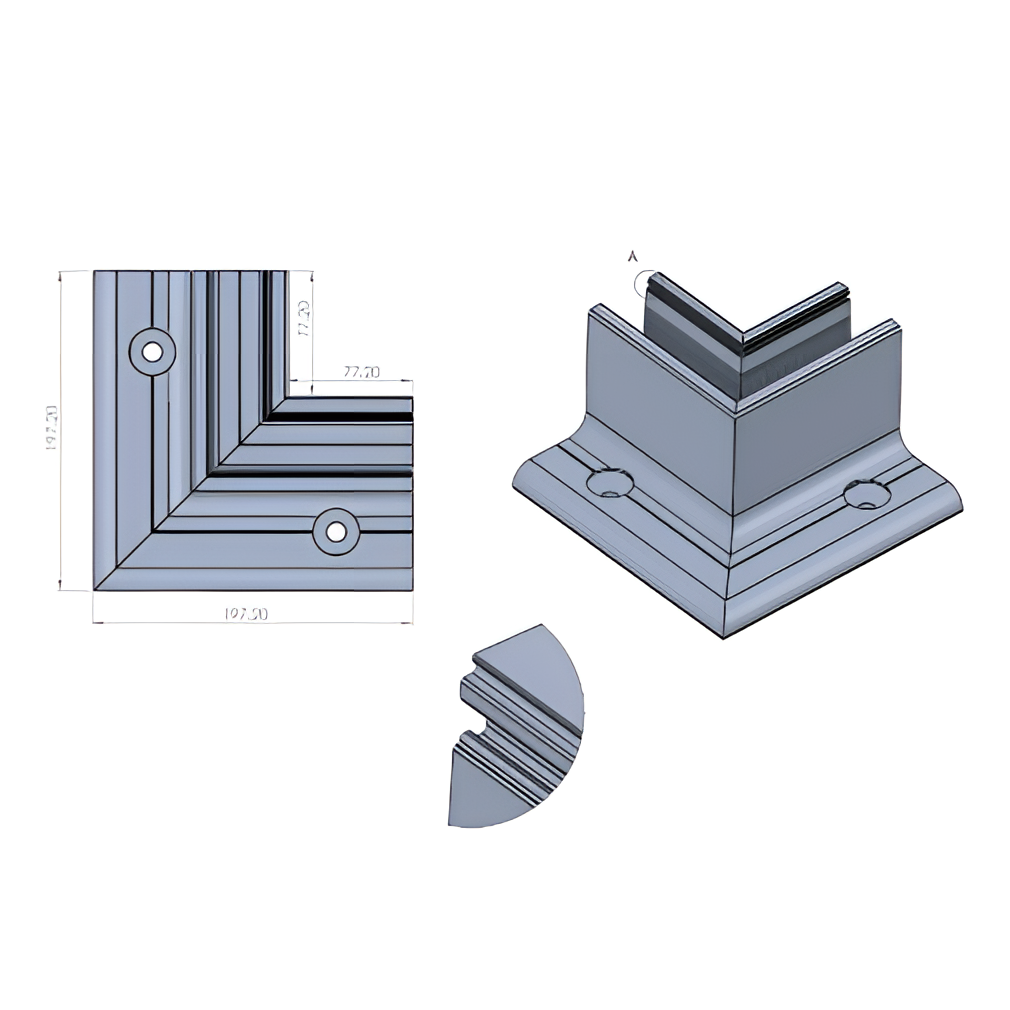

Technical parameters
- Manufacturer: Kozza, series KE 105
- Type: internal corner L profile
- Angle: 90°
- Length: 197 mm
- Width: 197 mm
- Height: 110 mm
- Material: aluminium
- Finish: matt anodising
- System: flat
- Mounting: longitudinal from above
- Weight: 1.76 kg
- EAN: 5903313202510
Application and installation
The profile is designed for implementing all-glass balustrades in places where two glass panes meet at a right angle in an internal corner. Longitudinal mounting from above enables installation of the profile on a finished substrate — simply screw the base to the floor through two mounting holes in the profile foot, then fit the glass panes in the upper slot. This solution is particularly valued by installation teams for its simplicity and repeatability of installation.
The matt anodised finish perfectly complements other elements of the Kozza KE 105 series — straight profiles, external corners and connectors — enabling the construction of visually cohesive balustrade systems throughout the entire building.
Technical data
| Accessory Type | U Channel |
| Material | Aluminium |
