Kozza KE 105 – L-shaped corner profile 90° for all-glass balustrades, external, longitudinal mounting from above
Description
Kozza KE 105 – L-shaped corner profile 90° for all-glass balustrades, external, longitudinal mounting from above

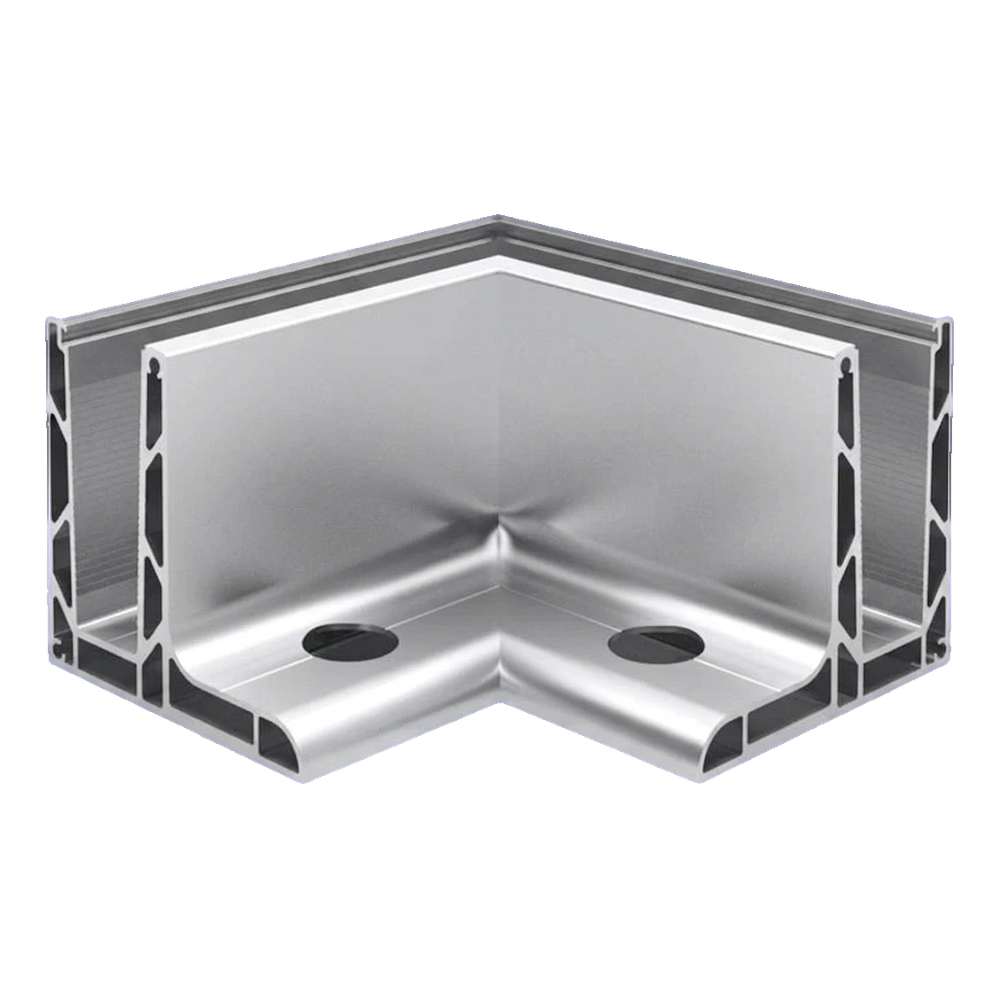

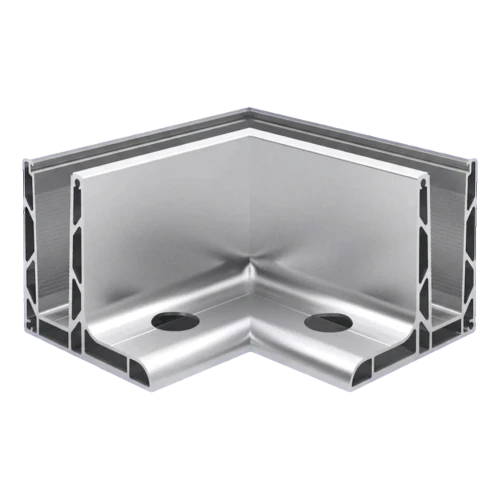

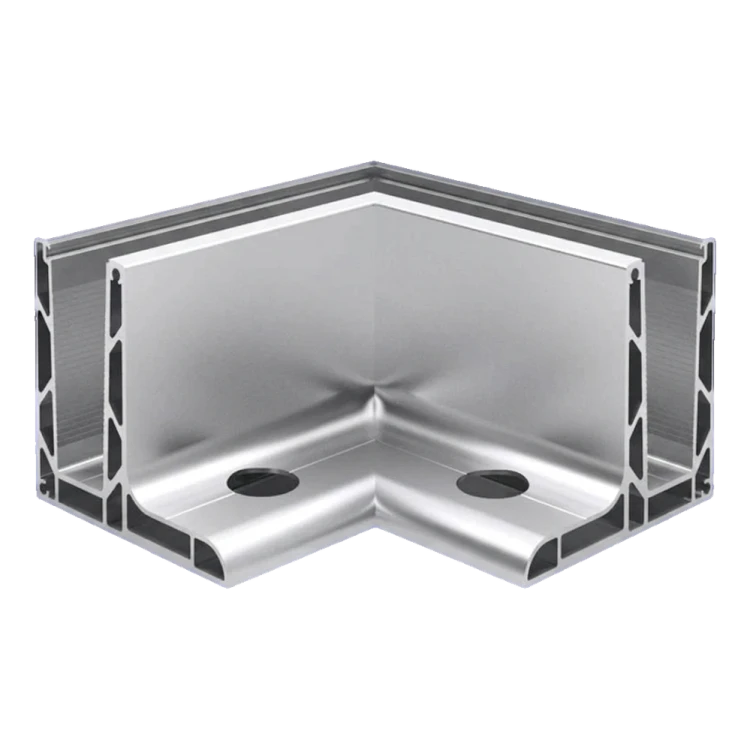

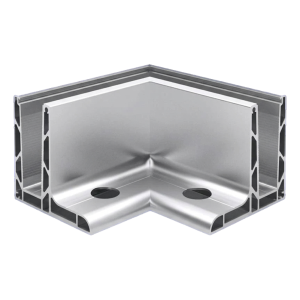

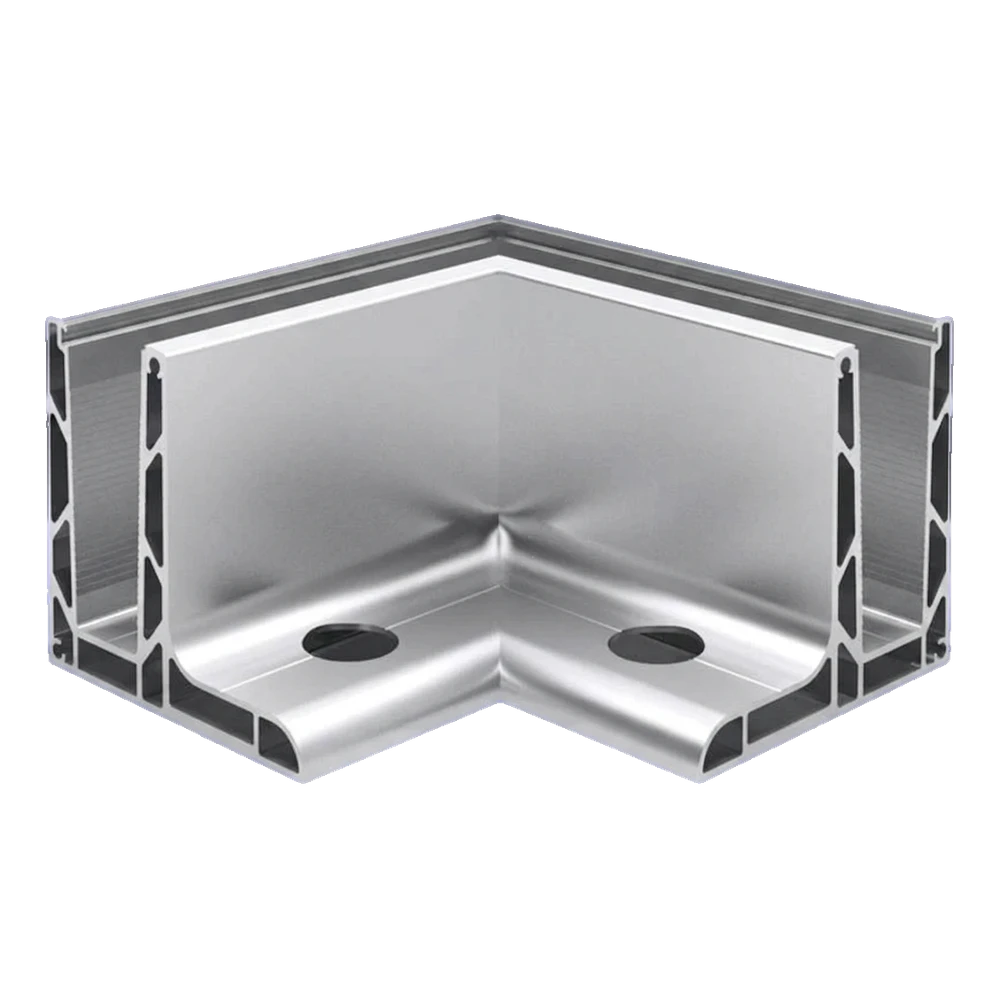

L-shaped corner profile 90° Kozza KE 105 is a structural element designed for constructing all-glass balustrades in flat systems. The profile serves to connect two glass panes at right angles in external corners, providing rigid and aesthetic connection without visible fixing elements from the front side.
Thanks to the longitudinal mounting from above the installer mounts the glass by inserting it into the profile from above — which significantly simplifies and speeds up the installation process, particularly on balconies and terraces. The profile made from aluminium with matt anodised finish guarantees durability, corrosion resistance and a modern, discrete appearance that matches any arrangement.
Technical specifications
- Manufacturer: Kozza
- Series: KE 105
- Type: L-shaped external corner profile
- Angle: 90°
- Mounting: longitudinal from above
- Material: aluminium
- Finish: matt anodised
- System: flat

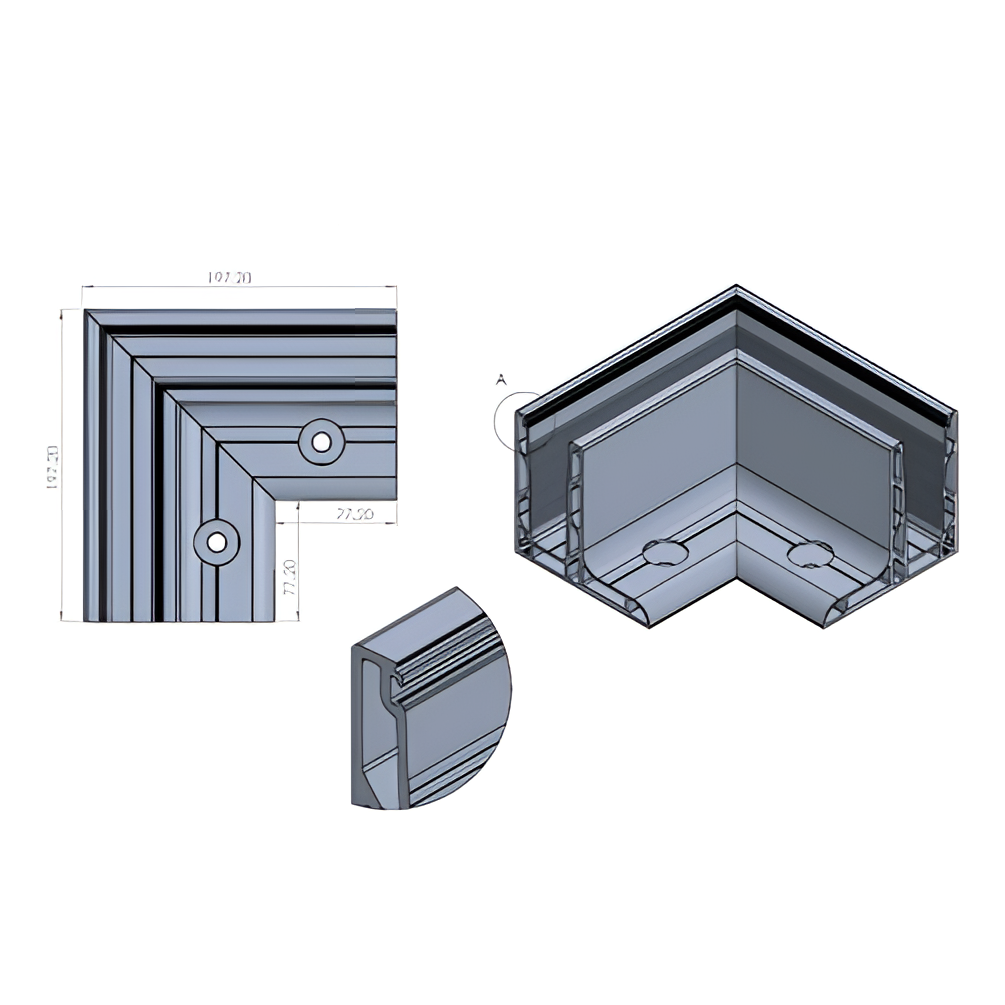

Dimensions and weight
- Length: 197.2 mm
- Width: 197 mm
- Height: 110 mm
- Weight: 1.37 kg
- EAN: 5903313202503
The corner profile KE 105 is compatible with other elements of the Kozza KE 105 series, which allows for complete realisation of an all-glass balustrade system from one product line — from straight sections, through corners, to end elements.
Technical data
| Accessory Type | U Channel |
| Material | Aluminium |
