Kozza KE 100 – U-profile for all-glass balustrades 5000 mm black, top mounting
Leave feedback on the product

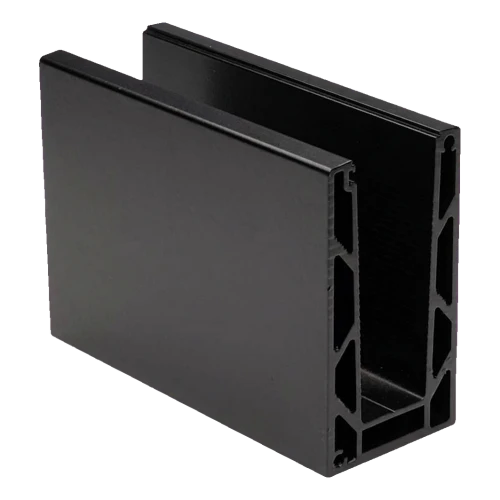

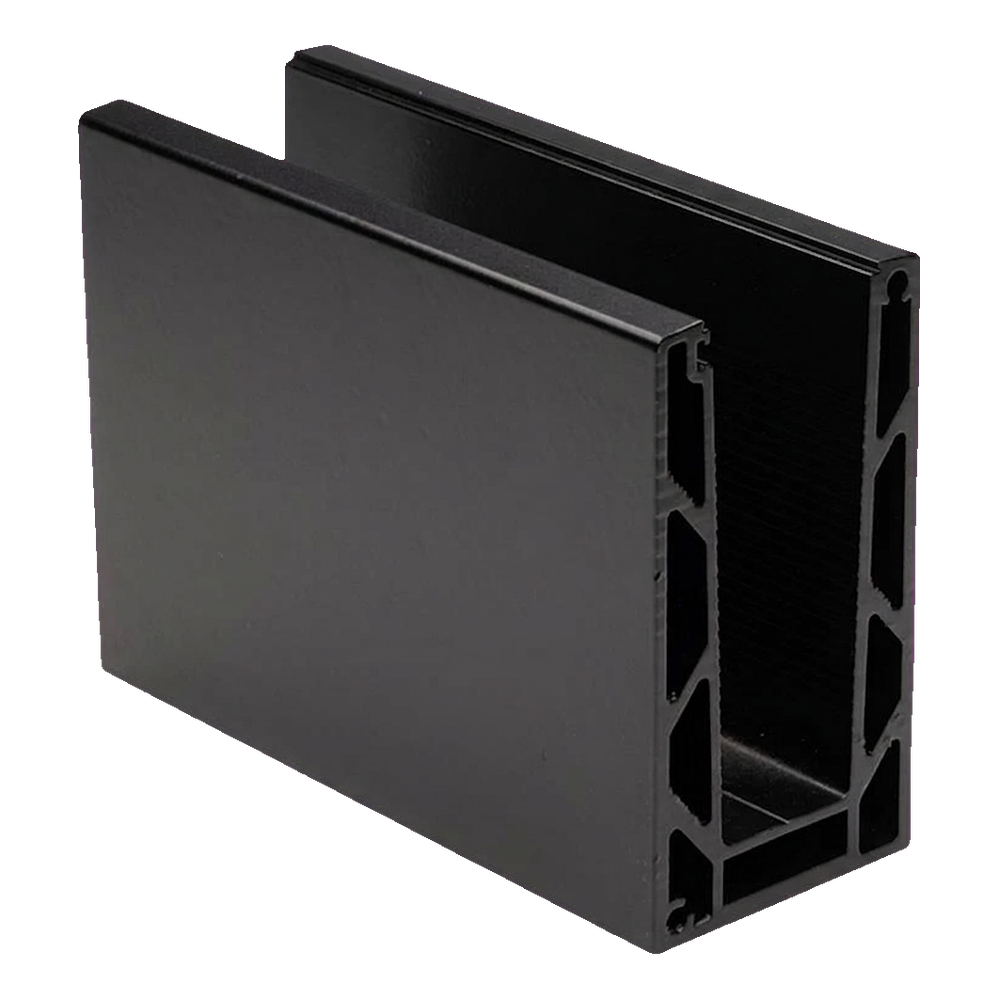

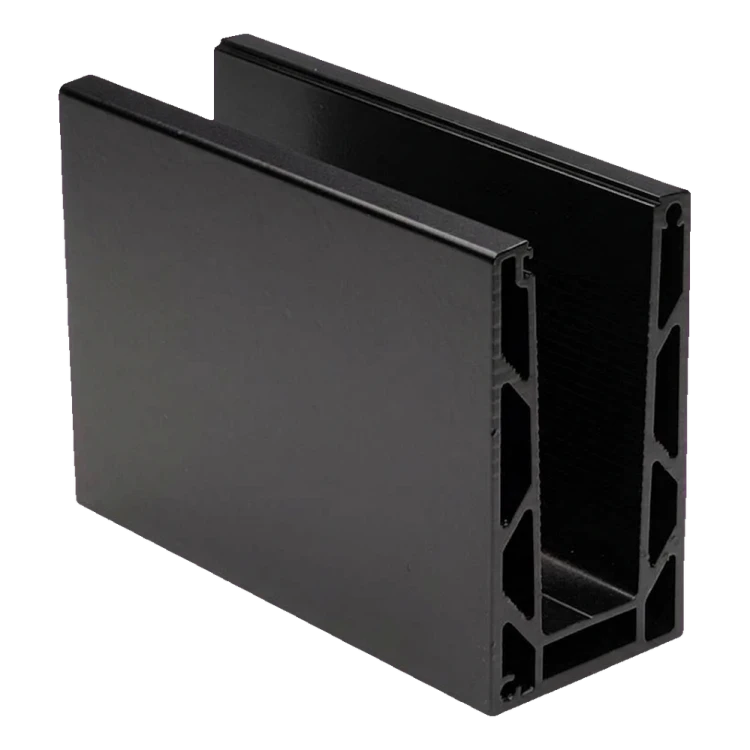

Kozza KE 100 U-profile for all-glass balustrades, aluminium EN AW 6063, black. Length 5000 mm, width 60 mm, height 110 mm. Glass 12-21.52 mm. Top mounting, flat system. Weight 23 kg.
Product code: 000-861
Product features
[PIM] balustrady-caloszklane #128
- Accessory Type U Channel
- Material Aluminium
Description
Kozza KE 100 – U-profile for all-glass balustrades 5000 mm black, top mounting
U-shaped hollow profile for all-glass balustrades from the Kozza KE 100 series is a solution designed to meet architects' requirements and intended for professional projects — from residential spaces to commercial buildings such as hotels and shopping centres. Mounted from the top (flat system), it provides an attractive and safe way of fixing toughened glass with a thickness of 12 to 21.52 mm with no visible fixing elements.
The 5000 mm long profile is supplied with factory-drilled 17 mounting holes (Ø 12 mm with Ø 29 mm countersink), spaced every 300 mm — which significantly speeds up installation on site. The black powder-coated finish gives the balustrade a modern, minimalist look, blending perfectly with dark window frames and interior trim elements.

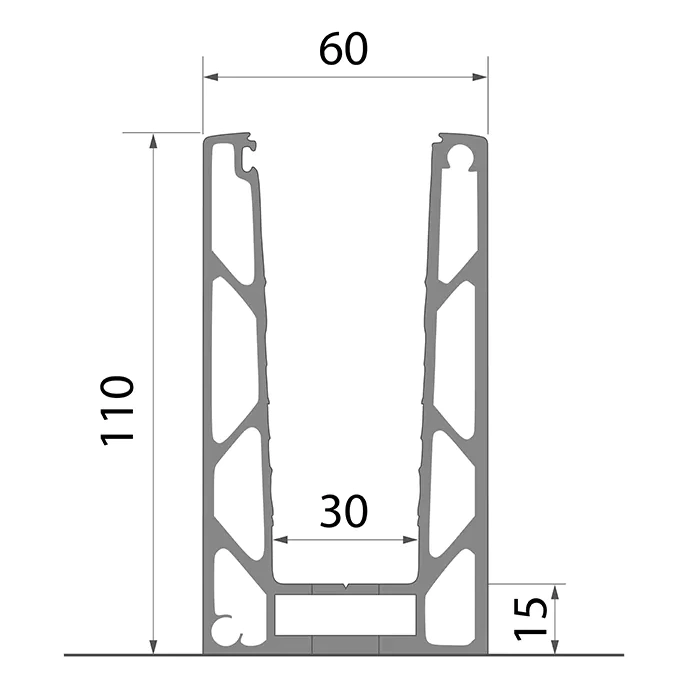

Technical parameters of the profile
- Series: KE 100
- Profile length: 5000 mm
- External width: 60 mm
- Height: 110 mm
- Internal channel width: 30 mm
- Base height: 15 mm
- Glass thickness range: 12–21.52 mm
- Maximum glass height: 120 cm
- Mounting system: flat, top mounting
- Material: aluminium EN AW 6063
- Colour: black (powder-coated)
- Weight: 23 kg
- EAN: 5903313208277

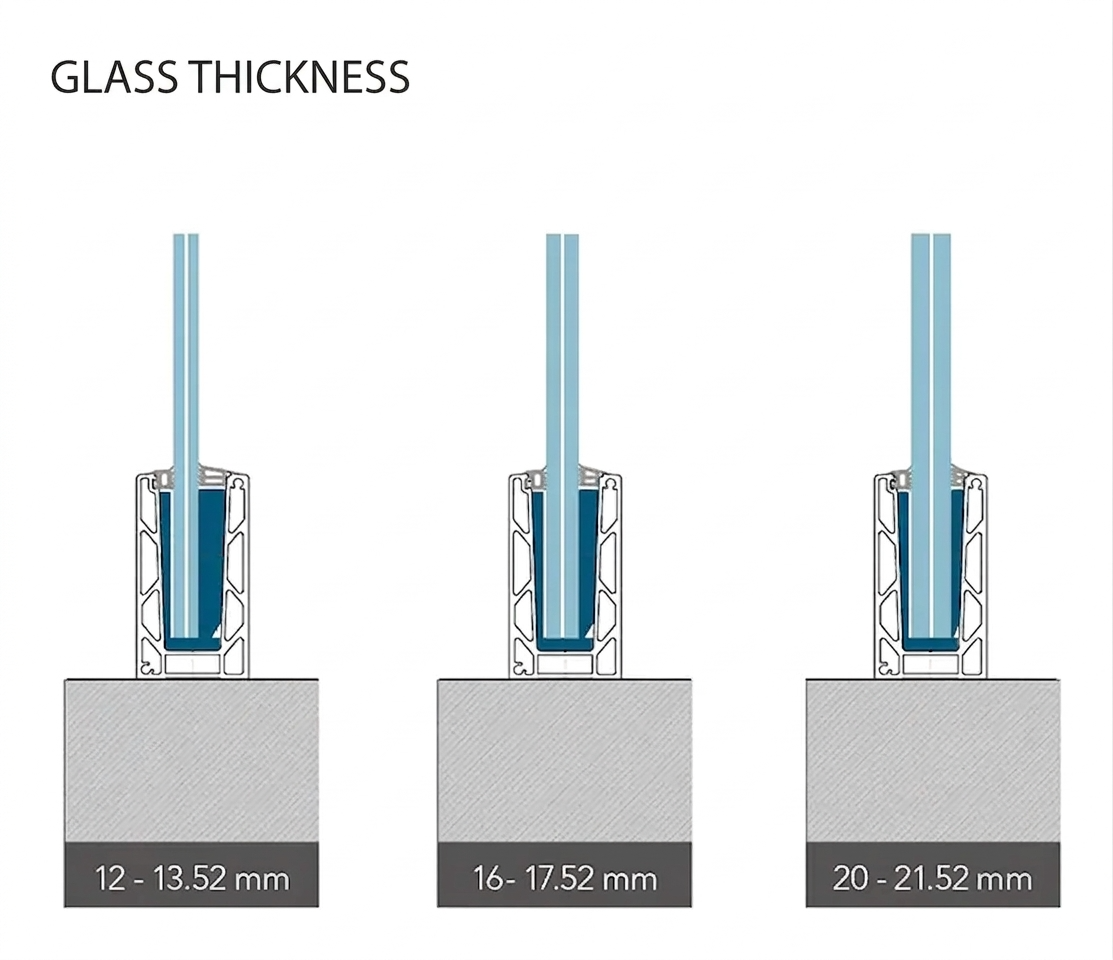

Glass thickness compatibility
The KE 100 profile accommodates three glass thickness ranges, allowing the solution to be matched to project requirements and applicable safety standards:
- Glass 12–13.52 mm — standard toughened and laminated VSG panes
- Glass 16–17.52 mm — laminated panes with increased strength
- Glass 20–21.52 mm — thick laminated panes for high-load applications

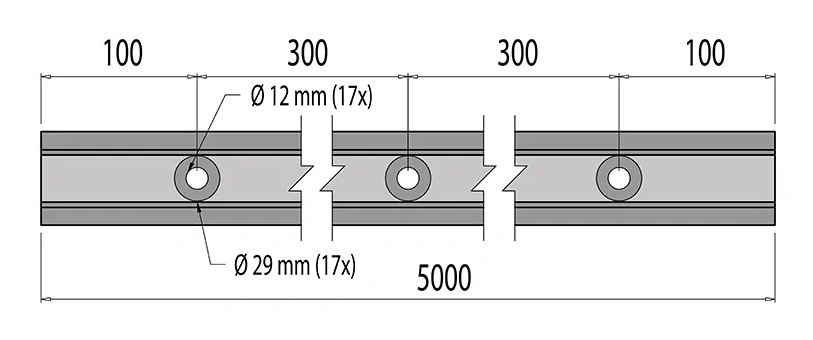

Dimensions and layout of mounting holes
The profile has 17 through holes with a diameter of Ø 12 mm and Ø 29 mm countersinks, allowing the screw head to be recessed. The holes are arranged symmetrically along the profile axis:
- Distance from the edge to the first hole: 100 mm
- Spacing between holes: 300 mm
- Distance from the last hole to the edge: 100 mm
- Total profile length: 5000 mm
Anchoring method and installation
The profile is mounted from the top onto the surface of the substrate (e.g. floor slab, parapet, balcony edge). Anchoring is carried out with screws through factory-prepared countersunk holes. The protruding part of the profile (20 mm below the base) is embedded in the prepared substrate, ensuring a stable and durable connection.

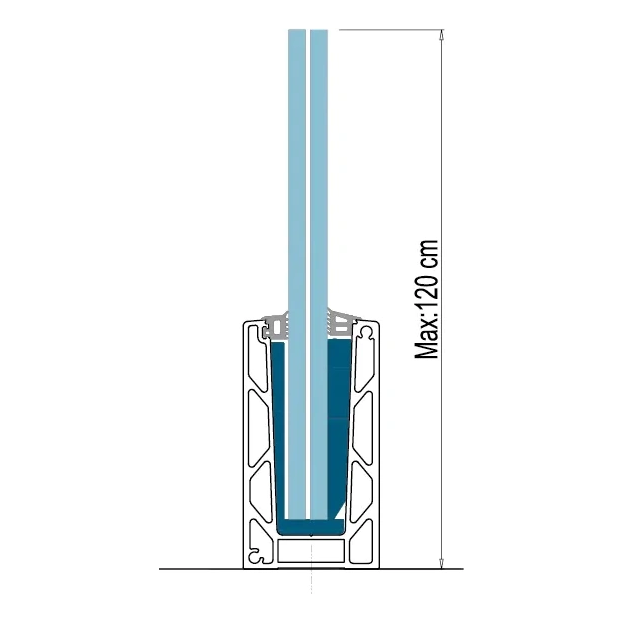

Maximum glass height
The KE 100 profile allows the installation of glass panels with a maximum height of 120 cm (1.2 m). At this height, the profile retains full load-bearing capacity and stability, as confirmed by wind and impact load test results for the individual glass thicknesses.

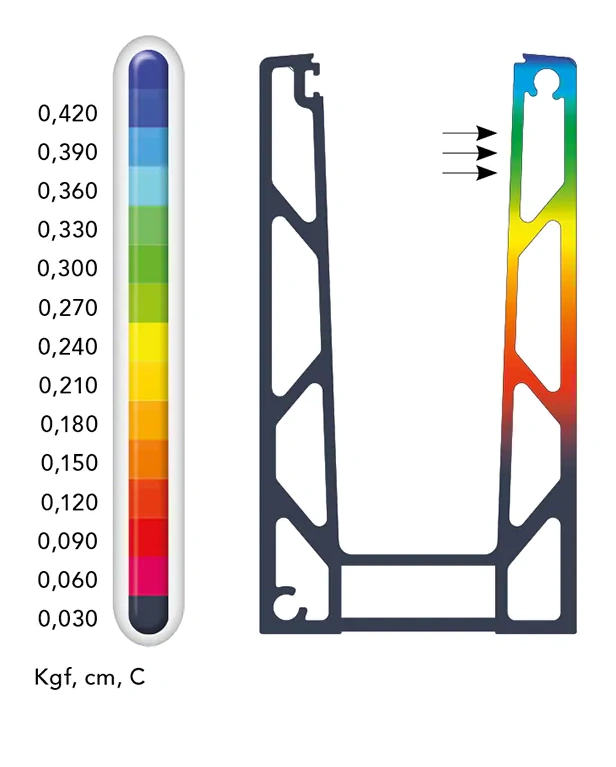

Strength analysis of the profile
The results of the displacement analysis carried out using the finite element method (FEM) confirm the high rigidity of the structure. The simulation was performed for a profile with a base length of 1 m, under a horizontal load of less than 500 kg (5000 N), applied from the base to the highest point of the profile. The maximum displacement at the top edge of the profile is within permissible limits (value scale from 0.030 to 0.420 Kgf, cm, C), which guarantees the safe use of the balustrade.
Maximum wind and impact loads — KE series
Maximum wind and impact loads for the KE series
| KE series | Glass 12–13.52 mm | Glass 16–17.52 mm | Glass 20–21.52 mm | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Glass height 1.0 m | Glass height 1.2 m | Glass height 1.0 m | Glass height 1.2 m | Glass height 1.0 m | Glass height 1.2 m | |||||||
| Max. wind (kN/m²) | Max. impact (kN/m) | Max. wind (kN/m²) | Max. impact (kN/m) | Max. wind (kN/m²) | Max. impact (kN/m) | Max. wind (kN/m²) | Max. impact (kN/m) | Max. wind (kN/m²) | Max. impact (kN/m) | Max. wind (kN/m²) | Max. impact (kN/m) | |
| KE 100 | 2,45 | 0,85 | 1,20 | 0,50 | 3,00 | 1,50 | 2,60 | 1,10 | 3,00 | 1,50 | 2,70 | 1,50 |
| KE 105 | 2,45 | 0,85 | 1,20 | 0,50 | 2,65 | 1,35 | 2,40 | 1,10 | 2,65 | 1,35 | 2,40 | 1,35 |
| KE 120 | 2,45 | 0,85 | 1,20 | 0,50 | 2,10 | 1,00 | 1,90 | 1,00 | 2,10 | 1,00 | 1,90 | 1,00 |
The above values apply to KE 100, KE 105 and KE 120 profiles, for glass heights of 1.0 m and 1.2 m. The KE 100 profile with 16–17.52 mm glass at a height of 1.0 m achieves a maximum wind load of 3.0 kN/m² and an impact load of 1.50 kN/m, making it a suitable solution even for demanding locations.
GLASSMOVE mounting system — installation instructions
The KE 100 profile uses the GLASSMOVE mounting system, which allows precise seating and adjustment of the glass pane without specialist tools. The instructions below present the full installation process in 12 steps — from substrate preparation, through anchoring the profile, fitting the gaskets and adjustment wedges, to seating the glass and closing the profile with the cover.
KE 100 profile installation instructions – steps 1-6
KE 100 profile installation instructions – steps 7-9
KE 100 profile installation instructions – steps 10-12
Benefits for installation companies
- Factory-drilled holes — 17 countersunk holes ready for installation, with no need for additional machining on site
- Universal glass range — handles panes from 12 to 21.52 mm thick, allowing a variety of projects to be completed with a single profile
- GLASSMOVE system — quick installation and glass adjustment without specialist equipment
- Proven strength — FEA analysis and load tables make it easier to design and select a solution that meets regulatory requirements
- 5 m length — fewer joints on longer runs, faster installation and a better final appearance
- EN AW 6063 aluminium alloy — excellent resistance to corrosion and weather conditions, ideal for outdoor and indoor applications
