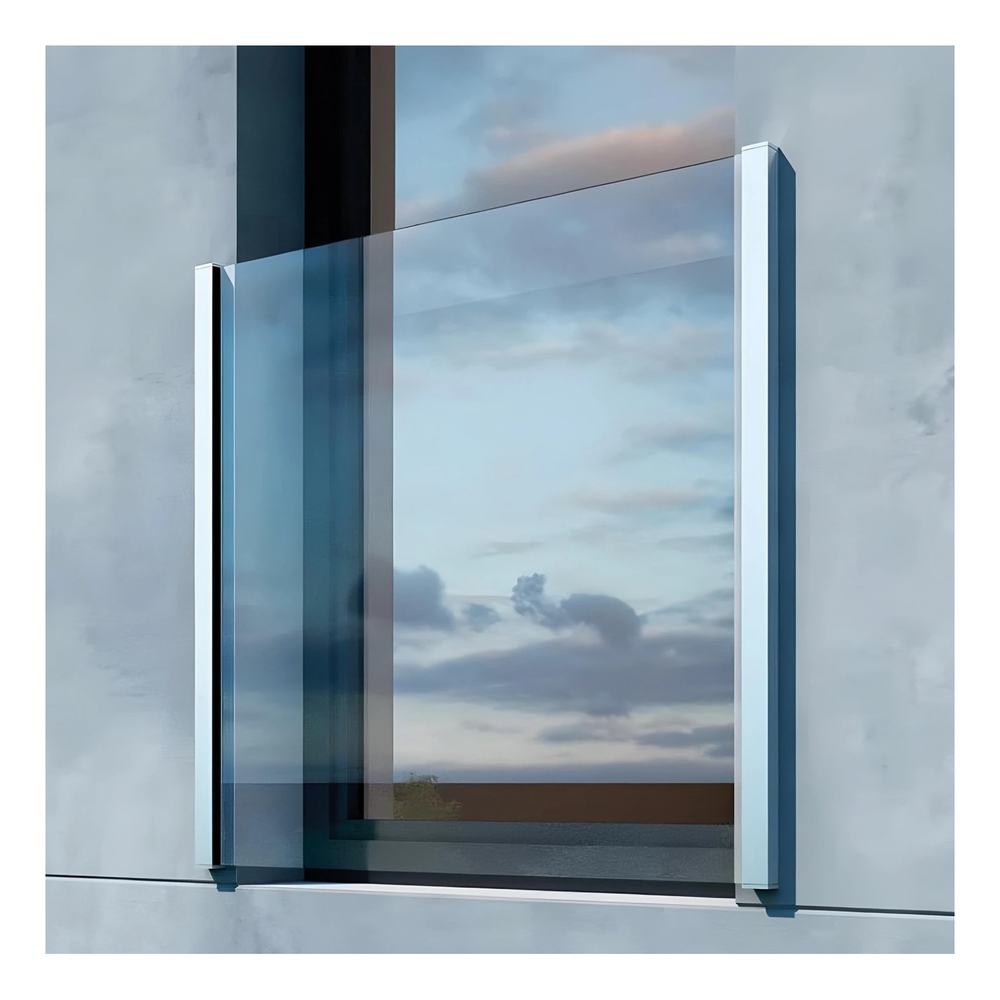

Kozza KB5000 – complete French balcony aluminium H1100 mm, glass 16–17.52 mm, matt anodised
Description
Kozza KB5000 – complete French balcony aluminium H1100 mm, glass 16–17.52 mm, matt anodised
Kozza KB5000 is a complete French balcony kit designed for professional installation companies. The flush system with direct wall mounting combines modern, minimalist aesthetics with exceptional installation speed — profiles are delivered cut to size, with factory-drilled mounting holes, ready seals, cover strips and end caps. Simply fix the construction to the wall and install the glass.
Aluminium profiles with anodised finish (matt anodised) provide years of weather resistance without the need for maintenance. The system accommodates glass from 16 to 17.52 mm thick, ensuring high stability and safety confirmed by wind load and impact resistance testing.

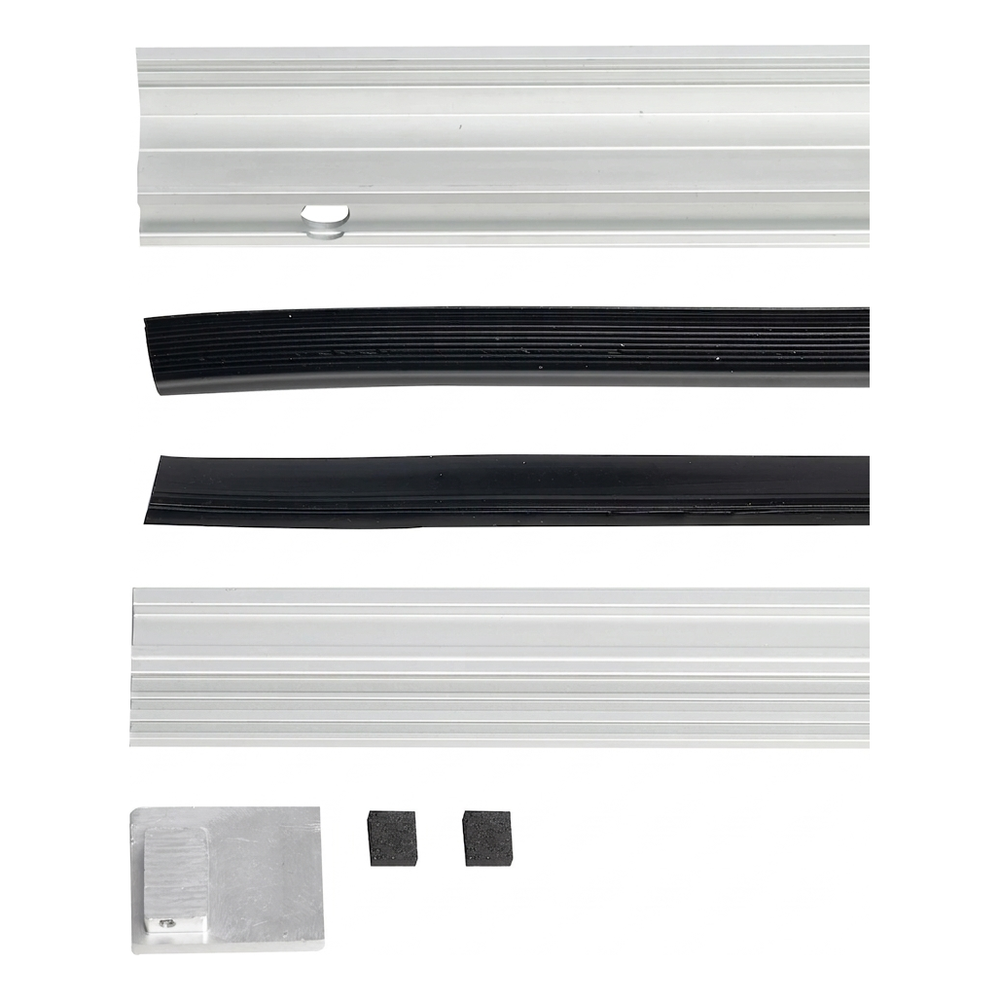

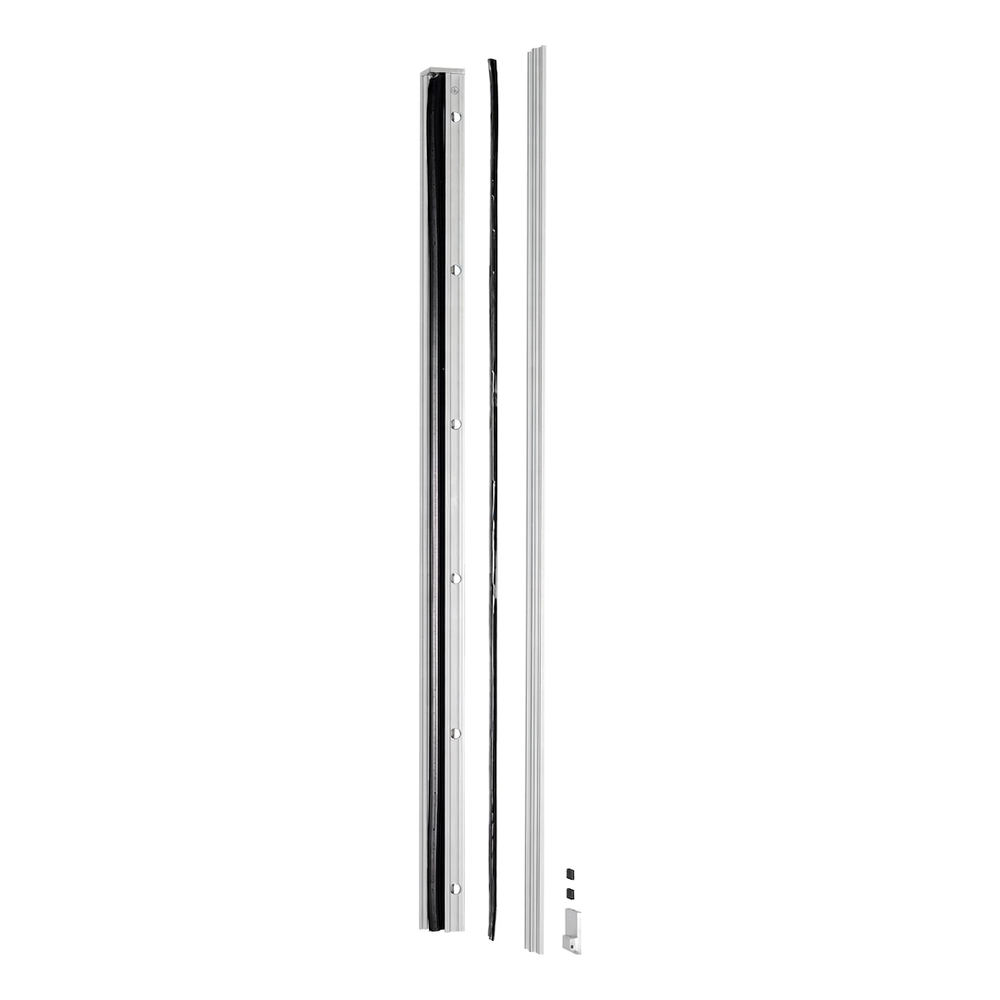

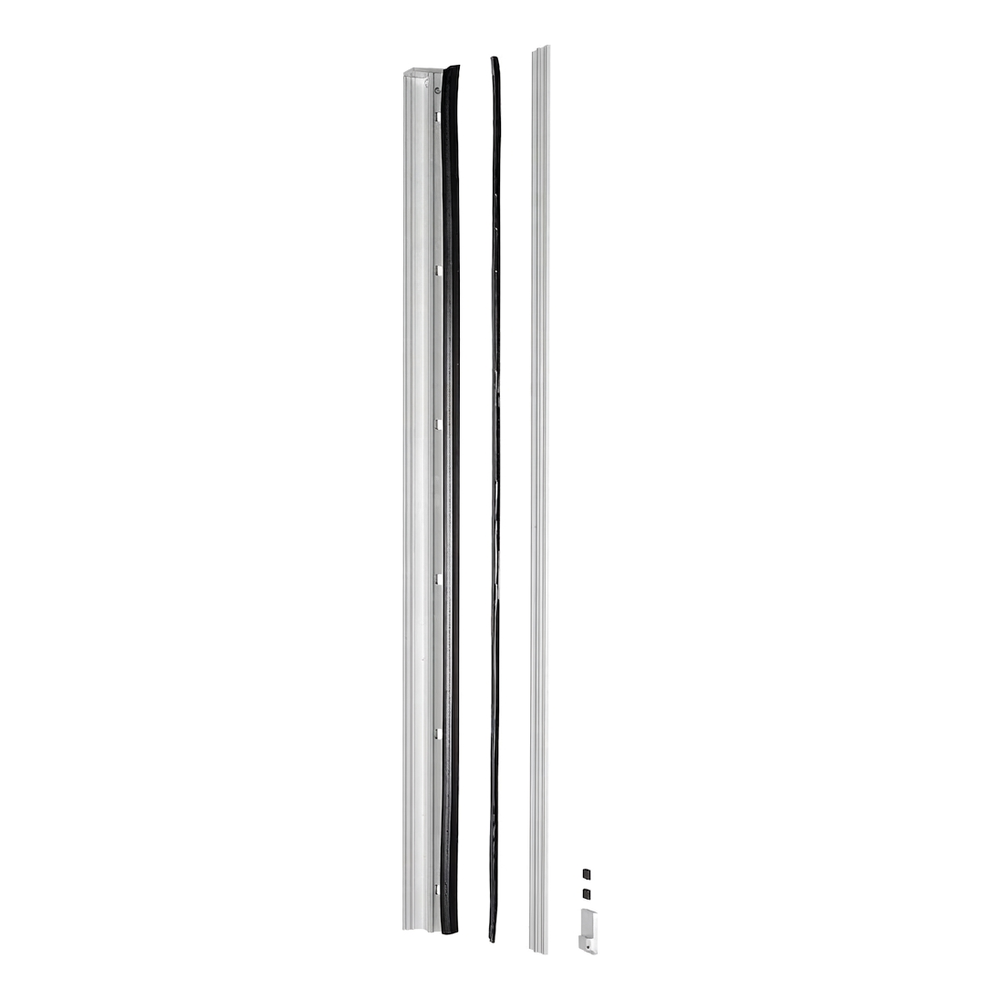

Kit contents
The Kozza KB5000 French balcony is supplied as a ready-to-install complete kit. The kit includes:

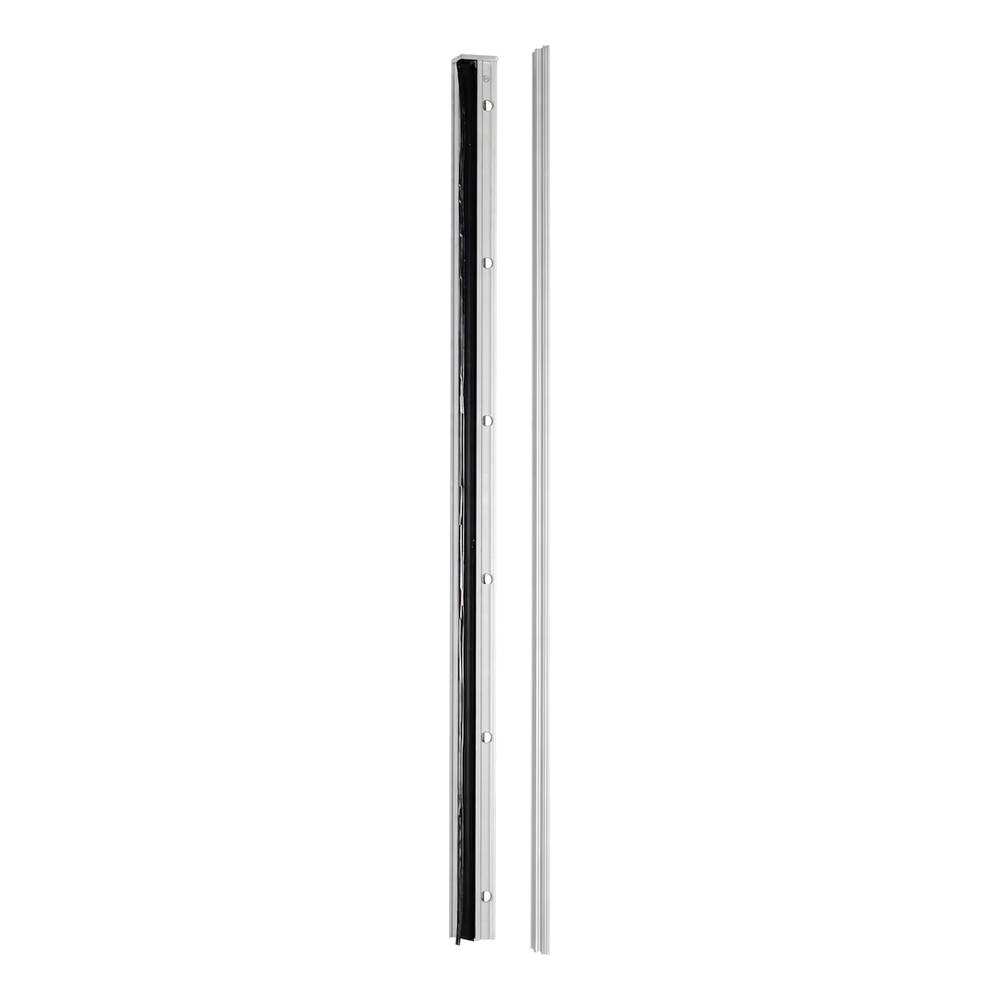

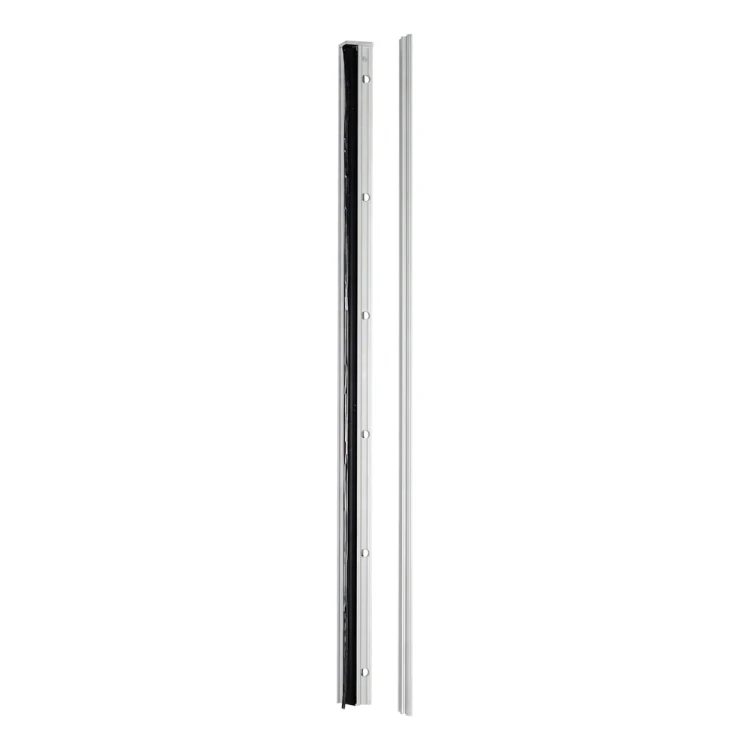

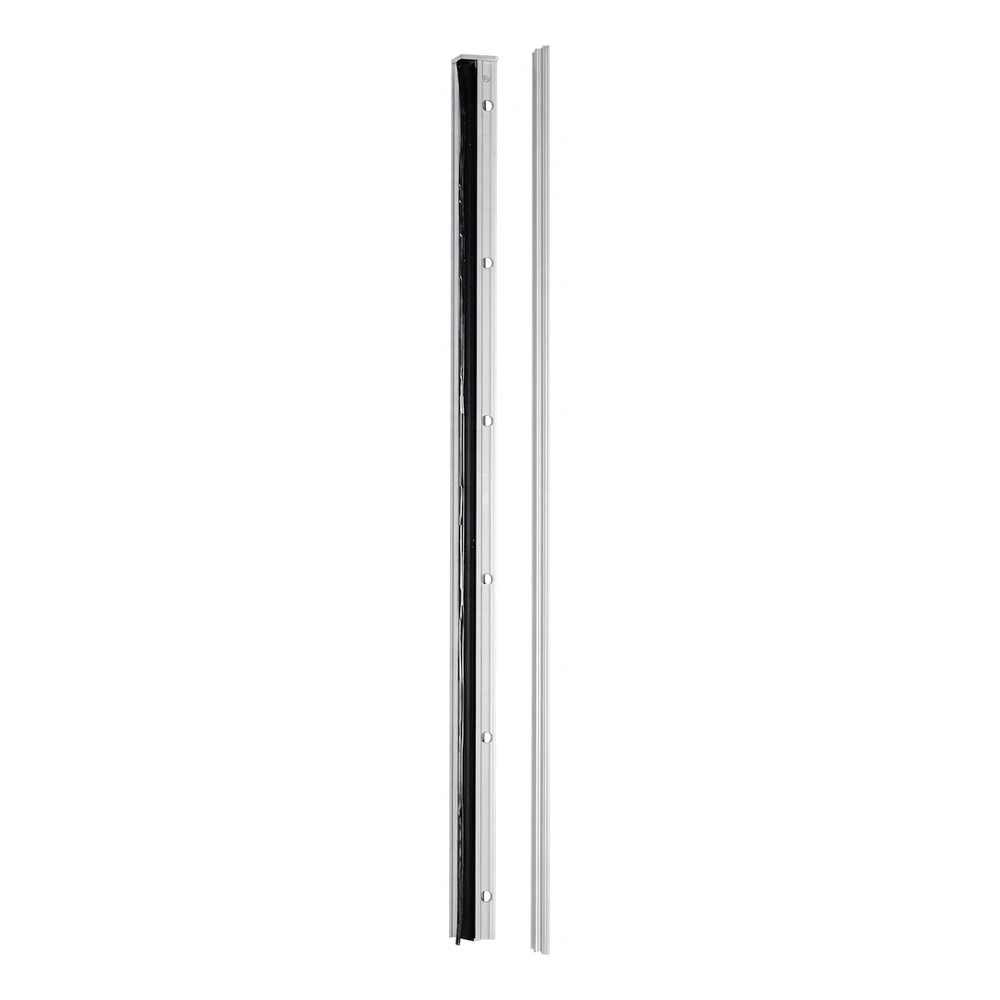

- Two side profiles aluminium cut to size
- Two profile cover strips
- Glass seal (rubber)
- Bottom end caps
Thanks to the complete kit contents, you eliminate the need to order seals or cover strips separately — saving time on logistics and allowing you to start installation immediately.
Technical specification
- Manufacturer: Kozza
- Series: KB5000
- System: flush
- Mounting: wall mounted
- Profile material: anodised aluminium
- Finish: matt anodised
- Maximum glass height (H): 1100 mm
- Maximum glass width: 1600 mm
- Glass thickness: 16–17.52 mm
- Total profile height: H + 15 mm (i.e. 1115 mm)
- Top clearance (profile–glass): 6.5 mm
- Bottom clearance (profile–glass): 8.5 mm
- Kit weight: 4.8 kg
- EAN: 5903313207447

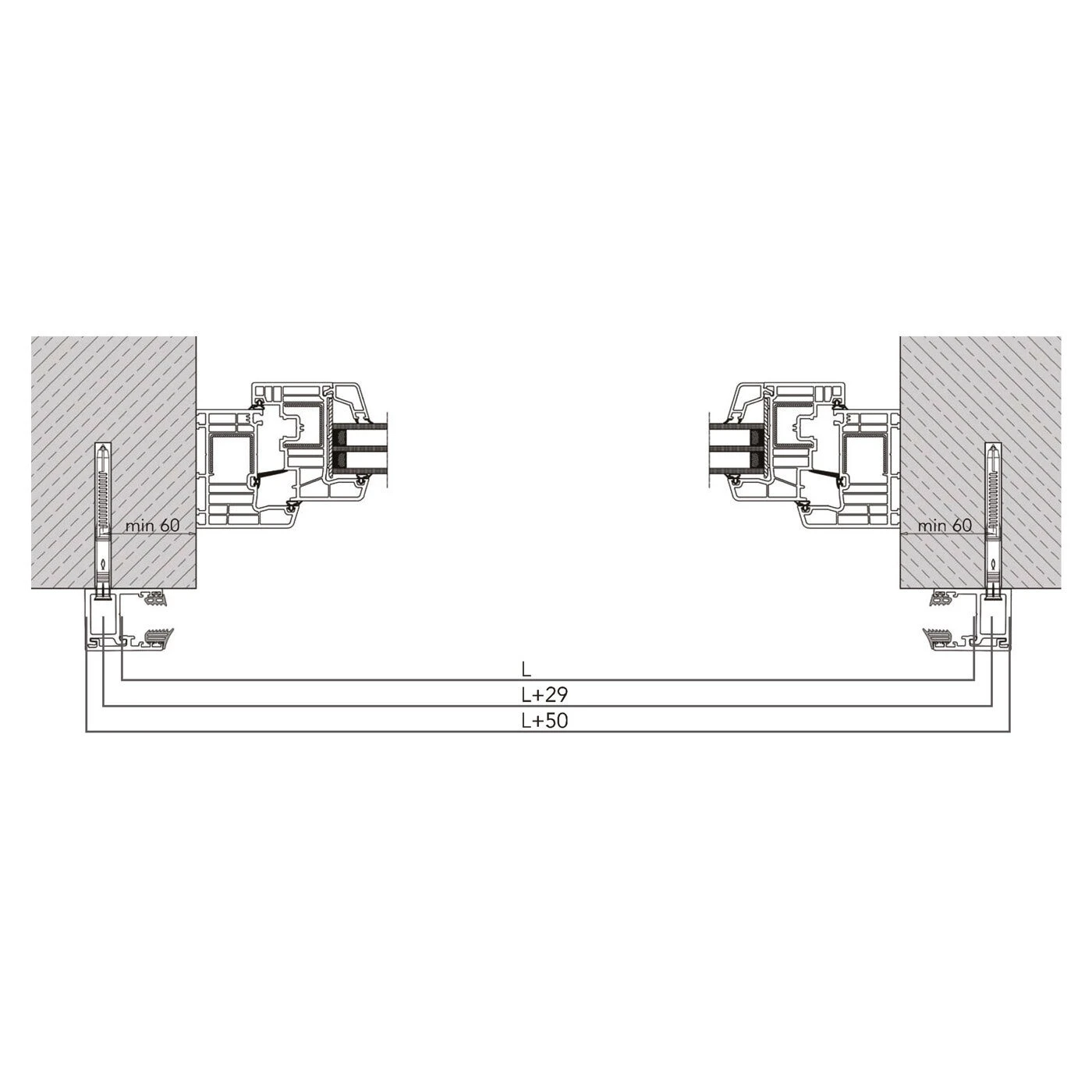

Mounting dimensions and relationships
The KB5000 system technical drawings precisely define the relationship between opening width and required glass size:
- Clear width (between profiles): L
- Glass mounting width: L + 29 mm
- Total glass width: L + 50 mm

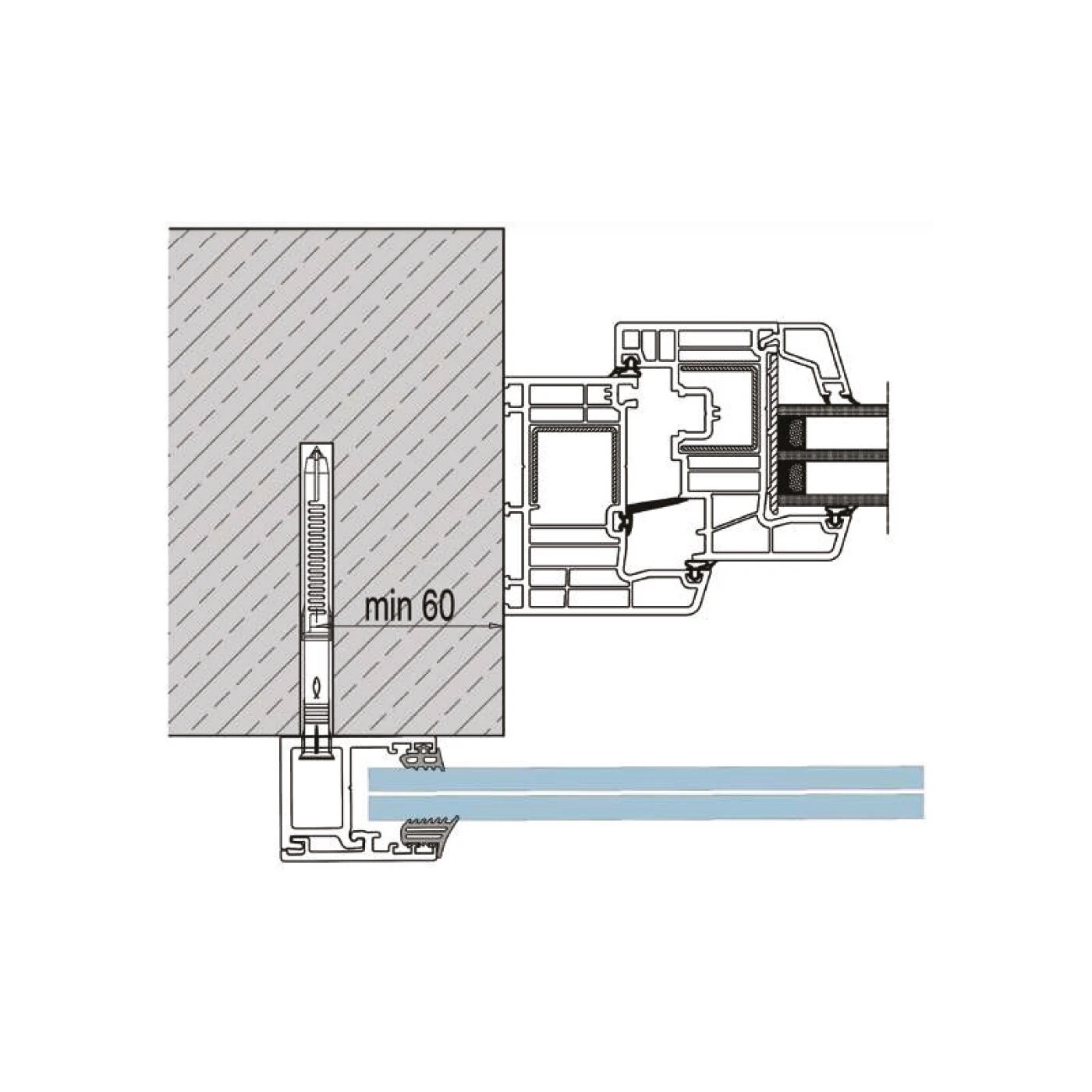

- Minimum distance from anchor axis to wall edge: 60 mm
These relationships allow precise glass ordering based on wall opening measurements, eliminating dimensional errors and the need for corrections on site.

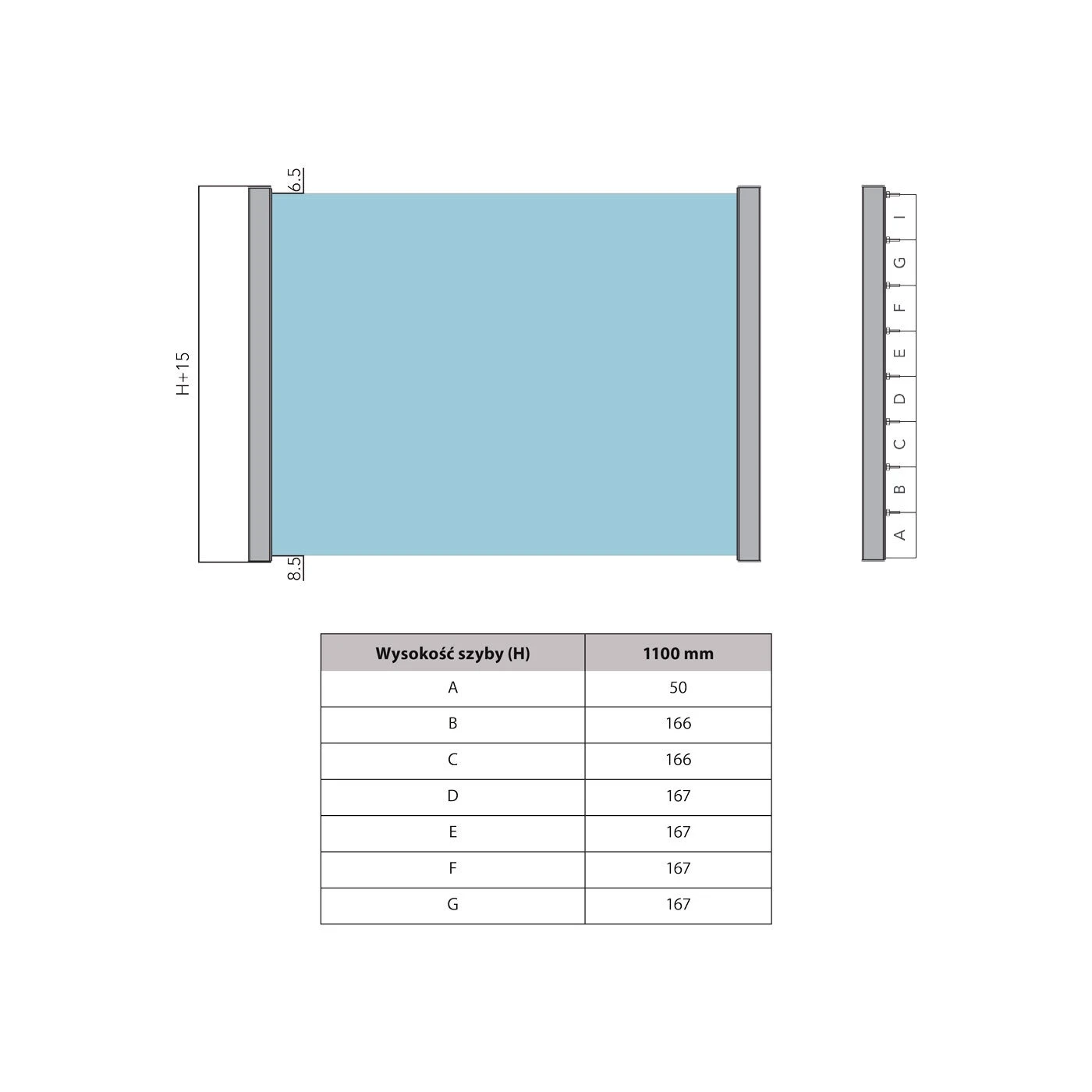

Mounting point spacing for glass H = 1100 mm
| Glass height (H) | 1100 mm |
|---|---|
| A | 50 |
| B | 166 |
| C | 166 |
| D | 167 |
| E | 167 |
| F | 167 |
| G | 167 |
Segments A–G denote successive mounting hole spacing intervals in the profile, counting from bottom. Factory-drilled holes eliminate the need to mark spacing yourself — simply position the profile and fix.

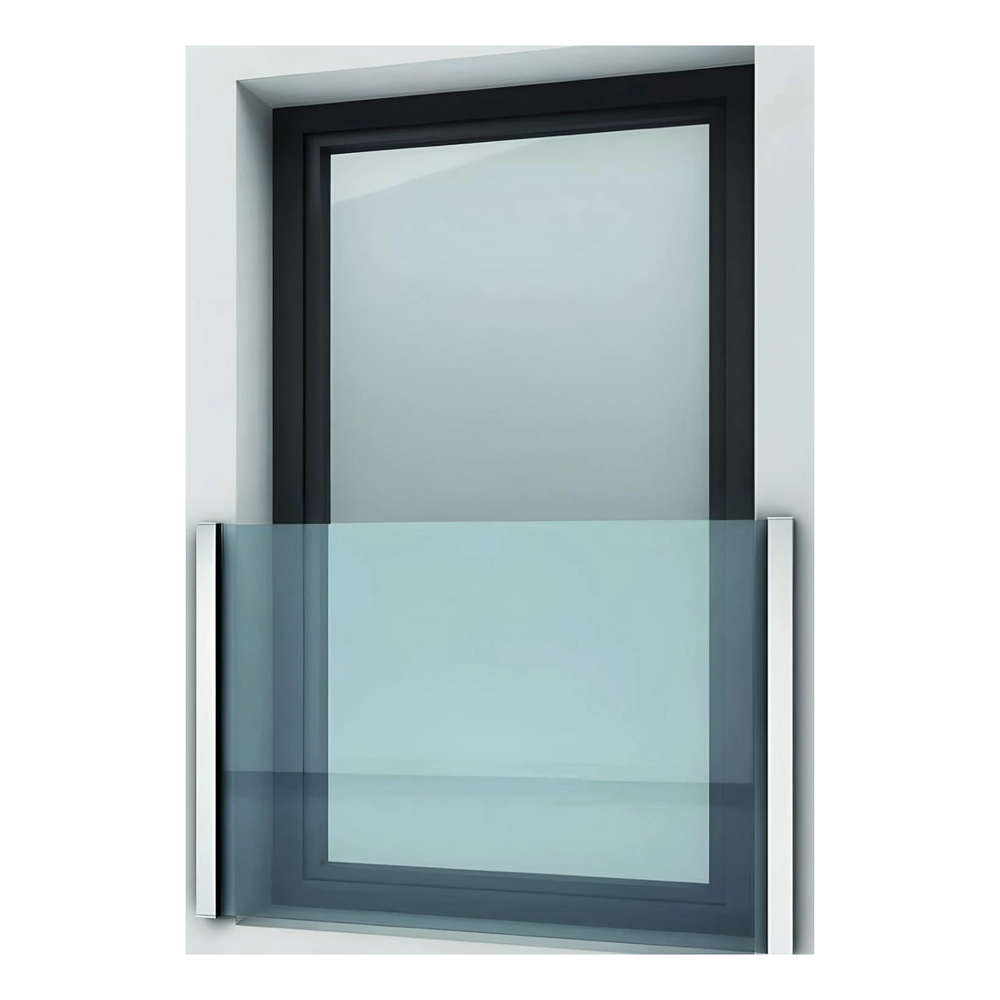

Application and arrangement
The Kozza KB5000 system performs excellently in multi-family residential construction, single-family homes and commercial buildings. The flush profile and matt anodised finish create a minimalist, modern appearance that harmoniously complements any façade style. The greater glass thickness (16–17.52 mm) compared to standard systems provides strength and sense of security, whilst weather resistance ensures years of aesthetics without the need for painting or maintenance.
For installation companies, the KB5000 system means shorter completion times thanks to complete kit contents and factory-prepared components — no cutting, drilling or assembling accessories on site.
Technical data
| Material | Aluminium |
