Kozza – EPDM gasket for aluminium handrail on glass 20–21.52 mm, 5 m, black
Description
Kozza – EPDM gasket for aluminium handrail on glass 20–21.52 mm, 5 m, black
Kozza gasket for aluminium handrail is an essential element for mounting all-glass balustrades, ensuring stable and secure installation of glass with thickness 20–21.52 mm in the handrail profile. Thanks to the flexible U-shaped profile, the gasket securely encompasses the glass edge and protects it from vibrations, shifts and direct contact with aluminium.
The 5 m roll allows for convenient adaptation to longer balustrade sections, minimising the number of joints and speeding up installation. For installation teams working on glass balustrade projects, this means fewer cuts, less waste and faster work on site.
EPDM rubber – durability in demanding conditions
The gasket is made from EPDM rubber (ethylene-propylene-diene monomer) – a material valued in construction for its exceptional resistance and longevity. Key properties of EPDM include:
- Maintains elasticity in temperature range from -40°C to +100°C – functionality in both severe frosts and hot days
- Resistance to UV radiation, ozone, rain and snow – no degradation during prolonged exposure to atmospheric conditions
- Good tolerance to contact with detergents, alcohol and mild acids – easy cleaning of balustrades without risk of gasket damage
- Unchanged elasticity and adhesion over years of use

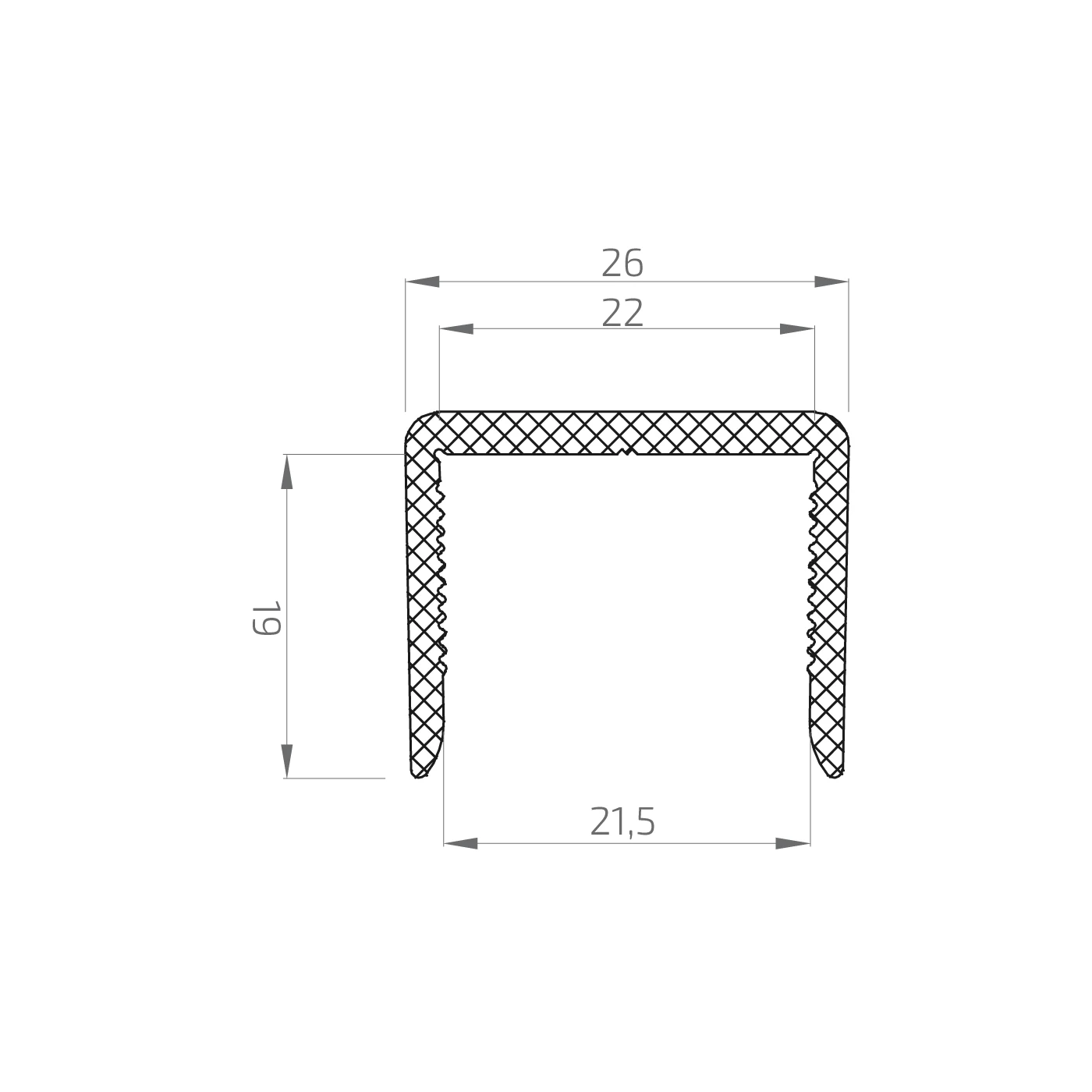

Profile cross-section dimensions
- External width: 26 mm
- Internal width (top): 22 mm
- Internal width (bottom / glass opening): 21.5 mm
- Profile height: 19 mm
- Profile: U-shape – fitted onto glass edge
Technical specification
- Manufacturer: Kozza
- Material: EPDM rubber
- Glass thickness: 20–21.52 mm
- Roll length: 5 m (5000 mm)
- Cross-section dimensions: 26 × 19 mm
- Colour: black
- Weight: 2.5 kg
- Operating temperature range: -40°C to +100°C
- EAN: 5903313207416
The gasket is designed for use with aluminium handrails in all-glass balustrade systems. Thanks to the precisely fitted profile, installation is quick and requires no additional tools – simply cut the gasket to the appropriate length and slide it onto the glass edge before fitting in the handrail.
Technical data
| Material | Plastic |
| Glass Thickness [mm] | 20-21,52 |
