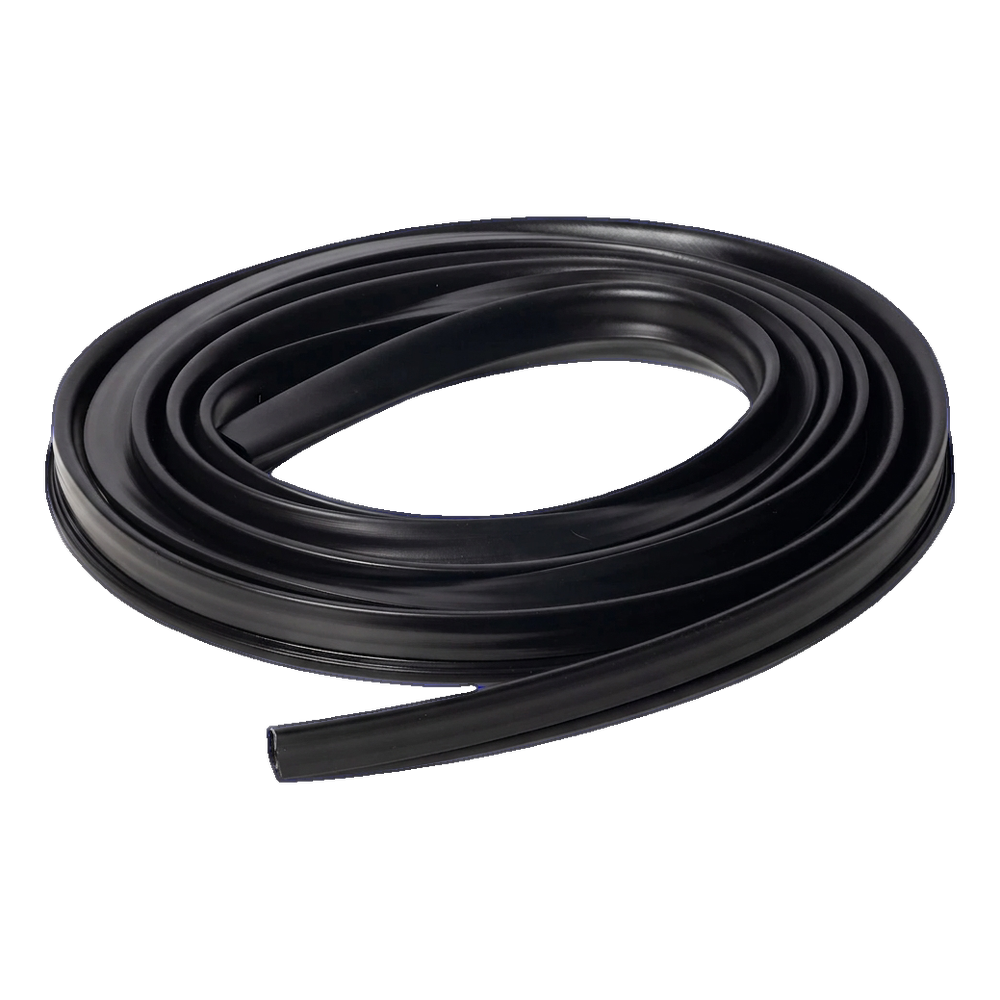

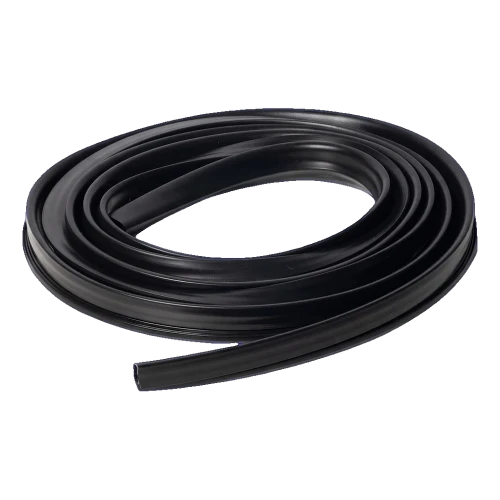

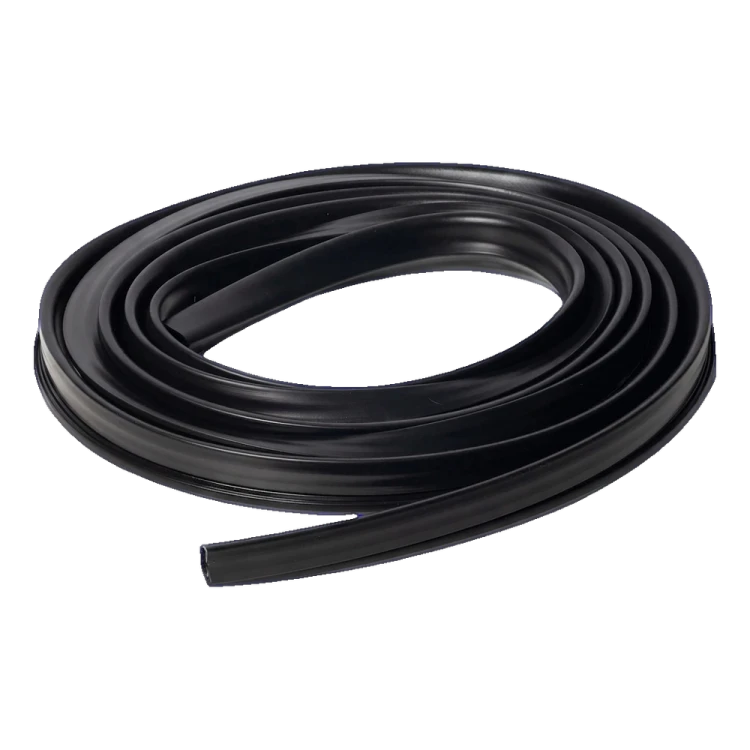

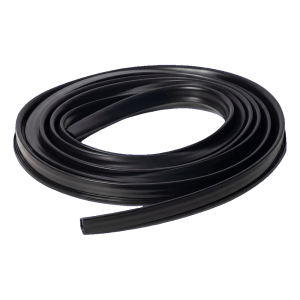

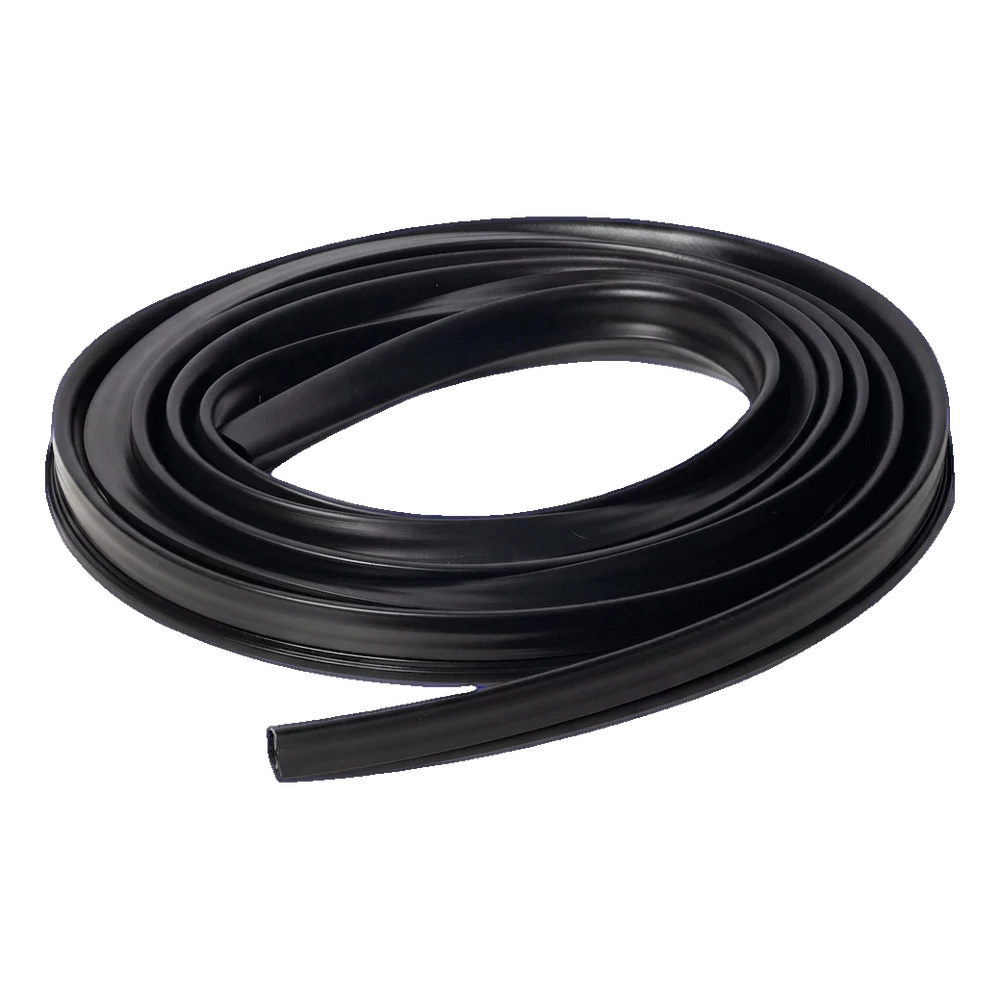

Kozza – EPDM gasket for aluminium glass clamp 16–17.52 mm, 50 m roll, black
Description
Kozza – EPDM gasket for aluminium glass clamp 16–17.52 mm, 50 m roll, black
Kozza gasket for aluminium glass clamp is a professional mounting element designed for all-glass balustrades. Made from durable EPDM rubber, it ensures secure seating of glass with thickness 16–17.52 mm in the clamp profile, effectively protecting panels against displacement and mechanical damage. The 50-metre roll allows for completion of large projects without the need for frequent joining of sections — a real saving of time and material on-site.
The gasket's U-shaped profile with internal grooves guarantees secure pressure against the glass and stable holding in the aluminium clamp. Flexible projections compensate for minor thickness differences in panels ranging from 16 to 17.52 mm, making the gasket a universal solution for the most popular configurations of toughened and laminated glass used in balustrades.
EPDM rubber — durability in demanding conditions
The gasket material is EPDM (ethylene-propylene-diene monomer) — one of the most valued elastomers in construction. Thanks to its properties, the gasket performs excellently in external and internal installations exposed to variable weather conditions and intensive use.
- Maintains full flexibility in the temperature range from -40°C to +100°C
- Resistant to UV radiation, ozone, rain and snow — does not harden or crack under atmospheric conditions
- Well tolerates contact with detergents, alcohol and mild acids — easy to keep clean
- Long-lasting and consistent quality over years of use

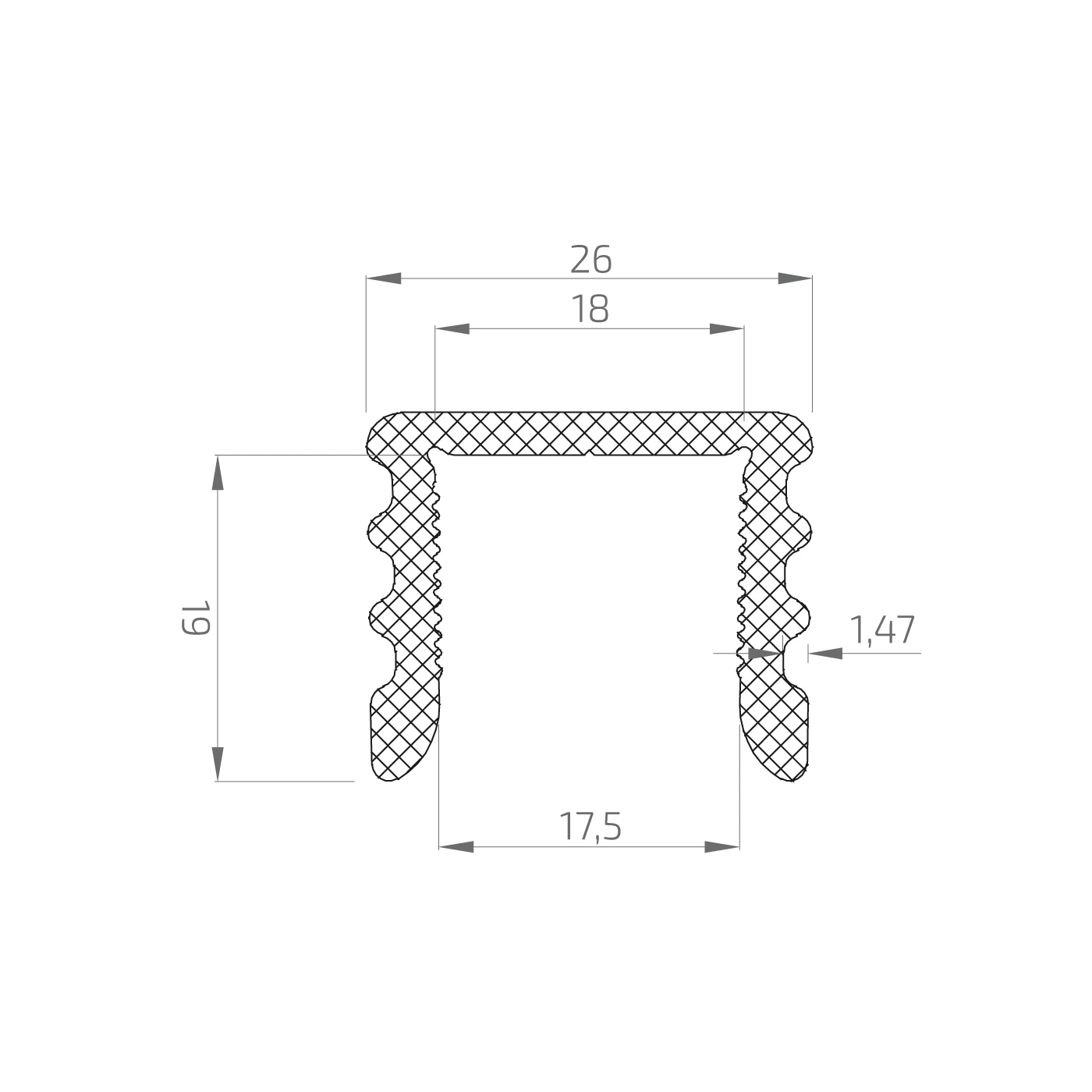

Profile cross-section dimensions
- External width (top): 26 mm
- Internal width (top): 18 mm
- Total height: 19 mm
- Internal width (bottom): 17.5 mm
- Side wall thickness: 1.47 mm
Technical specification
- Application: aluminium clamp for all-glass balustrade
- Glass thickness: 16–17.52 mm
- Roll length: 50 m
- Cross-section dimensions: 26 × 19 mm
- Material: EPDM rubber
- Colour: black
- Operating temperature range: -40°C to +100°C
- Roll weight: 25 kg
- EAN: 5903313207409
- Manufacturer: Kozza
Technical data
| Material | Plastic |
| Glass Thickness [mm] | 16-17,52 |
