Kozza – EPDM gasket for aluminium glass clamp 16–17.52 mm, 5 m, black
Description

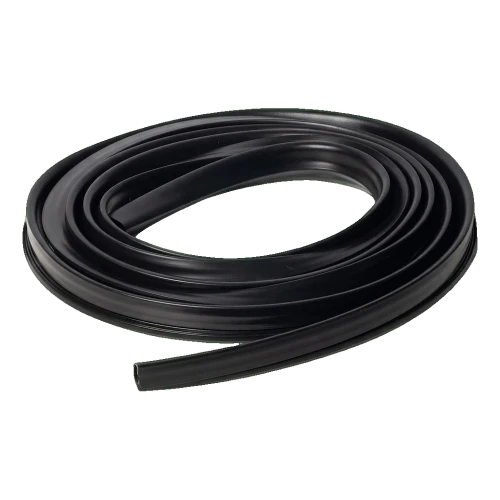

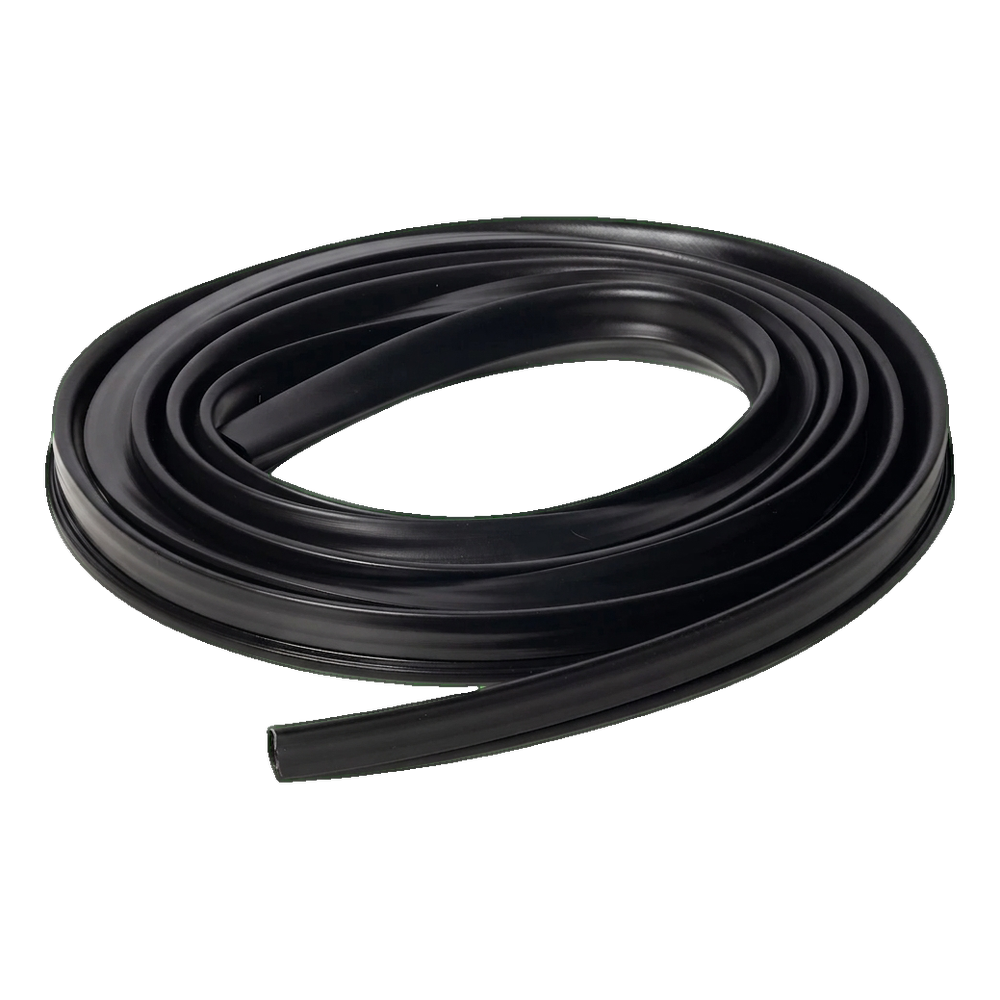

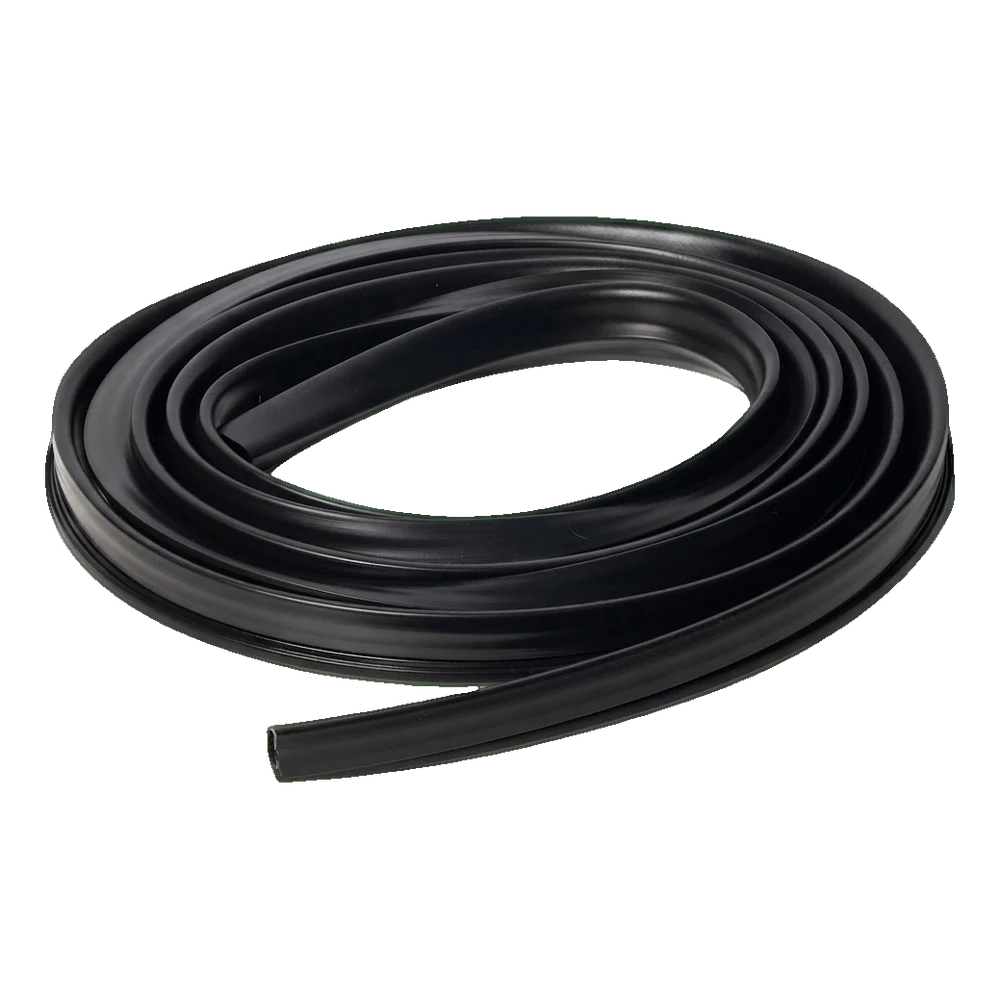

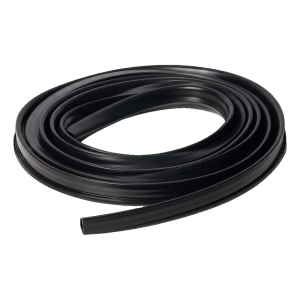

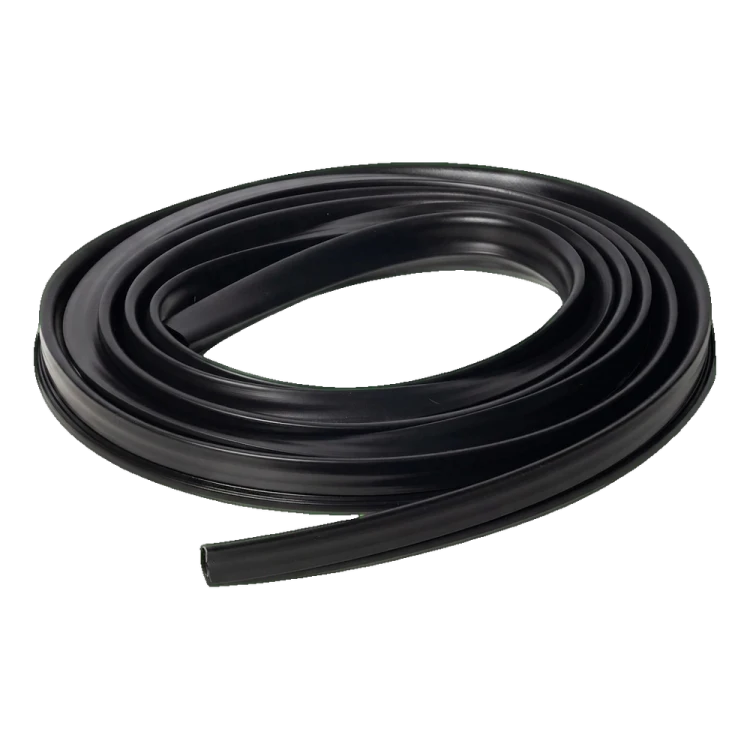

Kozza – EPDM gasket for aluminium glass clamp 16–17.52 mm, 5 m, black
Kozza aluminium glass clamp gasket is an essential mounting component for all-glass balustrades, designed for stable and secure installation of glass panels with thickness 16–17.52 mm in aluminium clamps. Thanks to its U-shaped profile with internal serrations, the gasket ensures secure glass retention without the need for additional adhesives or reinforcements. The 5-metre roll allows for convenient adaptation to larger structures and minimises the number of joints along the entire clamp section.
EPDM rubber – durability in demanding conditions
The gasket is made from EPDM rubber (ethylene-propylene-diene monomer) – a material commonly used in construction and industry due to its exceptional resistance to external factors. EPDM rubber maintains full elasticity and functionality across a wide temperature range from -40°C to +100°C, guaranteeing reliability in both severe frosts and hot summer conditions.
- Resistance to UV radiation, atmospheric precipitation and ozone – properties do not degrade even with years of exposure
- Resistance to common chemical agents – detergents, alcohols, mild acids
- Effective protection of glass edges from mechanical damage and shifting within the profile
- Maintains elasticity at temperatures from -40°C to +100°C

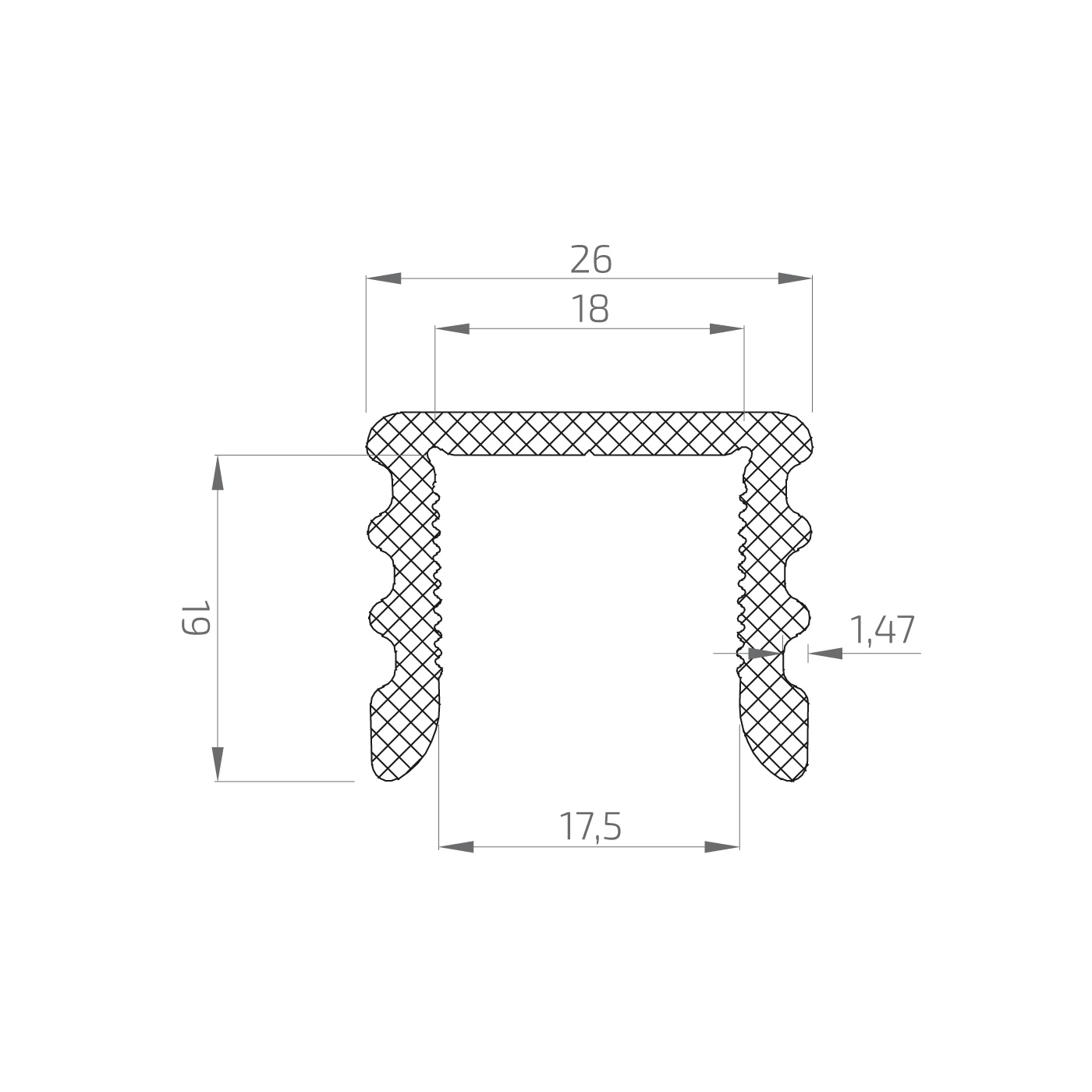

Cross-sectional dimensions and technical parameters
The gasket profile has a U-shape with serrated side walls that provide spring-loaded adaptation to glass edges and stable seating in the aluminium clamp.
- External width (top): 26 mm
- Internal channel width (top): 18 mm
- Internal channel width (bottom): 17.5 mm
- Profile height: 19 mm
- Side wall thickness: 1.47 mm
- Installed glass thickness: 16–17.52 mm
- Material: EPDM rubber
- Colour: black
- Roll length: 5 m
- Roll weight: 2.5 kg
- Operating temperature range: -40°C to +100°C
- EAN: 5903313207393
Kozza gasket is a proven solution for installation companies carrying out all-glass balustrade installations – the precisely matched profile eliminates the need for manual processing and speeds up work on site.
Technical data
| Material | Plastic |
| Glass Thickness [mm] | 16-17,52 |
