Kit of trolleys with 5 plastic rollers for self-supporting sliding gates with accessories
Description
Trolley Kit with Accessories for Self-Supporting Sliding Gates 70×70
A complete trolley kit with all accessories required for the installation of self-supporting sliding gates. The set includes every essential component for smooth gate assembly on a 70×70×4 mm rail — two running trolleys, a guide roller with end cap, and a guide roller bracket. This gives installation companies a ready-to-use solution in a single package, speeding up the job and eliminating the need to order components separately.

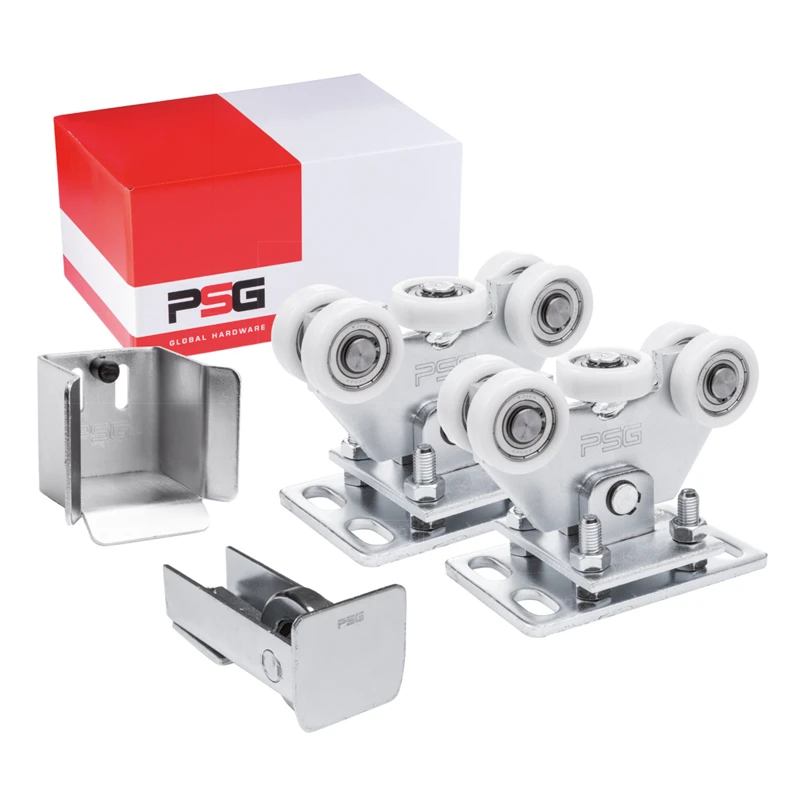

Kit Contents
- Running trolley with 5 rollers — 2 pcs.
- Guide roller with end cap — 1 pc.
- Guide roller bracket — 1 pc.

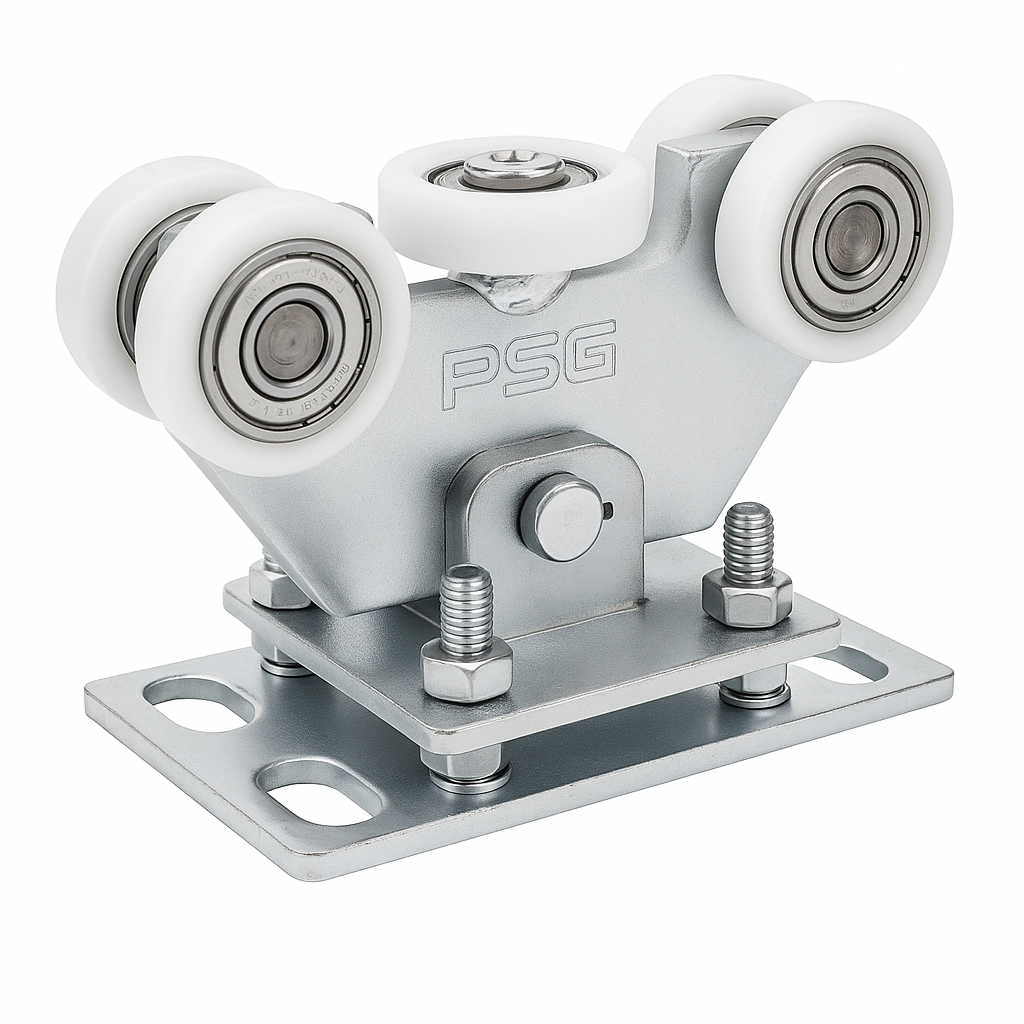

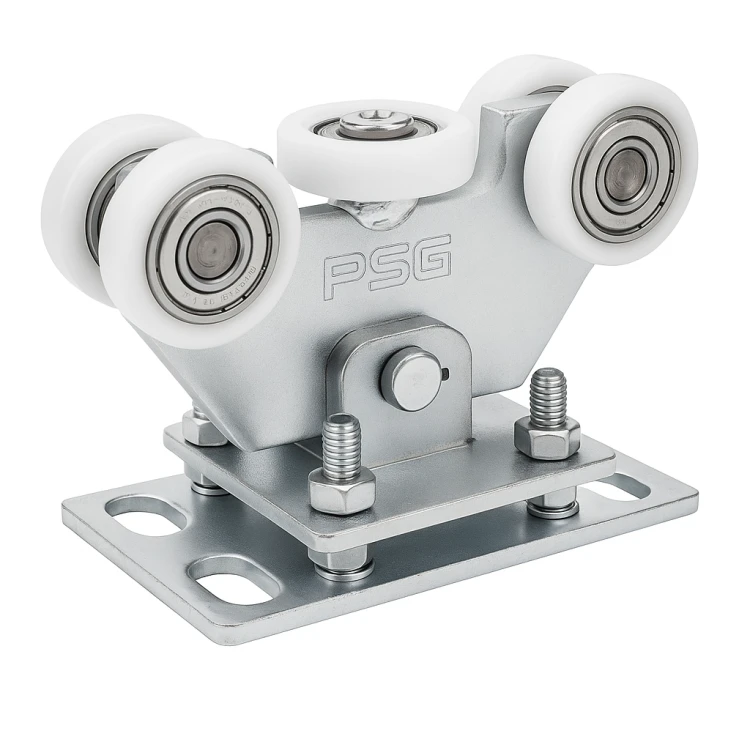

The running trolley is fitted with 5 plastic rollers, including one horizontal roller, ensuring smooth and quiet gate travel. The swivel design — the trolley is connected to the base plate via a pivot pin — means it automatically adjusts to the rail profile. Height adjustment via bolts allows precise levelling of the gate. The trolley is designed for a 70×70×4 mm rail. The entire assembly is made from galvanised steel, guaranteeing corrosion resistance and long-lasting outdoor performance.
The guide roller with end cap is a steel component mounted at the leading end of the self-supporting sliding gate rail. The end cap provides protection against snow and ice, preventing the mechanism from jamming in winter conditions. Mounting bolts are included. The component is compatible with a 70×70×4 mm rail and is made from galvanised steel.
The guide roller bracket is a steel component into which the guide roller travels when the gate is closed. The rear face features two mounting holes and a rubber buffer to absorb impact. The bracket is compatible with both 80×80×5 mm and 70×70×4 mm rails, providing flexibility when selecting profiles. The product is galvanised.
The interaction between the guide roller and the bracket allows the gate load to be distributed across a greater number of components and stabilises the gate when closed. This solution significantly extends the service life of the running trolleys and reduces wear, resulting in fewer maintenance interventions and longer trouble-free operation.
Technical Specifications
- Trolley working rail: 70×70×4 mm
- Rail compatible with guide roller bracket: 70×70×4 mm and 80×80×5 mm
- Number of trolley rollers: 5 (including 1 horizontal)
- Roller material: plastic
- Frame material: galvanised steel
- Height adjustment: yes, via bolts
- Trolley design: swivel (pivot pin)
- Buffer in guide roller bracket: rubber
- EAN: 5901289679855
- Kit weight: 12.66 kg
Selecting Trolley Spacing

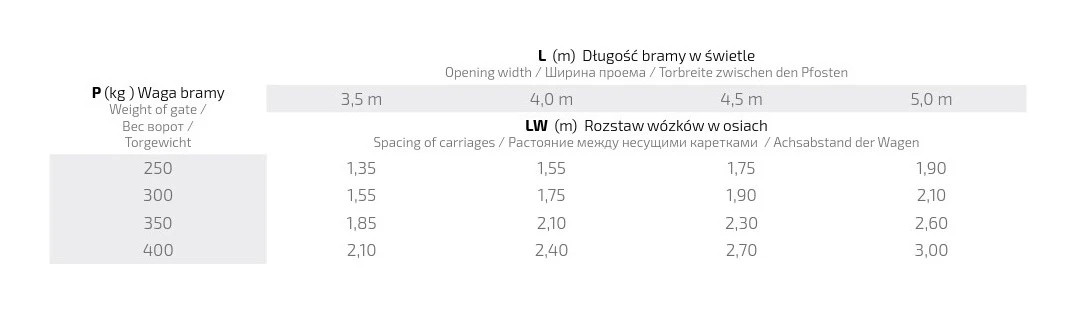

The correct centre-to-centre trolley spacing (LW) depends on the gate weight (P) and the clear opening width (L). The table below shows the recommended values:
- Gate 250 kg — spacing from 1.35 m (3.5 m opening) to 1.90 m (5.0 m opening)
- Gate 300 kg — spacing from 1.55 m (3.5 m opening) to 2.10 m (5.0 m opening)
- Gate 350 kg — spacing from 1.85 m (3.5 m opening) to 2.60 m (5.0 m opening)
- Gate 400 kg — spacing from 2.10 m (3.5 m opening) to 3.00 m (5.0 m opening)
Correct trolley spacing ensures even load distribution, which directly affects the durability of the mechanism and the ease of gate operation. Ordering the complete kit eliminates the risk of component selection errors and enables rapid commissioning of the installation.
Ładowanie tabeli porównawczej...
Ładowanie galerii...
Technical data
| Rail Size | 70x70x4 |
| Product Type | Package / KIT with accessories |
| Roller Material | Plastic |
| Number of Rollers [szt.] | 5 |
| Trolley Construction | Swivel |
| Running System Type | Rolling system |
