Isolator switch 3-phase 3P 63A 500V AC K60 SW-63-3 Acti9 A9S62363 SCHNEIDER ELECTRIC
Availability:
In stock (large quantity)
Delivered within:
10 Business days
Weight:
0.245 kg
Price / pcs.:
excl. shipping costs
product unavailable
add to wish list
* - Field mandatory
Description

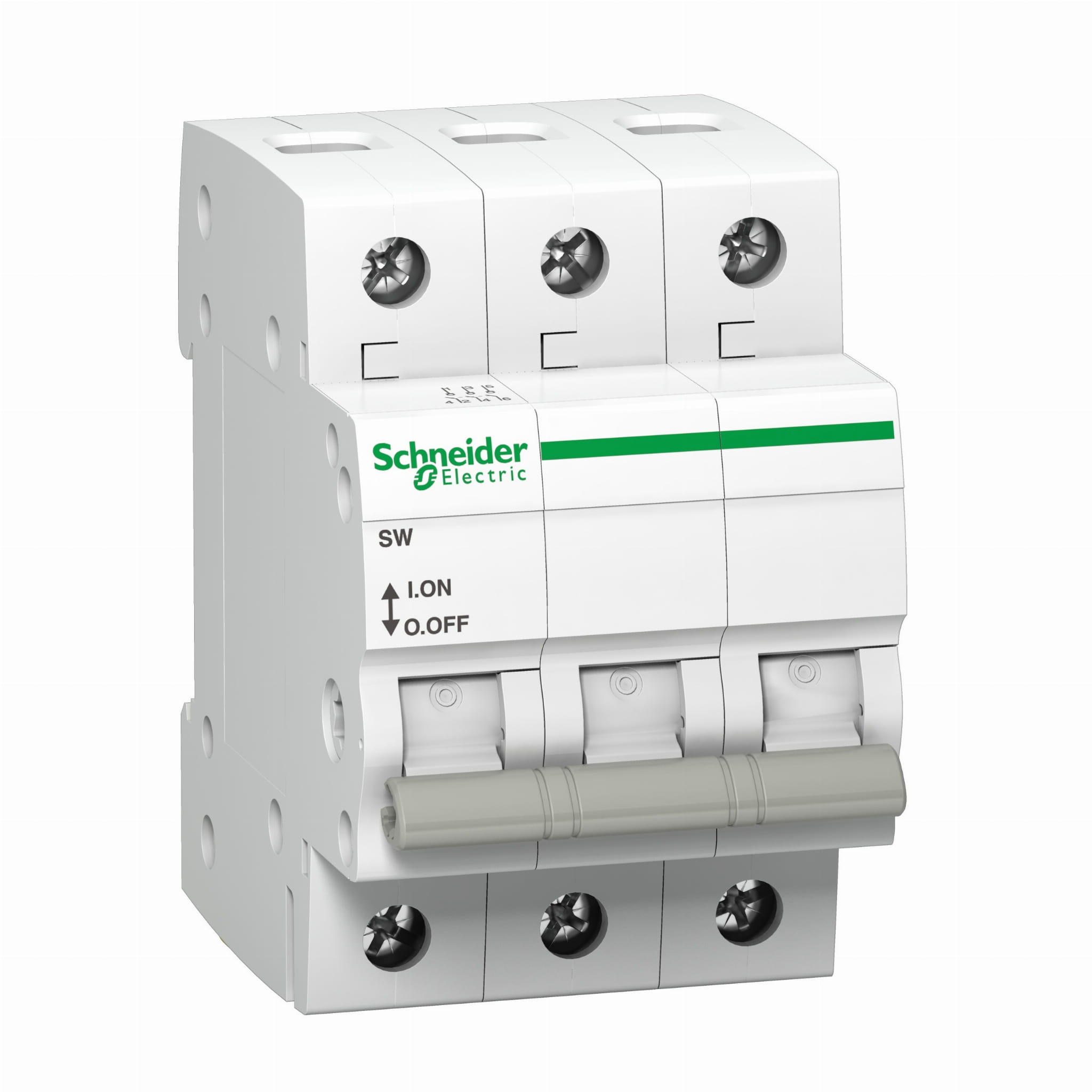

Isolator switch 3-phase 3P 63A 500V AC K60 SW-63-3 Acti9 A9S62363 SCHNEIDER ELECTRIC
Isolator switch 3-phase 3P 63A 500V AC K60 SW-63-3 Acti9 A9S62363 SCHNEIDER ELECTRIC is used for the insulating disconnection of electrical circuits.
The SW series model is equipped with a Visi-Safe indicator, which provides confirmation of the opening of the disconnector contacts. The unit can be additionally equipped with a door drive, auxiliary contact or plug-in base.
- The SW range of disconnectors is part of Schneider Electric's Acti9 modular switchgear, which meets the highest standards for modern electrical installations and has features that are essential for the efficient completion of electrical switchgear.
SPECIFICATION
Manufacturer
SCHNEIDER ELECTRIC
Elektroklub
Yes
Rated current
63 A
Pole description
3P
Category of use
AC-22A
Rated switching current [Ie]
63 A 415 V AC 50/60 Hz
Rated switching voltage [Ue]
415 V alternating current (AC) 50/60 Hz
Rated short-circuit breaking current [Icm]
4.2 kA isolating switch disconnector standalone
Rated short-lasting withstand current [Icw]
1260 A
Rated insulation voltage [Ui]
500 V alternating current (AC) 50/60 Hz
Rated withstand shock voltage [Uimp]
6 kV in accordance with IEC 60947-3
Mechanical endurance
50 000 x
Electrical life
20 000 x
Tightening torque
3.5 N.m
IP degree of protection
IP20
Height
81 mm
Width
54 mm
Depth
73 mm
Available Configuration
Files to download:
Technical data
| Application | AC (mains) |
| Disconnector Type | isolator |
| Rated current [A] | 63A |
| Number of poles | 3P |
| Rated Voltage [V] | 500V AC |
| Brand | SCHNEIDER ELECTRIC |
