Intermediate fence panel clamp 100x100 mm black

000-778 (1)
  • New Product
Availability: In stock (large quantity)
Delivered within: 10 Business days
Delivery: The price does not include any possible payment costs check the delivery methods
Weight: 0.23 kg
Price / pcs.: £1.16 1.16
excl. shipping costs
quantity pcs.

product unavailable

add to wish list
Visa Mastercard Google Pay Apple Pay PayPal Bank Transfer
Rating: 0
Vendor: Synerga
Product code: 000-778

Description

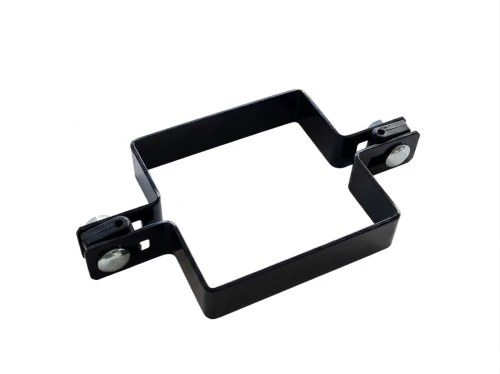

Square intermediate panel clamp 100×100 mm black RAL 9005

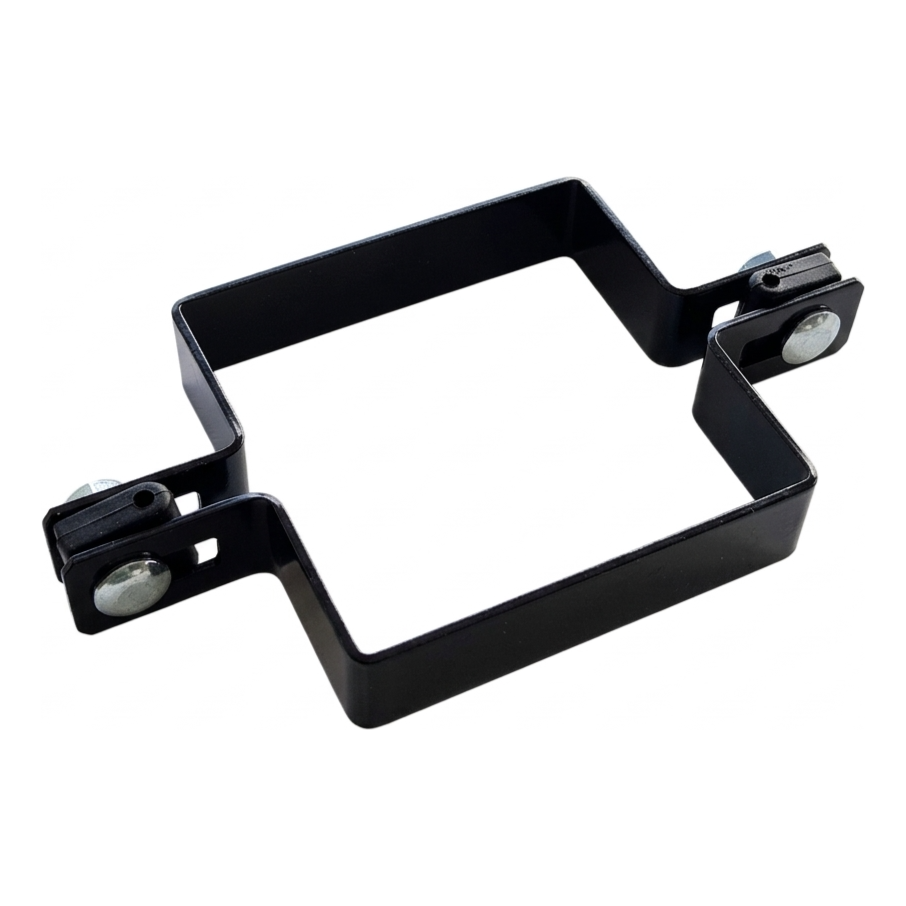

Square intermediate panel clamp 100×100 mm black RAL 9005 – top view
Square intermediate panel clamp 100×100 mm black RAL 9005 – top view

Square intermediate panel clamp 100×100 mm black RAL 9005 is a reliable mounting element designed for securing fence panels to posts with a 100×100 mm cross-section. Made from steel with a wall thickness of 2 mm and coated with powder coating in black RAL 9005, it provides high mechanical strength and effective corrosion protection. Powder coating guarantees colour durability and scratch resistance, whilst the elegant black colour perfectly complements modern panel fencing.

The product works well for both panel fencing construction and traditional fencing, as well as mounting fence accessories. The intermediate version enables connecting successive panel sections on intermediate posts — it is an essential element at every stage of fence installation.

Complete mounting kit

Each clamp is supplied as a ready-to-use kit, which speeds up installation and eliminates the need to assemble small components:

  • 1 pc. intermediate clamp 100×100 mm – black RAL 9005 colour (powder coating)
  • 2 pcs. M8×25 bolt with nut and washer (galvanised)
  • 2 pcs. plastic spacer – black colour

Note: The kit includes spacers (inserts) as standard, fitted for wire with a diameter of 4 mm. When using mesh with wire of different thickness (3 mm or 5 mm diameter), it is possible to order appropriate inserts — simply mention this in the order comments.

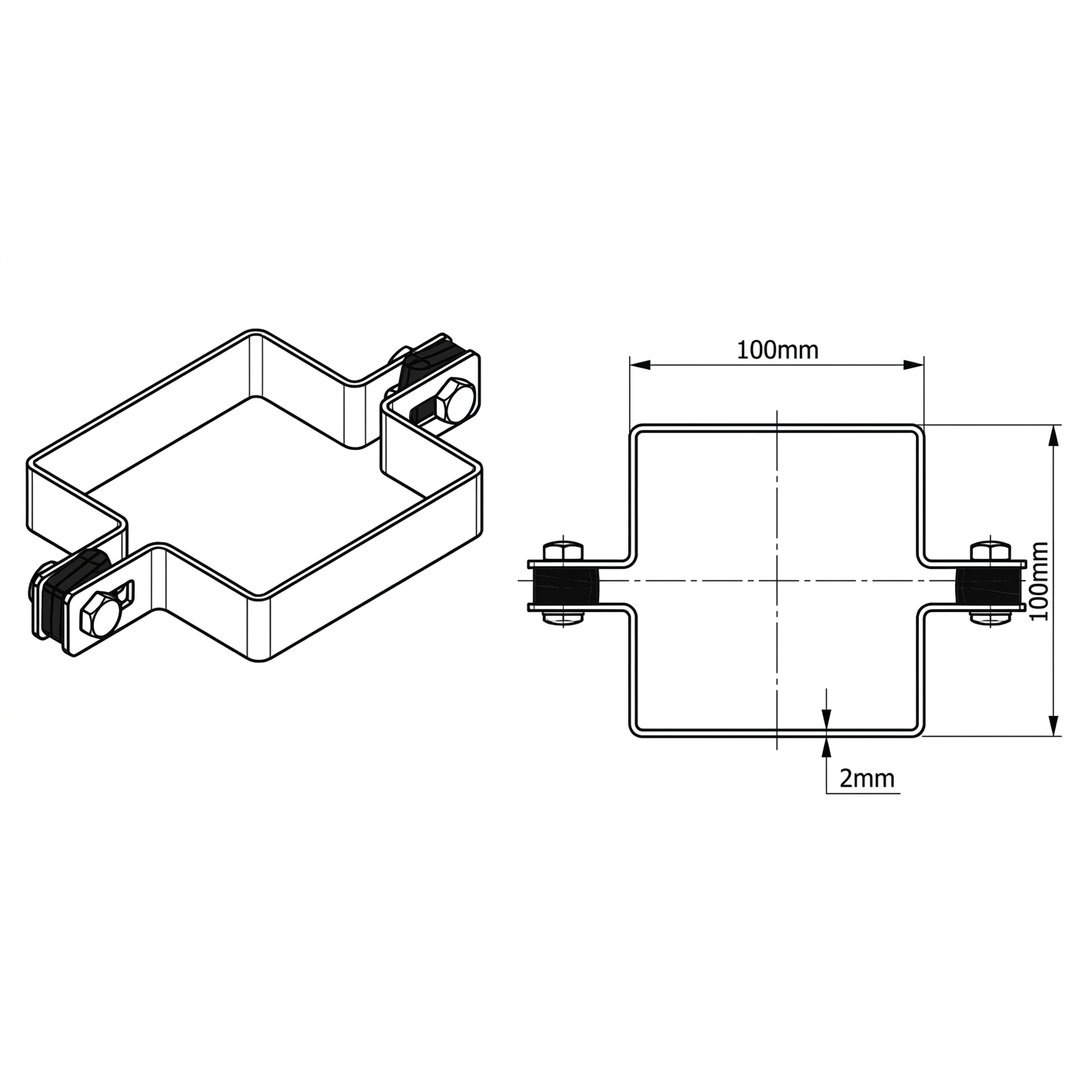

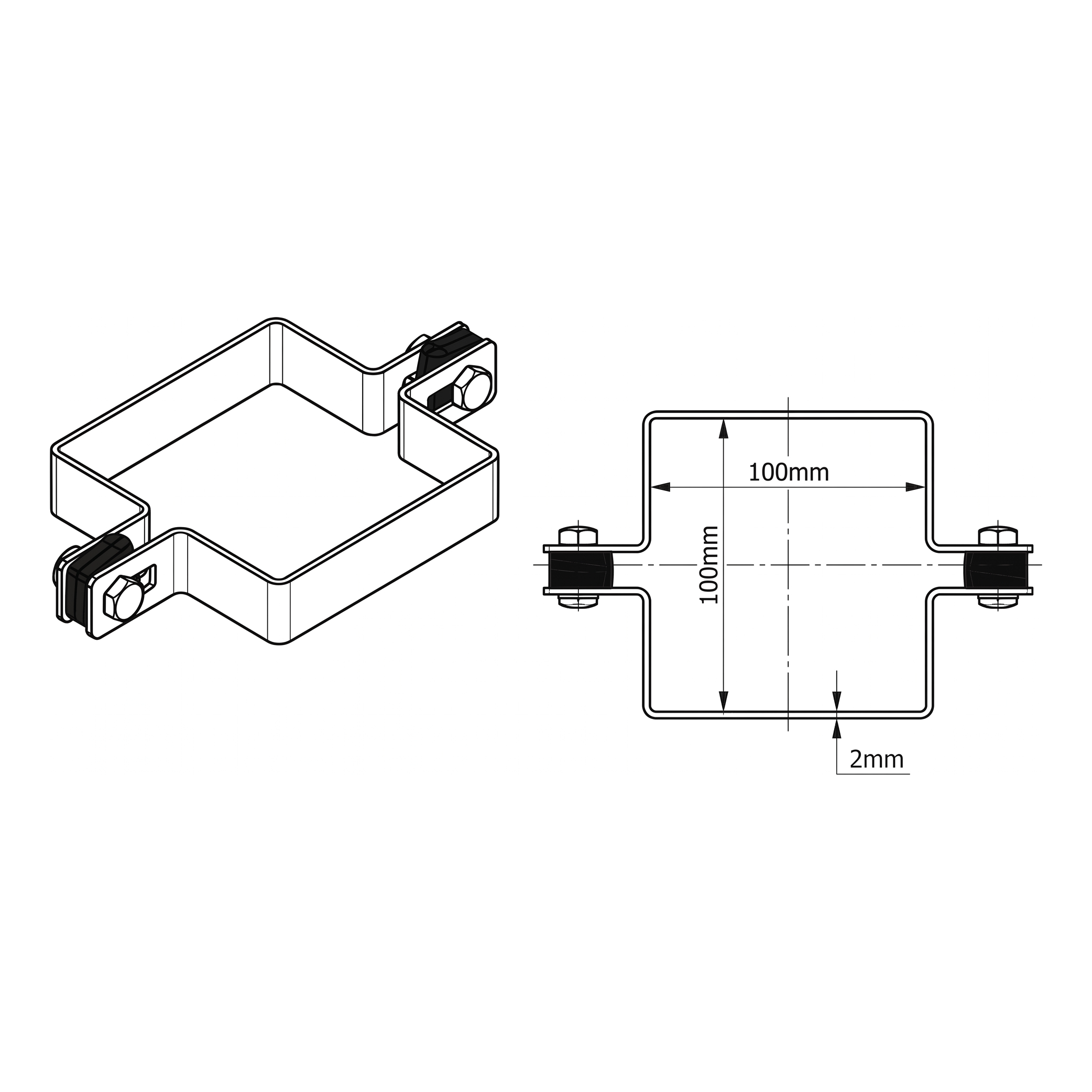

Dimensional drawing of square intermediate panel clamp 100×100 mm with 2 mm sheet thickness marking
Dimensional drawing of square intermediate panel clamp 100×100 mm with 2 mm sheet thickness marking

Technical specifications

  • Internal dimension (for post): 100×100 mm
  • Clamp wall thickness: 2 mm
  • Material: steel
  • Anti-corrosion coating: powder coating RAL 9005 (black)
  • Mounting bolts: M8×25 with nut and washer
  • Spacer: plastic, black, standard for 4 mm diameter wire
  • Available spacer variants: 3 mm / 4 mm / 5 mm diameter
  • Clamp type: intermediate (for intermediate posts)

Application

  • Mounting panel fencing on square posts 100×100 mm
  • Mounting traditional fencing
  • Mounting fence accessories
  • Application according to installer's individual needs

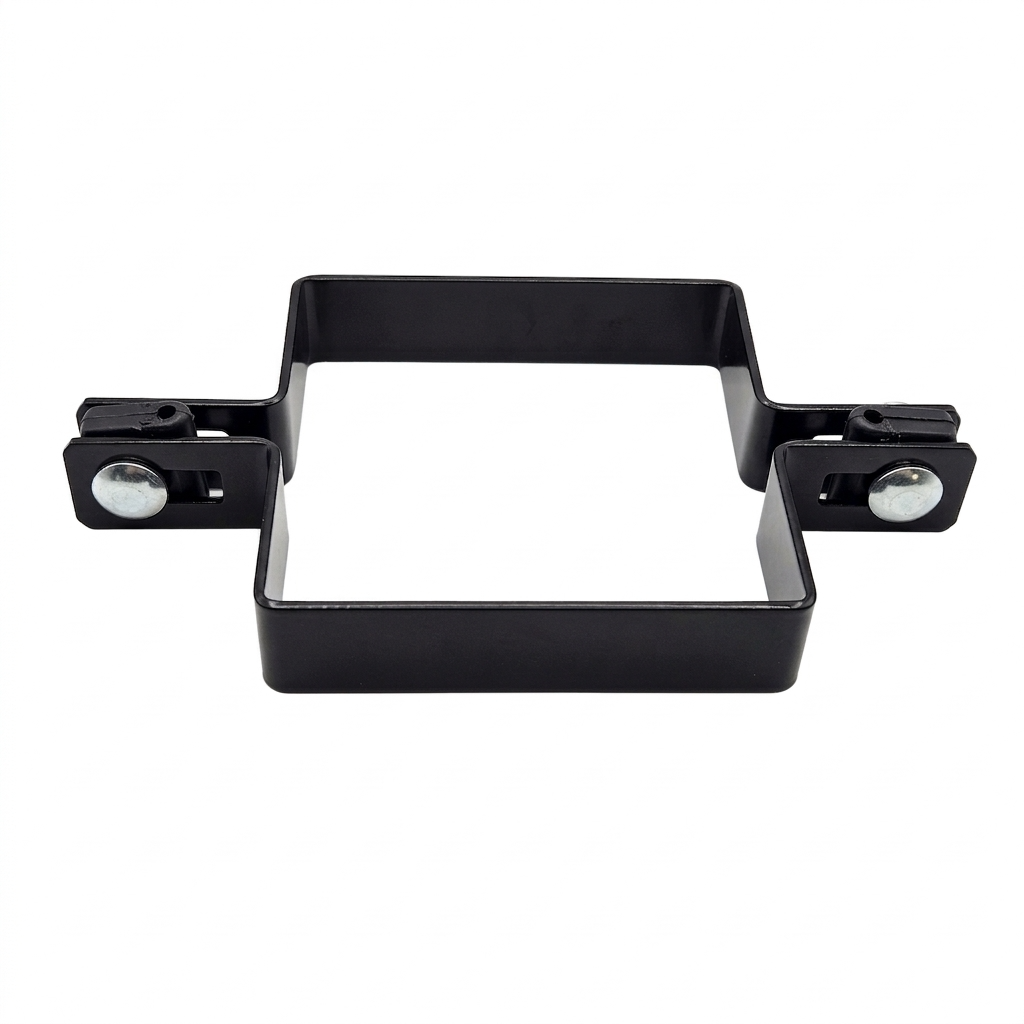

Square intermediate panel clamp 100×100 mm black RAL 9005 – front view
Square intermediate panel clamp 100×100 mm black RAL 9005 – front view

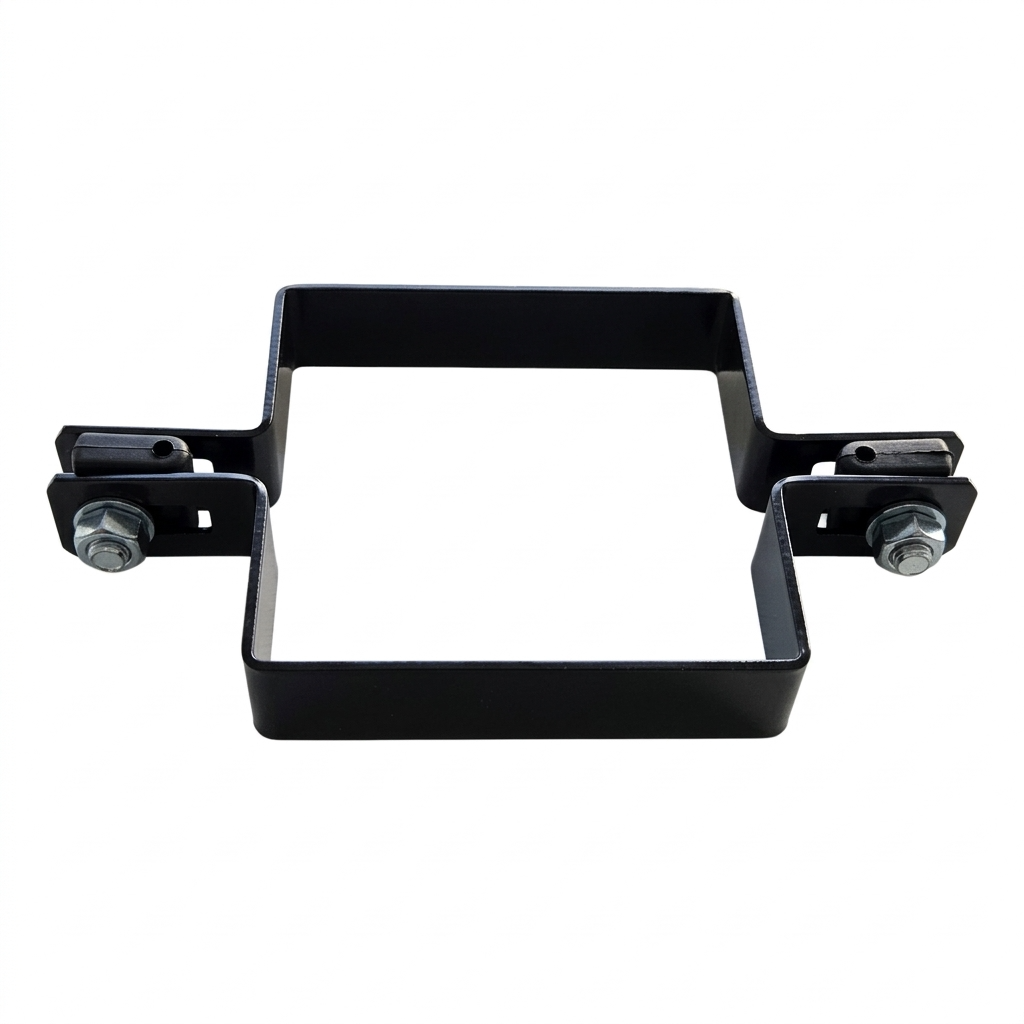

Square intermediate panel clamp 100×100 mm black RAL 9005 – side view with visible M8×25 bolts
Square intermediate panel clamp 100×100 mm black RAL 9005 – side view with visible M8×25 bolts

Technical data

Accessory Type Intermediate clamp
Colour Black RAL 9005
Post Profile Dimension [mm] 100x100
