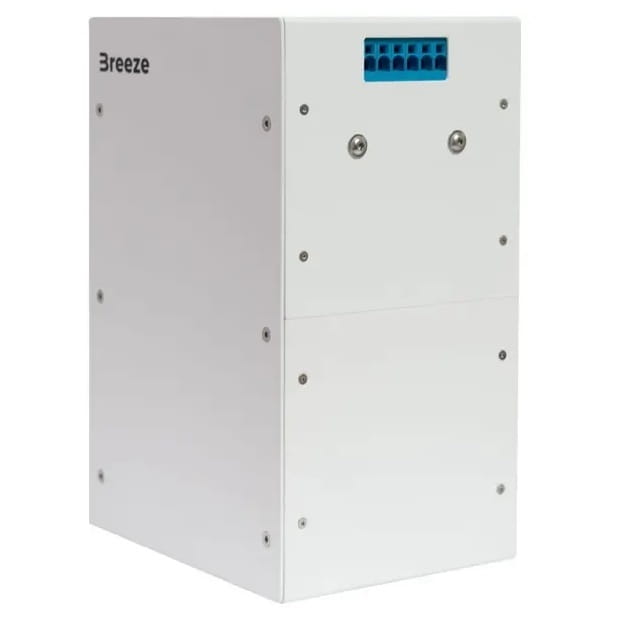

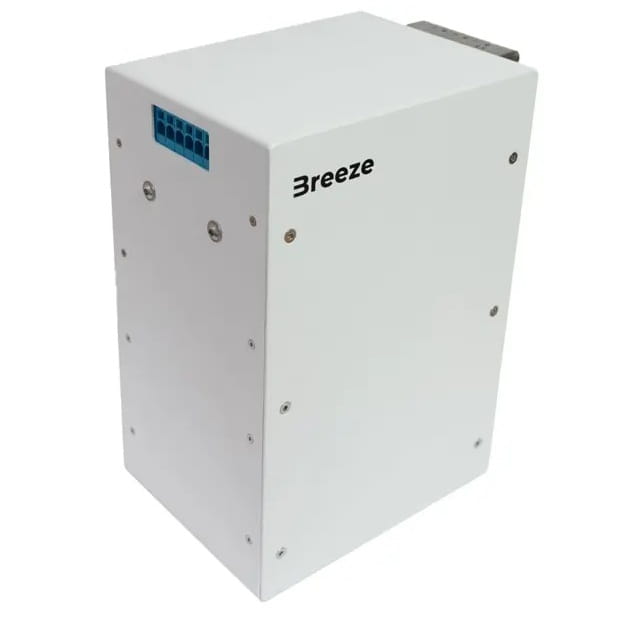

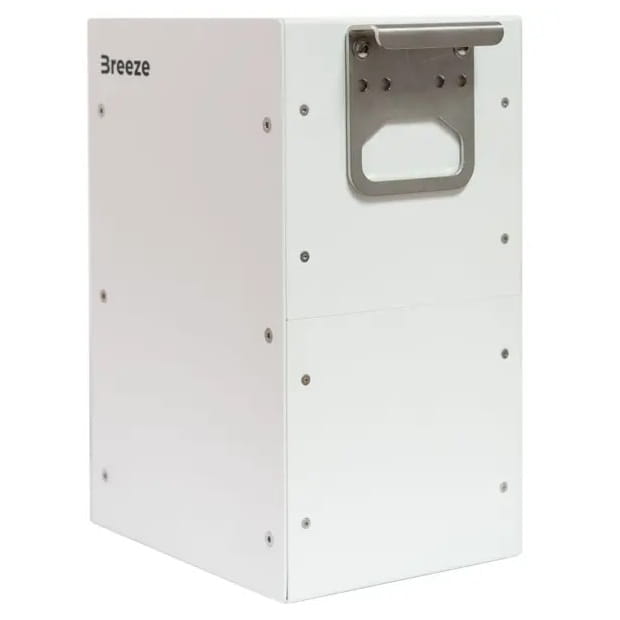

ION BREEZE 4830 Battery module with BMS 1.5 kWh 48V 30Ah 40A
Description
ION BREEZE 4830 Battery module with BMS 1.5 kWh 48V 30Ah 40A
The ION BREEZE 4830 battery module from BREEZE is an advanced energy storage unit with a capacity of 1.5 kWh, 48V voltage and 40A current. Designed for domestic photovoltaic installations, it enables surplus energy to be efficiently stored and used during sunless periods or power outages. Thanks to Plug&Play technology, the system is easy to install and offers immediate switching to emergency power.
Thanks to Plug&Play technology, the system is easy to install and expand, offering a 20-year warranty and a service life of 6,000 cycles at full power.
Key features and functions:
- Energy storage: Stores excess production from PV installations.
- Emergency power supply: Instantaneous switching to emergency mode without the need for an EMS.
- Plug&Play technology: Easy installation and configuration.
- Winter mode: Island operation option during more expensive energy hours.
- Compatibility: No interference with existing PV installation.
Applications:
- Domestic photovoltaic installations
- Emergency power systems
- Household energy optimisation
Advantages:
- Flexibility: Adaptable to different energy needs.
- Reliability: Ensures continuity of supply during power cuts.
- Economy: Allows efficient use of the energy produced.
- Ease of installation: Minimal interference with existing installation.
Installation and operation:
- Installation by a qualified technician
- Possibility to optimise the voltage to the needs of the installation
- No need to modify the main meter or grid inverter
The ION BREEZE 4830 BREEZE battery module is the ideal solution for owners of domestic photovoltaic installations who want to increase their energy independence. With its advanced features and ease of installation, this system allows you to maximise the potential of your PV installation, while ensuring energy security and cost optimisation.
The BREEZE mobile app allows monitoring and viewing of:
- State of charge
- Charge and discharge current
- Failure states
- Level of balance of individual cells
- Temperature
| Our Models | 1,5 kWh | 2,5 kWh | |||
|---|---|---|---|---|---|
| Specification | |||||
| Manufacturer | BREEZE | ||||
| Battery capacity [Ah] | 30 Ah | 50 Ah | |||
| Voltage [V] | 51,2 V | ||||
| Usable energy [Wh] | 1536 Wh | 2560 Wh | |||
| Charging voltage [VDC] | 58,4 V | ||||
| Charging current [A] | 10 A | 20 A | |||
| Maximum charging current [A] | 30 A | 50 A | |||
| Discharge current [A] | 15 A | 25 A | |||
| Maximum discharge current [A] | 40 A | 50 A | |||
| Operating temperature [°C] | -10 deg.C to 55 deg.C | ||||
| Storage temperature [°C] | -40 deg.C to 60 deg.C | ||||
| Weight [kg] | 13.4 kg | 20 kg | |||
| Dimensions [mm] | 216 x 170 x 321.2 mm | 219 x 256 x 321.2 mm | |||
| Terminal type | 4 - 18 AWG | ||||
| Mounting direction | Vertical / Horizontal | ||||
| Cell type | LiFePO4 | ||||
| Cut-off voltage | 44 V | ||||
| Internal resistance | < 52 mOhm | < 36 mOhm | |||
| Number of cycles 80% DOD | > 6000 | ||||
Technical data
| Usable capacity [kWh] | 1.536 |
| Continuous power [kW] | 1.90 |
| Peak power 10 s [kW] | 3.80 |
| Maximum current [A] | 50 |
| Chemistry | LFP |
| Lifespan [cycles] | 6000 |
| IP rating | 65 |
| Min. charging temp. [°C] | 0 |
| Max. charging temp. [°C] | 55 |
| Min. discharge temp. [°C] | ‑10 |
| Max. discharge temp. [°C] | 55 |
| Min. modules [pcs] | 1 |
| Max modules [pcs.] | No rigid limit (in practice, any number of modules can be connected in parallel) |
Safety
