High-voltage cable 50mm2 aluminium
Leave feedback on the product
Cable with 50 mm² aluminium conductor and cross-linked polyethylene insulation, outer diameter 20.5 mm, insulation clearance 750 mm. For lightning protection installations without required insulation clearance.
Product code: 000-182
Product features
[PIM] Cat 92 #92
- Application Lightning Protection
- Cross-section [mm²] 50
- Conductor Material Aluminium
- Rodent Protection No
Description
High-Voltage Cable 50 mm² Aluminium 1 m
The 50 mm² high-voltage cable with an aluminium conductor is a certified solution for lightning current discharge in locations where the required isolation distance cannot be maintained. Thanks to its cross-linked polyethylene insulation, the cable allows lightning protection installations to be safely routed even in direct proximity to metallic and conductive elements.
When to use it? A high-voltage cable is essential wherever the route of a lightning protection installation passes near metallic structures, electrical installations, or other conductive elements, and maintaining the normative isolation distance is not possible. Using this cable eliminates the need for costly rerouting and reduces installation time.

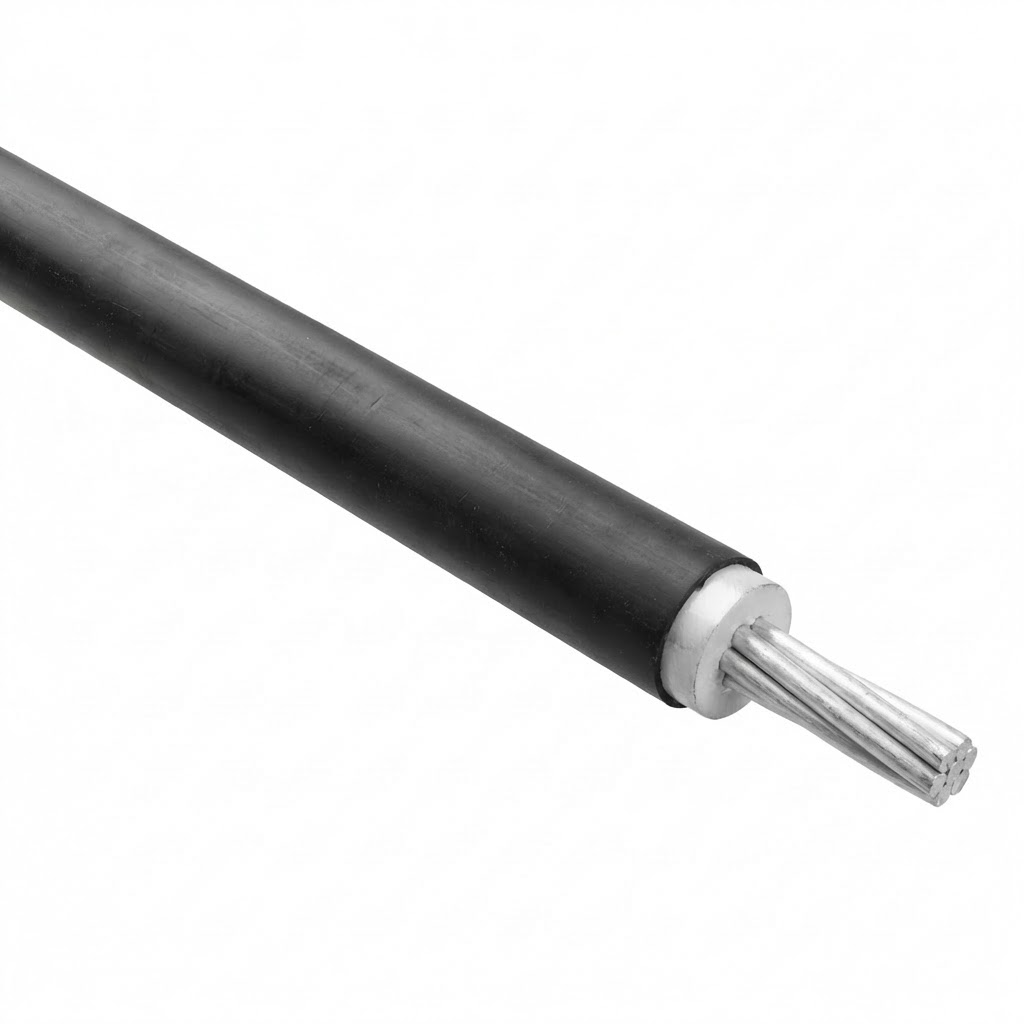

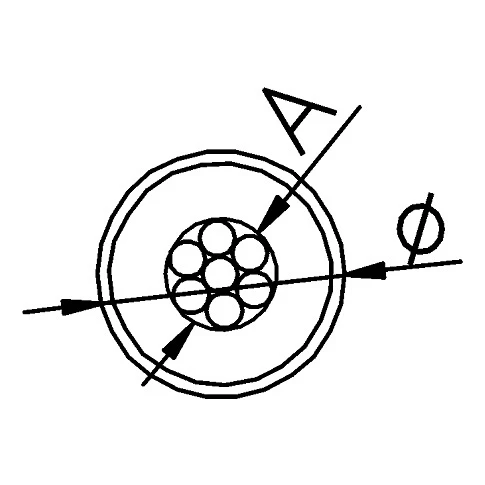

Cable construction comprises a stranded aluminium conductor with a cross-section of 50 mm², surrounded by a layer of cross-linked polyethylene insulation. The outer diameter is just 20.5 mm, making it easy to route the cable through confined spaces and secure it using standard cable clips.
Technical Specifications
- Conductor material: aluminium, cross-section 50 mm²
- Insulation: cross-linked polyethylene
- Outer diameter: 20.5 mm
- Isolation distance: 750 mm
- GTIN: 5906764387256
Cable cut to length – important information before you buy
This cable is sold by the metre: we cut it from the drum or coil to exactly the length stated in your order, so you only pay for what you actually need. A length cut to your specification is a made-to-order item and therefore cannot be returned – including under the right to cancel distance contracts. Before placing your order, please check the required length and cross-section carefully.
This does not affect your statutory rights: if the cable is faulty, or the length or cross-section delivered does not match your order, please let us know – we will handle your complaint under the general rules.
