Height-adjustable post base 80×80 mm, M24 thread – height 250 mm, galvanised
Leave feedback on the product
Height-adjustable post base, galvanised steel, silver. Base plate 80×80 mm, plate thickness 4 mm, M24 threaded rod 250 mm long. For timber posts on concrete foundations, suitable for outdoor use.
Product code: 002-481
Product features
[PIM] Łączniki #79
- Sheet metal thickness [mm] 4
- Connector Type Adjustable post base
- Material Steel
- Thread type M24
Description
Height-adjustable post base 80×80 mm, M24 thread – height 250 mm, galvanised
Height-adjustable post base 80×80 M24×250 is a galvanised steel connector designed for the precise seating of timber posts on concrete foundations. The long threaded rod allows smooth adjustment of the post height, making it easy to compensate for uneven ground without any additional machining of structural elements.

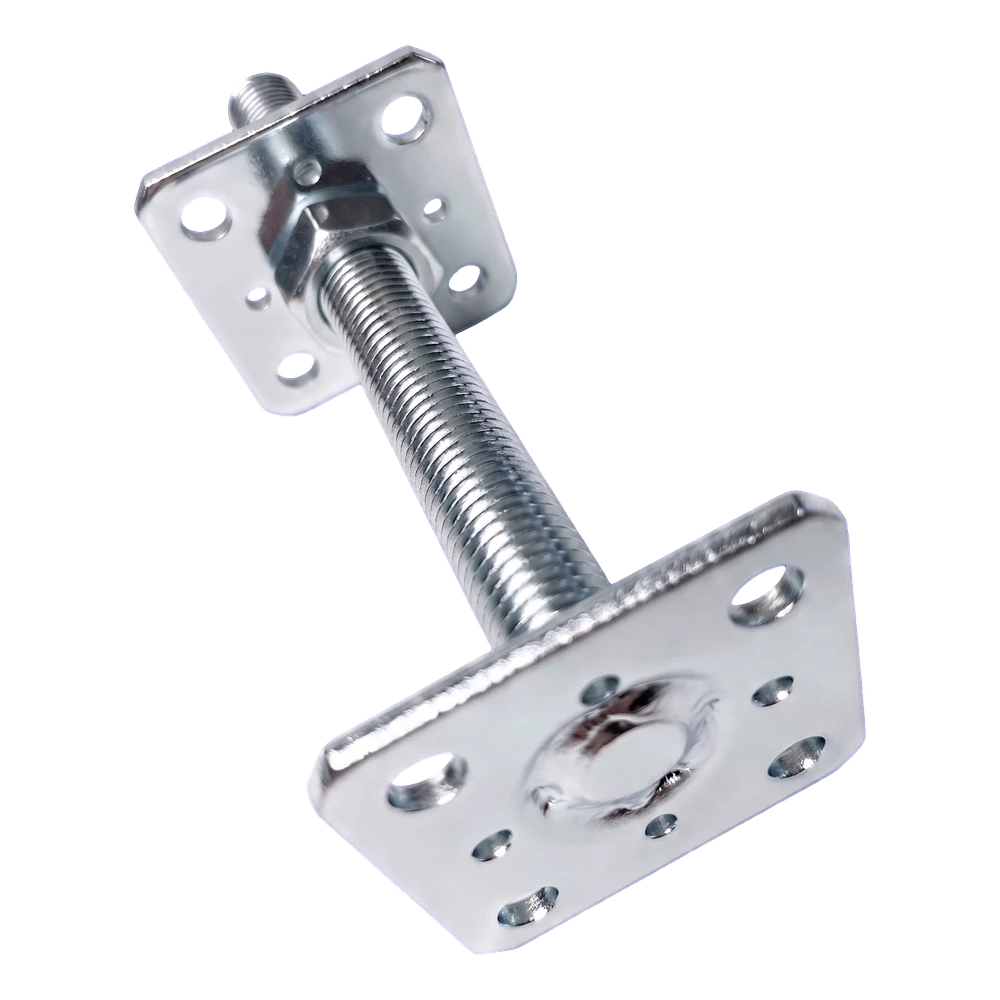

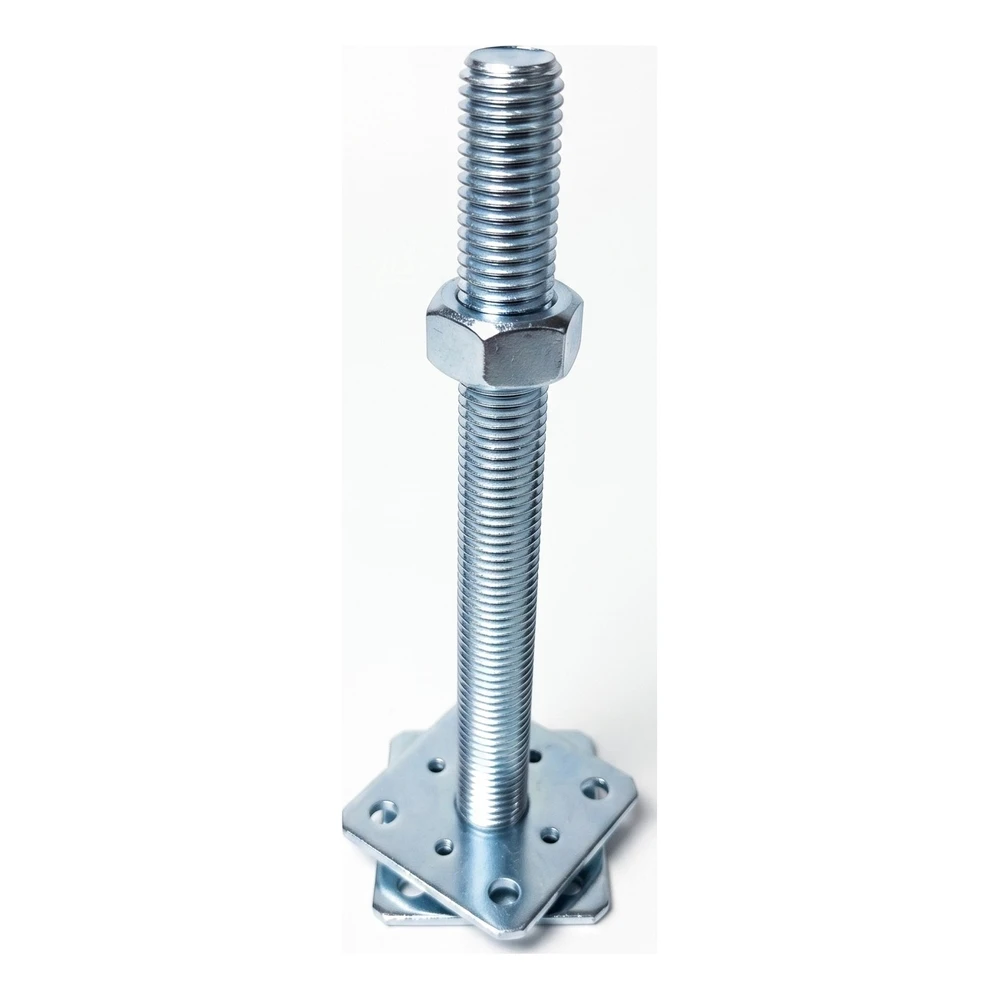

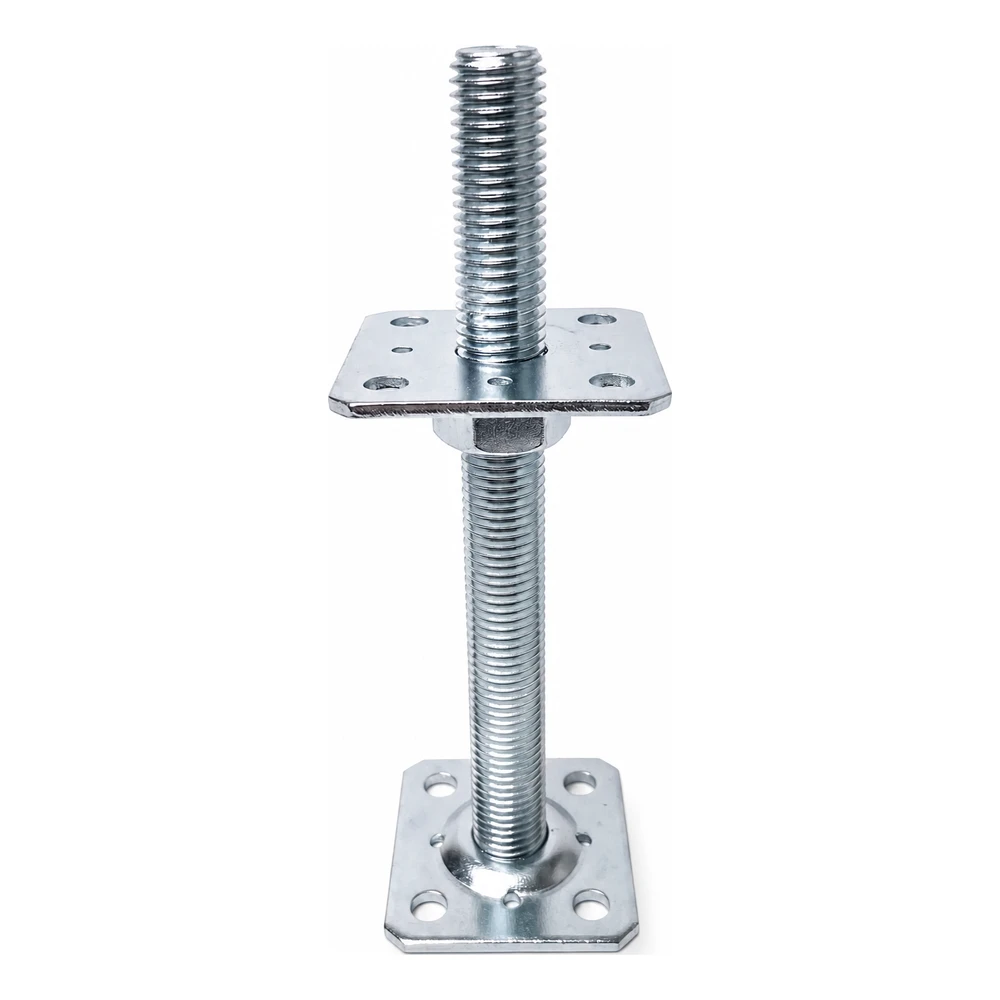

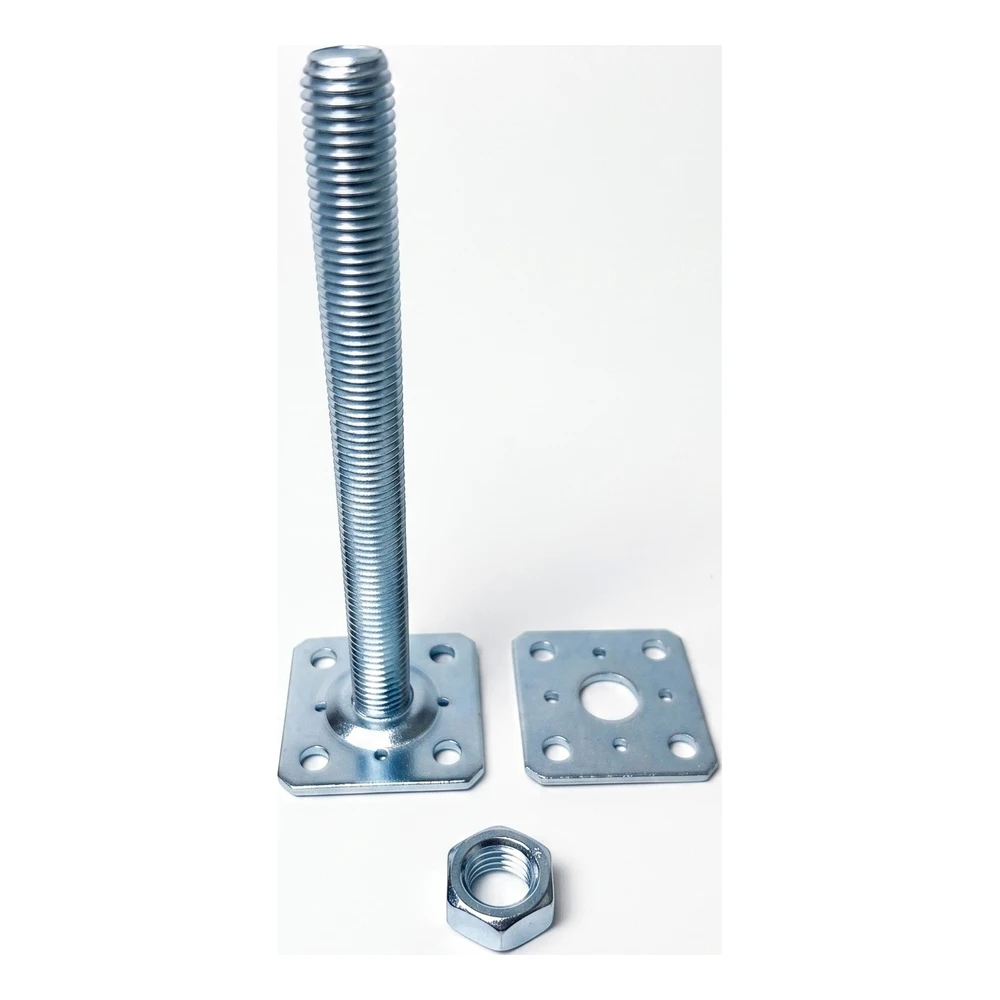

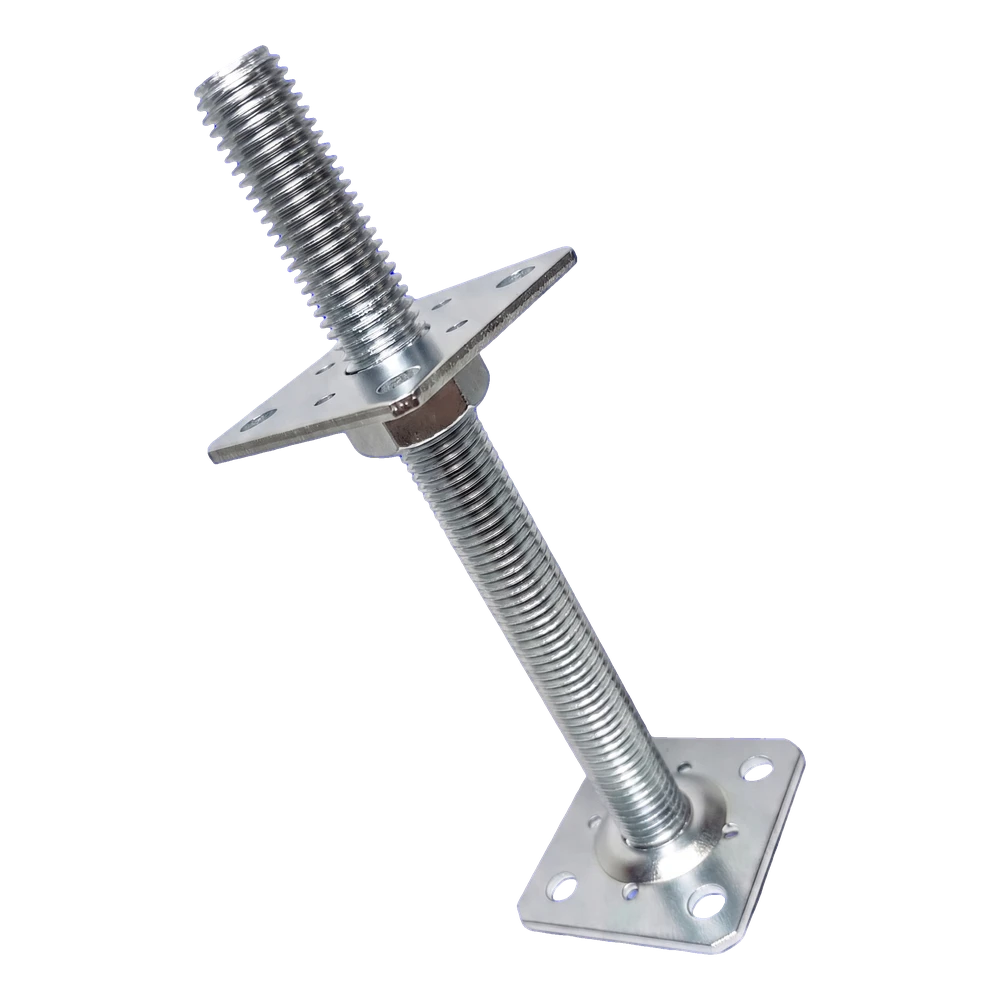

The post base consists of a threaded rod, two mounting plates and an adjustment nut. The lower plate anchors to the foundation, while the upper plate supports the post — this arrangement ensures a stable and repeatable fixing at every point of the structure.
The post base is made of galvanised steel, which protects it against corrosion and makes it suitable for outdoor conditions. The base plates have mounting holes for bolting to the substrate and to the post. The silver galvanic finish ensures a durable protective coating for years of service. The sales unit includes 1 piece of the post base complete with a nut — the item is ready to install straight after delivery.
Design features
- Smooth height adjustment — precise levelling of the post without carpentry work
- Corrosion protection — galvanic zinc coating for use outside buildings
- Compact plate size — designed for posts with a small cross-section
- Robust base plate — reliable transfer of loads from the structure to the foundation
- Mounting holes in both plates for anchoring with screws in concrete and timber
- Nut included — a ready-to-use set with no need to buy additional hardware
- Neat finish — the silver zinc coating looks clean and professional
Applications
- Timber posts for pergolas, carports and garden gazebos — the post base separates the timber from the concrete, eliminating contact with moisture
- Decking structures — the adjustment allows posts to be levelled on an uneven foundation
- Fences and timber gates — quick installation of repeatable post fixing points
- Canopies and photovoltaic shelters — precise positioning of load-bearing posts for the PV structure
- Light frame structures — post foundations in outbuildings and storage buildings
The post base is sold as a complete element, ready to install. Thanks to the standard metric thread, it is fully compatible with widely available nuts and washers, which makes it easy to replace them or to add extra securing of the connection. The compact plate dimensions make the post base particularly suitable for posts with a cross-section of 80 mm and above, where larger variants would be oversized.
