Height-adjustable post base 80×80 mm, M20 thread – height 500 mm, galvanised
Leave feedback on the product

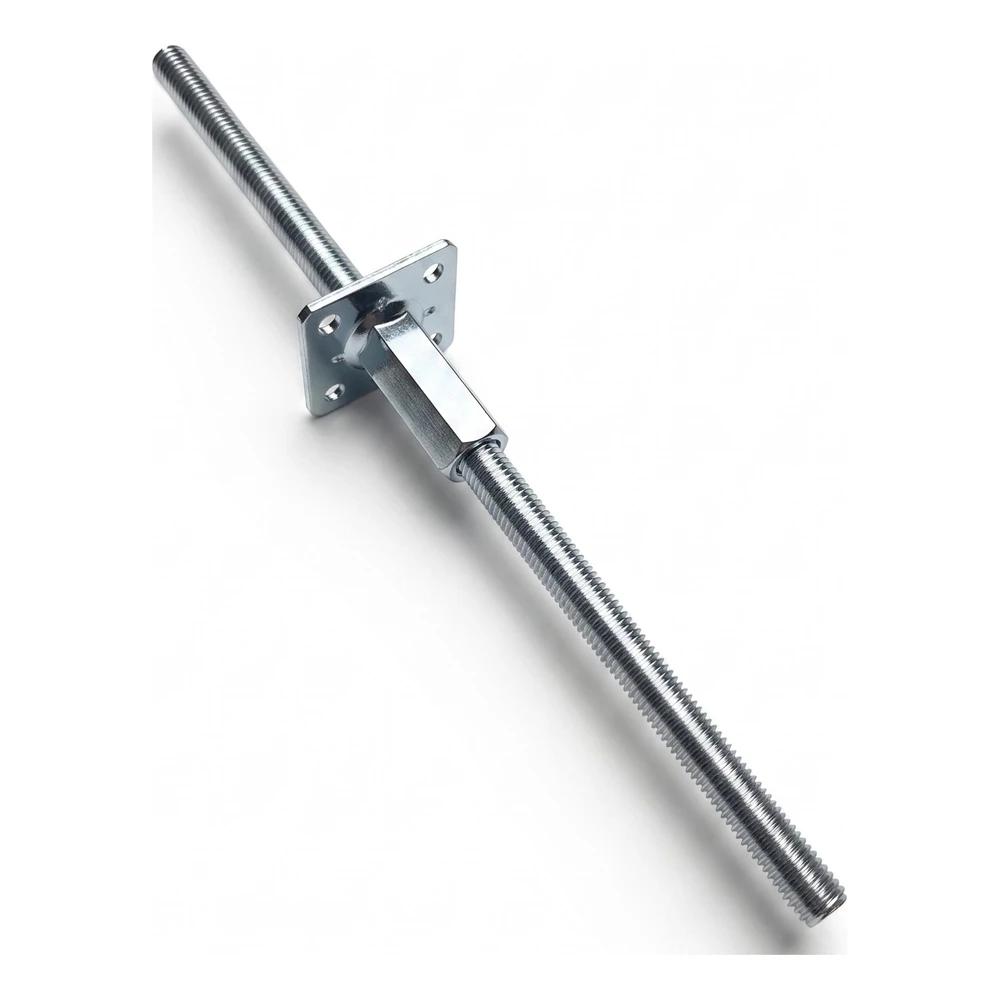

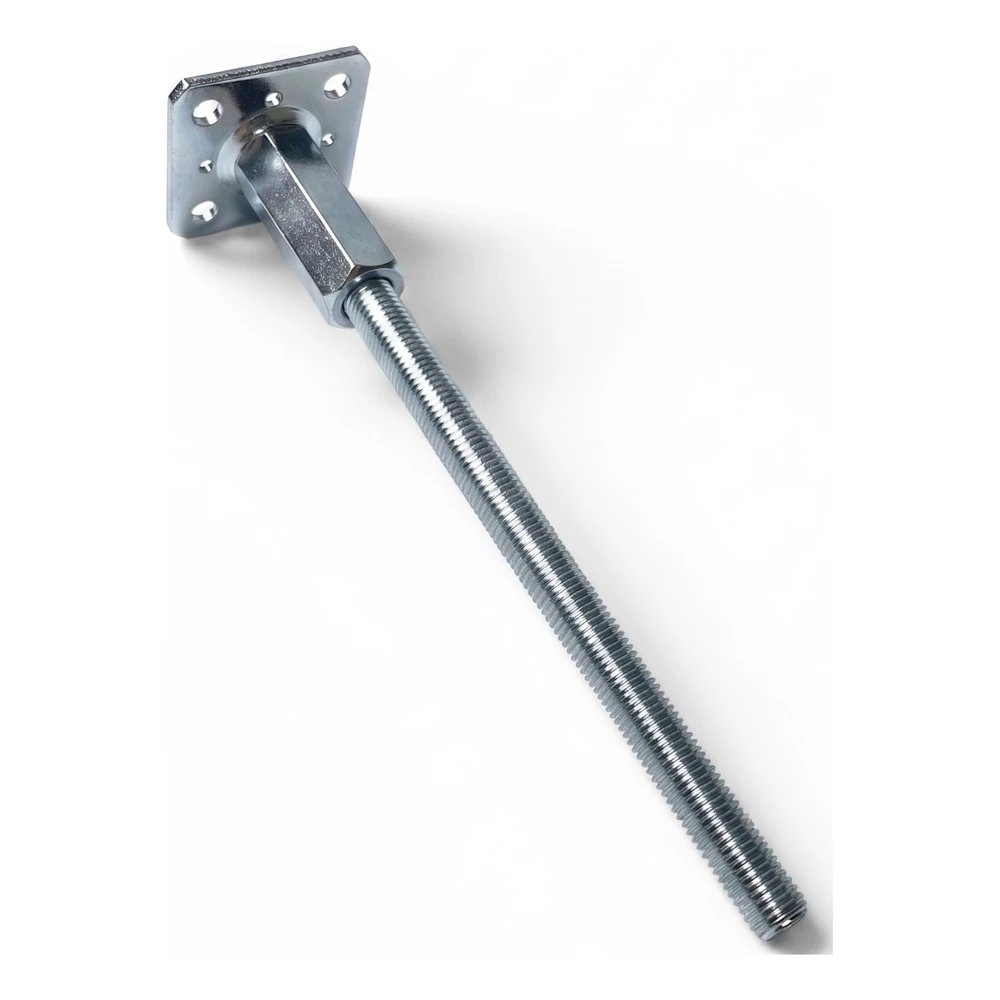

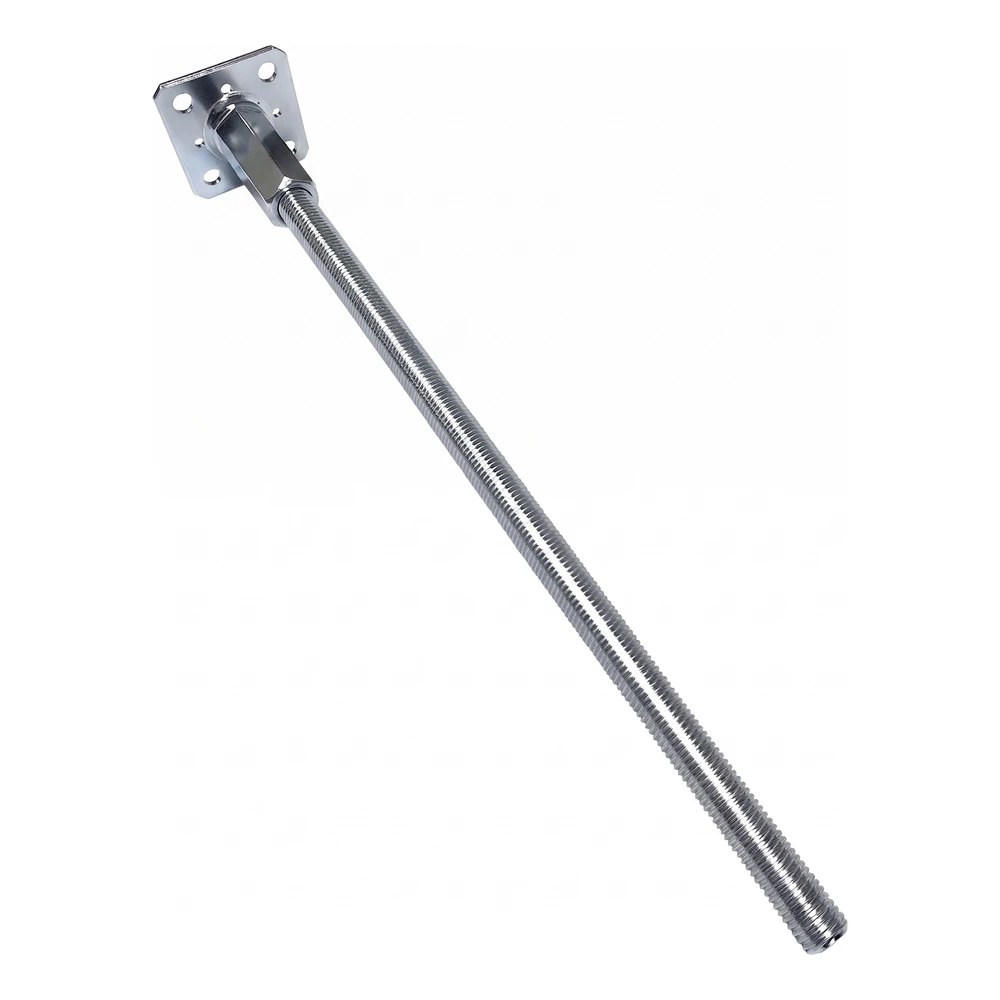

Adjustable post base made of galvanised steel, M20 thread. Base plate 80 x 80 mm, plate thickness 4 mm, height (spindle length) 500 mm. Weight 1.33 kg. Articulated spindle mounting, mounting holes in the plate. For timber and steel posts.
Product code: 002-484
Product features
[PIM] Łączniki #79
- Sheet metal thickness [mm] 4
- Connector Type Adjustable post base
- Material Steel
- Thread type M20
Description
Height-adjustable post base 80×80 mm, M20 thread – height 500 mm, galvanised
The M20 adjustable post bracket with a 80×80 mm base and a height of 500 mm is a durable structural connector designed for fixing timber and steel posts. Made of galvanised steel, it provides long-lasting corrosion resistance even in demanding weather conditions.

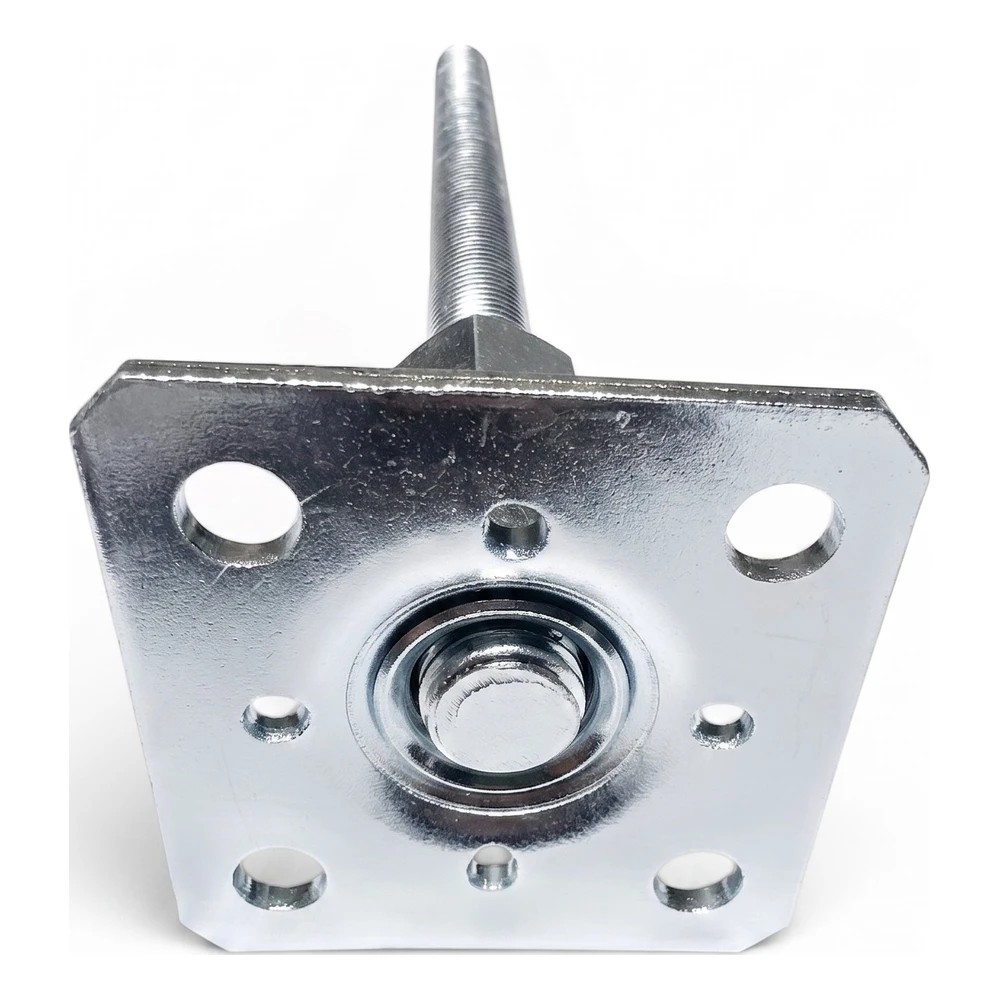

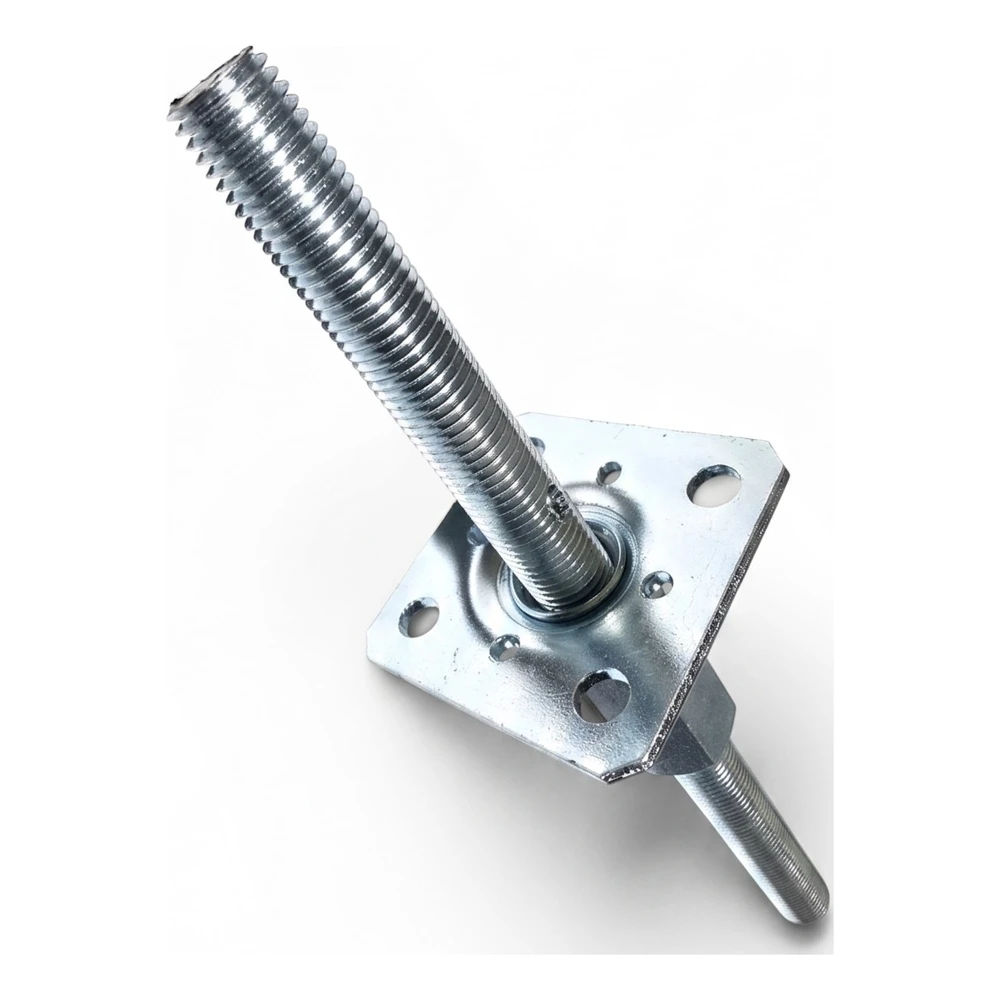

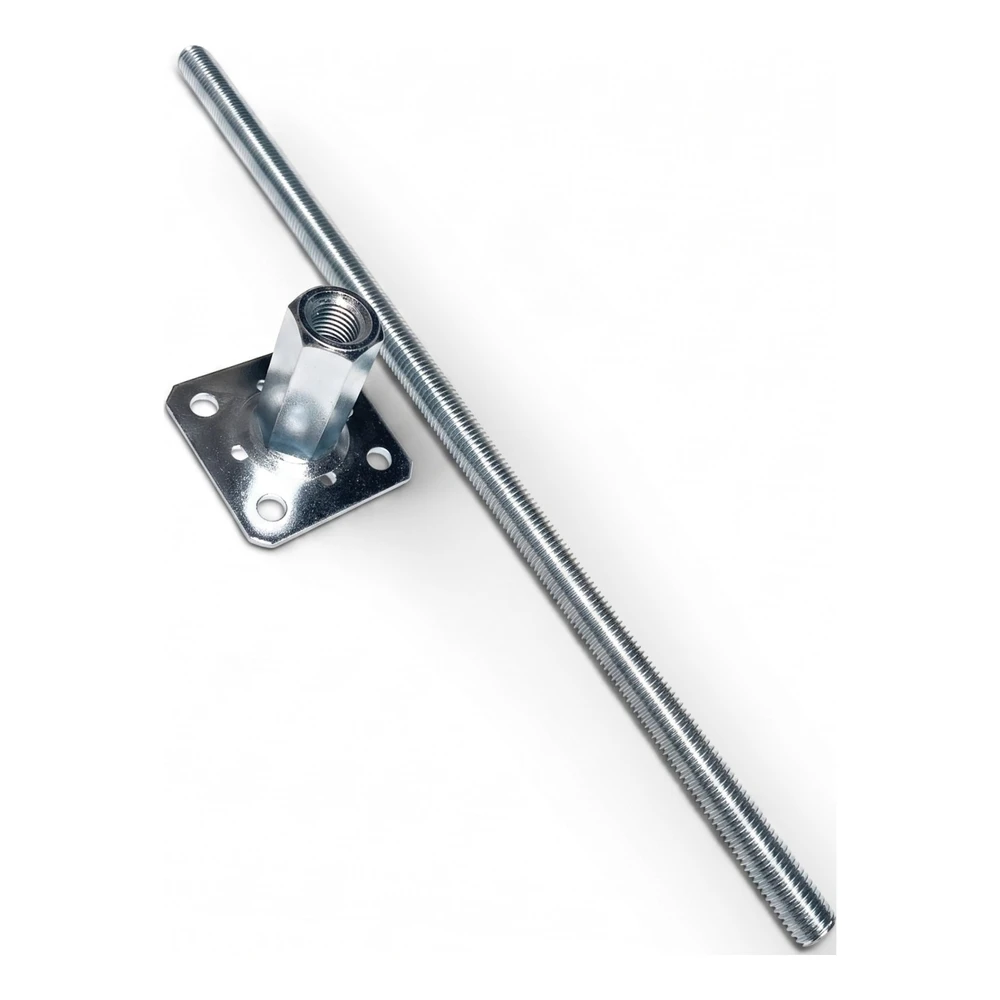

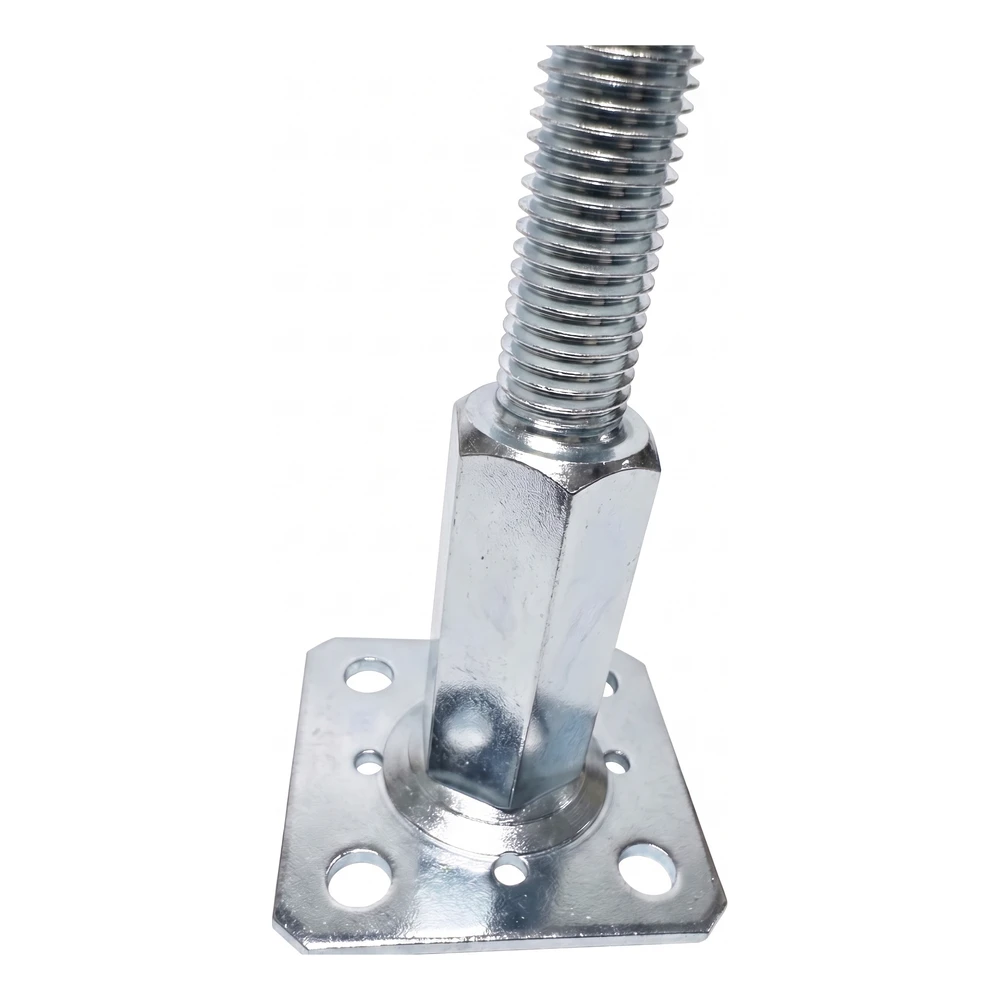

The bracket consists of a threaded rod mounted on an articulated joint in a steel base plate. The joint allows the angle of the spindle relative to the base to be adjusted, enabling precise plumbing of the post even on uneven ground. The plate has mounting holes positioned at the corners and along the axes, giving flexibility when anchoring to the foundation.
The galvanised protective coating covers the threaded spindle as well as the base plate and the joint, creating a uniform anti-corrosion barrier over the entire surface of the bracket. As a result, the component remains fully functional for years of outdoor use — in carports, pergolas, canopies, fences or as supports for photovoltaic structures. The thread along the entire length of the spindle allows smooth height adjustment of the post using standard nuts, which significantly speeds up installation and eliminates the need to cut components to size on site.
Design features
- Adjustable joint — plumb the post even on uneven ground
- Mounting holes at the corners and along the axes of the base plate
- Height adjustment using standard nuts
- Thread along the entire length of the spindle — complete freedom of positioning
Applications
- Timber posts — installing supports for carports, pergolas and garden gazebos
- Fences — anchoring fence posts to pad foundations
- Roof structures — setting load-bearing posts in concrete footings
- Photovoltaic structures — fixing posts of ground-mounted substructures
- Outbuildings — building garage shelters, log stores and storage canopies
The bracket is a compact component that is convenient to transport and to install at height. By ordering the exact number of pieces needed for your project, you reduce unnecessary stock.
