Hamburg elbow balustrade fitting 90° for welding 42.4×2 mm H48 – stainless steel AISI 304
0
Description

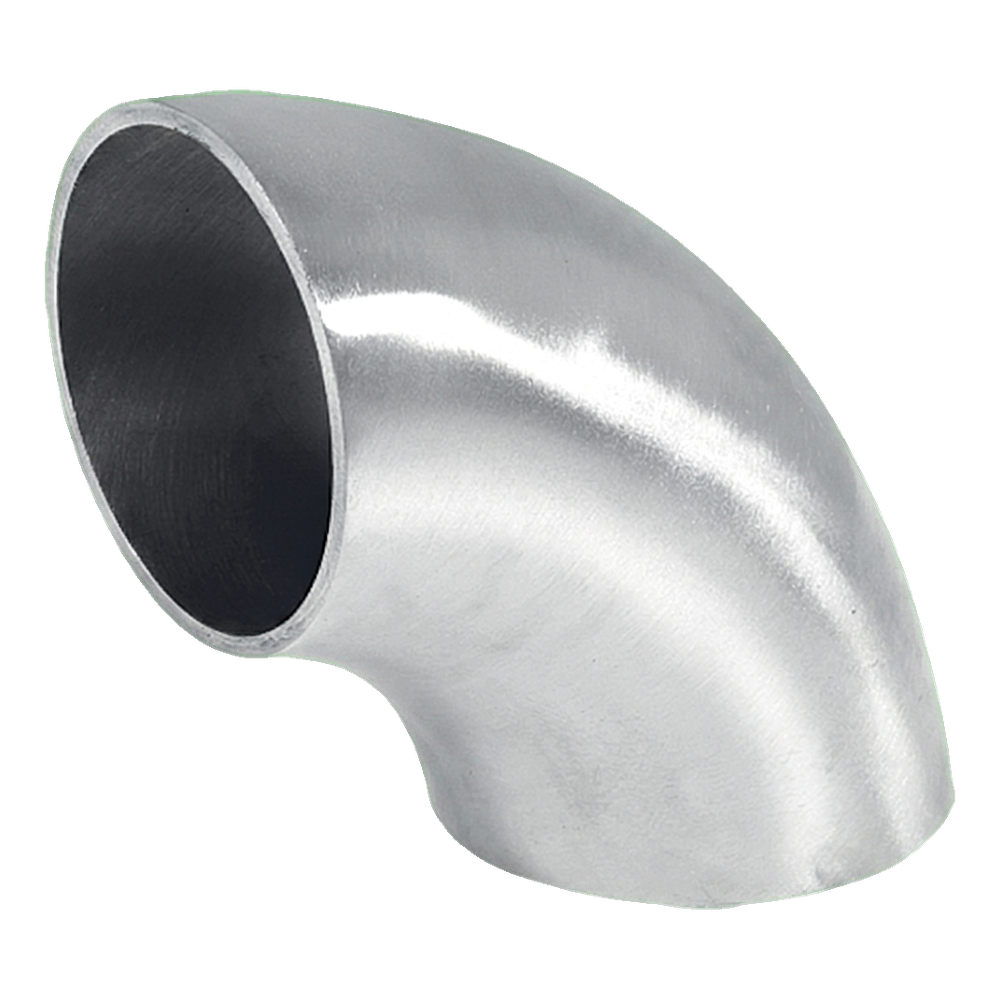

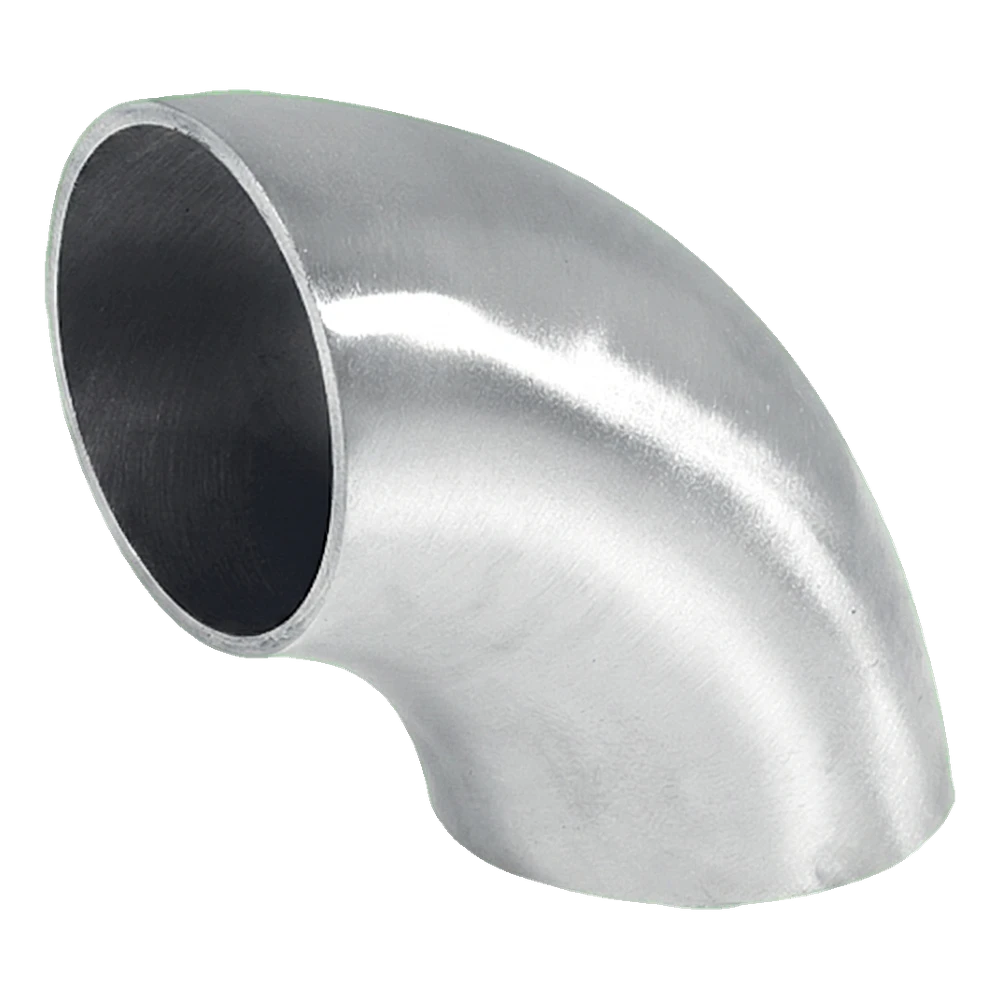

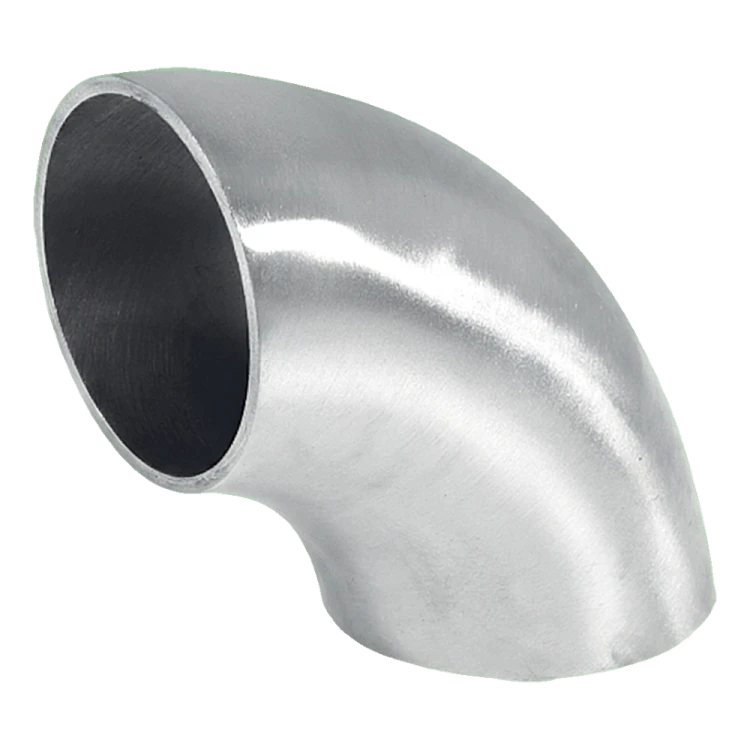

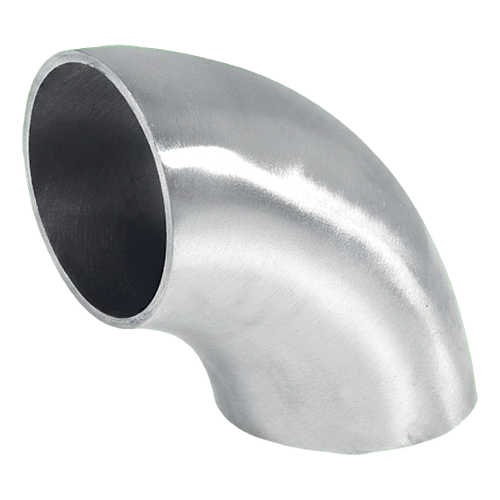

Hamburg elbow balustrade fitting 90° for welding 42.4×2 mm H48 – stainless steel AISI 304
Hamburg elbow 90° for welding is a professional connector designed for constructing stainless steel balustrades. The elbow allows for changing the direction of the handrail tube run at a 90-degree angle, providing an aesthetic and durable connection of structural elements. Made from AISI 304 steel with a raw finish — ready for welding into the balustrade structure.
The connector is dedicated to the 42.4 mm tube system, one of the most popular standards in the stainless steel balustrade industry. Thanks to precise manufacturing and fitting to the tube diameter, the elbow ensures tight and aesthetic welds after welding. The raw steel surface allows for further processing — grinding and polishing the weld zone — resulting in a uniform, professional final appearance.

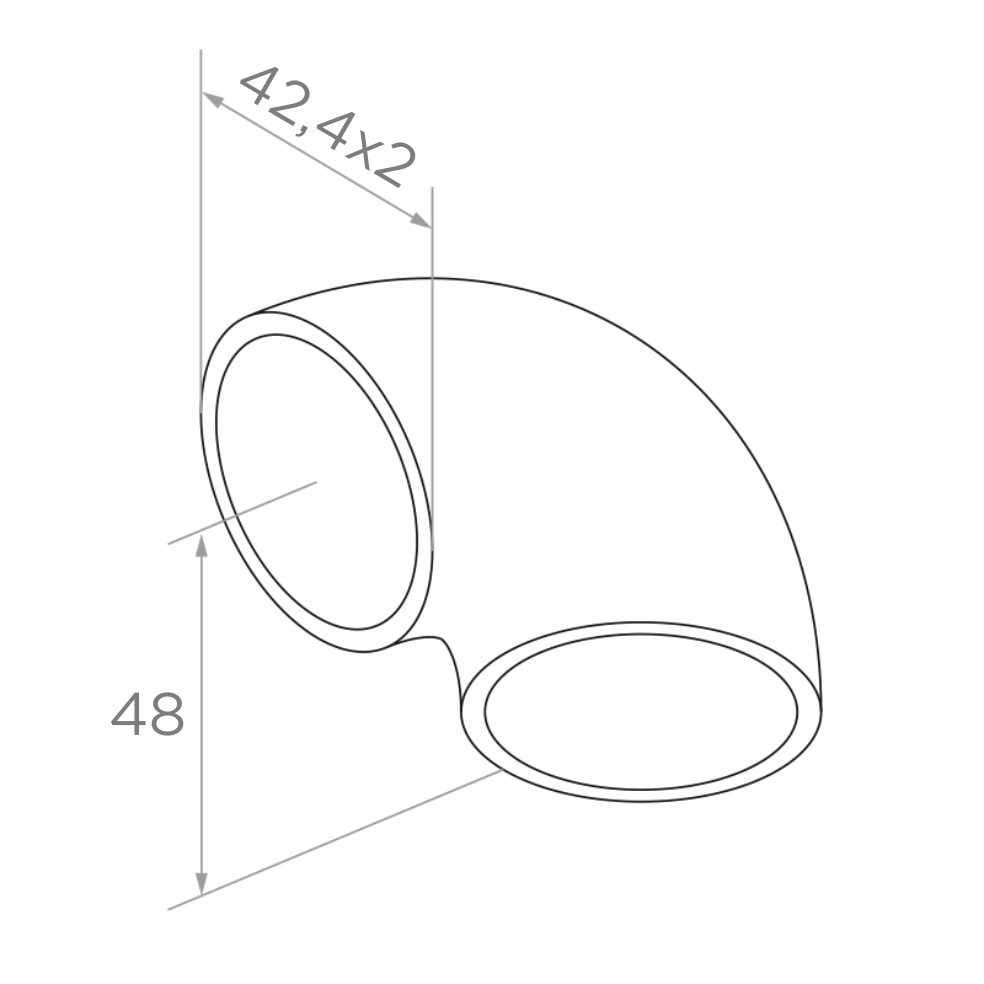

Dimensions and technical parameters
- Type: Hamburg elbow 90° for welding
- External tube diameter: 42.4 mm
- Wall thickness: 2 mm
- Height (H): 48 mm
- System: 42.4 mm
- Material: AISI 304 stainless steel
- Surface: raw
- Weight: 0.14 kg
- EAN: 5901289673006
Application and installation
The Hamburg elbow is designed for welding into stainless steel balustrade structures. It serves as a connector for elements with different directional runs — ideally suited for handrail turns, transitions between straight sections, and at the ends of stair runs. The connector is installed by TIG welding, which allows for achieving clean, durable, and aesthetic connections.
The product is available as part of a wider range of connectors for profiles of various shapes and diameters, allowing for complete sourcing of materials for stainless steel balustrade construction in a single order.
Technical data
| Material | AISI 304 |
| Finish | Satin |
| Mounting System | 42.4 mm |
