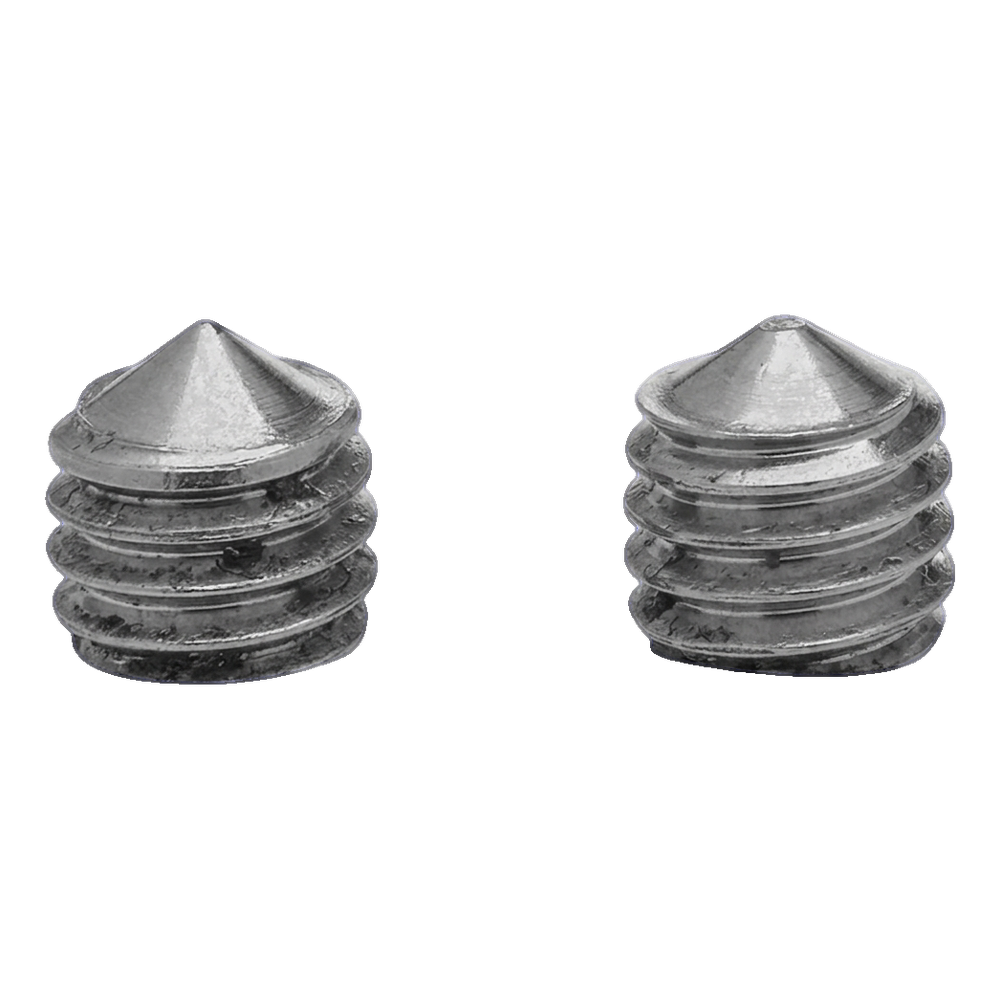

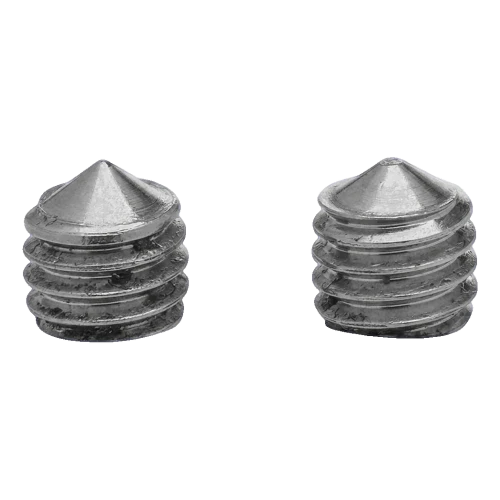

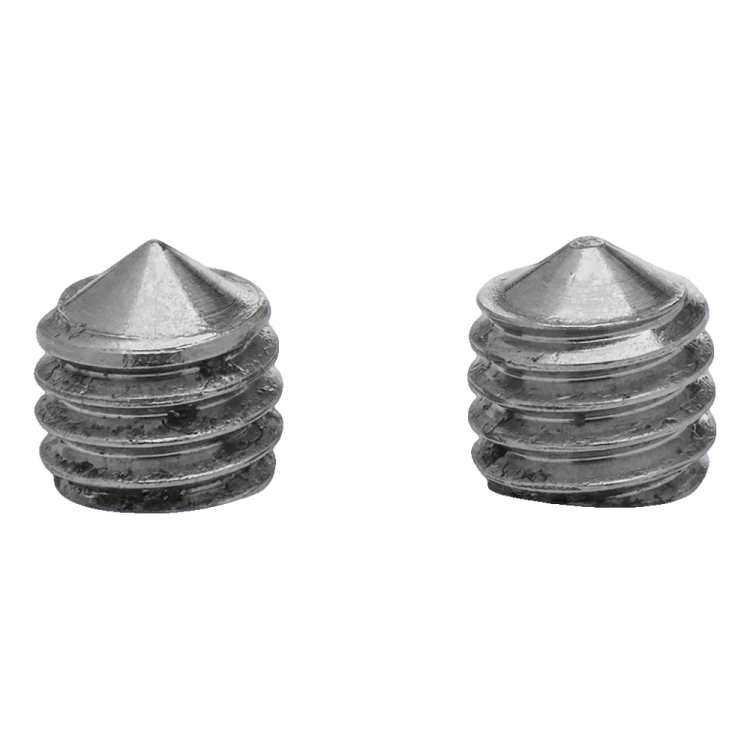

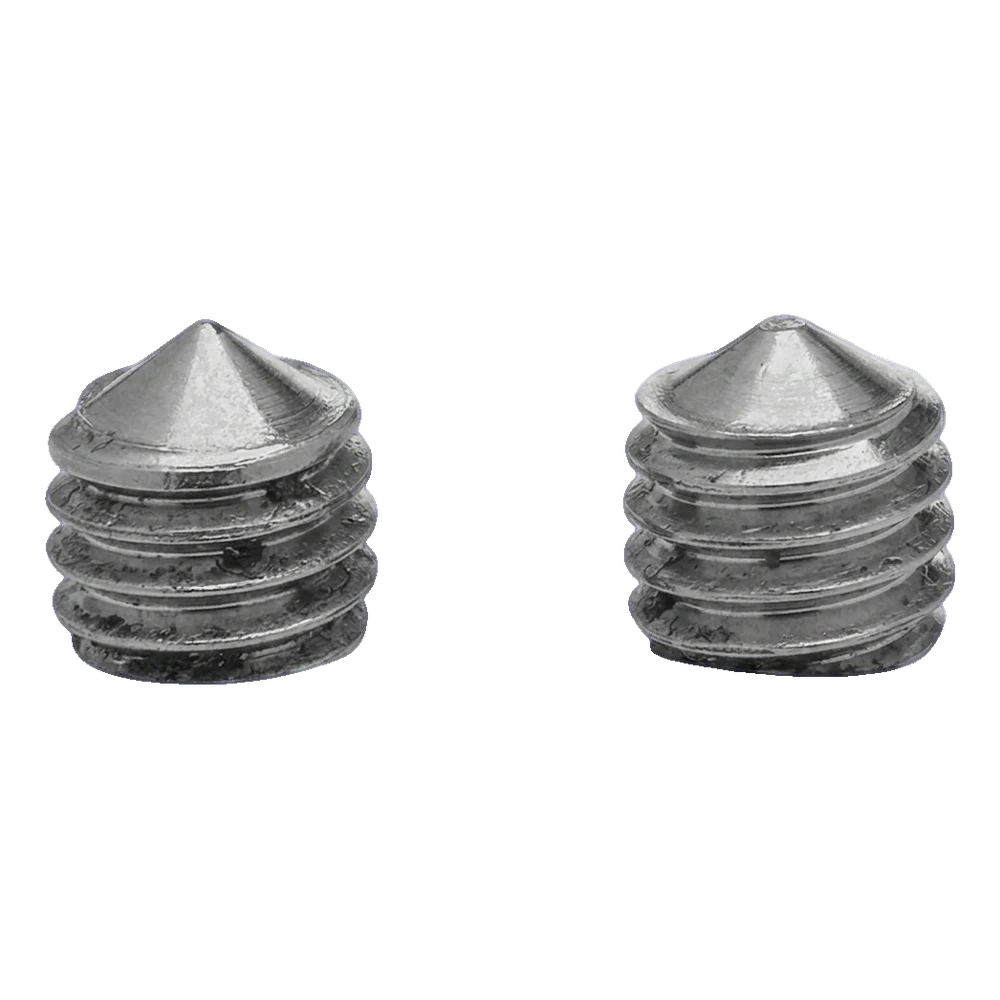

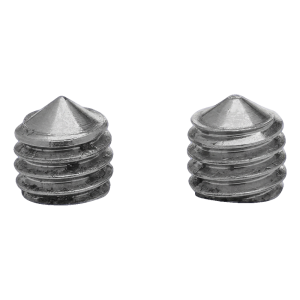

Grub screw with cone point M5×5 mm DIN 914 stainless steel A2
Description
Grub screw with cone point M5×5 mm DIN 914 stainless steel A2
Grub screw with cone point M5×5 DIN 914 is a precision mounting element made from stainless steel A2 (AISI 304), designed for applications requiring durable and corrosion-resistant clamping connections. The conical end of the screw ensures point contact with the surface, guaranteeing secure position setting of connected elements — particularly important when mounting balustrades, handrails and structural hardware made from stainless steel.
The hexagon socket (Allen key) allows for convenient and quick installation using a standard Allen key. The small dimensions of the screw allow for use in locations with limited mounting space, and execution in accordance with DIN 914 standard ensures full interchangeability and repeatability in installation series.
Technical specification
- Type: grub screw with cone point
- Thread: M5
- Length (L): 5 mm
- Socket: hexagon socket (Allen key)
- Standard: DIN 914
- Material: stainless steel A2 (AISI 304)
- Weight: 0.004 kg
Application
The DIN 914 grub screw finds wide application as a positioning and locking element in stainless steel constructions. It performs excellently in balustrade mounting, handles, pipe fittings and handrail elements. The conical end embeds into the component surface, creating a secure connection resistant to vibrations and oscillations. Stainless steel A2 guarantees corrosion resistance — both in internal applications and on the exterior of buildings.
Technical data
| Material | A2 - stainless steel |
| Thread type | M5 |
