Ground mounting ballast system GSE1300 6 pcs
Description

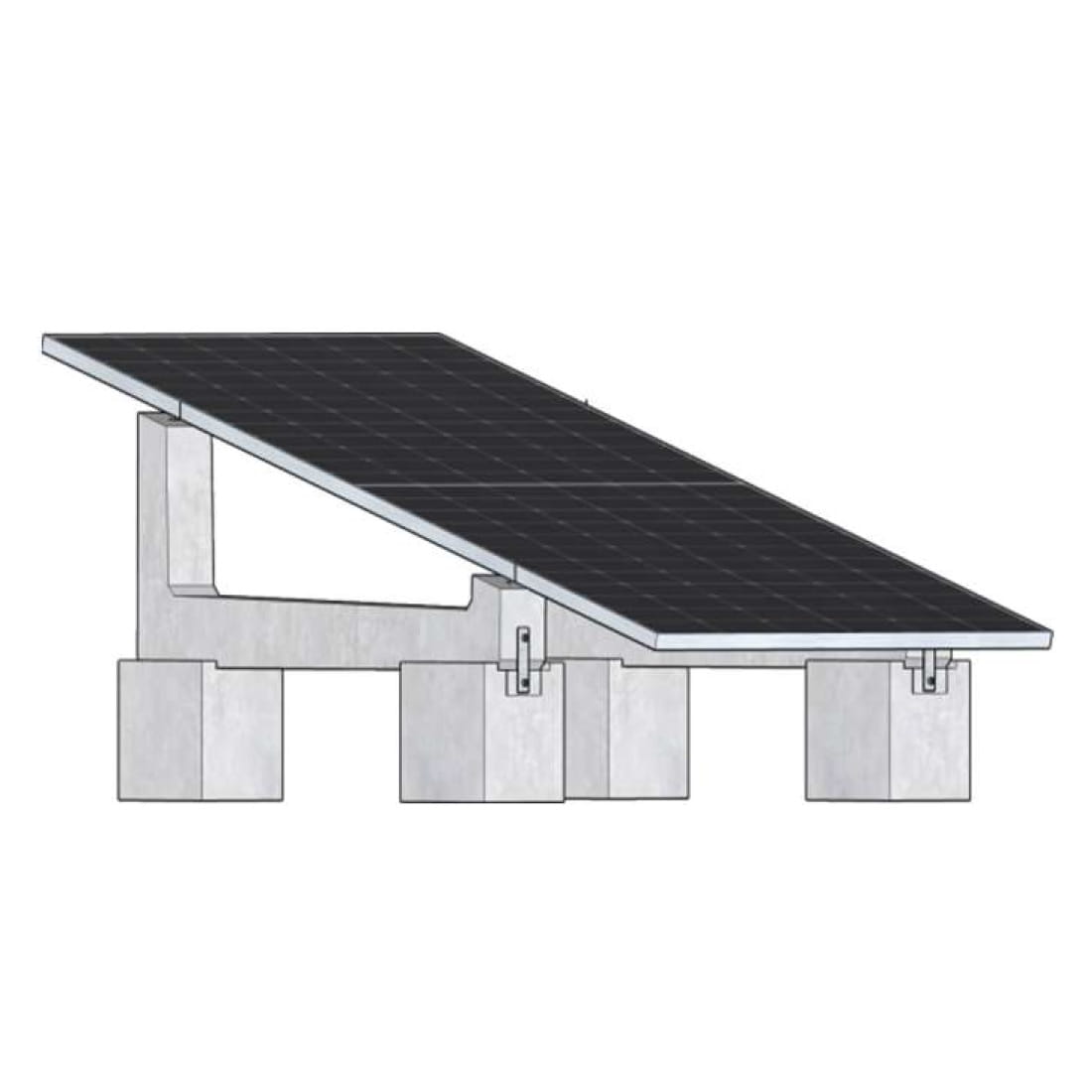

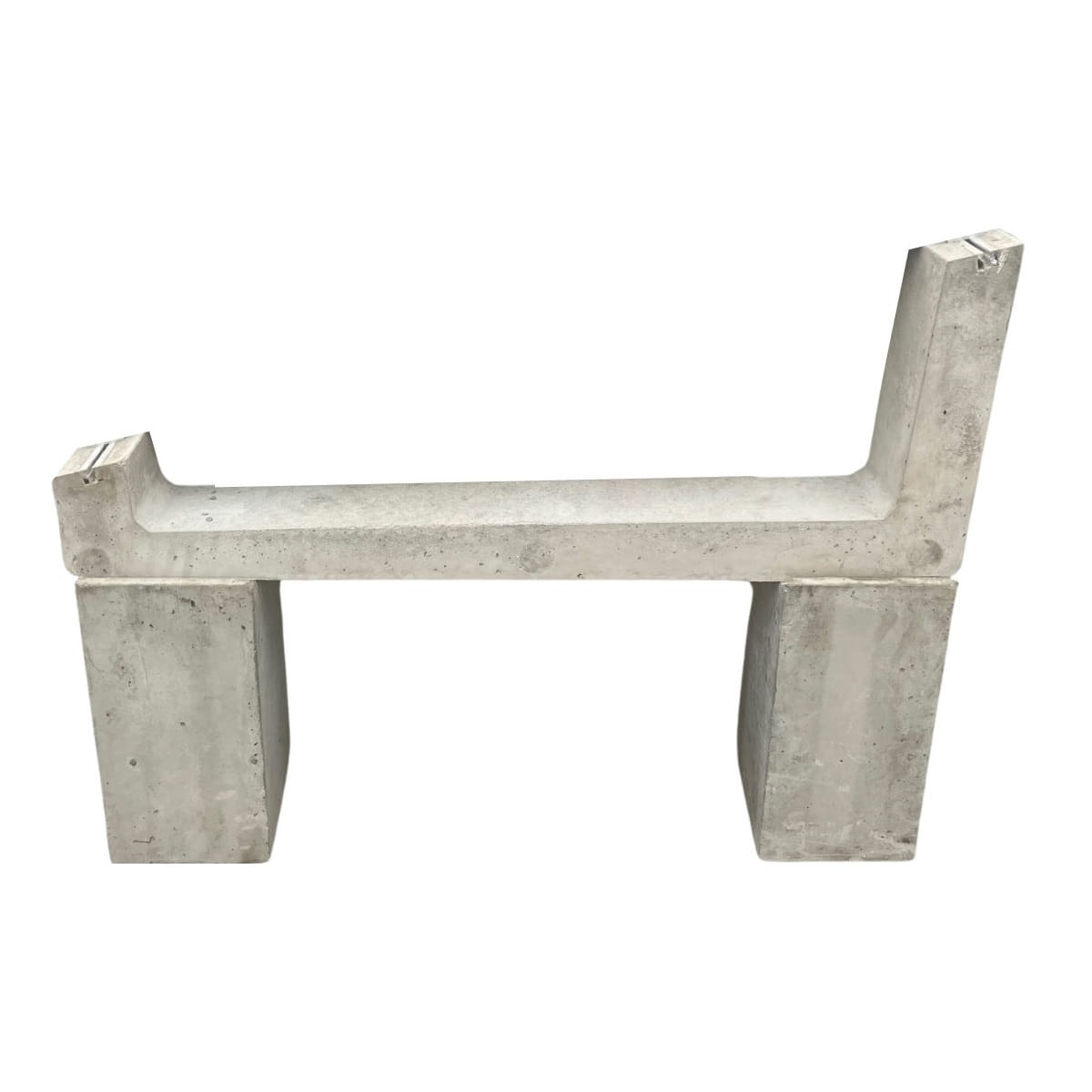

GPV-600-04 – Concrete Ballast Block for Ground-Mounted PV Systems
GPV-600-04 is a prefabricated concrete ballast block designed for ground-mounted photovoltaic panel installations. An ideal solution for installation companies undertaking projects on land where drilling is impossible or undesirable.
Installation without ground intervention – the ballast system uses the mass of concrete blocks as stabilising weight, eliminating the need for foundations or ground anchors. This makes installation faster, more cost-effective and fully reversible.
Why choose a ballast system? GPV-600-04 blocks are particularly recommended for sites with challenging ground conditions, areas with risk of collision with underground infrastructure, and projects requiring the possibility of easy relocation of the installation in the future.
Key product features
- C40/50 grade concrete: high strength and durability for years to come
- No drilling required: installation on any type of ground
- Quick assembly: minimal number of bolted connections
- Aesthetics: elegant, raw concrete blending with surroundings
- Mobility: possibility of dismantling and relocating the installation

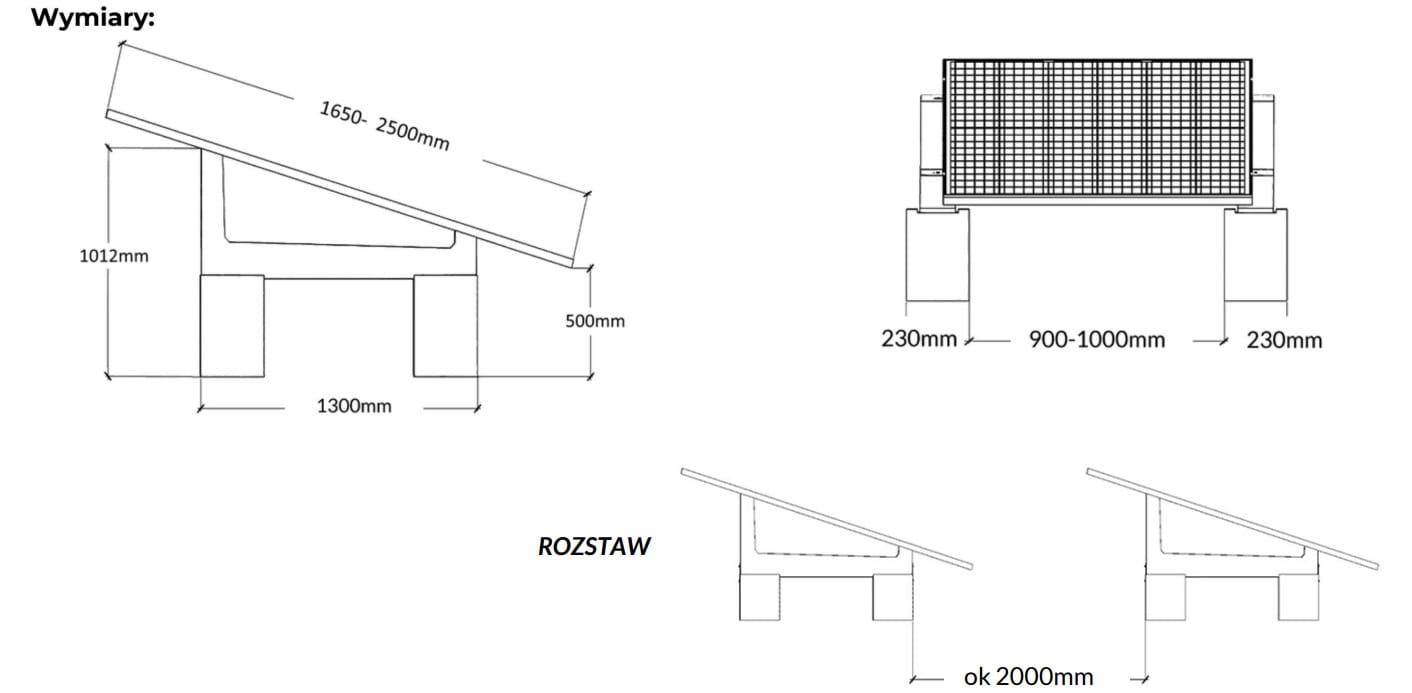

Dimensions and spacing
- Base width: 1300 mm
- Block height: 1012 mm
- Panel span: 1650–2500 mm
- Spacing between blocks: 900–1000 mm
- Spacing between rows: approx. 2000 mm
Practical application

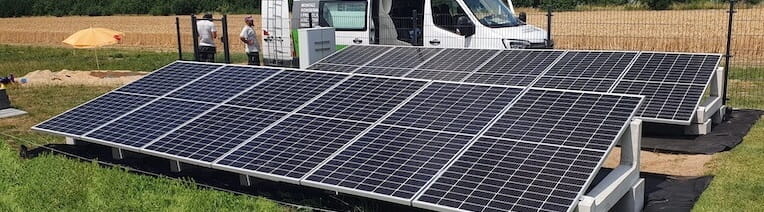

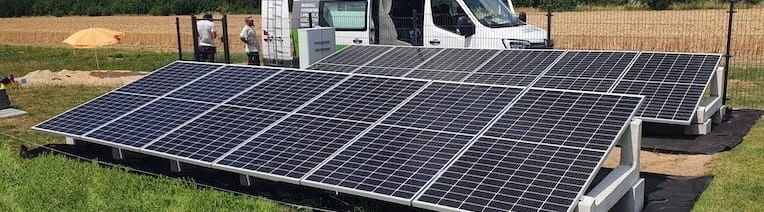

GPV-600-04 blocks enable the mounting of photovoltaic panels in a vertical arrangement at an optimal angle. The system is compatible with standard mounting profiles, allowing flexible adaptation to different types and sizes of PV modules.
Advantages for installers
- Time savings: no groundworks or foundation work required
- Lower costs: elimination of drilling and on-site concreting expenses
- Reliability: factory-made concrete with guaranteed parameters
- Minimal maintenance: virtually maintenance-free system
Note: product delivered on a pallet. Due to the weight of the elements, mechanical unloading equipment is required (forklift, crane truck).
