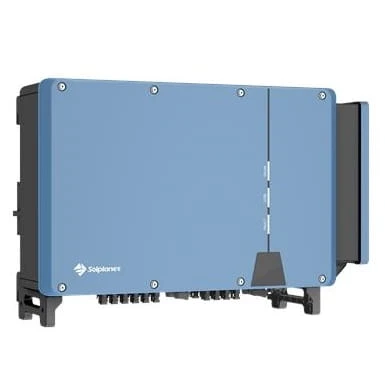

  • Grid-tied PV inverter Solplanet ASW LT 100K-LT 3F 100KW 10MPPT GPV-400-75

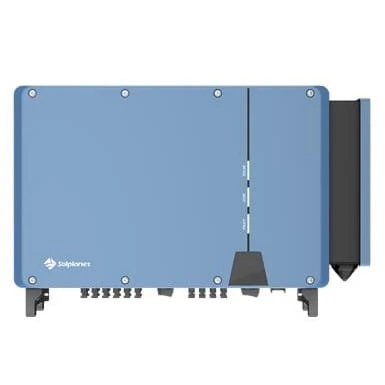

  • Grid-tied PV inverter Solplanet ASW LT 100K-LT 3F 100KW 10MPPT GPV-400-75 (2)
SOLPLANET

Grid-Tie Inverter Solplanet 100kW 3-Phase 10MPPT PV

Go to Product feedback

3-phase 100kW grid-tied inverter with 10 MPPT inputs for photovoltaic installations. Maximum PV power 150kWp, efficiency 98.6%, MPPT voltage range 200-1000V. Equipped with WiFi and RS485 interface, Type II surge protection and online monitoring system.

Go to full description
with VAT without VAT
Price €4,085.80
incl. 23% VAT
pcs.
Availability:
In stock (large quantity)
Shipping time: 10 Business days

Product features

Main parameters

  • Type On-grid
  • Power > 20 kW
  • Number of phases Three-phase
  • Number of MPPT > 2 MPPT
  • WiFi Yes
  • DC switch Yes

Description

Solplanet Grid-Tied PV Inverter 100kW 3-Phase 10MPPT

The Solplanet ASW LT 100K-LT 3F 100KW 10MPPT grid-tied PV inverter is an advanced tool for converting solar energy from photovoltaic panels into electrical energy with a maximum power output of 100 kW.

It is an excellent option for installations with higher solar energy requirements. Thanks to its advanced features, such as WiFi interface and online monitoring capability, it enables constant control and optimisation of system performance. Additionally, its resistance to weather conditions makes it an ideal solution for outdoor photovoltaic installations.

Input (DC)

ParameterValue
Maximum PV panel power150000 Wp STC
Maximum input voltage1100 V
MPPT voltage range / Nominal input voltage200V to 1000 V / 630 V
Minimum input voltage200 V
Start-up input voltage250 V
Maximum input operating current32 A
Maximum short-circuit current48 A
Number of MPPT inputs / PV module strings per MPPT input10/2

Output (AC)

ParameterValue
Rated power100000 W
Maximum AC apparent power110000 VA2
Rated AC voltage220 V / 380 V | 230 V / 400 V
AC voltage range180 V to 305 V / 312 V to 528 V
AC grid frequency / Frequency range50 Hz / 45 Hz to 55 Hz | 60 Hz / 55 Hz to 65 Hz
Rated AC output current144.3 A
Maximum output current158.8 A
Adjustable power factor0.8 leading to 0.8 lagging
Number of supply phases3 / 3-N-PE
Total harmonic distortion (THD) at rated output power<3%

Efficiency and Protection

ParameterValue
Maximum efficiency / European efficiency98.6 % / 98.4 %
DC disconnectStandard features
Ground fault detection / Grid monitoringStandard features
DC reverse polarity protection / AC short-circuit protectionStandard features
Multi-pole residual current monitoringStandard features
DC surge protectionType II
AC surge protectionType II
All-pole sensitive residual current monitoring unitStandard features
Anti-islanding protectionStandard features
Protection class (according to IEC 62109-1) / overvoltage category (according to IEC 62109-1)1 / AC: III; DC: ll

Features

ParameterValue
DC connectorPhoenix Contact
AC connectorOT/DT Terminal (Max. 240 mm2)
Mounting methodWall bracket
LED indicators (status / fault / communication)Standard features
Communication interfaceWi-Fi / RS485
Certifications and approvals (more available on request)CE, IEC 62109-1/2, IEC 61727, IEC 62116
