Gravel board bracket 200×55 mm green
Leave feedback on the product
Gravel board bracket connector for fence gravel boards, 200×55 mm, green RAL 6005. Galvanised steel with powder coating. Sheet thickness 1.5 mm. 2 mounting holes, 6×12 mm slotted. Locking rod Ø 6 mm. For fence posts.
Product code: GPV-700-23
Product features
[PIM] ceownik-do-podmurowki #165
- Colour Green RAL 6005
- C-channel dimension [mm] 200x55
Description
Gravel board bracket with a length of 200 mm and an internal width of 57 mm – connects a 200 × 55 mm gravel board to a fence post
About the product

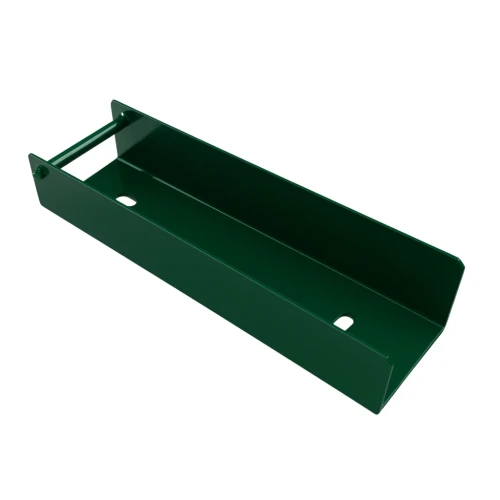

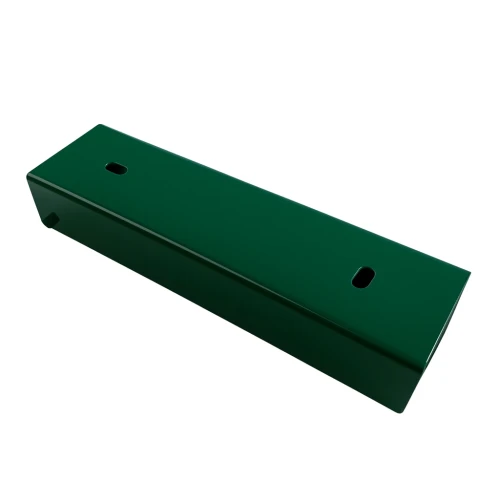

The gravel board bracket connects a concrete gravel board to a fence post. It is fastened to the post, and the end of the board slides between the bracket's flanges.

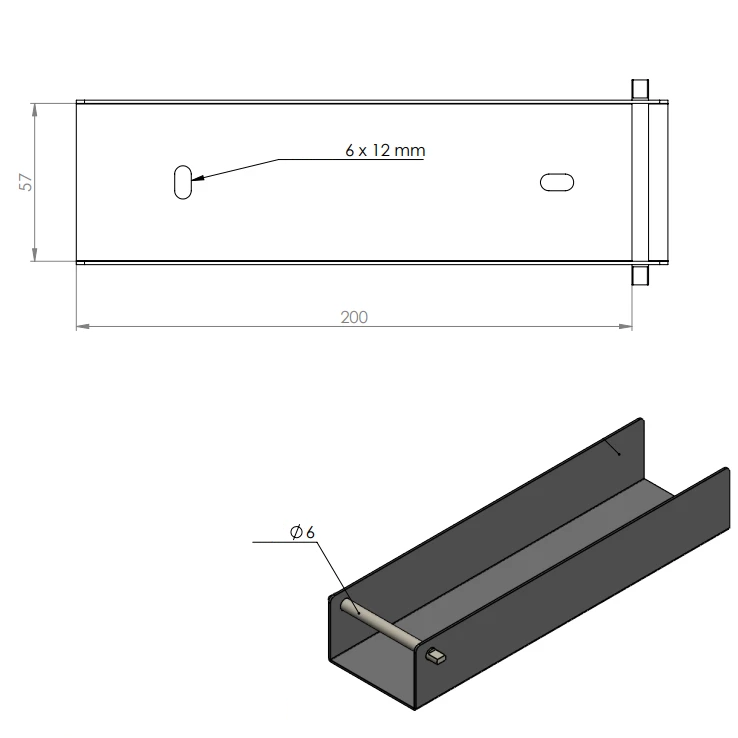

Length L is 200 mm and corresponds to the height of the 200 × 55 mm gravel board. Internal width w is 57 mm. The flange depth, holes and spacer bar shown in the drawing are indicative.
The coating (zinc-coated and powder-coated, green RAL 6005) protects the steel against corrosion under typical conditions; in the event of contact with salt or chemicals, choose a version suitable for the exposure conditions.
Selection and installation
- ✓Check the gravel board dimensions – the bracket is designed for 200 × 55 mm boards.
- ✓Fasten the bracket to the post through the 2 mounting holes, with the web against the post.
- ✓Slide the end of the gravel board into the bracket; where two boards meet at a post, use a bracket on each side.
Important
The product listing data does not specify the bracket's load-bearing capacity. Choose screws or bolts suitable for the post wall.
Files to download
C-piece 200x55.PDF
100.52 kB
C-piece 200x55
